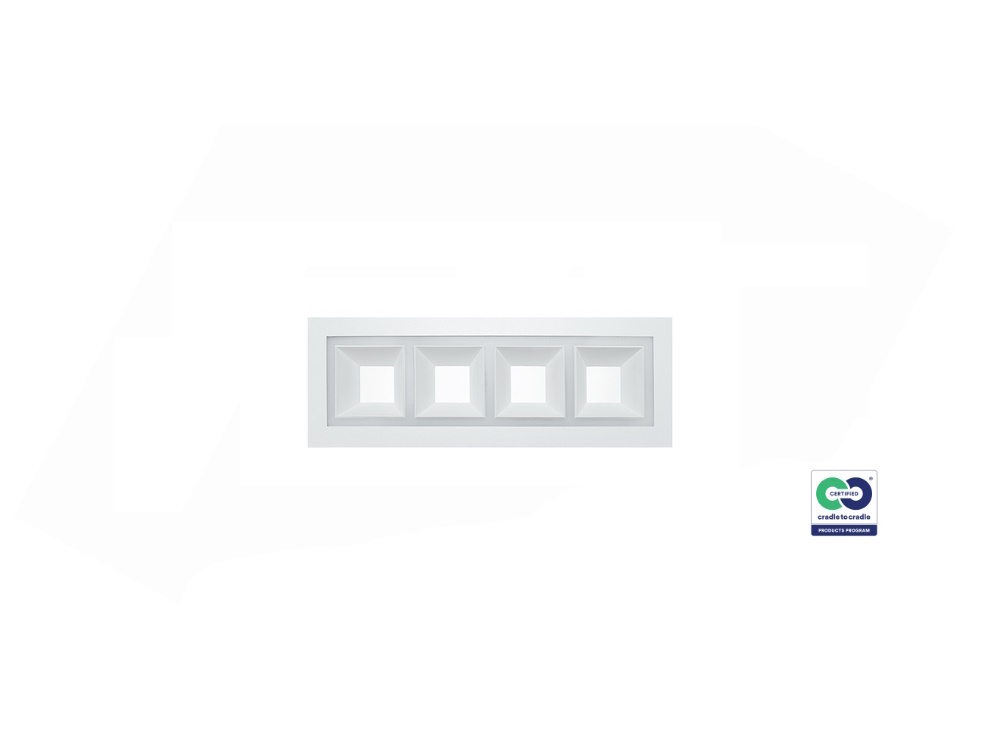

OmniPOD Vitality Downlight
This Cradle-to-Cradle® certified linear downlight shares the same visual and functional design details with the OmniPOD Linear Vitality, expanding the family to create a complete indoor lighting solution.
Optional: Enter your details for the document header
OmniPOD Vitality Downlight
OmniPod Vitality Downlight captures the full capability of digital light source LED technology to deliver revolutionary performance and adaptability for all commercial lighting projects.
OmniPod Vitality Downlight is ideal for downlight applications or as a supporting luminaire to complement the OmniPod Vitality Linear range where the design intent is to retain the same aesthetic and matching functionality.
Encompassing a range of new technology and innovative design features, OmniPod Vitality Downlight is characterised by primary source LED clusters in each optical POD surrounded by a diffusing layer for infill illumination.
Recess depth in the ceiling cavity is contained to 50mm without compromising glare limitation capability.
Designed with the biological impact of light and wellness in mind OmniPod Vitality Downlight is the solution breakthrough for the creation of enhanced visual environments in commercial spaces expanding the family to create a complete indoor lighting solution.
The key feature of OmniPod Vitality Downlight is the individual light centre PODs each containing a cluster of LED chips behind a microprism diffusing layer. The combined geometric structure of each POD and diffusing layer delivers functional task light for the space while controlling glare without compromising spacing ratios in the ceiling grid. The infill light provided from the surrounding diffuser panel provides the vital biological balance of infill vertical illumination.
Flexibility and choice of configuration are features of OmniPod Vitality Downlight.
Available in fixed CCT versions and tuneable white DUO1 function modes, OmniPod Vitality Downlight can be controlled by either remote Organic Response Technology SN3, DALI DT8 or CASAMBI wireless.
All DALI versions of OmniPod Vitality Downlight are enabled with Constant Light Output (CLO) capability as standard for lifetime enhanced energy conservation.
VARIATION SUFFIX Standard -000 DALI + Constant Light Output (CLO) -244 Wireless dimmable (Casambi) -249 Organic Response SN3 + Constant Light Output (CLO) -974
TUNEABLE WHITE (DUO1)
The creative freedom offered by LED technology has been fully embraced in the unique design of OmniPod Vitality Downlight.
The PODs and the peripheral diffuse component can both be tuneable, providing freedom of design along with the capability of implementing personalised lighting profiles.
Tuneable white with control options based on DALI DT8, ORT SN3 or CASAMBI wireless are available via mobile devices, DALI controller or e-TouchPanel.
Please speak to your customer service representative for more details.
Quality of light is an inherent element of wellness, productivity, vitality, creativity and satisfaction in any workplace. The increased vertical and enhanced task illumination along with the visual interest created by OmniPod Vitality Downlight ensures the lighting environment created will support and enhance the experience for people occupying a space.
The choice of operating mode and control interface flexibility allows for customisation of zones or individualised settings in support of WELL design requirements.
Easy to install and available for recessing in T-Bar ceiling panels or plaster configurations, OmniPod Vitality Downlight is designed for individual grid array spacings.
At 50mm recess depth, OmniPod Vitality Downlight does not conflict with limited ceiling depth concerns.
- Plaster recessed via spring clips (no tools required)
- Restraint kit available
- Designed for Plaster Recessed or Ceiling Tiles
Not suitable for air handling
- Emergency version available on request.
Key Family Details
Optical System:Hybrid diffuser pods (Black or White)
Colour Consistency Initial:3 SDCM
Finish Options:Black or White
System Warranty:5 years
COI Compliant:Yes (White PODs version only)
Circadian Stimulus CS [%] (*):13
Circadian Light Cla [lux] (*):93
(*):CS and Cla values are calculated for 150lux photopic corneal illumination and provided as a guide only.
EL-OMNDV-2100, -2101-244L: 336mm; W: 120mm; H: 50mm; Weight: 1.0kg
EL-OMNDV-2100 …-2101-974L: 375mm; W: 120mm; H: 50mm; Weight: 1.2kg
CL: Recessing length320mm; 360mm
CW: Recessing width/diameter100mm
Nominal polar Curve 340x120 940 - Fixed CCT (white pods)
