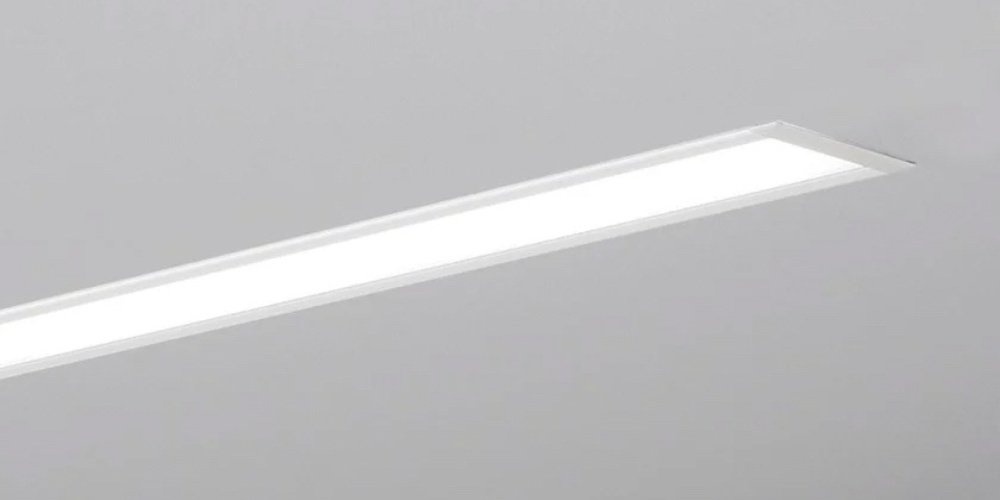

ELLE Recessed - Opal

Recessed version of our modular linear lighting system - designed, tested and manufactured in Melbourne. With Opal diffuser.

ELLE Recessed - Opal

General Information
General Information

Date Updated: 24 January 2025

APPLICATION

Thanks to its design and customisation options, the range is ideal for a wide variety of environments, including offices, healthcare and education facilities, leisure/hospitality, retail/shopping centres, airport/rail circulation and commercial precinct.

Whether you require purely decorative accent lighting or technically perfect office lighting, the ELLE range offers a version to suit any project.

DESIGN

ELLE is a flexible and modular product family which can be configured to a project's specific requirement based on application and interior design intent.
- Single or continuous.
A sustainable, energy-efficient system, ELLE provides significant advantages for developers and occupiers seeking to achieve WELL building and Greenstar Certification.

OPTICS

Opal diffuser. To learn more about ELLE's optics, download the brochure here.

COLOUR OPTIONS

Standard powder coated finish options are black, white and grey.

These three colours are available in a textured powder-coated finish, with architectural metallic finishes also available upon request.

LENGTHS

Standalone versions: Three standard length options of 600mm, 1200mm and 2400mm (nominal).

Continuous installations: A wide range of length options, Start, Intermediate and End sections, Corner pieces, ORT modules as well as Blank sections provide a virtually limitless number of combinations to suit any design.

CONTROLS
- DALI
- Organic Response (integrated)
- Other control options available via customisation
- Emergency variants available
LIFETIME
- Constant Light Output (CLO) as standard.
- L100B50 = 50,000hrs. Learn more about CLO here.

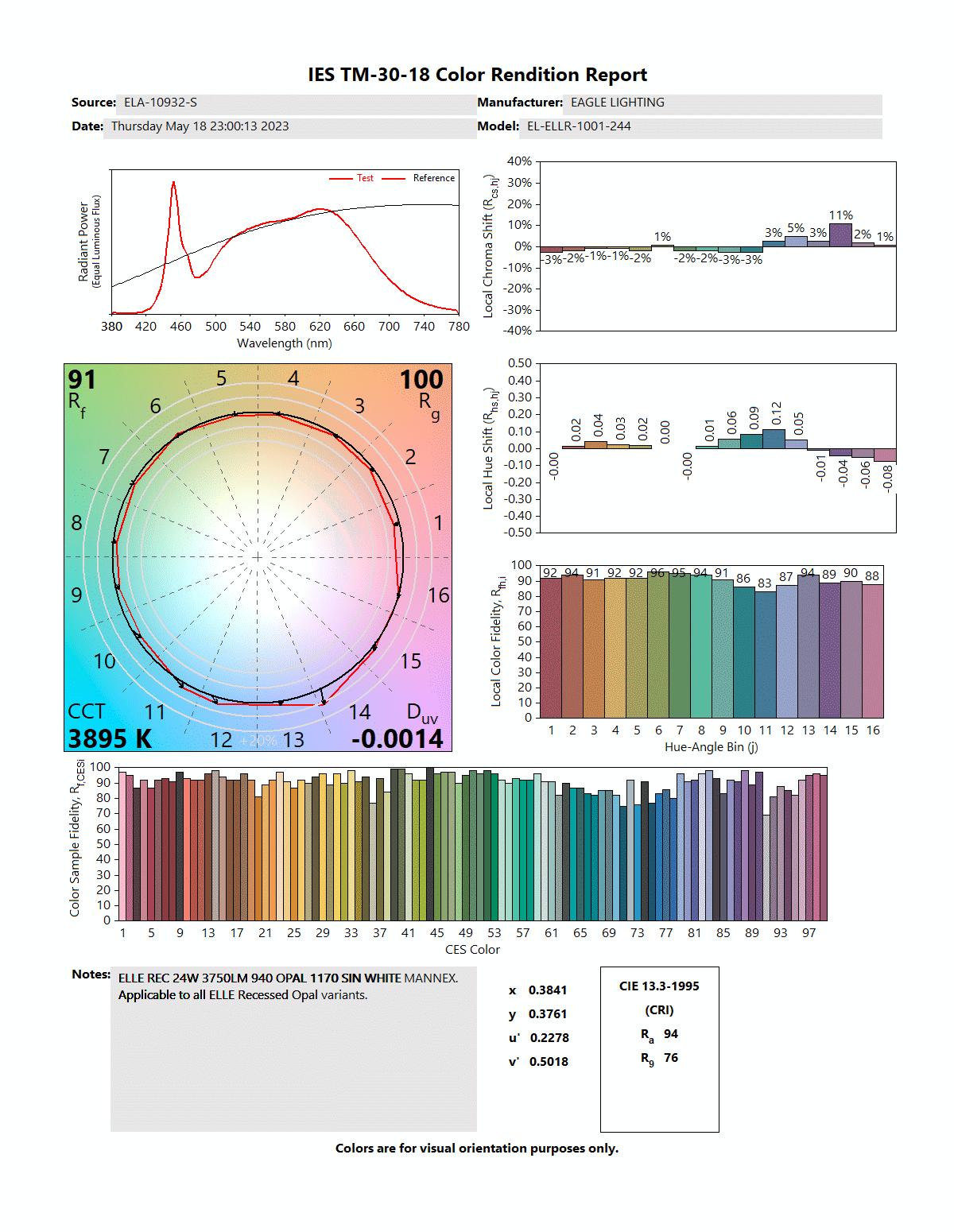

LIGHT QUALITY
- Colour temperature: 3000K and 4000K.
- CRI90+ standard for all versions.
- COI (Cyanosis Observation Index) compliant (4000K only).
- Initial colour consistency better than 3 SDCM
INSTALLATION & MOUNTING OPTIONS

Continuous connection for fast installation and quality results.

ELLE is supplied with most of the work completed during manufacturing, making it intuitive, fast and straightforward for the electrical installer. ELLE has been developed and refined to incorporate a pre-wired harness with a quick connect male/female electrical coupler connection. Continuous joins incorporate a “light trap” between the louvres eliminating light leakage at the profile and louvre joins.

This supports contractors installing ELLE onto projects to run both under time and budget whilst delivering a high-quality finished result.

ELLE Recessed is available as single, standalone luminaires or continuous installations.

N.B.
- ORT variants have an ingress protection rating of IP20. Other variants are IP40.
- Codes and data in the 'PRODUCT CODE' table below are for white finish.
- Images are a representation of product design; the finished product may vary slightly according to project specification etc.
Key Family Details
- Optical System:
  Opal diffuser
- Mounting Type:

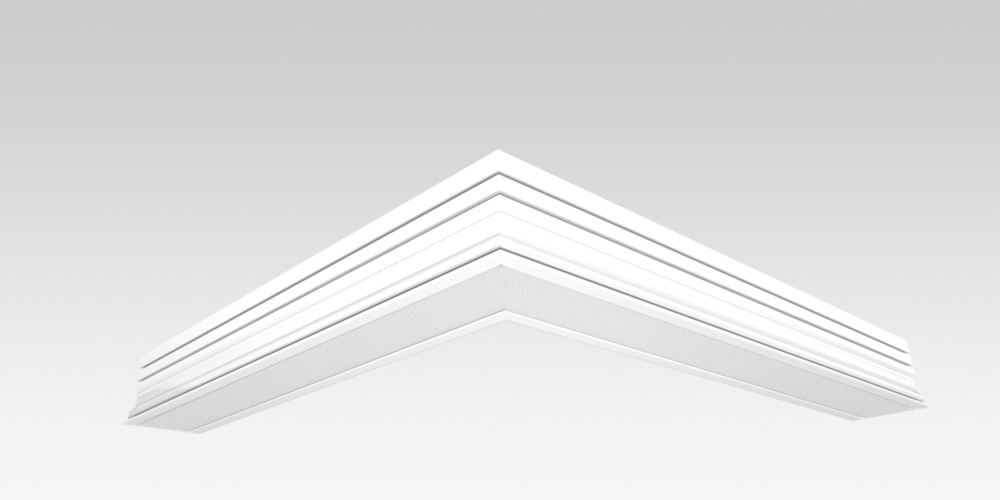

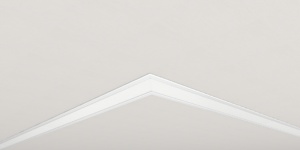

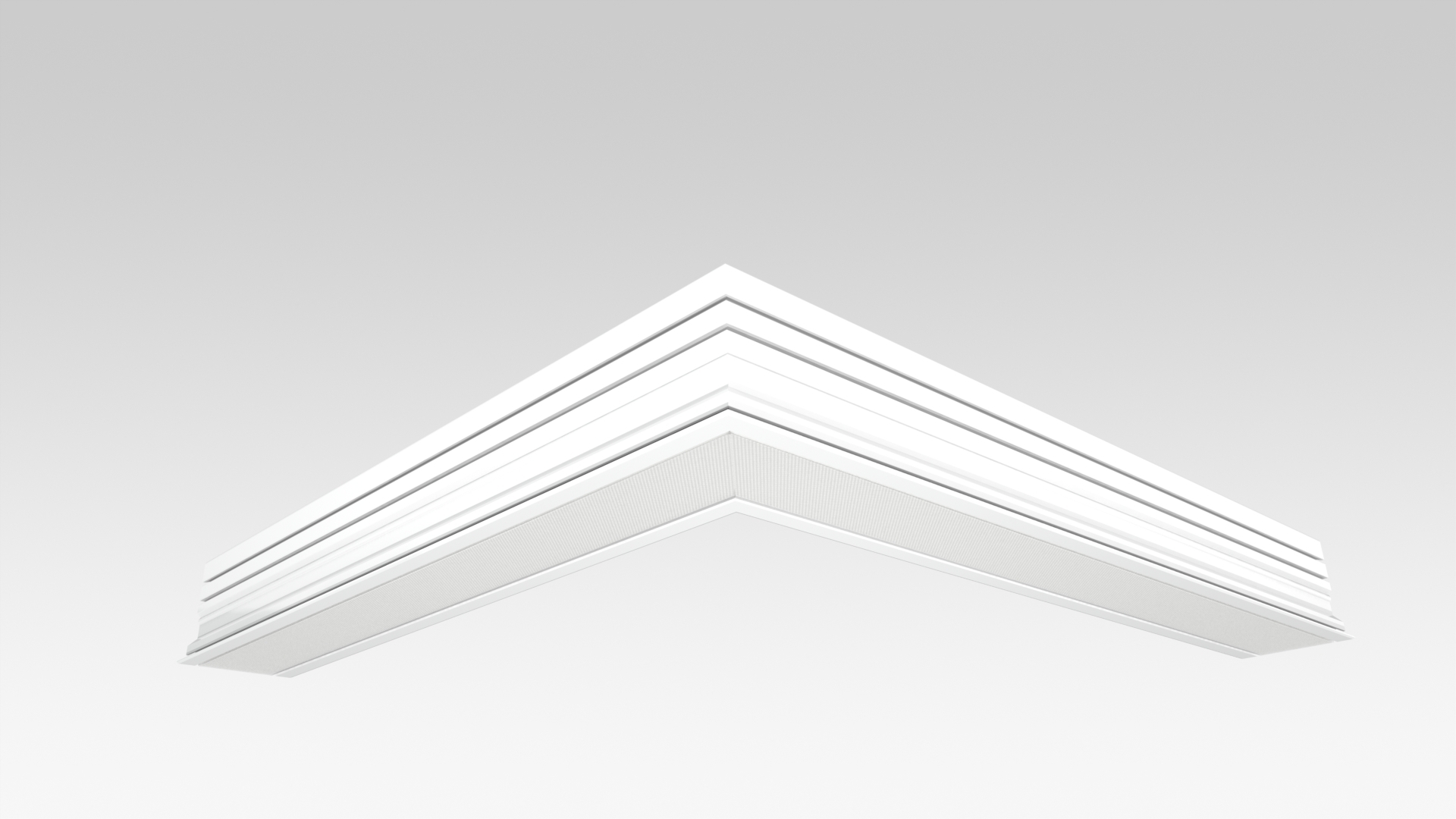

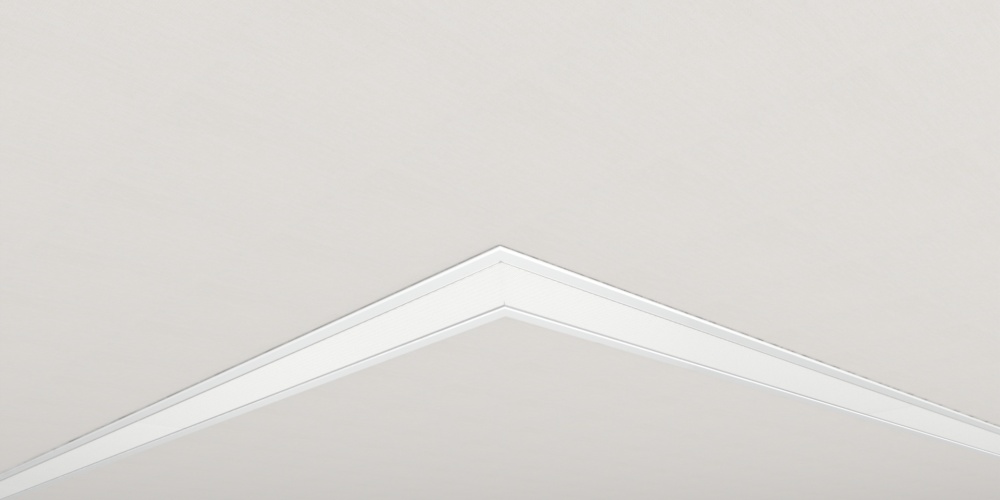

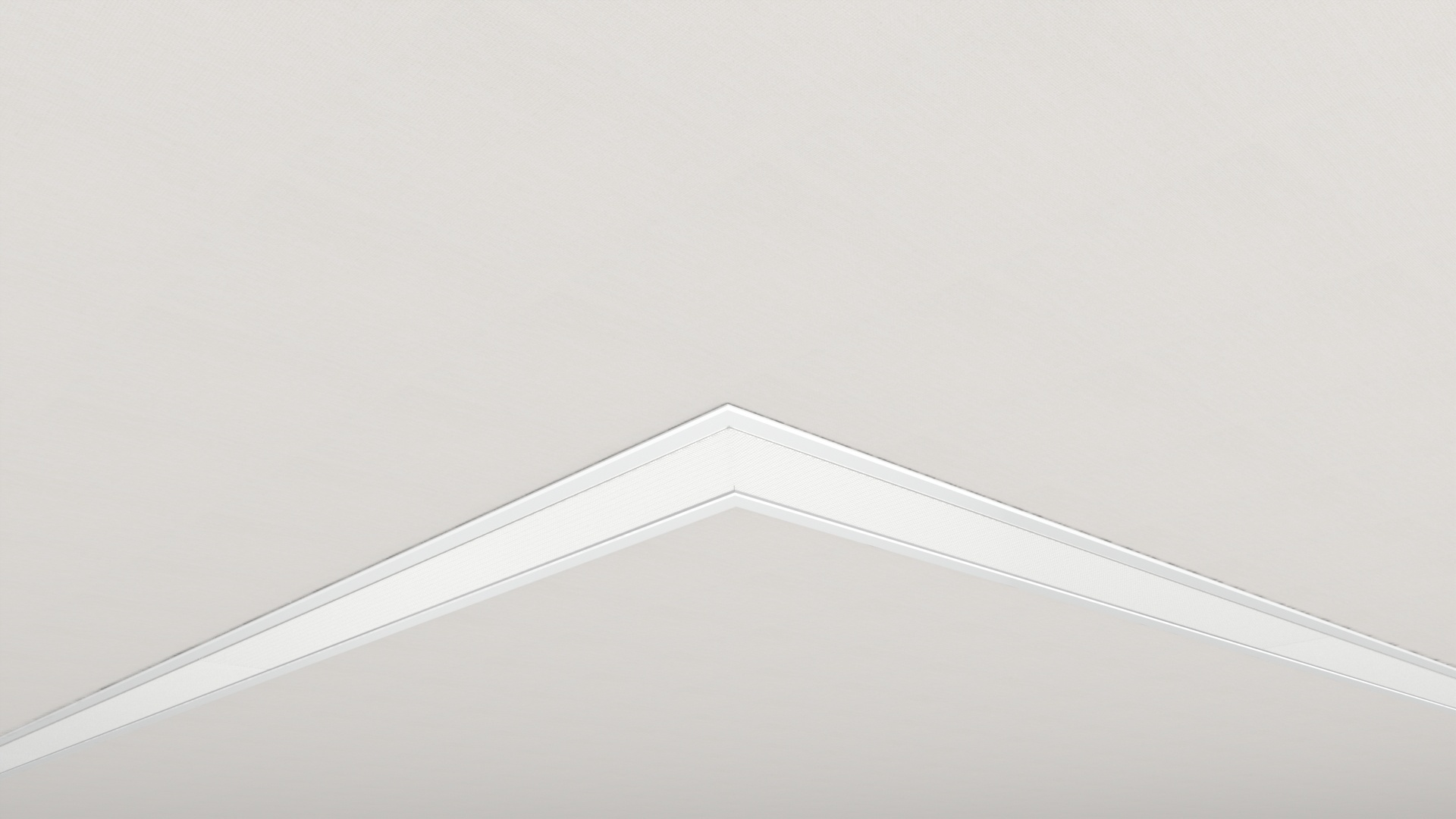

  Recessed (Standalone or Continuous. Standard 90-degree Corner options.)
- Finish:
  Black, White or Grey
- System Warranty:
  5 years
- CRI (Ra):
  Ra90+
- CCT:
  4000K
- R9:
  ≥70
- COI Compliant:
  Yes (≤1.9)
- Melanopic Ratio:
  ≥0.70
- Circadian Stimulus CS [%] (*):
  13
- Circadian Light Cla [lux] (*):
  ≥90
- N.B.
  (*) For 150lux corneal photopic illumination. As a guide only.
Technical Information
SINGLE 600/1200/2400mm (nominal, non-ORT)

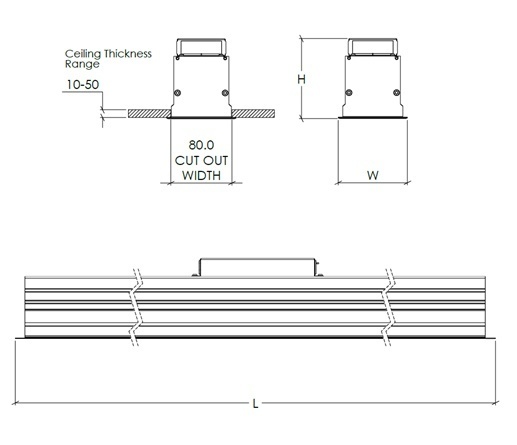

L=611/ 1196/ 2361mm* W=91mm H=105mm

SINGLE 600/1200/2400mm (nominal, ORT)
L=701/ 1286/ 2451mm* W=91mm H=105mm

START 600/1200/2400mm (nominal, non-ORT)
L=598/ 1183/ 2348mm* W=91mm H=105mm

START 600/1200/2400mm (nominal, ORT)
L=688/ 1273/ 2438mm* W=91mm H=105mm

CONTINUOUS 600/1200/2400mm (nominal)
L=585/ 1170/ 2335mm* W=91mm H=105mm

END 600/1200/2400mm (nominal, non-ORT)
L=598/ 1183/ 2348mm* W=91mm H=105mm

END 600/1200/2400mm (nominal, ORT)
L=688/ 1273/ 2438mm* W=91mm H=105mm

N.B.
*including end cap(s).
Nominal polar curve
SINGLE 600/1200/2400mm (nominal, non-ORT)
L=611/ 1196/ 2361mm* W=91mm H=105mm

SINGLE 600/1200/2400mm (nominal, ORT)
L=701/ 1286/ 2451mm* W=91mm H=105mm

START 600/1200/2400mm (nominal, non-ORT)
L=598/ 1183/ 2348mm* W=91mm H=105mm

START 600/1200/2400mm (nominal, ORT)
L=688/ 1273/ 2438mm* W=91mm H=105mm

CONTINUOUS 600/1200/2400mm (nominal)
L=585/ 1170/ 2335mm* W=91mm H=105mm

END 600/1200/2400mm (nominal, non-ORT)
L=598/ 1183/ 2348mm* W=91mm H=105mm

END 600/1200/2400mm (nominal, ORT)
L=688/ 1273/ 2438mm* W=91mm H=105mm

N.B.
*including end cap(s).
Nominal polar curve
Downloads

Filter table below

Product Code

PRODUCT CODE	IES FILE	Control/Wiring Type	Installation	Length [mm]	Luminaire Lumens [lm]	Wattage [W]	Final Wattage CLO [W]	CCT [K]	IP Rating	L100B50 CLO [hrs]
EL-ELLR-1010-244		DALI	Start Luminaire	598	571	6.4	7	4000K	IP40	50000
EL-ELLR-1010-974		Organic Response	Start Luminaire	688	571	6.4	7	4000K	IP20	50000
EL-ELLR-1011-244		DALI	Continuous Luminaire	585	571	6.4	7	4000K	IP40	50000
EL-ELLR-1012-244		DALI	End Luminaire	598	571	6.4	7	4000K	IP40	50000
EL-ELLR-1012-974		Organic Response	End Luminaire	688	571	6.4	7	4000K	IP20	50000
EL-ELLR-1013-244		DALI	Start Luminaire	598	677	7.3	8	4000K	IP40	50000
EL-ELLR-1013-974		Organic Response	Start Luminaire	688	677	7.3	8	4000K	IP20	50000
EL-ELLR-1014-244		DALI	Continuous Luminaire	585	677	7.3	8	4000K	IP40	50000
EL-ELLR-1015-244		DALI	End Luminaire	598	677	7.3	8	4000K	IP40	50000
EL-ELLR-1015-974		Organic Response	End Luminaire	688	677	7.3	8	4000K	IP20	50000
EL-ELLR-1008-244		DALI	Single Luminaire	611	1097	11	12	4000K	IP40	50000
EL-ELLR-1008-974		Organic Response	Single Luminaire	701	1097	11	12	4000K	IP20	50000
EL-ELLR-1353-244	-	DALI	Corner R Con	1262	1097	11	12	4000K	IP40	50000
EL-ELLR-1354-244	-	DALI	Corner L Con	1262	1097	11	12	4000K	IP40	50000
EL-ELLR-1355-244	-	DALI	Corner R Sta	1262	1097	11	12	4000K	IP40	50000
EL-ELLR-1363-244	-	DALI	Corner R Sta-C	1262	1097	11	12	4000K	IP40	50000
EL-ELLR-1002-244		DALI	Start Luminaire	1183	1208	11.1	12	4000K	IP40	50000
EL-ELLR-1002-974		Organic Response	Start Luminaire	1273	1208	11.1	12	4000K	IP20	50000
EL-ELLR-1003-244		DALI	Continuous Luminaire	1170	1208	11.1	12	4000K	IP40	50000
EL-ELLR-1004-244		DALI	End Luminaire	1183	1208	11.1	12	4000K	IP40	50000
EL-ELLR-1004-974		Organic Response	End Luminaire	1273	1208	11.1	12	4000K	IP20	50000
EL-ELLR-1009-244		DALI	Single Luminaire	611	1281	12.6	14	4000K	IP40	50000
EL-ELLR-1009-974		Organic Response	Single Luminaire	701	1281	12.6	14	4000K	IP20	50000
EL-ELLR-1005-244		DALI	Start Luminaire	1183	1423	12.9	14	4000K	IP40	50000
EL-ELLR-1005-974		Organic Response	Start Luminaire	1273	1423	12.9	14	4000K	IP20	50000
EL-ELLR-1006-244		DALI	Continuous Luminaire	1170	1423	12.9	14	4000K	IP40	50000
EL-ELLR-1007-244		DALI	End Luminaire	1183	1423	12.9	14	4000K	IP40	50000
EL-ELLR-1007-974		Organic Response	End Luminaire	1273	1423	12.9	14	4000K	IP20	50000
EL-ELLR-1359-244	-	DALI	Corner R Con	1262	1423	13	14	4000K	IP40	50000
EL-ELLR-1360-244	-	DALI	Corner L Con	1262	1423	13	14	4000K	IP40	50000
EL-ELLR-1361-244	-	DALI	Corner R Sta	1262	1423	13	14	4000K	IP40	50000
EL-ELLR-1365-244	-	DALI	Corner R Sta-C	1262	1423	13	14	4000K	IP40	50000
EL-ELLR-1000-244		DALI	Single Luminaire	1196	2283	20.4	23	4000K	IP40	50000
EL-ELLR-1000-974		Organic Response	Single Luminaire	1286	2283	20.4	23	4000K	IP20	50000
EL-ELLR-1018-244		DALI	Start Luminaire	2348	2416	21.4	24	4000K	IP40	50000
EL-ELLR-1018-974		Organic Response	Start Luminaire	2438	2416	21.4	24	4000K	IP20	50000
EL-ELLR-1019-244		DALI	Continuous Luminaire	2335	2416	21.4	24	4000K	IP40	50000
EL-ELLR-1020-244		DALI	End Luminaire	2348	2416	21.4	24	4000K	IP40	50000
EL-ELLR-1020-974		Organic Response	End Luminaire	2438	2416	21.4	24	4000K	IP20	50000
EL-ELLR-1001-244		DALI	Single Luminaire	1196	2661	23.8	26	4000K	IP40	50000
EL-ELLR-1001-974		Organic Response	Single Luminaire	1286	2661	23.8	26	4000K	IP20	50000
EL-ELLR-1021-244		DALI	Start Luminaire	2348	2846	24.9	27	4000K	IP40	50000
EL-ELLR-1021-974		Organic Response	Start Luminaire	2438	2846	24.9	27	4000K	IP20	50000
EL-ELLR-1022-244		DALI	Continuous Luminaire	2335	2846	24.9	27	4000K	IP40	50000
EL-ELLR-1023-244		DALI	End Luminaire	2348	2846	24.9	27	4000K	IP40	50000
EL-ELLR-1023-974		Organic Response	End Luminaire	2438	2846	24.9	27	4000K	IP20	50000
EL-ELLR-1016-244		DALI	Single Luminaire	2361	4566	39.7	44	4000K	IP40	50000
EL-ELLR-1016-974		Organic Response	Single Luminaire	2451	4566	39.7	44	4000K	IP20	50000
EL-ELLR-1017-244		DALI	Single Luminaire	2361	5321	46	51	4000K	IP40	50000
EL-ELLR-1017-974		Organic Response	Single Luminaire	2451	5321	46	51	4000K	IP20	50000

Accessories

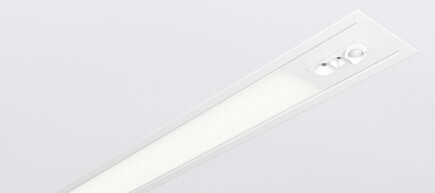

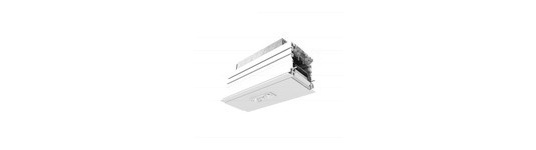

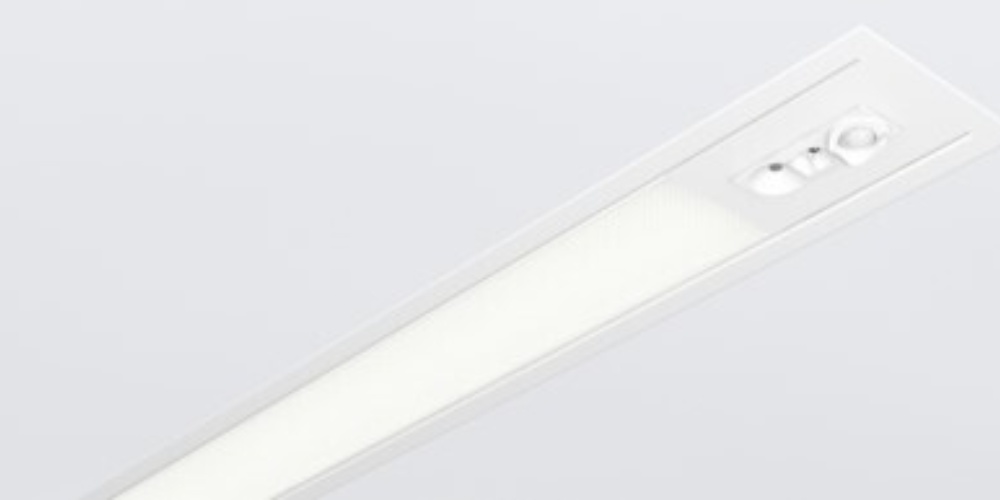

ELLE ORT MODULES	ELLE Recessed ORT Module
EL-ELLA-1024-974	L=200mm. 2 Way ORT Module White Mannex. Connects DALI in Both Directions
EL-ELLA-1025-974	L=200mm. Right ORT Module White Mannex. Connects DALI in Right Direction (Toward End) and Breaks DALI to the Left (Toward Start)
EL-ELLA-1026-974	L=200mm. Left ORT Module White Mannex. Connects DALI in Left Direction (Toward Start) and Breaks DALI to the Right (Toward End)
EL-ELLA-1027-974	L=200mm. ORT Signal Extender Module White Mannex. Does not connect DALI in any Direction
	Note: Each ORT module is for use with up to 4 ELLE DALI sections in continuous installation.

ELLE EMERGENCY MODULES	ELLE Recessed EMG Module
EL-ELLA-1806-800	ELLE EMG MODULE Recessed Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 White Matt
EL-ELLA-1806-801	ELLE EMG MODULE Recessed Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 White Matt

Product Advisement Statement

● All photometric (including flicker metrics), spectrometric, electrical, and thermal data have a tolerance of ±5%.

● The value indicated by the UGR icon refers to the lowest UGR value achievable by at least one standard variant of a given product family. It may not necessarily apply to all standard variants.

● The Unified Glare Rating (UGR) is a function of the entire design space, including but not limited to the optical properties of the ceiling and walls, as well as the properties and spacing of all other luminaires in the calculation space. It is not an intrinsic property of a light fitting and should not be quoted as such.

● All UGR values stated by Eagle Lighting are calculated in compliance with AS/NZS 1680.1-2006 (aligned with CIE 117-1995) and are achievable with standard room sizes and luminaire spacing based on the specific luminaire model.

● The following design parameters apply unless otherwise specified:

- Light Loss Factor (LLF): 0.80 (Nominal)
- Room Reflectance Values (Ceiling/Walls/Floor): 0.70/0.50/0.20
- Ceiling Height: 2.7m
- Horizontal Illuminance (Eh) calculated at 0.72m above finished floor level (AFFL)

● Non-standard (custom) products may have UGR values higher than those of standard models, depending on the nature of the customization. Please consult your sales representative for details.

● UGR values obtained under conditions or parameters other than those specified above may differ from the stated values.

● All product heights are shown excluding the driver unless otherwise specified.

● For questions about our products or assistance with ordering accessories (where applicable), please contact your customer service representative.
