Data Centres

⁢Introducing LightLINE

LightLINE for Data Centres, exclusive to Eagle Lighting is a modular data-centre solution.

Designed for high-performance data-centre environments, LightLINE arrives pre-assembled to simplify and accelerate on-site installation. Its plug-and-play aluminium modules deliver exceptional thermal management up to 50°C+, enabling safer, more efficient installation in demanding applications.

Powered by a high-performance driver delivering up to 100,000 hours of operation, LightLINE is an easy-to-maintain solution, while its construction using over 70% recycled aluminium supports more sustainable project outcomes.

DOWNLOAD OUR DATA CENTRE BROCHURE

Rapid Installation

Delivered pre-assembled, our solution reduces on-site time and arrives with minimal packaging – no excessive wrap, no unnecessary waste. Just ready-to-lift, ready-to-fit modules that make installation cleaner, faster, and more sustainable. A two-person team can install up to 160 metres in a single day.

LightLINE Otway

The LightLINE Otway delivers exceptional vertical illumination
combined with broad, even light coverage, ensuring
clear visibility across server racks and equipment
positioned at elevated levels. The uniform lighting
creates a consistently well-lit environment that greatly
supports accurate monitoring, routine inspections,
and efficient maintenance activities throughout
the data hall. Designed with both performance and
value in mind, it offers a highly effective and cost conscious
option for general data hall applications,
providing reliable, high-quality lighting without placing
unnecessary strain on project budgets.

Key Benefits

• Supports premium PUE performance
• Ultra-efficient lens-based optic
• Can meet both horizontal and vertical
illuminance requirements
• Superior glare control
• IP20 (standard)
• CRI 80 (CRI 90 also available)
• Colour temperature 4000K
• ≤3 SDCM

LightLINE Balmain

The LightLINE Balmain Diffuser provides broad, even illumination that enhances visual comfort while supporting efficient data hall operation. Its design prioritises vertical illuminance, ideal for environments where clear visibility
of rack faces and vertical surfaces is essential. Offering a cost-effective yet high-performing solution, the Balmain Diffuser ensures a balanced, comfortable
lighting environment suitable for a wide range of data hall layouts.

Key Benefits

• Can meet both horizontal and vertical illuminance requirements
• Enhanced vertical performance
• Superior performance across wider aisles
• Low-glare
• IP40 (standard)
• CRI 80 (CRI 90 also available)
• Colour temperature 4000K
• ≤3 SDCM

LightLINE Trunking

Modular trunking system available in 7, 10 and 13 core configurations to support power, control and emergency circuits within a single modular system. Pre-wired for fast installation and flexible project design.

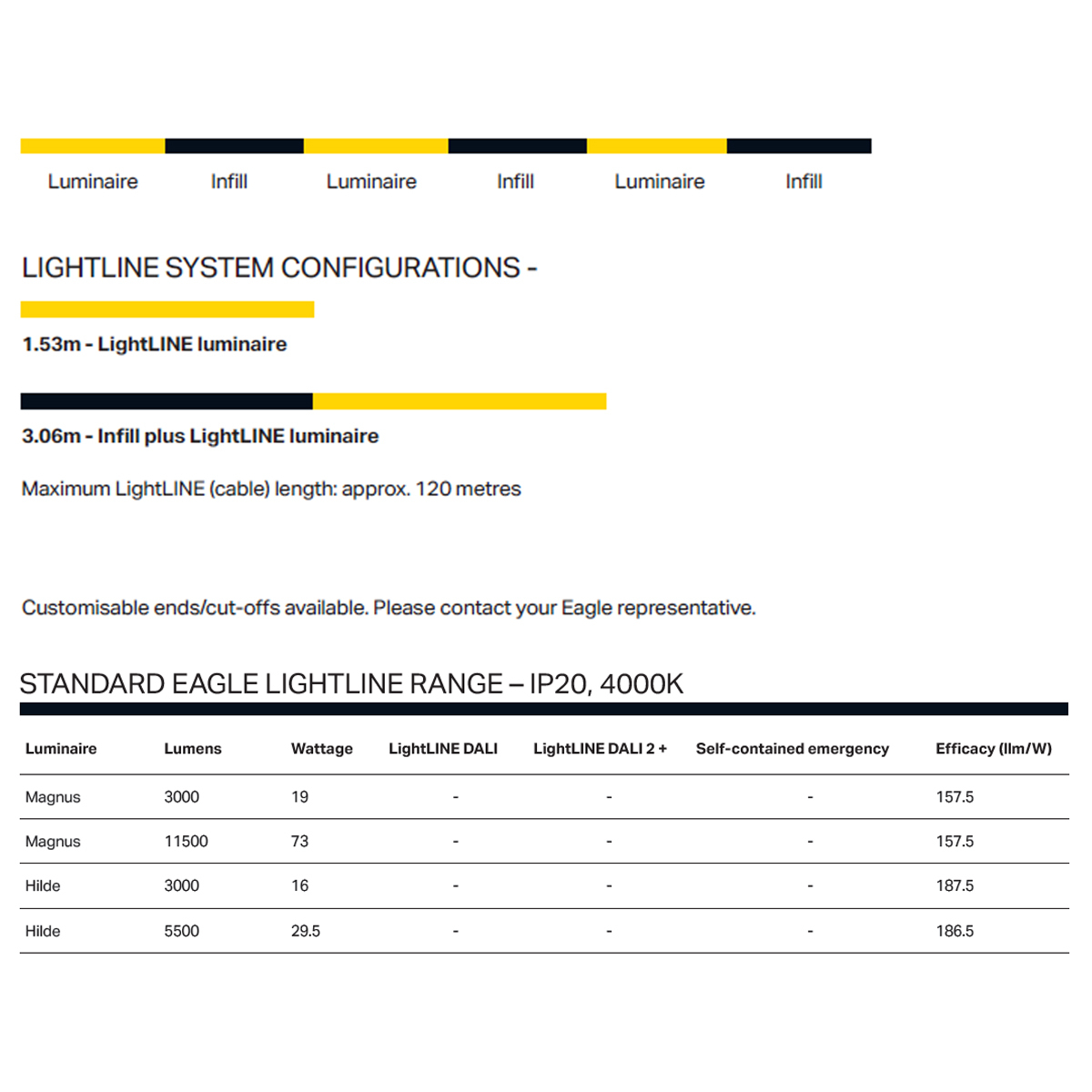

LightLINE Configurations

LightLINE’s modular system allows you to combine different lengths, infills and lumen packages to create the exact trunking configuration your project needs. The lengths and lumen packages in the table on the left have been defined for a typical range of data hall aisles and circulation areas.

Customisation

Our Australian factory allows for customisation to your Lightline, up to 3.0m in length, with lumen outputs of up to 11,500lm, and optical configurations to match your requirements. Discuss your specific needs with our team.
