ELLE Recessed - Delta
-
General Information
Date Updated: 06 December 2024
APPLICATION
Thanks to its design and customisation options, the range is ideal for a wide variety of environments, including offices, healthcare and education facilities, leisure/hospitality, retail/shopping centres, airport/rail circulation and commercial precinct.
Whether you require purely decorative accent lighting or technically perfect office lighting, the ELLE range offers a version to suit any project.
DESIGN
ELLE is a flexible and modular product family which can be configured to a project's specific requirement based on application and interior design intent.
- Single or continuous.
A sustainable, energy-efficient system, ELLE provides significant advantages for developers and occupiers seeking to achieve WELL building and Greenstar Certification.
OPTICS
Delta diffuser. To learn more about ELLE's optics, download the brochure here.
COLOUR OPTIONS
Standard powder coated finish options are black, white and grey.
These three colours are available in a textured powder-coated finish, with architectural metallic finishes also available upon request.
LENGTHS
Standalone versions: Three standard length options of 600mm, 1200mm and 2400mm (nominal).
Continuous installations: A wide range of length options, Start, Intermediate and End sections, Corner pieces, ORT modules as well as Blank sections provide a virtually limitless number of combinations to suit any design.
CONTROLS
- DALI
- Organic Response (integrated)
- Other control options available via customisation
- Emergency variants available
LIFETIME
- Constant Light Output (CLO) as standard.
- L100B50 = 50,000hrs. Learn more about CLO here.

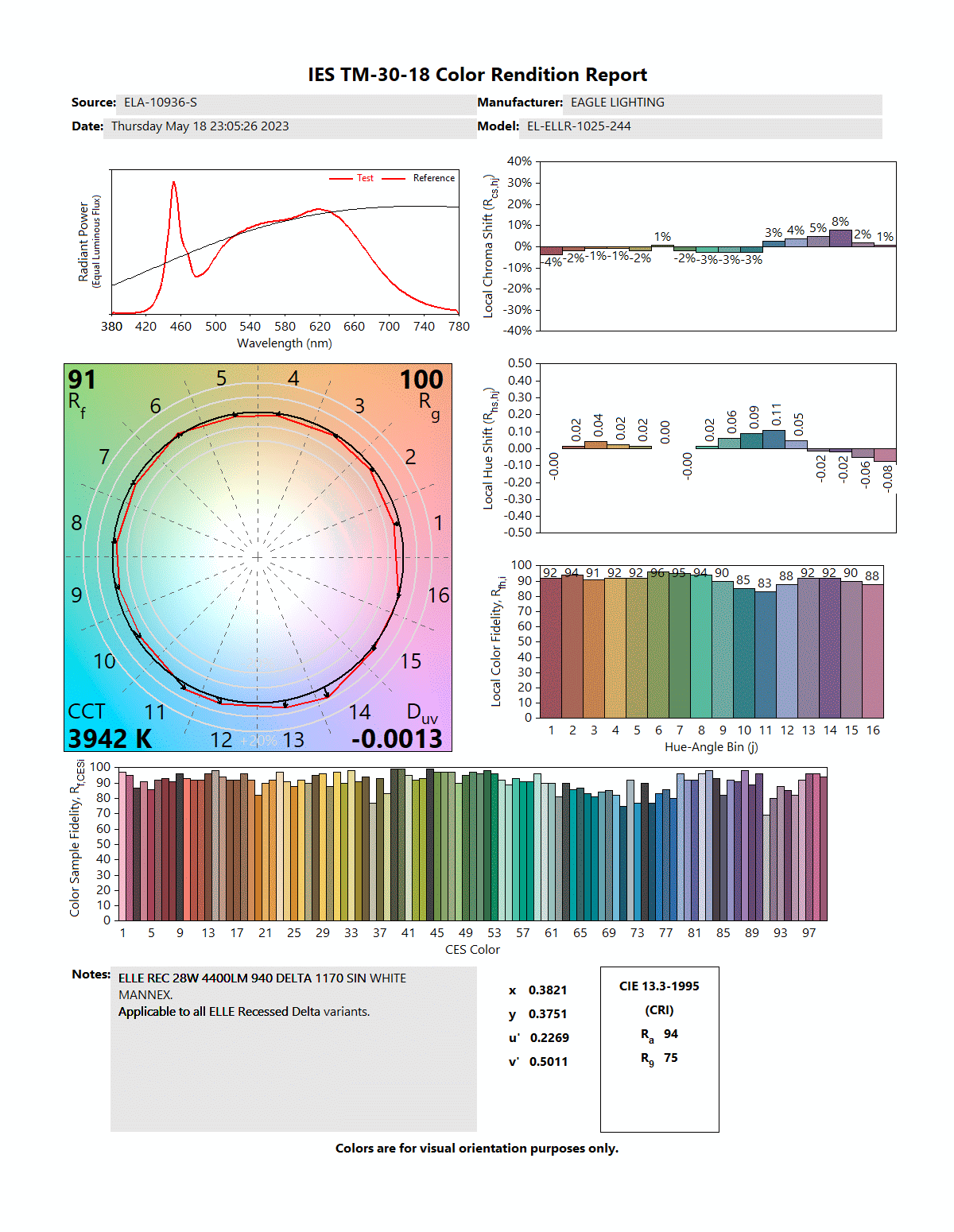

LIGHT QUALITY
- Colour temperature: 3000K and 4000K.
- CRI90+ standard for all versions.
- COI (Cyanosis Observation Index) compliant (4000K only).
- Initial colour consistency better than 3 SDCM
INSTALLATION & MOUNTING OPTIONS
Continuous connection for fast installation and quality results.ELLE is supplied with most of the work completed during manufacturing, making it intuitive, fast and straightforward for the electrical installer. ELLE has been developed and refined to incorporate a pre-wired harness with a quick connect male/female electrical coupler connection. Continuous joins incorporate a “light trap” between the louvres eliminating light leakage at the profile and louvre joins.
This supports contractors installing ELLE onto projects to run both under time and budget whilst delivering a high-quality finished result.

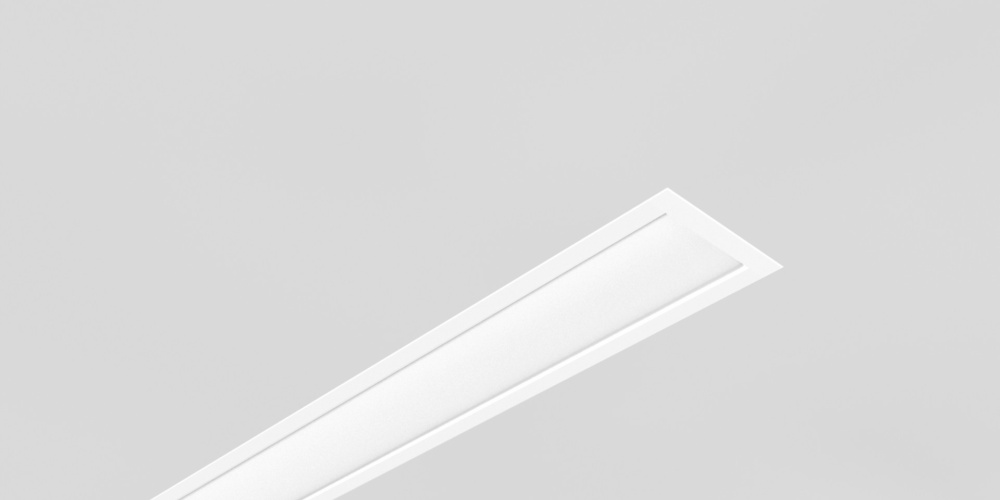

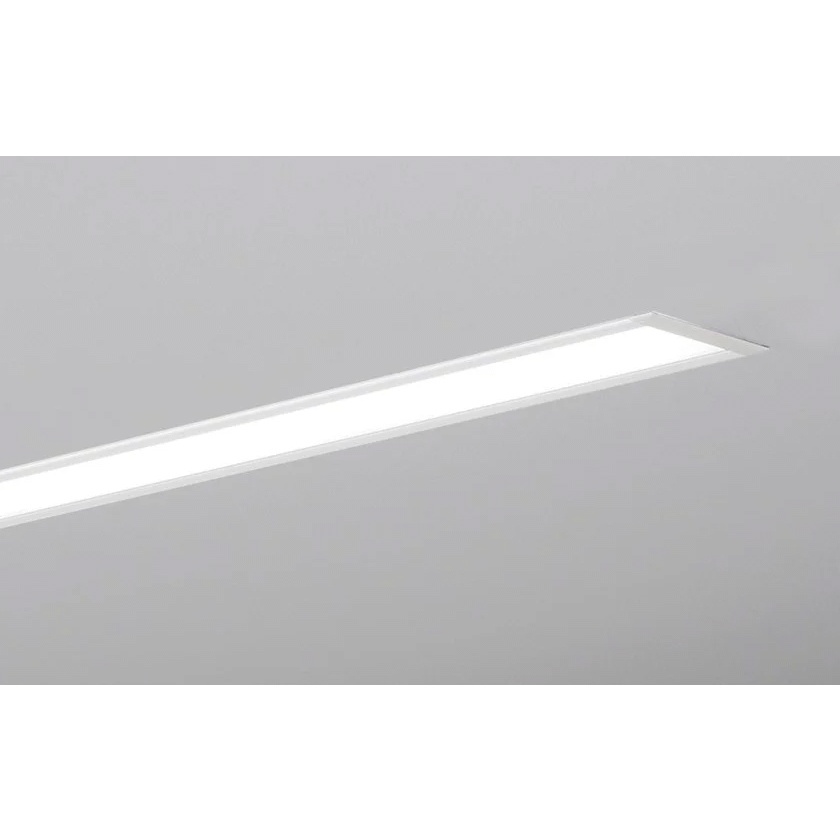

ELLE Recessed is available as single, standalone luminaires or continuous installations.
N.B.

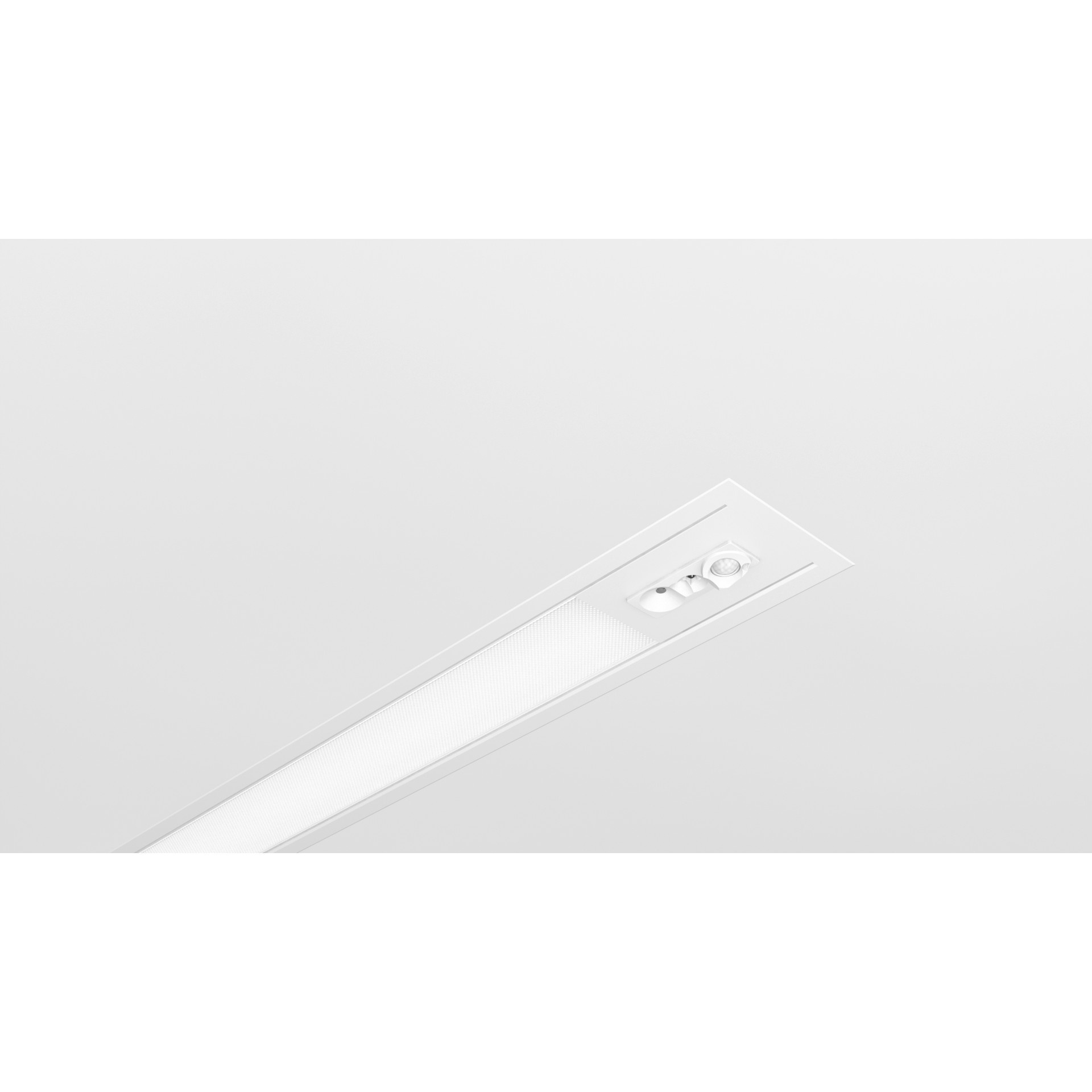

- ORT variants have an ingress protection rating of IP20. Other variants are IP40.
- Codes and data in the 'PRODUCT CODE' table below are for white finish.
- Images are a representation of product design; the finished product may vary slightly according to project specification etc.
Key Family Details
-
Optical System:
Opal diffuser -
Mounting Type:

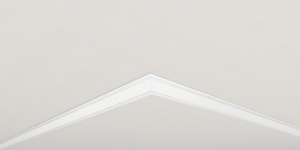

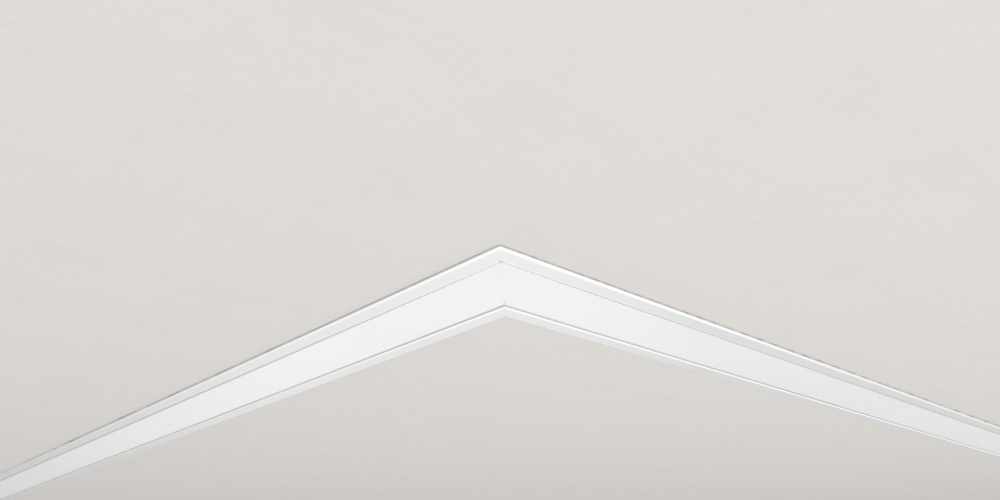

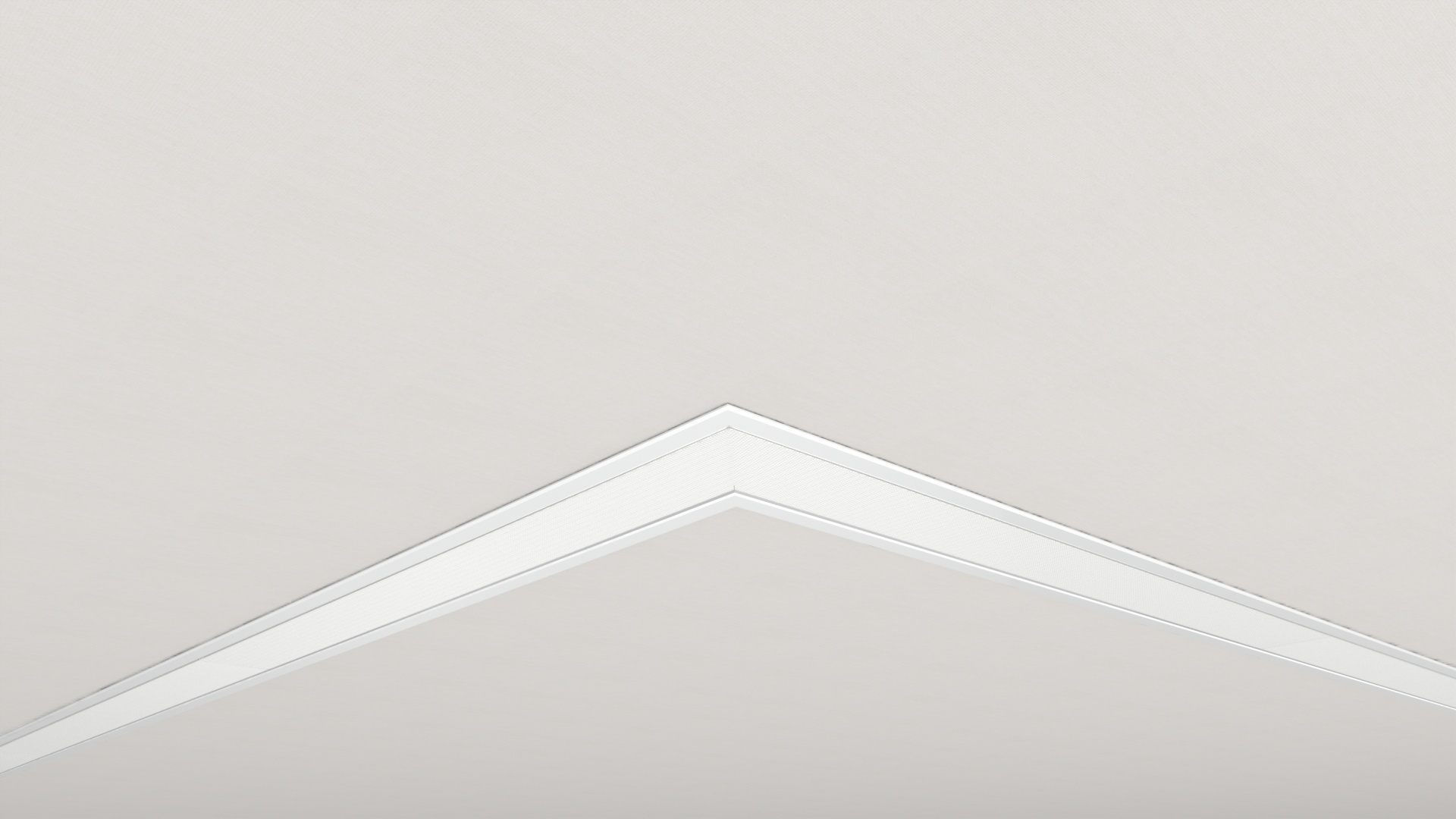

Recessed (Standalone or Continuous. Standard 90-degree Corner options.) -
Finish:
Black, White or Grey -
System Warranty:
5 years -
CRI (Ra):
Ra90+ -
CCT:
4000K -
R9:
≥70 -
COI Compliant:
Yes (≤1.9) -
Melanopic Ratio:
≥0.70 -
Circadian Stimulus CS [%] (*):
13 -
Circadian Light Cla [lux] (*):
≥90 -
N.B.
(*) For 150lux corneal photopic illumination. As a guide only.
-

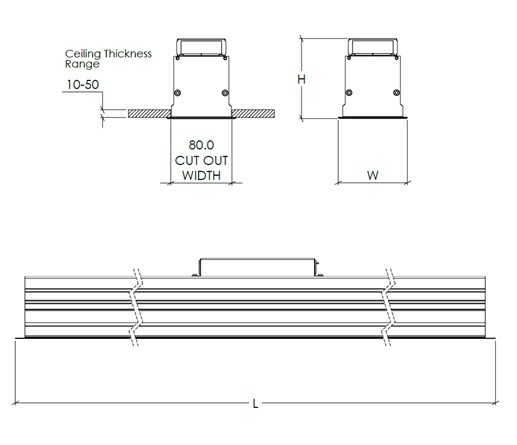

Technical Information
-
SINGLE 600/1200/2400mm (nominal, non-ORT)
L=611/ 1196/ 2361mm* W=91mm H=105mm -
SINGLE 600/1200/2400mm (nominal, ORT)
L=701/ 1286/ 2451mm* W=91mm H=105mm -
START 600/1200/2400mm (nominal, non-ORT)
L=598/ 1183/ 2348mm* W=91mm H=105mm -
START 600/1200/2400mm (nominal, ORT)
L=688/ 1273/ 2438mm* W=91mm H=105mm -
CONTINUOUS 600/1200/2400mm (nominal)
L=585/ 1170/ 2335mm* W=91mm H=105mm -
END 600/1200/2400mm (nominal, non-ORT)
L=598/ 1183/ 2348mm* W=91mm H=105mm -
END 600/1200/2400mm (nominal, ORT)
L=688/ 1273/ 2438mm* W=91mm H=105mm -
N.B.
*includes end cap(s)

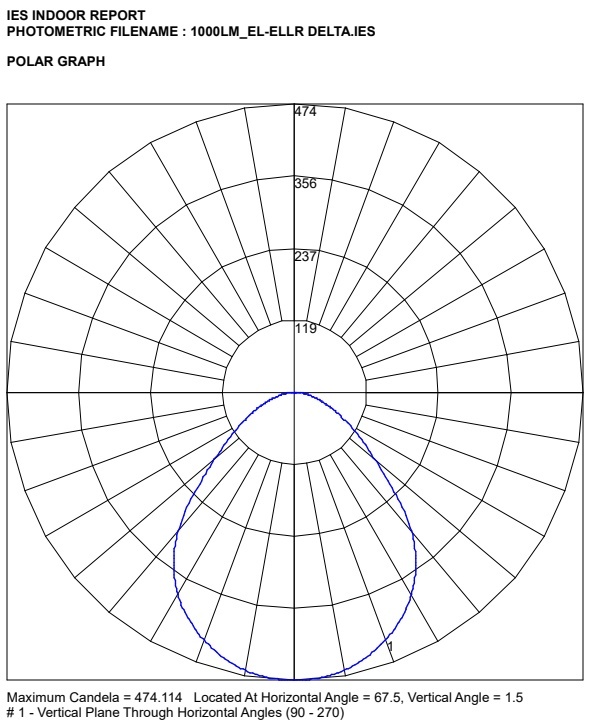

Normalised Polar Curve
-
Product Code
Accessories

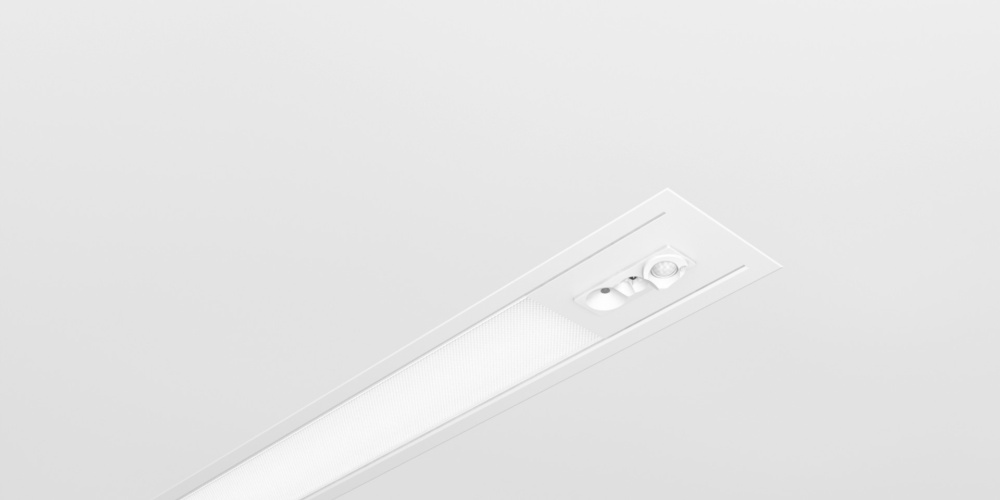

ELLE ORT MODULES |
 |
L=200mm. 2 Way ORT Module White Mannex. Connects DALI In Both Directions |
|
L=200mm. Right ORT Module White Mannex. Connects DALI In Right Direction (Toward End) and Breaks DALI to the Left (Toward Start) |
|
L=200mm. Left ORT Module White Mannex. Connects DALI In Left Direction (Toward Start) and Breaks DALI to the Right (Toward End) |
|
L=200mm. ORT Signal Extender Module White Mannex. Does not connect DALI In any Direction |
|
| Note: Each ORT module is for use with up to 4 ELLE DALI sections in continuous installation. |

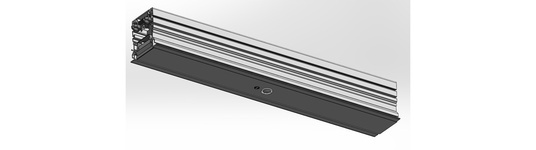

ELLE EMERGENCY MODULES |  |
| EL-ELLA-1806-800 | ELLE EMG MODULE Recessed Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 White Matt |
| EL-ELLA-1806-801 | ELLE EMG MODULE Recessed Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 White Matt |
