Educo

Designed for educational facilities, the Cradle to Cradle Certified® Educo is a new high performance, exceptionally low-UGR luminaire.

Local manufacture
Eagle Lighting

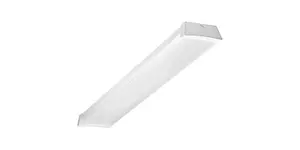

Educo

Eagle Lighting

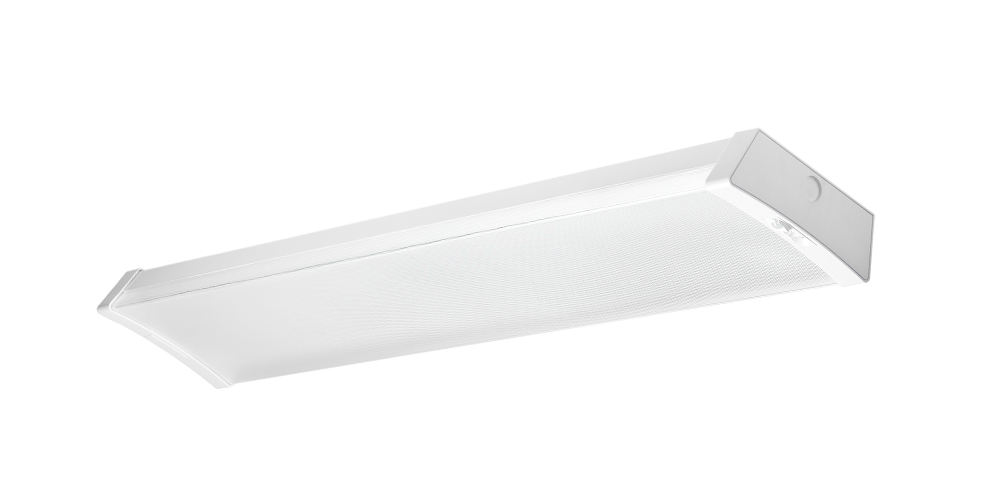

Educo CAROUSEL
  • Educo CAROUSEL 2
  • Educo CAROUSEL 3
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP20
Symbol IP44
Symbol COI COMPLIANT
Symbol EMERGENCY
Symbol CLO
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol RCM LOGO
Symbol IES
Symbol REVIT
  • General Information

    General Information

    Product Design Registration: 202111143

    APPLICATION

    Designed for educational facilities, the Educo is a new high-performance, exceptionally low-UGR(*) luminaire specifically engineered using the latest LED technology and with ease of installation in mind.

    DESIGN
    Designed, tested and manufactured in Australia, the Educo is designed to achieve WELL and Greenstar certifications, along with obtaining a high NABERS rating.

    Further adding to its sustainability credentials, we have embraced circular economy principles to develop a sustainable product that supports the cradle-to-cradle (as opposed to the cradle-to-grave) economy.

    Now Cradle to Cradle Certified®, by being able to easily upgrade Educo and reuse/recycle its consumable parts the luminaire is given more than one life cycle. This, therefore, reinserts the resources back into the economy with the least amount of energy expended, whilst minimising carbon emissions and waste to landfill.

    Cradle to Cradle Certified® is the world’s most advanced science-based, multi-attribute certification program for designing, making and verifying materials and products that are
    safe, circular and responsibly made.

    Cradle to Cradle Certified® assesses the safety, circularity and responsibility of materials and products across five categories of sustainability performance: material health, product circularity, clean air and climate protection, water and soil stewardship, and social fairness.

    Visit Educo's certification page here: https://www.c2ccertified.org/products/scorecard/educo-eagle-lighting

    OPTICS
    The Educo optics consists of a bi-divergent optical system where an inner convex lens combines with the outer concave microprismatic lens to provide best-in-class light dispersion control and minimise UGR (*).

    CONTROLS

    Standard non-dim, DALI and OR (Organic Response SN3) options are readily available. Constant Light Output (CLO) is standard on DALI variants and OR models. Other options may be possible via customisation.

    The below controls options are available as standard; further customisation may be possible.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-244
    Emergency Maintained-800
    Organic Response (CLO)-954

    MECHANICAL
    Future-ready design with easily upgradeable cassette, in line with circular economy principles, including regeneration of the asset, upgradeability to improved future technology, better management of operating and future capital expenditures. Rated IP44 (**).

    EMERGENCY
    The ability to integrate Emergency functionality including 3rd party emergency devices.

    * A calculation of UGR is the result of how a luminaire interacts with the interior environment and the users of the space¸ not just a figure assigned to a luminaire based on a standard set of parameters. Depending on room geometry and surface reflectance’s Educo is capable of achieving UGR ≤16.

    ** IP44 (NON-ORT)/IP20 (ORT)

    N.B. Cradle to Cradle Certified® is a registered trademark of the Cradle to Cradle Products Innovation Institute.

    Key Family Details

    • Optical System:
      Textured acrylic diffuser with secondary internal masking film
    • Mounting Type:
      Surface mounted
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white. Other finish options via customisation
    • System Warranty:
      5 years
    • CCT:
      4000K
    • CRI (Ra):
      90+
    • R9:
      50+
    • COI Compliant:
      Yes (=<2.8)
    • Melanopic Ratio:
      >=0.71
  • Technical Information

    Educo Dimensions v1 300421
    • EL-EDU-1000/ -1001
      L: 652mm; W: 215mm; H: 77mm; Weight: 2.9kg [Mounting set: X: 450mm; Y: 115mm]
    • EL-EDU-1002/ -1003/ -1004/ -1005
      L: 1212mm; W: 215mm; H: 77mm; Weight: 4.9kg [Mounting set: X: 1000mm; Y: 115mm]
    • EL-EDU-1006/ -1007/ -1008
      L: 1492mm; W: 215mm; H: 77mm; Weight: 5.9kg [Mounting set: X: 1250mm; Y: 115mm]
    Educo polar v1 220121
    Nominal Polar Curve

    • EL-EDU-1000/ -1001
      L: 652mm; W: 215mm; H: 77mm; Weight: 2.9kg [Mounting set: X: 450mm; Y: 115mm]
    • EL-EDU-1002/ -1003/ -1004/ -1005
      L: 1212mm; W: 215mm; H: 77mm; Weight: 4.9kg [Mounting set: X: 1000mm; Y: 115mm]
    • EL-EDU-1006/ -1007/ -1008
      L: 1492mm; W: 215mm; H: 77mm; Weight: 5.9kg [Mounting set: X: 1250mm; Y: 115mm]
    Educo Dimensions v1 300421
    Educo polar v1 220121
    Nominal Polar Curve
