Densus LED Gen3

EL-DENL-3104-902

DENSUS LED GEN3 Suspended/Surface Mounted Single Luminaire Bottom Access Direct 3380lm 19.5W LED Wide beam 4000K/ Ra80+ 240V Pc Diffuser e-Sense smartSWITCH Class I L:680mm W:150mm H:100mm IP66 IK10/20J Grey.

Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP66
Symbol LED
Symbol IK10
Symbol CLASS I
Symbol LOW TEMPERATURE
Symbol RCM LOGO
Symbol CUSTOMISABLE
Symbol EMERGENCY
Symbol IES
Symbol REVIT
Symbol 40 DEGREE MAX TEMP
Symbol LED COLOUR OPTIONS
Local manufacture
Eagle Lighting

Densus LED Gen3

EL-DENL-3104-902

DENSUS LED GEN3 Suspended/Surface Mounted Single Luminaire Bottom Access Direct 3380lm 19.5W LED Wide beam 4000K/ Ra80+ 240V Pc Diffuser e-Sense smartSWITCH Class I L:680mm W:150mm H:100mm IP66 IK10/20J Grey.

Eagle Lighting

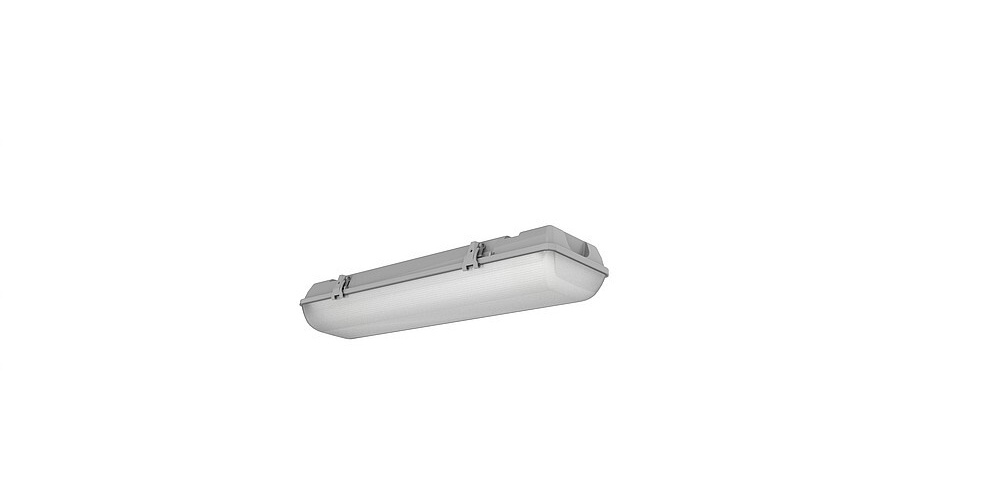

DENSUS GEN3 HALF LEN REG MIDRES
Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP66
Symbol LED
Symbol IK10
Symbol CLASS I
Symbol LOW TEMPERATURE
Symbol RCM LOGO
Symbol CUSTOMISABLE
Symbol EMERGENCY
Symbol IES
Symbol REVIT
Symbol 40 DEGREE MAX TEMP
Symbol LED COLOUR OPTIONS
Local manufacture

  • Technical Overview

    Densus Gen3 Mech Drawing
    • Finish
      Grey
    • L = Length [mm]
      680
    • W = Width/Diameter [mm]
      150
    • H = Height [mm]
      100
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      1.5
    1000lm EL DENL 3104 000 polar curve
    Normalised Polar Curve (cd/klm)

    • Finish
      Grey
    • L = Length [mm]
      680
    • W = Width/Diameter [mm]
      150
    • H = Height [mm]
      100
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      1.5
    Densus Gen3 Mech Drawing
    1000lm EL DENL 3104 000 polar curve
    Normalised Polar Curve (cd/klm)

Product Advisement Statement


● All photometric (including flicker metrics), spectrometric, electrical, and thermal data have a tolerance of ±5%.

● The value indicated by the UGR icon refers to the lowest UGR value achievable by at least one standard variant of a given product family. It may not necessarily apply to all standard variants.

● The Unified Glare Rating (UGR) is a function of the entire design space, including but not limited to the optical properties of the ceiling and walls, as well as the properties and spacing of all other luminaires in the calculation space. It is not an intrinsic property of a light fitting and should not be quoted as such.

● All UGR values stated by Eagle Lighting are calculated in compliance with AS/NZS 1680.1-2006 (aligned with CIE 117-1995) and are achievable with standard room sizes and luminaire spacing based on the specific luminaire model.

● The following design parameters apply unless otherwise specified:

 - Light Loss Factor (LLF): 0.80 (Nominal)
 - Room Reflectance Values (Ceiling/Walls/Floor): 0.70/0.50/0.20
 - Ceiling Height: 2.7m
 - Horizontal Illuminance (Eh) calculated at 0.72m above finished floor level (AFFL)

● Non-standard (custom) products may have UGR values higher than those of standard models, depending on the nature of the customization. Please consult your sales representative for details.

● UGR values obtained under conditions or parameters other than those specified above may differ from the stated values.

● All product heights are shown excluding the driver unless otherwise specified.

● For questions about our products or assistance with ordering accessories (where applicable), please contact your customer service representative.
