Densus LED Gen3
-
General Information
Date Updated: 21 October 2024
APPLICATION
The Densus LED is a weatherproof, vandal resistant (IK10) and dustproof (IP66) robust luminaire, suitable for most industrial applications such as covered car parks, stairwells, corridors, fire stairs, back of house.The third generation Densus introduces a narrow body (100mm) option in addition to the regular (150mm) version.
DESIGN
The LED boards used within the Densus LED are easily replaceable, allowing for easy maintenance and a reduced life cycle cost.
OPTICS
The Densus LED is particularly suited for indoor car parks, where its wide beam distribution ensures that it provides excellent uniformity and illuminance levels on maximum mounting centres.CONTROL
Services such as Emergency and Sensors are integral to the luminaire.EMERGENCY
DALI monitored or non-monitored maintained emergency. Integral or remote.CONTROL OPTIONS
The below controls options are available as standard; further customisation may be possible.
Please speak to your customer service representative for more details.
VARIATION SUFFIX Standard -000 DALI/STD terminal block -200 Non-Dim, with Maintained-Non Monitored EMG (Available only for 1280 x 150 versions) -800 Non-Dim, with Maintained-DALI Monitored EMG (Available only for 1280 x 150 versions) -801 DALI, with Maintained-DALI Monitored EMG (Available only for 1280 x 150 versions) -802 DALI, with Maintained-Non Monitored EMG (Available only for 1280 x 150 versions) -807 eSense SmartSwitch -902 eSense Detect - On/Off Sensor -910
MOUNTING OPTIONS
• Surface mounted.• Suspended.
• Other mounting and control options may be available via customization.
• For further advice, please refer to installation instructions.
Operating Temperature Range: -5°C to +40°C
Key Family Details
-
Optical System:
Polycarbonate diffuser/cover -
Mounting Type:
Surface Mounted or Suspended -
Colour Consistency Initial:
3 SDCM -
Finish Options:
Grey -
System Warranty:
5 years -
CRI (Ra):
80+ -
CCT:
4000K -
R9:
0+ -
COI Compliant:
No. (Ra90+ versions are compliant.) -
Melanopic Ratio:
0.65+ -
Operating Temperature Range:
-5°C to +40°C
-
-
Technical Information
-

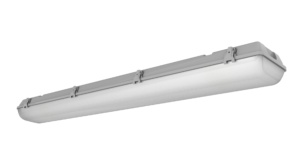

EL-DENL-3100/ 3101/ 3102-xxx
L: 1280; W: 150; H: 100; Weight: 2.5kg (EMG variants: 3.0kg) -

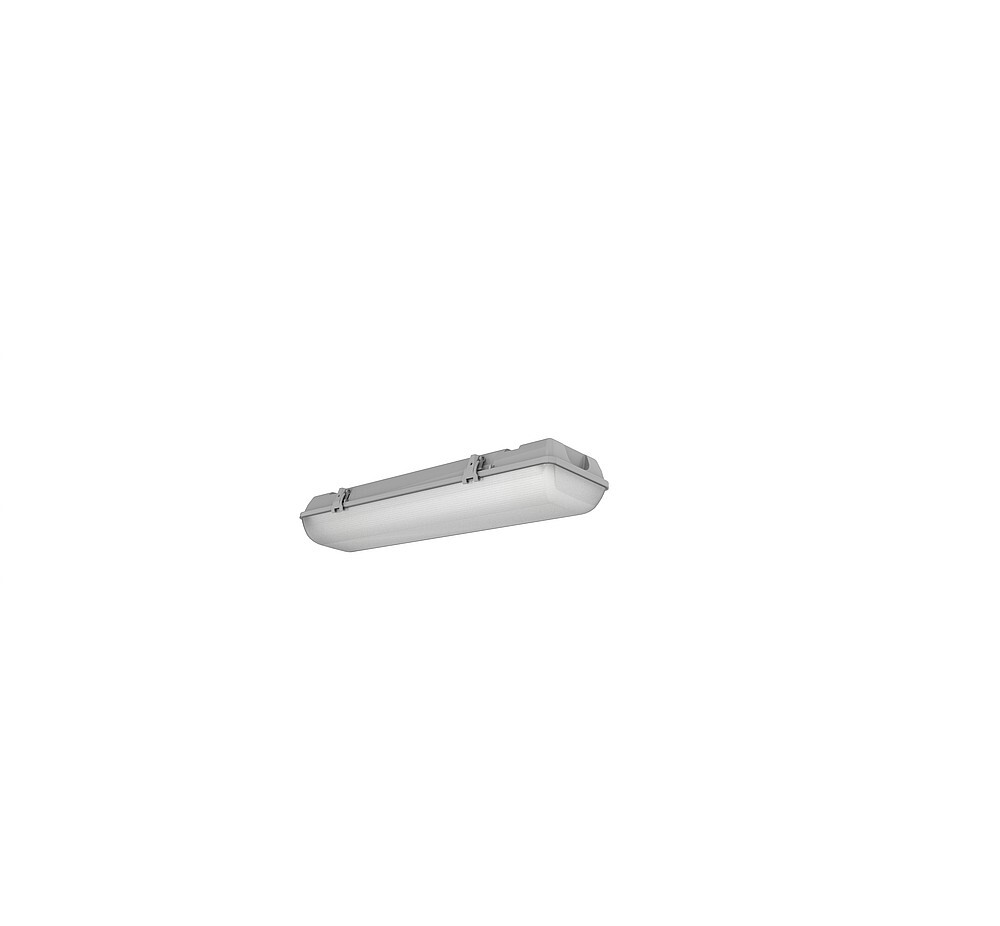

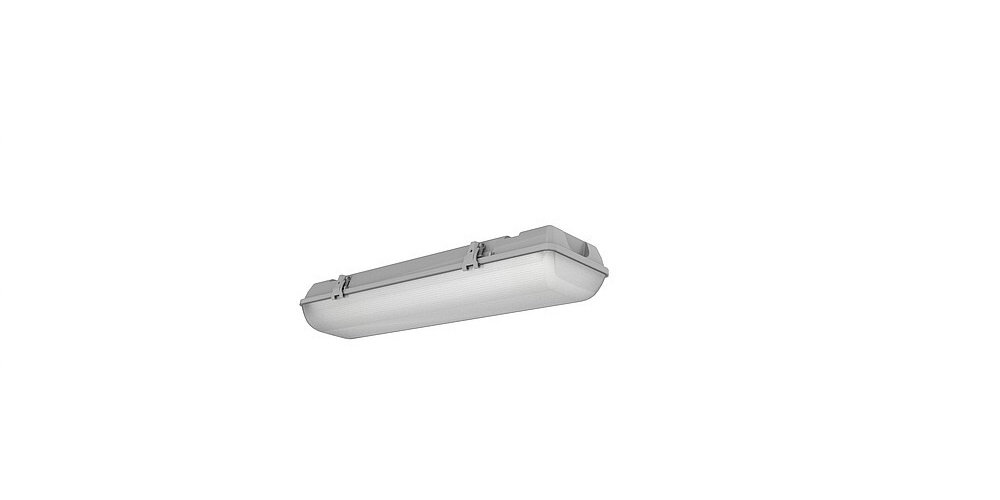

EL-DENL-2103/ 2104-xxx
L: 680; W: 150; H: 100; Weight: 1.8kg -

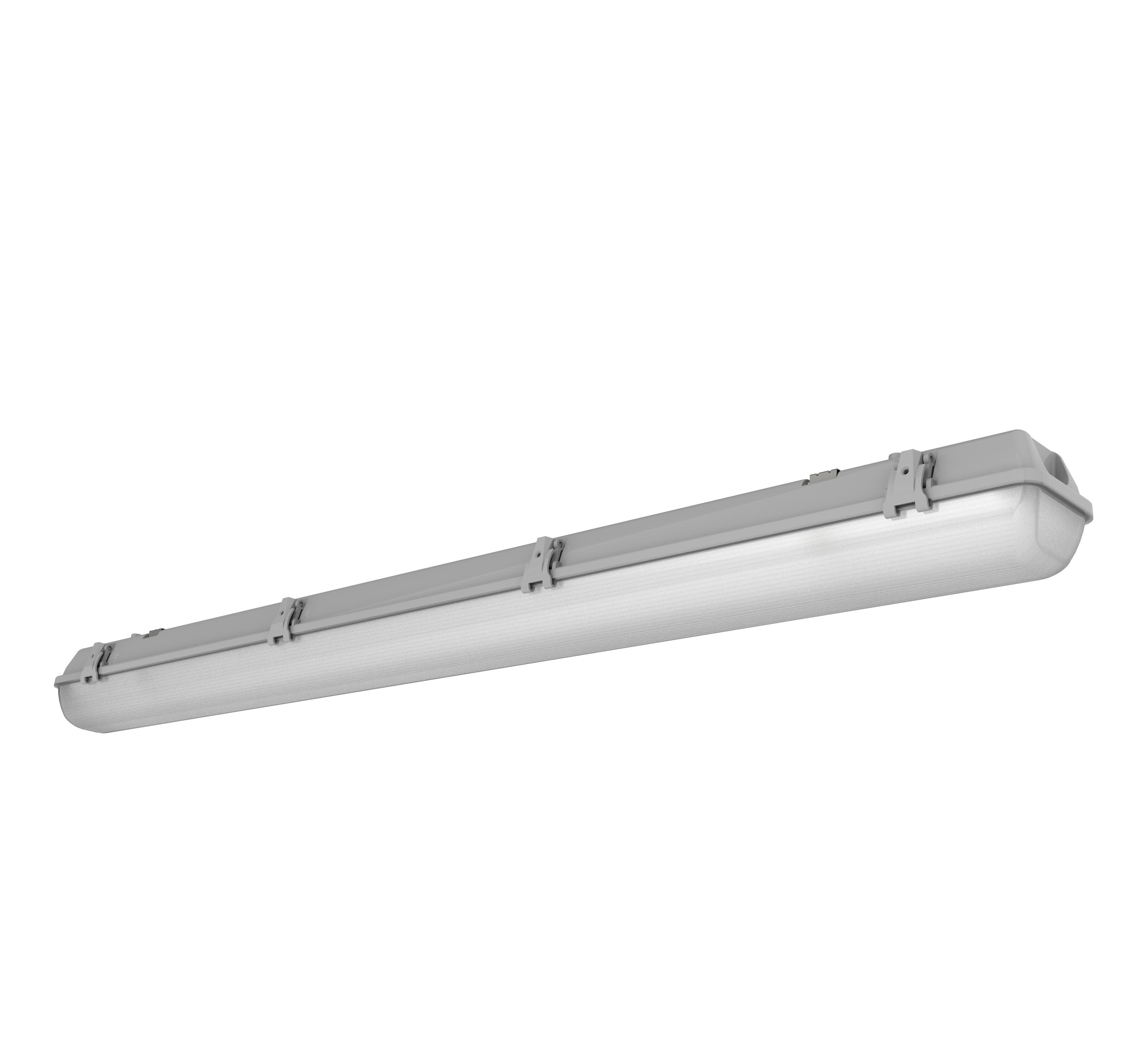

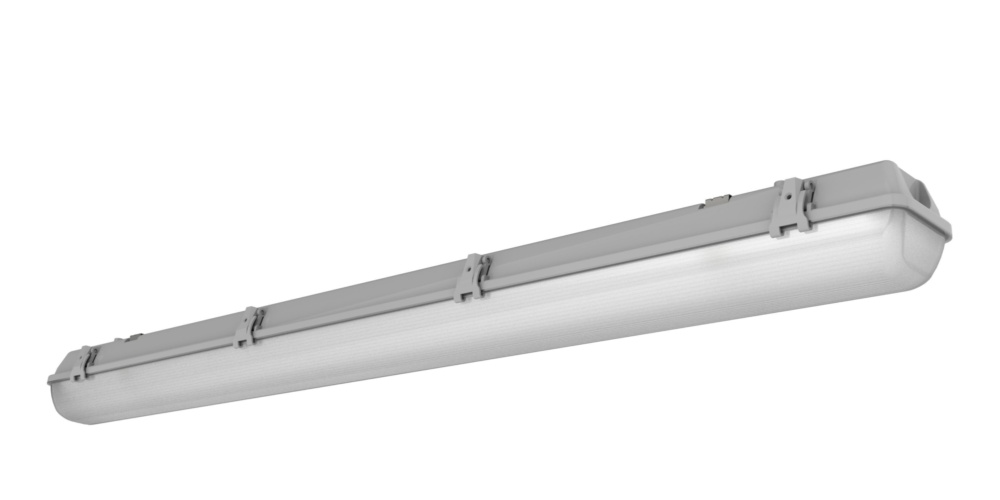

EL-DENL-3105/ 3106-xxx
L: 1280; W: 100; H: 100; Weight: 2.0kg

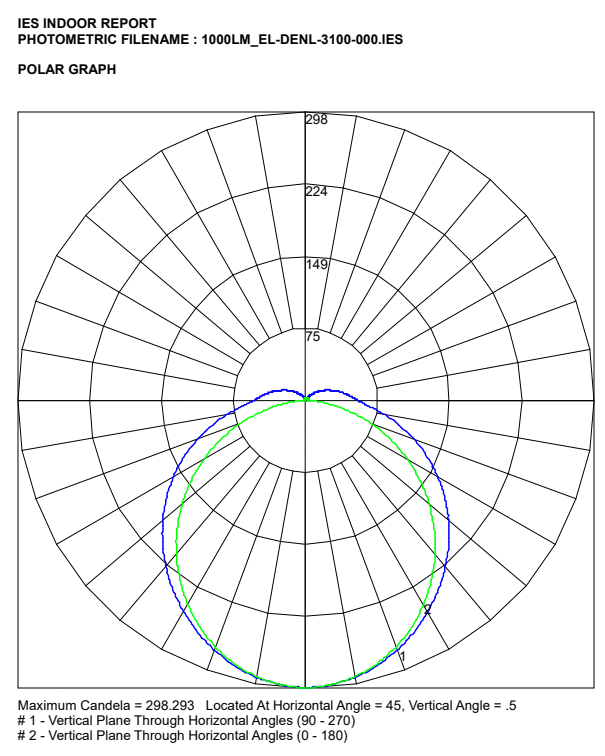

Normalised Polar Curve
(Regular width, low output)

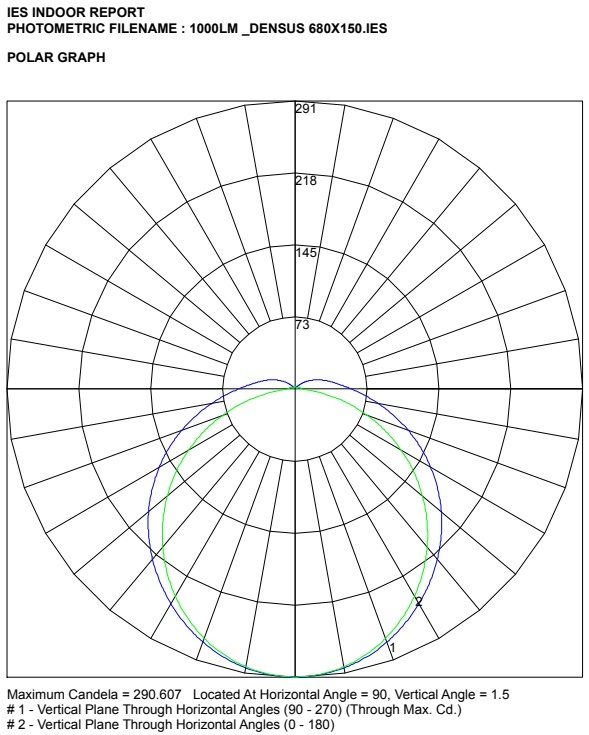

Normalised Polar Curve
(Regular width, half size. standard output)
Normalised Polar Curve
(Narrow body, standard output)
-
Product Code
