Densus LED Gen3
EL-DENL-2104-000
DENSUS LED Suspended/Surface Mounted Single Luminaire Bottom Access Direct 3489lm 21.1W LED Wide beam 4000K/ Ra80+ 240V Pc Diffuser Non-dim Class I L:680mm W:150mm H:100mm IP66 IK10/20J Grey.
-
Technical Overview
-
Finish
Grey -
L = Length [mm]
680 -
W = Width/Diameter [mm]
150 -
H = Height [mm]
100 -
CL = Recessing Length [mm]
- -
CW = Recessing Width/Diameter [mm]
- -
Weight [kg]
1.8

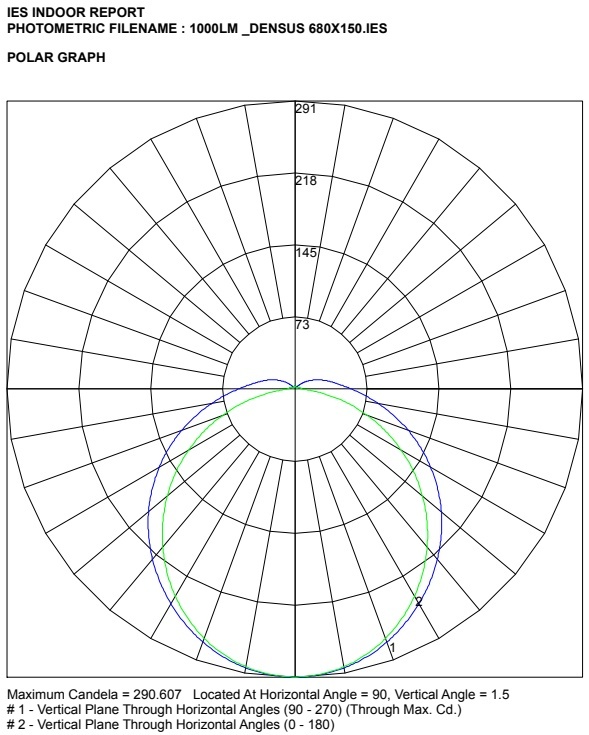

Normalised Polar Curve
-
-
Photometric Values
-
Control Type
Non-dim -
Ceiling Type/Mounting
Suspended/Surface Mounted -
Wattage [W]
21.1 -
CLO Enabled
No -
Final Wattage CLO [W]
- -
System Lumens [lm]
3489 -
Luminaire Lumens [lm]
2721 -
Efficacy [lm/W]
129
-
Lighting Type
Direct -
Target Spacing [m]
- -
Target H Illuminance [lux]
- -
LPD [W/m2]
- -
NPD [W/sqm/100lux]
- -
Beamwidth (FWHM)
- -
Optics Type
PC Opal Diffuser -
UGR
-
-
-
Colour Quality
-
CCT [K]
4000K -
CCT1 [K]
4000K -
CCT2 [K]
- -
Other Light Colour
- -
CRI
Ra80+ -
COI Compliance
Non-Compliant
-
R9
6 -
Melanopic Ratio
0.66 -
Circadian Stimulus CS [%]
12 -
Circadian Light [lux]
86 -
TM-30 RF
84 -
TM-30 RG
96
-
-
Lifetime and Miscellaneous Parameters
-
LM80 Test Duration [hrs]
12000 -
L90B50 Lifetime [hrs]
59000 -
TM21 L70 Reported Lifetime [hrs]
>72000
-
L100B50 Lifetime (CLO) [hrs]
- -
TM21 L90 Reported Lifetime [hrs]
52000 -
SDCM Initial
3
-
