PROJECT



ARCHITECT/DESIGNER



TYPE NO.

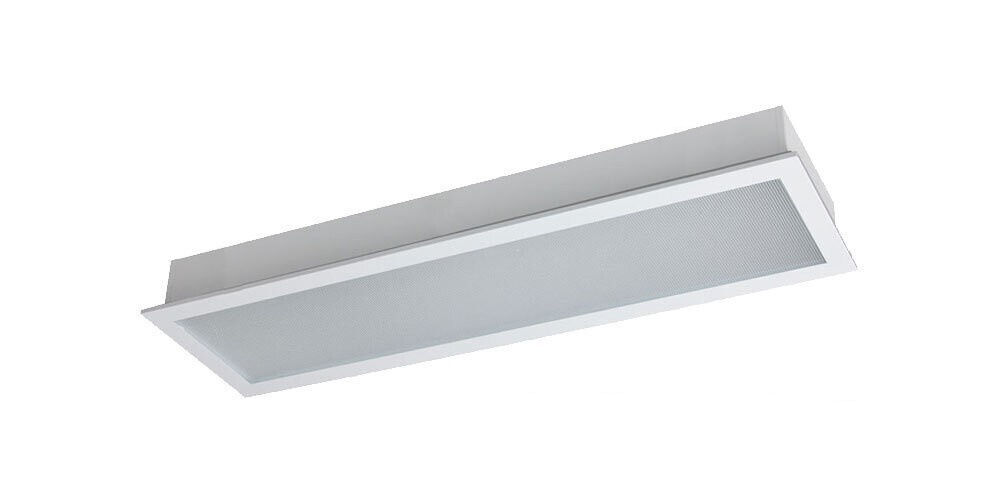

  • Cleanroom IP44 CAROUSEL

Cleanroom IP44 LED

EL-CR44L-1109-200

CLEANROOM IP44 LED Recessed/T-bar Single Luminaire Top Access Direct 6100lm 43.1W LED Wide beam 4000K/ Ra90+ 240V Delta DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:1200mm W:300mm H:100mm IP44 IK07/2J White .

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

Cleanroom IP44 LED

EL-CR44L-1109-200

CLEANROOM IP44 LED Recessed/T-bar Single Luminaire Top Access Direct 6100lm 43.1W LED Wide beam 4000K/ Ra90+ 240V Delta DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:1200mm W:300mm H:100mm IP44 IK07/2J White .

Eagle Lighting
Cleanroom IP44 CAROUSEL

  • Technical Overview

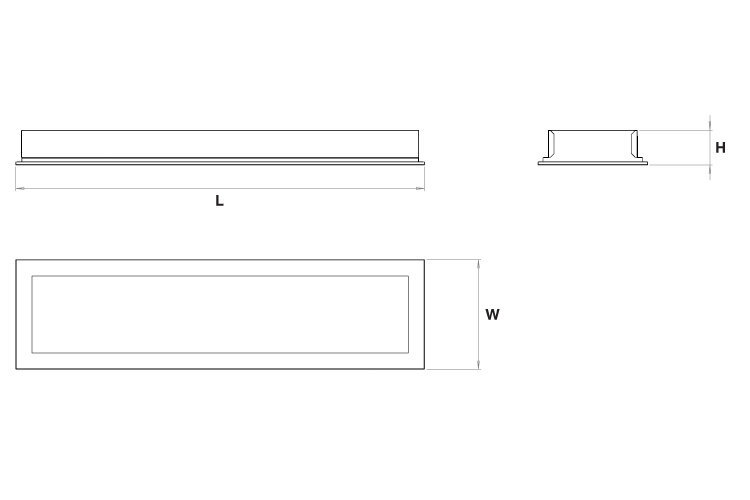

    Cleanroom IP44 Dimensions v1 300421
    • Finish
      White
    • L = Length [mm]
      1200
    • W = Width/Diameter [mm]
      300
    • H = Height [mm]
      100
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      9
    Cleanroom IP44 1102 polarcurve v1
    Nominal Polar Curve

    • Finish
      White
    • L = Length [mm]
      1200
    • W = Width/Diameter [mm]
      300
    • H = Height [mm]
      100
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      9
    Cleanroom IP44 Dimensions v1 300421
    Cleanroom IP44 1102 polarcurve v1
    Nominal Polar Curve

  • Photometric Values

    • Control Type
      DALI
    • Ceiling Type/Mounting
      Recessed/T-bar
    • Wattage [W]
      43.1
    • CLO Enabled
      No
    • Final Wattage CLO [W]
      -
    • System Lumens [lm]
      6100
    • Luminaire Lumens [lm]
      4277
    • Efficacy [lm/W]
      99
    • Lighting Type
      Direct
    • Target Spacing [m]
      2.4 x 2.4
    • Target H Illuminance [lux]
      600
    • LPD [W/m2]
      -
    • NPD [W/sqm/100lux]
      1.22
    • Beamwidth (FWHM)
      -
    • Optics Type
      Delta
    • UGR
      19
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • R9
      64
    • Melanopic Ratio
      0.72
    • Circadian Stimulus CS [%]
      -
    • Circadian Light [lux]
      -
    • TM-30 RF
      91
    • TM-30 RG
      99
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime [hrs]
      58000
    • TM21 L70 Reported Lifetime [hrs]
      >72000
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      52000
    • SDCM Initial
      3
