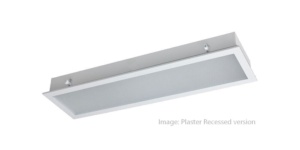

  • Cleanroom IP44 CAROUSEL
  • Cleanroom IP44 CAROUSEL 2
  • Cleanroom IP44 CAROUSEL 3
  • Cleanroom IP44 CAROUSEL 4

Cleanroom IP44 LED

A range of luminaires developed for specialist cleanroom applications.

Local manufacture
Eagle Lighting
  • General Information

    Now with antimicrobial powder coating as standard.

    APPLICATION

    The Cleanroom range of luminaires has been developed to meet the requirements of specialist installations, such as laboratories, hospitals and medical centres, where the luminaire requires protection against contamination. This range is COI compliant and rated IP44 from all angles.


    OPTICS
    The wipe-down Delta diffuser is made up of a micro-prism louver in acrylic (PMMA) with a thin opal diffuser on the inside. This provides excellent glare control whilst delivering optimal lumens out of the luminaire.


    CONTROL
    Wide range of options available.


    INSTALLATION
    Plaster-recessed as standard.

    N.B. PLASTER RECESSED CEILING INSTALLATION ONLY - OTHER MOUNTING OPTIONS AVAILABLE UPON REQUEST.


    EMERGENCY
    Maintained Non-monitored and DALI-monitored.

    Other options available via NSPR.


    NOTES

    • Restraint enabled.
    • Top access option is available.
    • Antimicrobial powder coating as standard


    MOUNTING OPTIONS

    • T-Bar
    • Surface Mount
    • Top Access
    • Sandwich Panel

    CONTROL OPTIONS

    The below controls options are available as standard; further customisation may be possible.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-200
    Tunable White (DALI Type 8)-220
    Standard/Fused terminal block-400
    DALI/Fused terminal block-600
    Maintained Emergency-800
    DALI Monitored Emergency-801



    Key Family Details

    • Optical System:
      Delta Diffuser and Acrylic clear film
    • Mounting Type:
      Plaster Recessed
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white. Other finishes via customisation
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      4000K
    • R9:
      60+
    • COI Compliant:
      Yes
    • Melanopic Ratio:
      0.72
  • Technical Information

    Cleanroom IP44 Dimensions v1 300421
    • EL-CR44L-3102/ 3103...
      L: 657mm; W: 328mm; H: 105mm; WEIGHT: 6.1kg
    • EL-CR44L-5102/ 5103...
      L: 657mm; W: 657mm; H: 105mm; WEIGHT: 9.9kg
    • EL-CR44L-1102/ 1103...
      L: 1222mm; W: 328mm; H: 105mm; WEIGHT: 9.9kg
    Cleanroom IP44 1102 polarcurve v1
    Nominal Polar Curve
