Vertex Air

EL-VERA-2101-200

VERTEX AIR Recessed/T-bar Bottom Access Direct Return air only 1750lm 14W LED Wide beam 4000K Ra90+ 240V Delta diffuser DALI Class I L:593mm W:293mm H:85mm IP44 White.

Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP44
Symbol LED
Symbol CLASS I
Symbol AIR ENABLED
Symbol RCM LOGO
Symbol COI COMPLIANT
Symbol DO NOT INSULATE
Symbol CUSTOMISABLE
Symbol IP44 30
Symbol TUNEABLE
Symbol ORGANIC RESPONSE LOGO
Symbol EMERGENCY
Symbol IES
Symbol REVIT
UGR19v1
Local manufacture
Eagle Lighting

Vertex Air

EL-VERA-2101-200

VERTEX AIR Recessed/T-bar Bottom Access Direct Return air only 1750lm 14W LED Wide beam 4000K Ra90+ 240V Delta diffuser DALI Class I L:593mm W:293mm H:85mm IP44 White.

Eagle Lighting

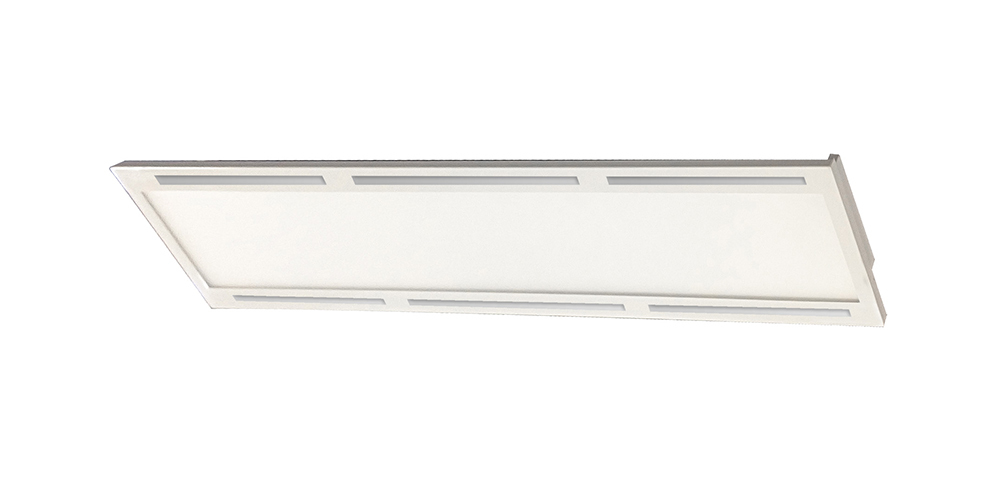

Vertex Air PRODUCT CAROUSEL IMAGE
Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP44
Symbol LED
Symbol CLASS I
Symbol AIR ENABLED
Symbol RCM LOGO
Symbol COI COMPLIANT
Symbol DO NOT INSULATE
Symbol CUSTOMISABLE
Symbol IP44 30
Symbol TUNEABLE
Symbol ORGANIC RESPONSE LOGO
Symbol EMERGENCY
Symbol IES
Symbol REVIT
UGR19v1
Local manufacture

  • Technical Overview

    Vertex Air Dimensions v1 030521
    • Finish
      White
    • L = Length [mm]
      590
    • W = Width/Diameter [mm]
      293
    • H = Height [mm]
      85
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.8
    Vertex Air Polarcurve v1 100521
    Normalised Polar Curve

    • Finish
      White
    • L = Length [mm]
      590
    • W = Width/Diameter [mm]
      293
    • H = Height [mm]
      85
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.8
    Vertex Air Dimensions v1 030521
    Vertex Air Polarcurve v1 100521
    Normalised Polar Curve

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit 600x300EL-ACC-610-000
Surface mount kit 1200x300EL-ACC-612-000
Plaster recess kit 600x300EL-ACC-850-000
Plaster recess kit 1200x300EL-ACC-852-000

Product Advisement Statement


● All photometric (including flicker metrics), spectrometric, electrical, and thermal data have a tolerance of ±5%.

● The value indicated by the UGR icon refers to the lowest UGR value achievable by at least one standard variant of a given product family. It may not necessarily apply to all standard variants.

● The Unified Glare Rating (UGR) is a function of the entire design space, including but not limited to the optical properties of the ceiling and walls, as well as the properties and spacing of all other luminaires in the calculation space. It is not an intrinsic property of a light fitting and should not be quoted as such.

● All UGR values stated by Eagle Lighting are calculated in compliance with AS/NZS 1680.1-2006 (aligned with CIE 117-1995) and are achievable with standard room sizes and luminaire spacing based on the specific luminaire model.

● The following design parameters apply unless otherwise specified:

 - Light Loss Factor (LLF): 0.80 (Nominal)
 - Room Reflectance Values (Ceiling/Walls/Floor): 0.70/0.50/0.20
 - Ceiling Height: 2.7m
 - Horizontal Illuminance (Eh) calculated at 0.72m above finished floor level (AFFL)

● Non-standard (custom) products may have UGR values higher than those of standard models, depending on the nature of the customization. Please consult your sales representative for details.

● UGR values obtained under conditions or parameters other than those specified above may differ from the stated values.

● All product heights are shown excluding the driver unless otherwise specified.

● For questions about our products or assistance with ordering accessories (where applicable), please contact your customer service representative.
