PROJECT



ARCHITECT/DESIGNER



TYPE NO.

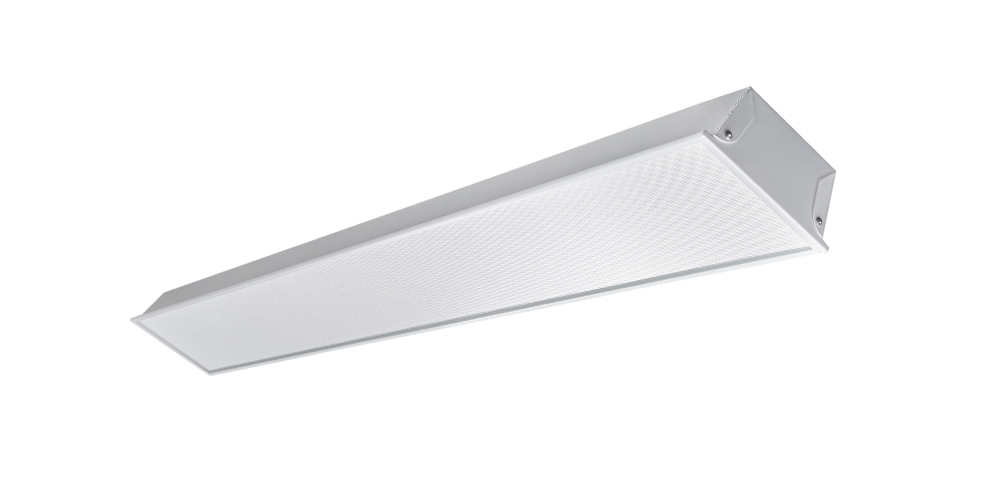

  • Vertex 150 CAROUSEL4

Image displayed may not be the exact size or body/pod colour (where applicable) of the luminaire and so is indicative only.

Vertex 150

EL-VER-2324-200

VERTEX 150 Recessed/T-bar Single Luminaire Bottom Access Direct 4000lm 27.4089W LED Wide beam 4000K Ra90+ 240V Delta DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:1194mm W:144mm H:66mm IP44 White .

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

Vertex 150

EL-VER-2324-200

Eagle Lighting
Vertex 150 CAROUSEL4

  • Technical Overview

    Vertex150 Dimensions v1 060722
    • Finish
      White
    • L = Length [mm]
      1194
    • W = Width/Diameter [mm]
      144
    • H = Height [mm]
      66
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.5
    Vertex150 polarcurve v1 050722
    Nominal Polar Curve

    • Finish
      White
    • L = Length [mm]
      1194
    • W = Width/Diameter [mm]
      144
    • H = Height [mm]
      66
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.5
    Vertex150 Dimensions v1 060722
    Vertex150 polarcurve v1 050722
    Nominal Polar Curve

  • Photometric Values

    • Control Type
      DALI
    • Wattage [W]
      27.4
    • CLO Enabled
      No
    • Final Wattage CLO [W]
      27
    • System Lumens
      4000
    • Luminaire Lumens [lm]
      2893
    • Efficacy [lm/W]
      106
    • Target Spacing [m]
      2.4m x 2.4m
    • Target H Illuminance [lux]
      410
    • LPD [W/sqm]
      4.76
    • NPD [W/sqm/100lux]
      1.15
    • Beamwidth (FWHM)
      -
    • Optics Type
      Delta
    • UGR
      19
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • R9
      78
    • Melanopic Ratio
      0.77
    • Circadian Stimulus CS [%]
      16
    • Circadian Light [lux]
      116
    • TM-30 RF
      91
    • TM-30 RG
      100
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime [hrs]
      59000
    • TM21 L70 Reported Lifetime [hrs]
      >72000
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      52000
    • SDCM Initial
      3
  • Downloads

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit 1200x150EL-ACC-774-000
Surface mount kit 600x150EL-ACC-1187-000
Plaster frame kit 1200x150EL-ACC-860-000
Plaster frame kit 600x150EL-ACC-864-000
