PROJECT



ARCHITECT/DESIGNER



TYPE NO.



  • Vertex 600x600 EL VER 2102 000 carousel
  • Vertex 600x600 EL VER 2113 244 Carousel

Vertex

The next generation is a highly efficient LED luminaire designed for office environments.

Local manufacture
Eagle Lighting

Vertex

Eagle Lighting

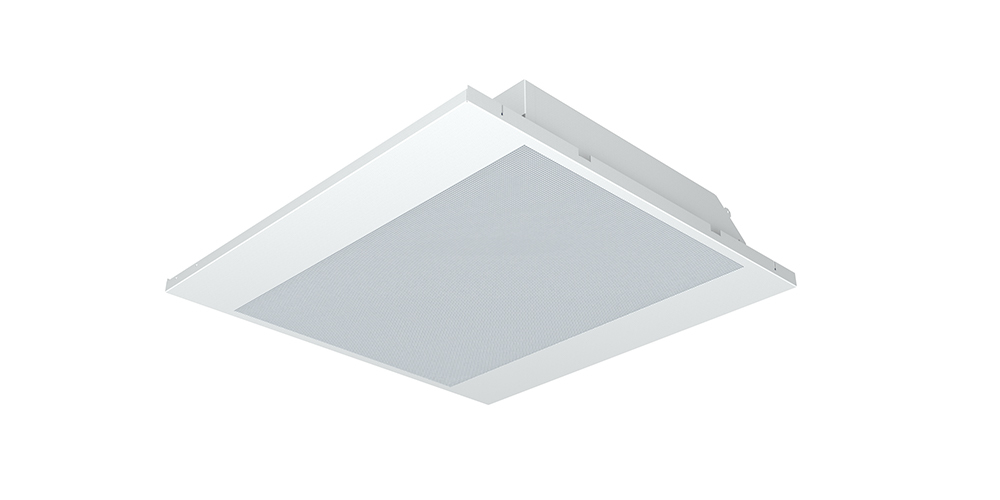

Vertex 600x600 EL VER 2102 000 carousel
  • Vertex 600x600 EL VER 2113 244 Carousel
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP44 30
Symbol COI COMPLIANT
Symbol TUNEABLE
Symbol ORGANIC RESPONSE LOGO
Symbol EMERGENCY
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    APPLICATION
    The Vertex is positioned as an optimum solution for office and general lighting with high efficacy, exceptional lifetime and low glare values. CRI90+ as standard. Also suitable for locations where COI compliance is required.

    DESIGN
    The electronic driver is mounted to the rear of the luminaire in an isolated thermal chamber. By separating the driver, the LEDs within the luminaire as well as the driver itself are kept at their lowest possible operating temperature. This ensures that the Vertex can offer the longest possible lifetime.

    OPTICS
    The combination of a Delta diffuser and a V-shaped internal reflector is used for optimal beam shaping.

    CONTROL
    DALI and non-dimming versions as standard. Organic Response, Tunable White (DALI Type 8) are available as options. Other options may be available through customisation.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-200
    Tunable White (DALI Type 8)-220
    Maintained Emergency-800
    DALI Monitored Emergency-801
    Organic Response SN3-950


    INSTALLATION
    Exposed T-bar as standard. Plaster recessed and Surface mount kits are available. Seismic restraint kit available.

    EMERGENCY
    Maintained non-monitored and Maintained DALI-monitored options available as standard. Other options may be available through customisation.

    NOTE

    • Narrower variants (100mm, 150mm, 200mm) available via customisation.
    • Wipedown version available via customisation.


    Key Family Details

    • Optical System:
      Delta diffuser and internal reflector
    • Mounting Type:
      Exposed T-Bar
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard White
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      4000K
    • R9:
      67+
    • COI Compliant:
      Yes
    • Melanopic Ratio:
      0.72
  • Technical Information

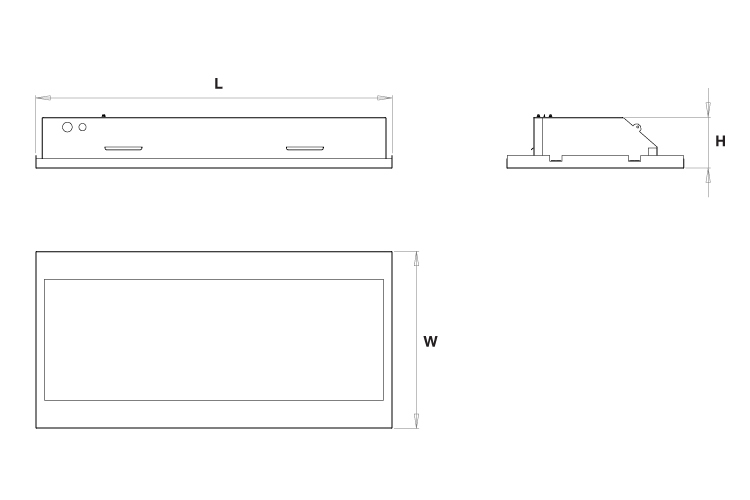

    Vertex Dimensions v1 030521
    • EL-VER-2101-000
      L: 593mm; W: 293mm; H: 85mm; Weight: 2.8kg
    • EL-VER-2113-000
      L: 593mm; W: 593mm; H: 85mm; Weight: 5.0kg
    • EL-VER-2105...-2107-000
      L: 1193mm; W: 293mm; H: 85mm; Weight: 5.0kg
    • EL-VER-2110...-2111-000
      L: 1493mm; W: 293mm; H: 85mm; Weight: 6.5kg

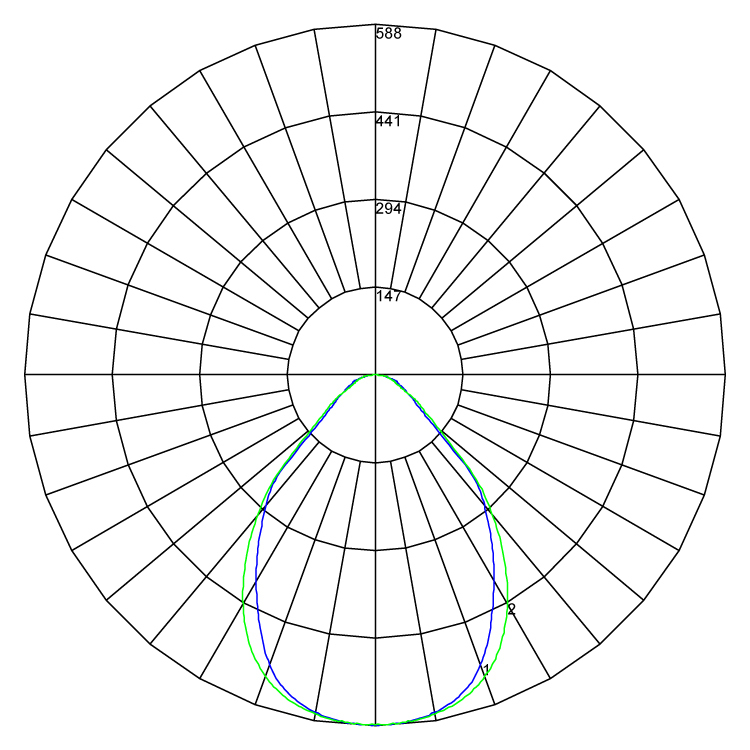

    Vertex polarcurve v1
    Nominal Polar Curve

    • EL-VER-2101-000
      L: 593mm; W: 293mm; H: 85mm; Weight: 2.8kg
    • EL-VER-2113-000
      L: 593mm; W: 593mm; H: 85mm; Weight: 5.0kg
    • EL-VER-2105...-2107-000
      L: 1193mm; W: 293mm; H: 85mm; Weight: 5.0kg
    • EL-VER-2110...-2111-000
      L: 1493mm; W: 293mm; H: 85mm; Weight: 6.5kg
    Vertex Dimensions v1 030521
    Vertex polarcurve v1
    Nominal Polar Curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit 600x300EL-ACC-610-000
Surface mount kit 1200x300EL-ACC-612-000
Plaster recess kit 600x300EL-ACC-850-000
Plaster recess kit 1200x300EL-ACC-852-000
