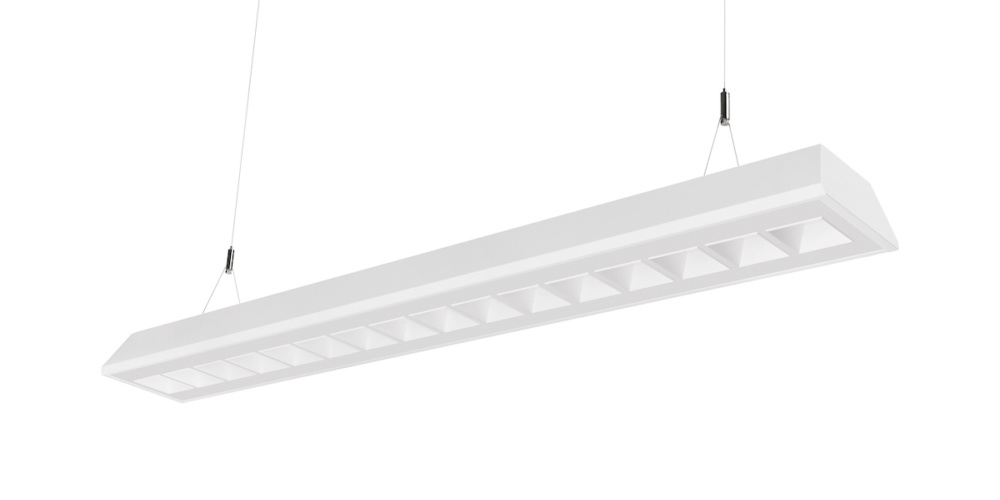

OmniPOD Pendant (New)
EL-OMNP-3006-974
OMNIPOD PENDANT Suspended/Pendant Single Luminaire Direct 22.5W LED Wide beam 4000K/Ra90+ 240V Hybrid Optics Organic Response Class I L:1539mm W:158mm H:70mm IP40 Mannex white.
-
Technical Overview
-
Finish
Mannex white -
L = Length [mm]
1539 -
W = Width/Diameter [mm]
158 -
H = Height [mm]
70 -
CL = Recessing Length [mm]
- -
CW = Recessing Width/Diameter [mm]
- -
Weight [kg]
7
Normalised Polar Curve (Direct)
Normalised Polar Curve (Direct/Indirect)
-
-
Photometric Values
-
Control Type
Organic Response -
Ceiling Type/Mounting
Suspended/Pendant -
Wattage [W]
22.5 -
CLO Enabled
Yes -
Final Wattage CLO [W]
25 -
System Lumens [lm]
- -
Luminaire Lumens [lm]
2998 -
Efficacy [lm/W]
134
-
Lighting Type
Direct -
Target Spacing [m]
- -
Target H Illuminance [lux]
- -
LPD [W/m2]
- -
NPD [W/sqm/100lux]
- -
Beamwidth (FWHM)
- -
Optics Type
Hybrid Optics -
UGR
-
-
-
Colour Quality
-
CCT [K]
4000K -
CCT1 [K]
4000K -
CCT2 [K]
- -
Other Light Colour
- -
CRI
Ra90+ -
COI Compliance
Compliant -
CLA 2.0
- -
M-DER
-
-
R9
50 -
Melanopic Ratio
0.68 -
Circadian Stimulus CS [%]
- -
Circadian Light [lux]
- -
TM-30 RF
90 -
TM-30 RG
97 -
M-EDI
-
-
-
Lifetime and Miscellaneous Parameters
-
LM80 Test Duration [hrs]
20000 -
L90B50 Lifetime [hrs]
- -
TM21 L70 Reported Lifetime [hrs]
-
-
L100B50 Lifetime (CLO) [hrs]
50000 -
TM21 L90 Reported Lifetime [hrs]
- -
SDCM Initial
3
-
Accessories
| CODE | DESCRIPTION |
| EL-ACC-180-000 | Casambi Wireless User Interface (Battery powered. 4 scenes. Available in White or Black) |
| EL-ACC-181-000 | DALI Touch Panel Basic TW (Capacitive DALI touch panel with real glass display) |
| EL-ACC-182-000 | DALI x/e-touchPANEL 02 (Touch-screen based DALI lighting and emergency lighting management system) |
| EL-ACC-183-000 | Tridonic DALI XC (DALI input controller) |
