PROJECT



ARCHITECT/DESIGNER



TYPE NO.



QUANTITY

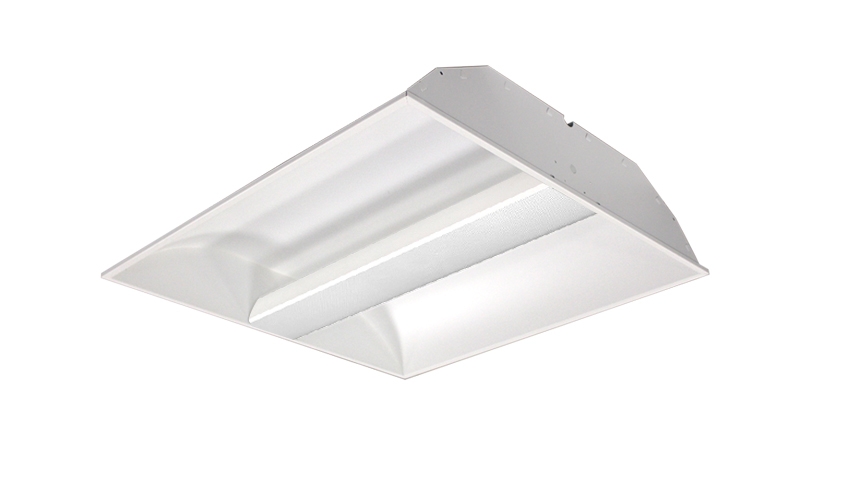

  • 600x600 Indigo Maestro Delta

Indigo Maestro Delta

EL-IMD-1001-200

INDIGO MAESTRO DELTA Recessed/T-bar Single Luminaire Bottom Access Direct 1994lm 15W LED Wide beam 4000K Ra90+ 240V Hybrid DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:593mm W:293mm H:99mm IP40 White .

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

Indigo Maestro Delta

EL-IMD-1001-200

Eagle Lighting
600x600 Indigo Maestro Delta
  • Technical Overview

    Indigo Maestro Delta Dimensions v1 030521
    • Finish
      White
    • L = Length [mm]
      593
    • W = Width/Diameter [mm]
      293
    • H = Height [mm]
      99
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      4.8
    Indigo Maestro Delta polarcurve v1
    Nominal Polar Curve

    • Finish
      White
    • L = Length [mm]
      593
    • W = Width/Diameter [mm]
      293
    • H = Height [mm]
      99
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      4.8
    Indigo Maestro Delta Dimensions v1 030521
    Indigo Maestro Delta polarcurve v1
    Nominal Polar Curve

  • Photometric Values

    • Control Type
      DALI
    • Wattage [W]
      15
    • CLO Enabled
      0
    • Final Wattage CLO [W]
      0
    • System Lumens
      1994
    • Luminaire Lumens [lm]
      1226
    • Efficacy [lm/W]
      82
    • Target Spacing [m]
      -
    • Target H Illuminance [lux]
      0
    • LPD [W/sqm]
      0
    • NPD [W/sqm/100lux]
      0
    • Beamwidth (FWHM)
      -
    • Optics Type
      Hybrid
    • UGR
      0
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      4000K
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • R9
      51
    • Melanopic Ratio
      0
    • Circadian Stimulus CS [%]
      0
    • Circadian Light [lux]
      0
    • TM-30 RF
      89
    • TM-30 RG
      98
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime (CLO) [hrs]
      90000
    • TM21 L70 Reported Lifetime [hrs]
      >72001
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      50000
    • SDCM Initial
      3
  • Downloads

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit to suit 600x300
EL-ACC-610-000
Surface mount kit to suit 600x600
EL-ACC-509-000
Surface mount kit to suit 1200x300
EL-ACC-510-000
Surface mount kit to suit 600x600 (height>100)
EL-ACC-504-000
Surface mount kit to suit 600x600
EL-ACC-509-000
Plaster recess kit 600x300
EL-ACC-850-000
Plaster recess kit 600x600
EL-ACC-851-000
Plaster recess kit 1200x300
EL-ACC-852-000
Plaster recess kit 1500x300
EL-ACC-853-000
