Date Updated: 14 July 2022

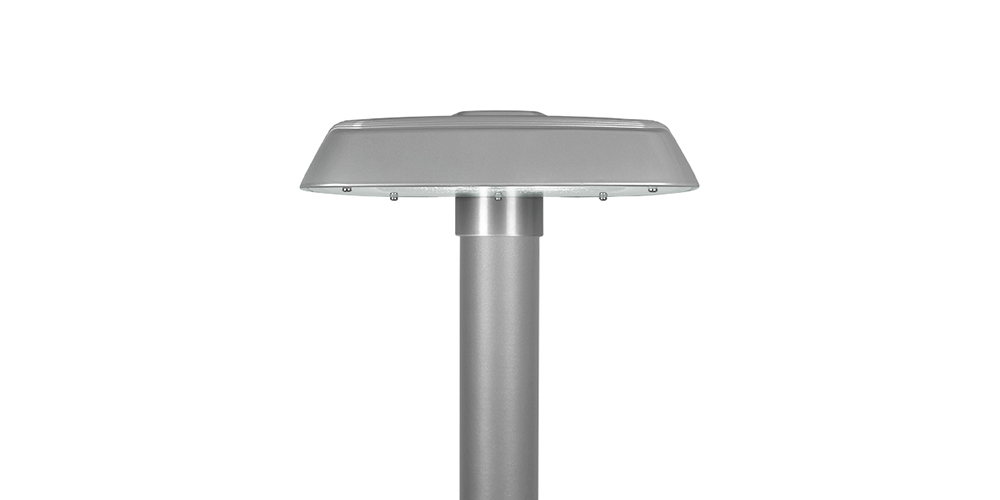

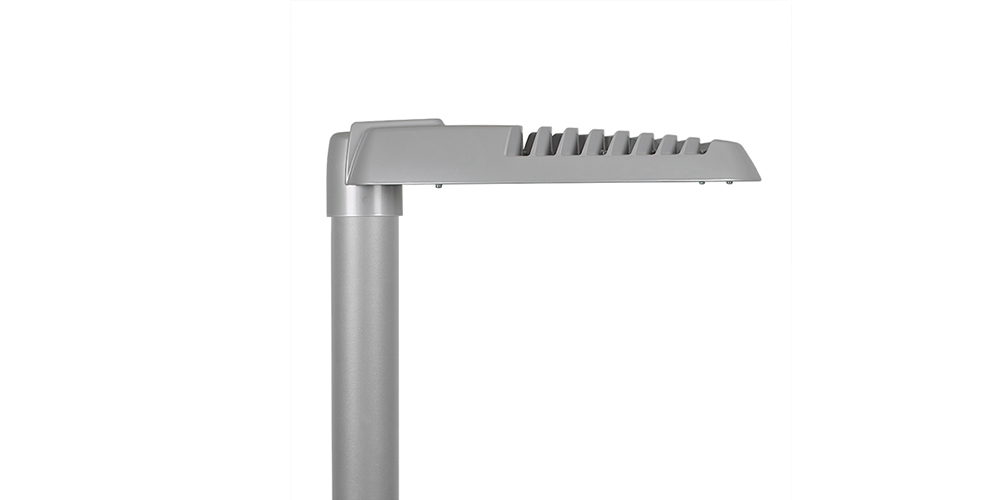

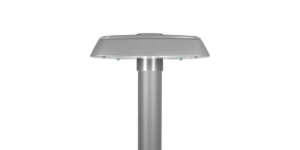

Evolume combines excellent lighting properties and visual comfort with a modern cost-effective design. Thanks to its flat appearance, the post-top luminaire blends well into numerous different environments.

For full details visit Fagerhult:

Evolume family page - A complete, energy-efficient lighting solution for the entire urban environment.

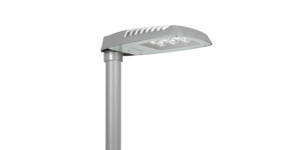

Evolume 1 - A post-top luminaire with AGC lenses for excellent lighting properties and visual comfort, ideal for streets, footpaths, bicycle paths and smaller car parks. CLO for output consistency as standard. Evolume 1 has met the needs of urban streets, footpaths, bicycle paths and smaller car parks.

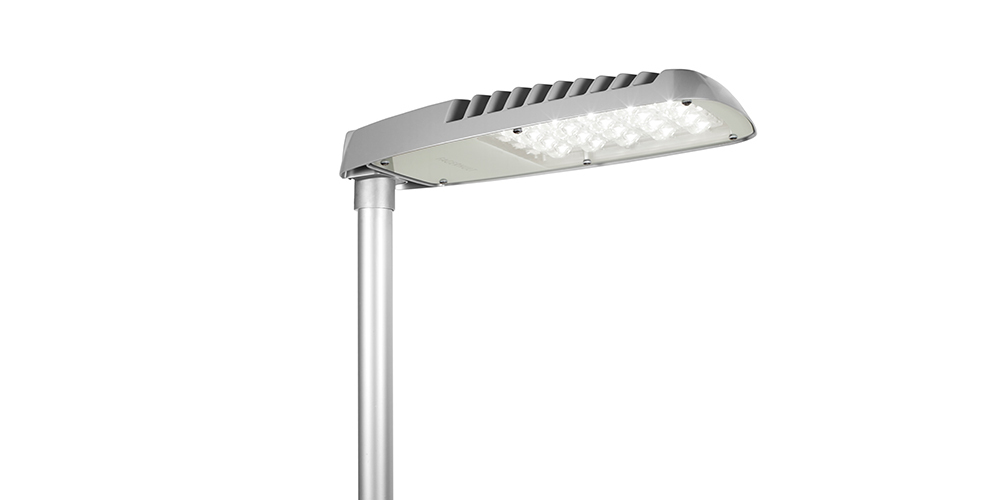

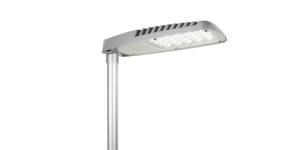

Evolume 2 - A high-power post-top luminaire for illuminating wider main streets, motorways and large car parks. CLO for output consistency as standard. Evolume 2 is a larger luminaire with advanced optics offering a luminous flux up to 18,300 lumens – a more powerful version intended for illuminating wider main streets, motorways and large car parks.

Evolume 75 - Lamppost luminaire with high performance and light comfort. Optimised beam with AGC lenses designed for road lighting. CLO by default for constant luminous flux over the working life of the luminaire.

Lamppost luminaire with high performance and light comfort. Optimised beam with AGC lenses designed for road lighting. CLO by default for constant luminous flux over the working life of the luminaire. Evolume family comprises 3 sizes of luminaires for pathways and parks, minor roads and a high-power version for illuminating wider main streets, motorways and large car parks.

Post top luminaire can be mounted on Ø48-60 & Ø 76mm post top or post arm. Tiltable ±15º. Post height 5–18 m.

Luminaire housing and post bracket made of recycled diecast aluminium. Aluzink-treated stainless steel screws. Integrated heatsinks for increased efficiency. Screen-printed, hardened flat glass.

AGC-lenses (Advanced Glare Control). The E-lens are designed to focus on illuminance. L lenses are ideal if the luminance from the ground is the main priority. The AGC lenses are integrated with a reflector for increased efficiency and light comfort. Plates for backlight screening are available on request. Luminaire variant with optics for pedestrian crossings is available on request.

DALI variant and night-time dimming are available on request.

The luminaire is available in several standard colours:

• Alu-grey (RAL 9006 G70),
• Traffic grey (RAL7042 G70),
• Anthracite grey (Gris 900 Sablé),
• Graphite grey (RAL7024 G70),
• Black (RAL9005 G70),
• Black (RAL9005 texture),
• Green (RAL6009 G70)

Driver with integrated surge protection.

Available in Classes 1 and 2. Zhaga D4i on request. NEMA socket on request for motion and PE cell control.
