PROJECT



ARCHITECT/DESIGNER



TYPE NO.

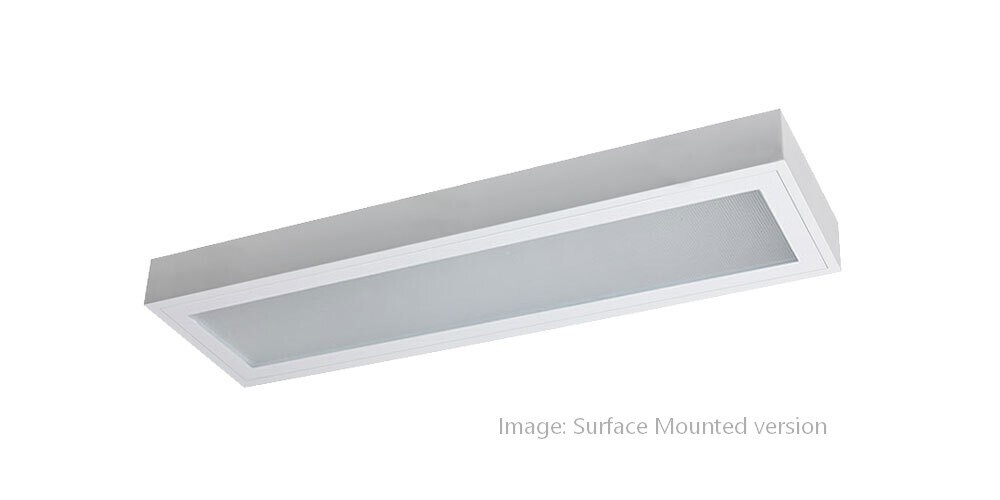

  • Cleanroom CR65 CAROUSEL 2

Cleanroom IP65 LED

EL-CR65L-5112-000

CLEANROOM IP65 LED Suspended/Surface Mounted Single Luminaire Bottom Access Direct 6000lm 40.4W LED Wide beam 4000K/ Ra90+ 240V Delta Non-dim Class I L:710mm W:710mm H:107mm IP65 IK08/5J White.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

Cleanroom IP65 LED

EL-CR65L-5112-000

CLEANROOM IP65 LED Suspended/Surface Mounted Single Luminaire Bottom Access Direct 6000lm 40.4W LED Wide beam 4000K/ Ra90+ 240V Delta Non-dim Class I L:710mm W:710mm H:107mm IP65 IK08/5J White.

Eagle Lighting
Cleanroom CR65 CAROUSEL

  • Technical Overview

    Cleanroom IP65 Dimensions v1 300421
    • Finish
      White
    • L = Length [mm]
      710
    • W = Width/Diameter [mm]
      710
    • H = Height [mm]
      107
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      15
    Cleanroom IP65 polarcurve v1
    Nominal polar curve

    • Finish
      White
    • L = Length [mm]
      710
    • W = Width/Diameter [mm]
      710
    • H = Height [mm]
      107
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      15
    Cleanroom IP65 Dimensions v1 300421
    Cleanroom IP65 polarcurve v1
    Nominal polar curve

  • Photometric Values

    • Control Type
      Non-dim
    • Ceiling Type/Mounting
      Suspended/Surface Mounted
    • Wattage [W]
      40.4
    • CLO Enabled
      No
    • Final Wattage CLO [W]
      -
    • System Lumens [lm]
      6000
    • Luminaire Lumens [lm]
      4247
    • Efficacy [lm/W]
      105
    • Lighting Type
      Direct
    • Target Spacing [m]
      2.4 x 2.4
    • Target H Illuminance [lux]
      600
    • LPD [W/m2]
      7.01
    • NPD [W/sqm/100lux]
      1.15
    • Beamwidth (FWHM)
      -
    • Optics Type
      Delta
    • UGR
      19
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • R9
      68
    • Melanopic Ratio
      0.72
    • Circadian Stimulus CS [%]
      -
    • Circadian Light [lux]
      -
    • TM-30 RF
      91
    • TM-30 RG
      100
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime [hrs]
      61000
    • TM21 L70 Reported Lifetime [hrs]
      >72000
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      52000
    • SDCM Initial
      3
