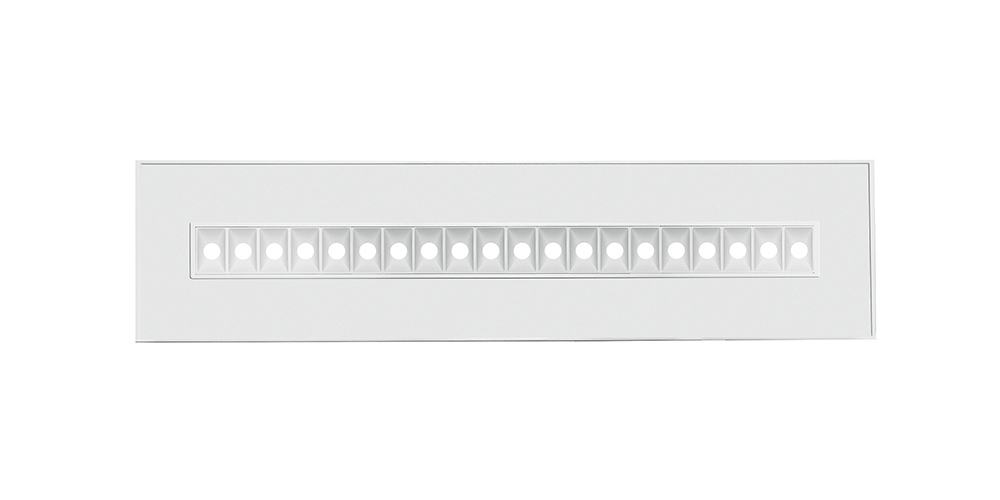

  • Circadia white CAROUSEL

Circadia (white optical chambers)

EL-CIR-1113-244

CIRCADIA WHITE OPTICS Recessed/T-bar Single Luminaire Bottom Access Direct 2250lm 16W LED Wide beam 4000K Ra90+ 240V White reflector DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:594mm W:293mm H:60mm IP40 White .

Local manufacture
Eagle Lighting
  • Technical Overview

    Circadia Dimensions v1 300421
    • Finish
      White
    • L = Length [mm]
      594
    • W = Width/Diameter [mm]
      293
    • H = Height [mm]
      60
    • CL = Recessing Length [mm]
      0
    • CW = Recessing Width/Diameter [mm]
      0
    • Weight [kg]
      3.8
    Circadia white polarcurve v1
    Nominal Polar Curve

  • Photometric Values

    • Control Type
      DALI
    • Wattage [W]
      16
    • CLO Enabled
      1
    • Final Wattage CLO [W]
      19
    • System Lumens
      2250
    • Luminaire Lumens [lm]
      1667
    • Efficacy [lm/W]
      105
    • Target Spacing [m]
      -
    • Target H Illuminance [lux]
      410
    • LPD [W/sqm]
      0
    • NPD [W/sqm/100lux]
      0
    • Beamwidth (FWHM)
      -
    • Optics Type
      White reflector
    • UGR
      0
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • R9
      55
    • Melanopic Ratio
      0.72
    • Circadian Stimulus CS [%]
      12
    • Circadian Light [lux]
      85
    • TM-30 RF
      89
    • TM-30 RG
      96
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime (CLO) [hrs]
      55000
    • TM21 L70 Reported Lifetime [hrs]
      >72001
    • L100B50 Lifetime (CLO) [hrs]
      72000
    • TM21 L90 Reported Lifetime [hrs]
      -
    • SDCM Initial
      3
  • Downloads

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit** to suit 600x300EL-ACC-610-000
Surface mount kit** to suit 1200x300EL-ACC-510-000
Surface mount kit** to suit 600x600
EL-ACC-509-000
Plaster recess kit 600x300
EL-ACC-850-000
Plaster recess kit 1200x300
EL-ACC-852-000
Plaster recess kit 1500x300
EL-ACC-853-000

[**]: Surface mounting kits are 'standard white'. Other finish options available via customisation
