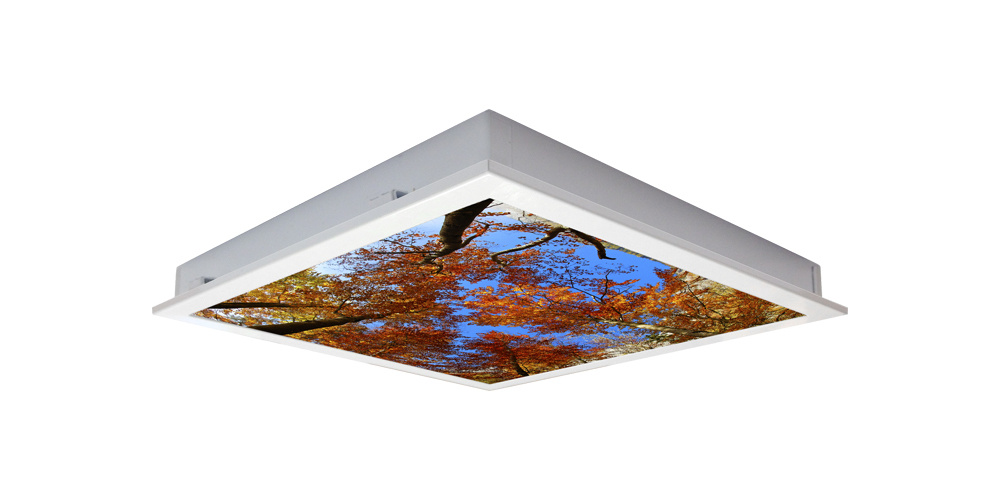

  • Aureled Vista Autumn CAROUSEL

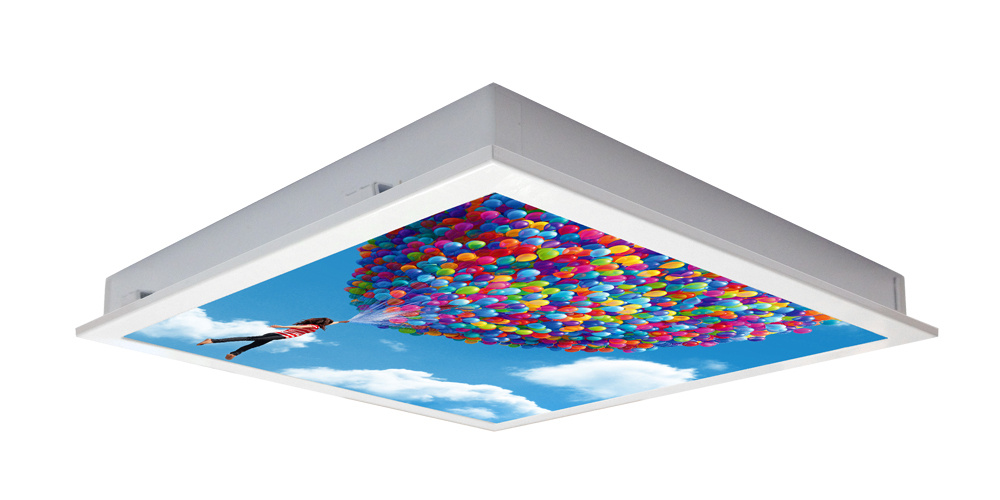

  • Aureled Vista Balloons CAROUSEL

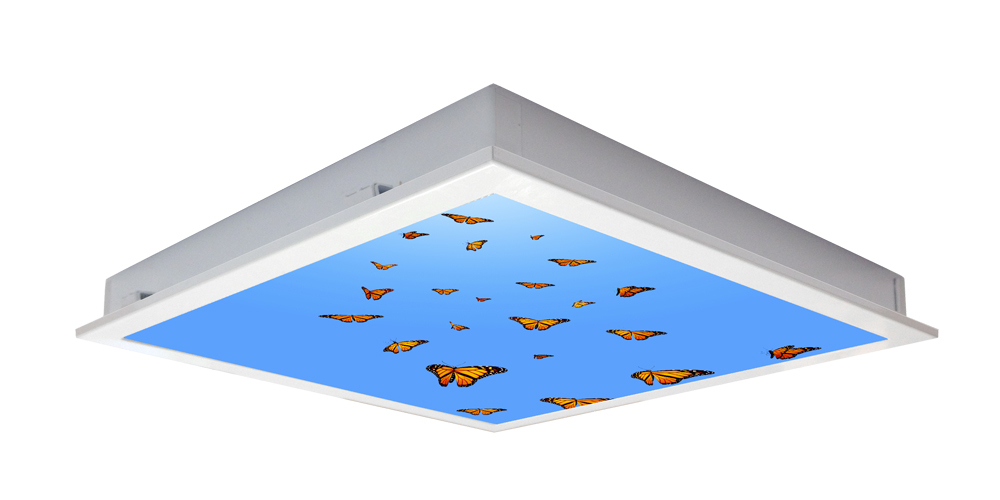

  • Aureled Vista Butterfly CAROUSEL

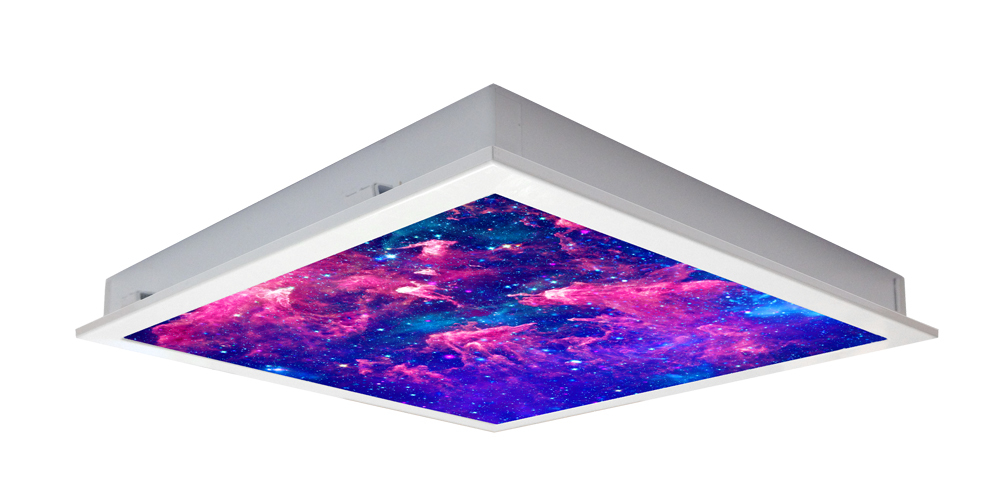

  • Aureled Vista Galaxy CAROUSEL

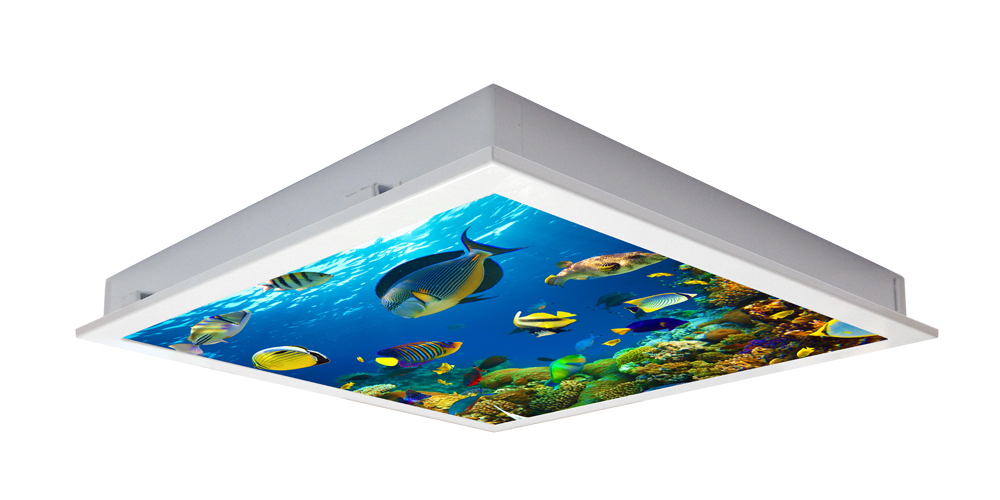

  • Aureled Vista Ocean CAROUSEL

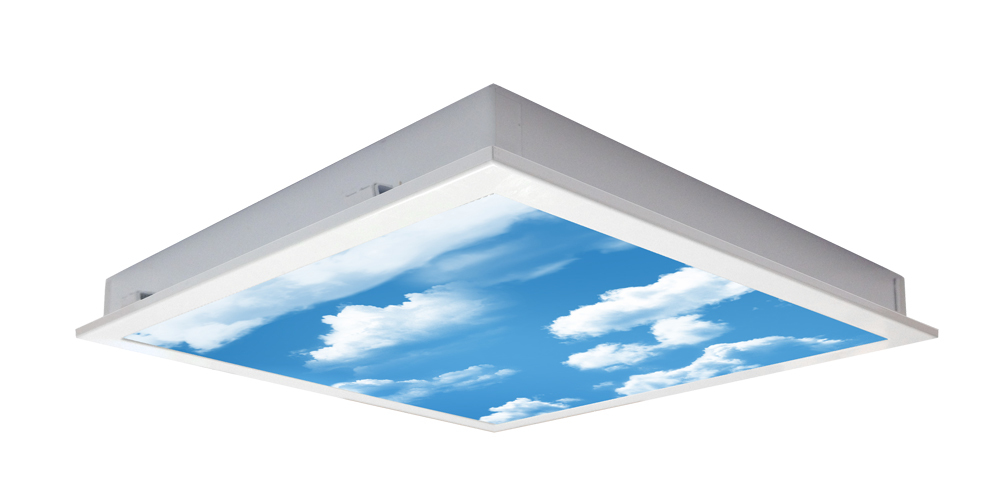

  • Aureled Vista Sky CAROUSEL

Aureled Vista

A slimline LED luminaire with a printed acrylic diffuser.

Custom Datasheet

Please enter your details for the document header, or continue and create datasheet

Local manufacture
Eagle Lighting
  • General Information

    The Aureled Vista has been developed with healthcare environments in mind. The Aureled Vista is available with a range of different imagery designed to promote a relaxing and reassuring environment for patients.

    Using creative lighting solutions creates a non-institutional feel that puts patients at ease and makes it more likely that they relax and focus on healing.

    The Aureled Vista can be a focal and discussion point for young children undergoing medical examinations. By giving patients something to concentrate on they are less likely to become agitated.

    Designed and constructed with a shallow 45mm profile the Aureled will slide into confined spaces. Coupled with a detachable gearbox incorporating a plug-and-play connector this luminaire is the perfect solution for locations where there are multiple services installed inside the ceiling space.

    Once installed, the gearbox can be detached from the luminaire housing as required whether for upgrading to dimming or maintenance.

    Antimicrobial powder coating as standard.

    CODEDESCRIPTIONLENGTH:WIDTH: DEPTH:REMOTE GEAR:
    EL-AUR-____-C1-___LED C16006005640
    EL-AUR-____-C2-___LED C260012005640
    EL-AUR-____-C3-___LED C360018005640
    EL-AUR-____-C4-___LED C4120012005640
    EL-AUR-____-C6-___LED C6120018005640
    EL-AUR-____-C9-___LED C9180018005640

    CONTROL OPTIONS

    The below controls options are standard options available for this product. Further customisation may be possible via customisation.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI-200
    Maintained emergency-800
    DALI monitored emergency -801
    Organic Response (SN3)-950

    OPTIONS:

    • DSI Dimming
    • DALI Dimming
    • Emergency
    • Restraint kit available

    Key Family Details

    • CCT:
      4000K
    • CRI:
      90+
    • R9:
      70+
  • Technical Information

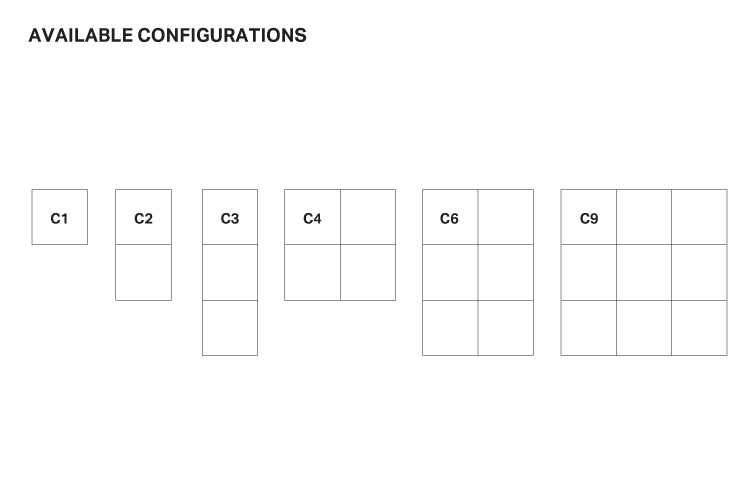

    Aureled Configuration layout
    • Available nominal dimensions (mm):
      600x600; 600x1200; 600x1800; 1200x1200; 1200x1800; 1800x1800
    • Depth for all versions:
      56mm (remote gear 40mm)
  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
