PROJECT



ARCHITECT/DESIGNER



TYPE NO.



  • ELLE SUSPENDED OPAL WHITE CAROUSEL
  • OPAL GREY CAROUSEL
  • ELLE SUSPENDED OPAL BLACK CAROUSEL
  • ELLE SUSPENDED OPAL GREY CAROUSEL

ELLE Suspended - Opal

Suspended version of our modular linear lighting system - designed, tested and manufactured in Melbourne.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture

ELLE Suspended - Opal

Eagle Lighting

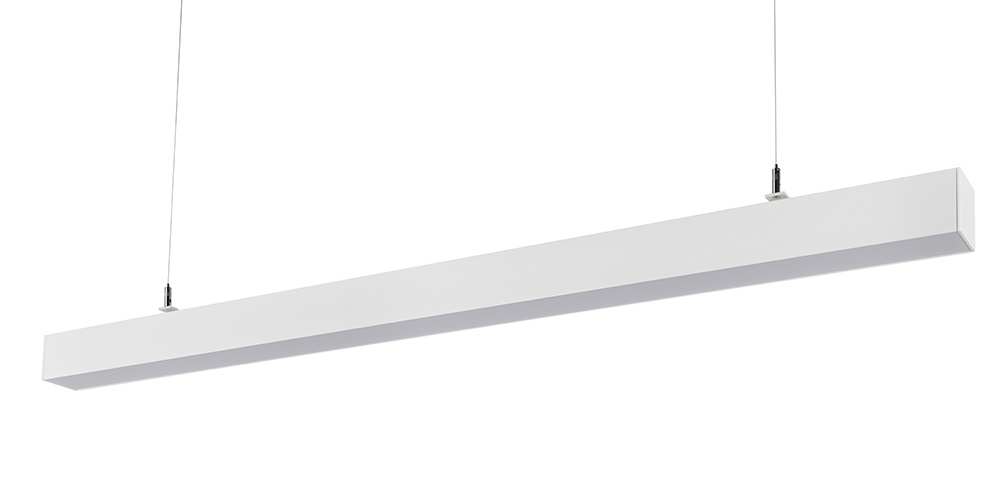

ELLE SUSPENDED OPAL WHITE CAROUSEL

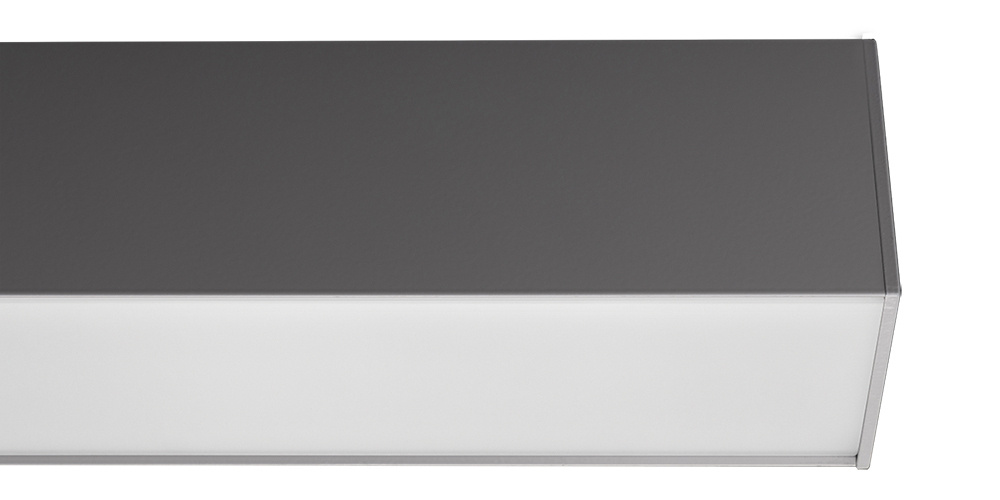

  • OPAL GREY CAROUSEL

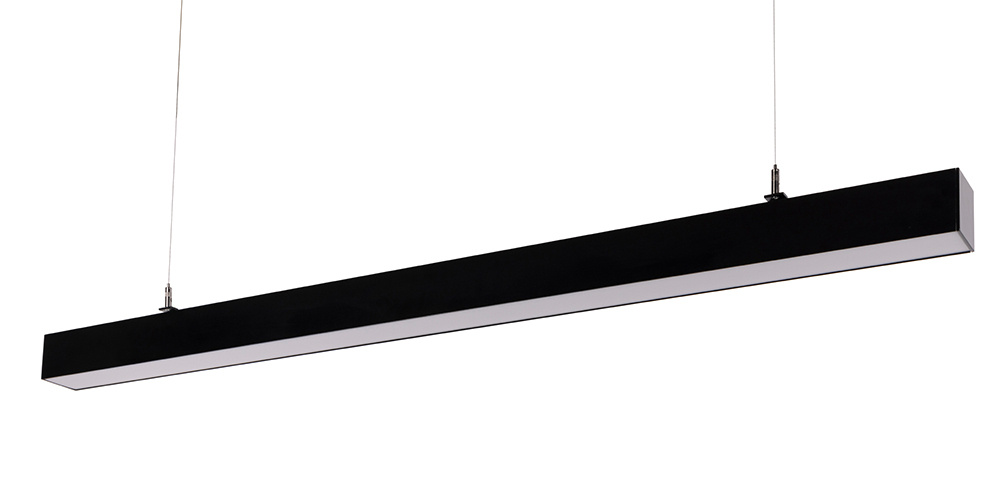

  • ELLE SUSPENDED OPAL BLACK CAROUSEL
  • ELLE SUSPENDED OPAL GREY CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol DIRECT INDIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP20
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol RCM LOGO

  • General Information

    General Information

    APPLICATION

    Thanks to its design and customisation options, the range is ideal for a wide variety of environments, including offices, healthcare and education facilities, leisure/hospitality, retail/shopping centres, airport/rail circulation and commercial precinct.

    Whether you require purely decorative accent lighting or technically perfect office lighting, the ELLE range offers a version to suit any project.

    DESIGN

    ELLE is a flexible and modular product family which can be configured to a project's specific requirement based on application and interior design intent.

    • Single or continuous.
    • Light distributions: Direct or Direct/Indirect.

    A sustainable, energy-efficient system, ELLE provides significant advantages for developers and occupiers seeking to achieve WELL building and Greenstar Certification.

    OPTICS

    To learn more about ELLEs optics, download the brochure here.

    LIGHT DISTRIBUTION

    Depending on a project’s lighting criteria and/or the required aesthetic, ELLE is available as either direct (downward) or Direct/Indirect (upward and downward). For specialist applications, a dedicated asymmetric distribution is available upon request.

    COLOUR OPTIONS

    ELLE's standard range of colour finishes powder coated in our state-of-the-art Melbourne Manufacturing facility include black, white and grey.

    These three colours are available in a textured powder-coated finish, with architectural metallic finishes also available upon request.

    LENGTHS

    Lengths are entirely driven by a project's specific requirement and configured using our 835mm, 1250mm and 2500mm module lengths accordingly.

    CONTROLS

    LIFETIME

    LIGHT QUALITY

    • Colour temperature: 3000k and 4000k.
    • CRI90+ standard for all versions.
    • COI (Cyanosis Observation Index) compliant.
    • Initial colour consistency better than 3 SDCM

    INSTALLATION & MOUNTING OPTIONS

    Continuous connection for fast installation and quality results.

    ELLE is supplied with most of the work completed during manufacturing, making it intuitive, fast and straightforward for the electrical installer. ELLE has been developed and refined to incorporate a pre-wired harness with a quick connect male/female electrical coupler connection. Continuous joins incorporate a “light trap” between the louvres eliminating light leakage at the profile and louvre joins.

    This supports contractors installing ELLE onto projects to run both under time and budget whilst delivering a high-quality finished result.

    ELLE is available as either Single pendants or continuous run installations via wire suspension or surface mounted. Installation via wire suspension requires wire brackets which provide flexible centres.

    N.B.

    • Codes and Data in the 'PRODUCT CODE' table below are for the white versions only
    • Images are a representation of product design; the finished product may vary slightly according to project specification etc.

    Key Family Details

    • Optical System:
      Opal diffuser
    • Mounting Type:
      Suspended/Pendant
    • Finish:
      White, Black, and Grey
    • System Warranty:
      5 years
    • CRI (Ra):
      Ra90+
    • CCT:
      4000K
    • R9:
      ≥72
    • COI Compliant:
      Yes (≤1.9)
    • Melanopic Ratio:
      ≥0.7
    • Circadian Stimulus CS [%] (*):
      ≥13
    • Circadian Light Cla [lux] (*):
      ≥90
    • N.B.
      (*) For 150lux corneal photopic illumination. As a guide only.
  • Technical Information

    ELLE Dimensions all versions
    • SINGLE 1250mm/ 2500mm
      L=1256/ 2506mm* W=65mm H=65mm
    • START 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • CONTINUOUS 835mm/ 1250mm/ 2500mm
      L=835/ 1250/ 2500mm W=65mm H=65mm
    • END 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • SINGLE 1340mm/ 2590mm ORT
      L=1346/ 2596mm* W=65mm H=65mm
    • START 1340/ 2590mm ORT
      L=1343/ 2593mm* W=65mm H=65mm
    • END 1340/ 2590mm ORT
      L=1343/ 2593mm* W=65mm H=65mm
    • N.B.
      *includes end cap

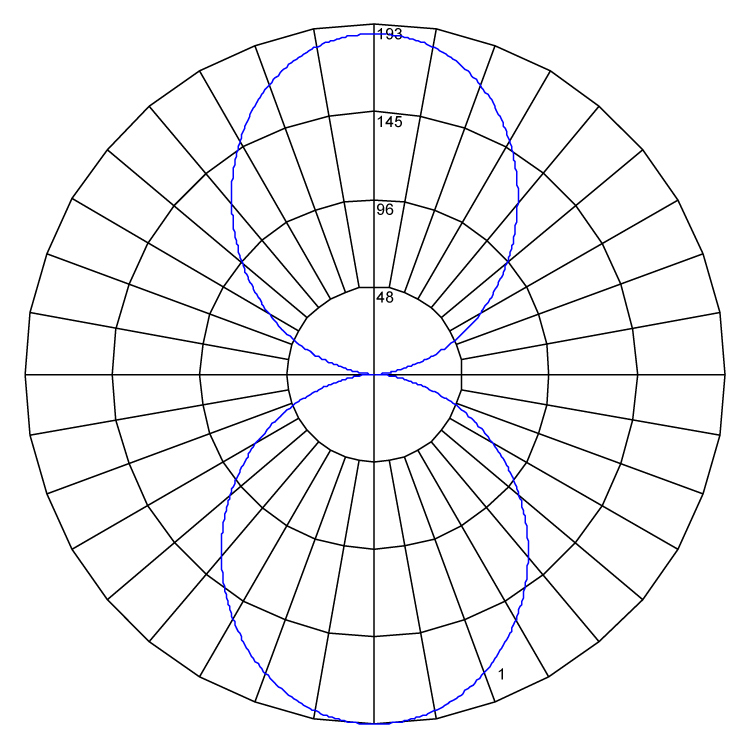

    ELLE SUSP Opal polarcurve v1
    Nominal polar curve - Direct/Indirect

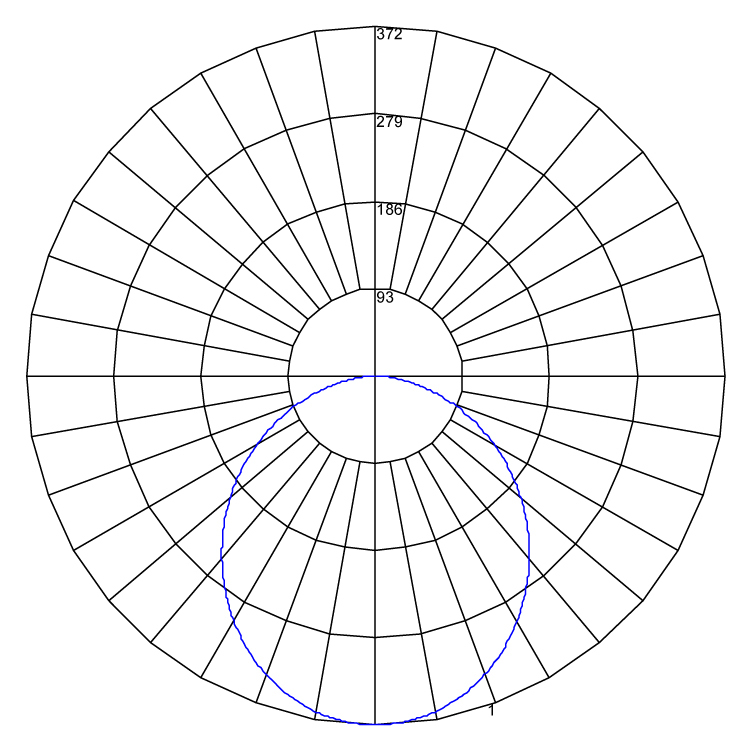

    ELLE SM Opal polarcurve v1
    Nominal polar curve - Direct

    • SINGLE 1250mm/ 2500mm
      L=1256/ 2506mm* W=65mm H=65mm
    • START 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • CONTINUOUS 835mm/ 1250mm/ 2500mm
      L=835/ 1250/ 2500mm W=65mm H=65mm
    • END 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • SINGLE 1340mm/ 2590mm ORT
      L=1346/ 2596mm* W=65mm H=65mm
    • START 1340/ 2590mm ORT
      L=1343/ 2593mm* W=65mm H=65mm
    • END 1340/ 2590mm ORT
      L=1343/ 2593mm* W=65mm H=65mm
    • N.B.
      *includes end cap
    ELLE Dimensions all versions
    ELLE SUSP Opal polarcurve v1
    Nominal polar curve - Direct/Indirect

    ELLE SM Opal polarcurve v1
    Nominal polar curve - Direct

  • Downloads

Product Code

Accessories

ELLE ORGANIC RESPONSE MODULES

ELLE Surface Mounted / Pendant ORT Modules
ELLE Surface Mounted / Pendant ORT Modules

EL-ELLA-1000-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 White Matt Continuous 2 Way. Connects DALI In Both Directions

EL-ELLA-1001-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Black Matt Continuous 2 Way. Connects DALI In Both Directions

EL-ELLA-1002-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Grey Matt Continuous 2 Way. Connects DALI In Both Directions

EL-ELLA-1003-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 White Matt Continuous Right. Connects DALI In Right Direction and Breaks DALI to the Left

EL-ELLA-1004-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Black Matt Continuous Right. Connects DALI In Right Direction and Breaks DALI to the Left

EL-ELLA-1005-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Grey Matt Continuous Right. Connects DALI In Right Direction and Breaks DALI to the Left

EL-ELLA-1006-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 White Matt Continuous Left. Connects DALI In Left Direction and Breaks DALI to the Right

EL-ELLA-1007-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Black Matt Continuous Left. Connects DALI In Left Direction and Breaks DALI to the Right

EL-ELLA-1008-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Grey Matt Continuous Left. Connects DALI In Left Direction and Breaks DALI to the Right

EL-ELLA-1018-974

ELLE ORT MODULE Extender SM/Pendant Opal/Delta L:200mm IP20 White Matt

EL-ELLA-1019-974

ELLE ORT MODULE Extender SM/Pendant Opal/Delta L:200mm IP20 Grey Matt

EL-ELLA-1020-974

ELLE ORT MODULE Extender SM/Pendant Opal/Delta L:200mm IP20 Black Matt
Note: Each ORT module is for use with up to 4 ELLE DALI sections in continuous installation.


ELLE SUSPENSION ACCESSORIES

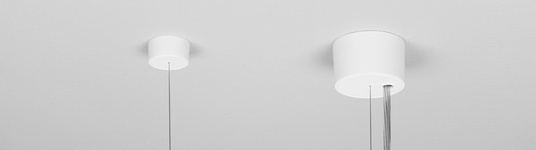

Ceiling Cups White
Ceiling Cups White
CODE
DESCRIPTION

EL-ACC-1224-000

Elle Suspension Bracket including wire lock; 1 Black pair.

EL-ACC-1223-000

Elle Suspension Bracket including wire lock; 1 White pair.

EL-ACC-1225-000

Elle Suspension Bracket including wire lock; 1 Grey pair.

EL-ACC-543-000

Suspension, large round White ceiling cup with transparent mains wire and stainless wire, 1.5m

EL-ACC-544-000

Suspension, small round White ceiling cup with stainless wire, 1.5m

EL-ACC-541-000

Suspension, large round Black ceiling cup with transparent mains wire and stainless wire, 1.5m

EL-ACC-542-000

Suspension, small round Black ceiling cup with stainless wire, 1.5m

ELLE EMERGENCY MODULES

ELLE Surface Mounted EMG Module
ELLE Surface Mounted / Pendant EMG Module
EL-ELLA-1800-800ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 White Matt
EL-ELLA-1800-801
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 White Matt
EL-ELLA-1801-800
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 Black Matt
EL-ELLA-1801-801
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 Black Matt
EL-ELLA-1802-800
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 Grey Matt
EL-ELLA-1802-801
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 Grey Matt



ELLE SPACERS

ELLE Surface Mounted Spacer
ELLE Pendant Spacer
EL-ELLP-1400-244 ELLE Spacer Suspended Opal/Delta / L:400mm IP20 White Matt
EL-ELLP-1401-244 ELLE Spacer Suspended Opal/Delta / L:400mm IP20 Black Matt
EL-ELLP-1402-244 ELLE Spacer Suspended Opal/Delta / L:400mm IP20 Grey Matt
EL-ELLP-1403-244 ELLE Spacer Suspended Opal/Delta / L:600mm IP20 White Matt
EL-ELLP-1404-244 ELLE Spacer Suspended Opal/Delta / L:600mm IP20 Black Matt
EL-ELLP-1405-244 ELLE Spacer Suspended Opal/Delta / L:600mm IP20 Grey Matt
EL-ELLP-1406-244 ELLE Spacer Suspended Opal/Delta / L:800mm IP20 White Matt
EL-ELLP-1407-244 ELLE Spacer Suspended Opal/Delta / L:800mmm IP20 Black Matt
EL-ELLP-1408-244 ELLE Spacer Suspended Opal/Delta / L:800mm IP20 Grey Matt
EL-ELLP-1409-244 ELLE Spacer Suspended Opal/Delta / L:1200mm IP20 White Matt
EL-ELLP-1410-244 ELLE Spacer Suspended Opal/Delta / L:1200mm IP20 Black Matt
EL-ELLP-1411-244 ELLE Spacer Suspended Opal/Delta / L:1200mm IP20 Grey Matt
