ELLE Suspended - Beta Opti
-
General Information
Date Updated: 24 April 2024
APPLICATION
Thanks to its design and customisation options, the range is ideal for a wide variety of environments, including offices, healthcare and education facilities, leisure/hospitality, retail/shopping centres, airport/rail circulation and commercial precinct.
Whether you require purely decorative accent lighting or technically perfect office lighting, the ELLE range offers a version to suit any project.
DESIGN
ELLE is a flexible and modular product family which can be configured to a project's specific requirement based on application and interior design intent.
- Single or continuous.
- Light distributions: Direct or Direct/Indirect.
A sustainable, energy-efficient system, ELLE provides significant advantages for developers and occupiers seeking to achieve WELL building and Greenstar Certification.
OPTICS
Optimised to create a premium lighting experience, Beta Opti is a prime candidate when specifying projects with technically demanding performance criteria.
To learn more about ELLEs optics, download the brochure here.
LIGHT DISTRIBUTION
Depending on a project’s lighting criteria and/or the required aesthetic, ELLE is available as either direct (downward) or Direct/Indirect (upward and downward). For specialist applications, a dedicated asymmetric distribution is available upon request.
COLOUR OPTIONS

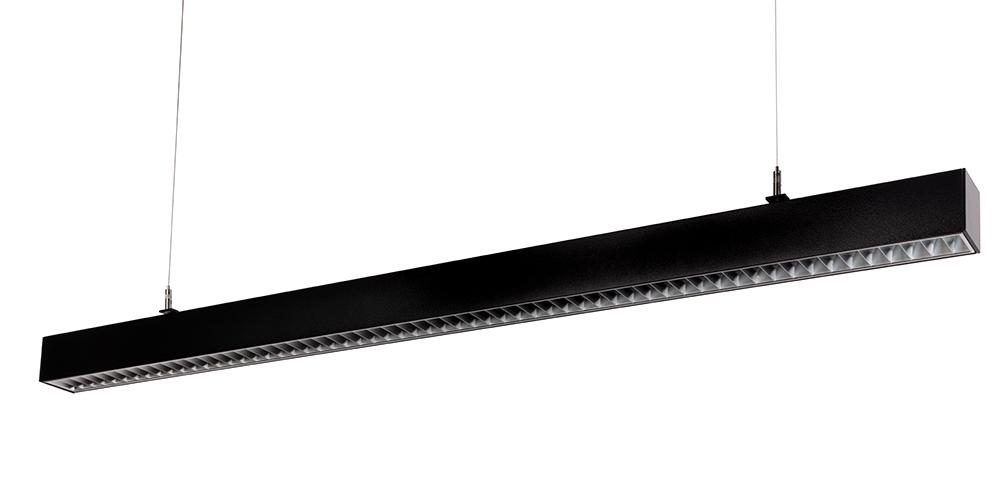

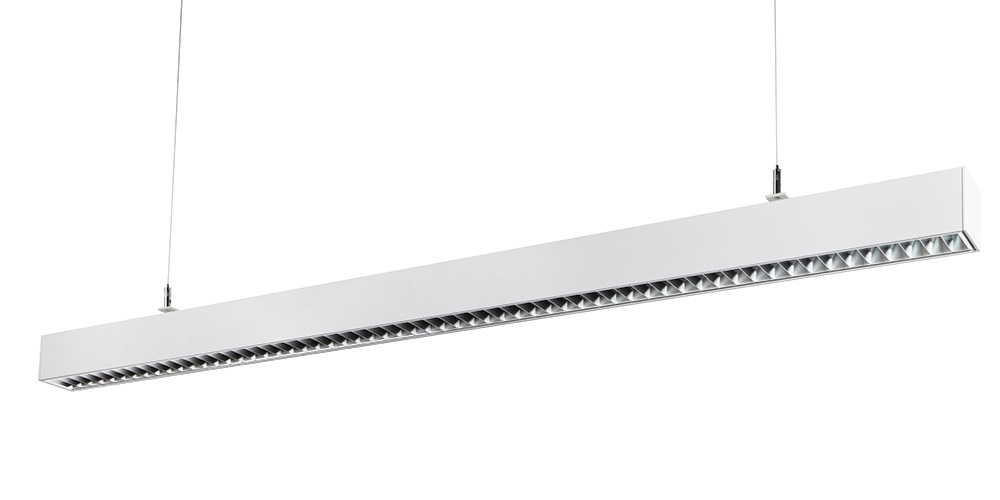

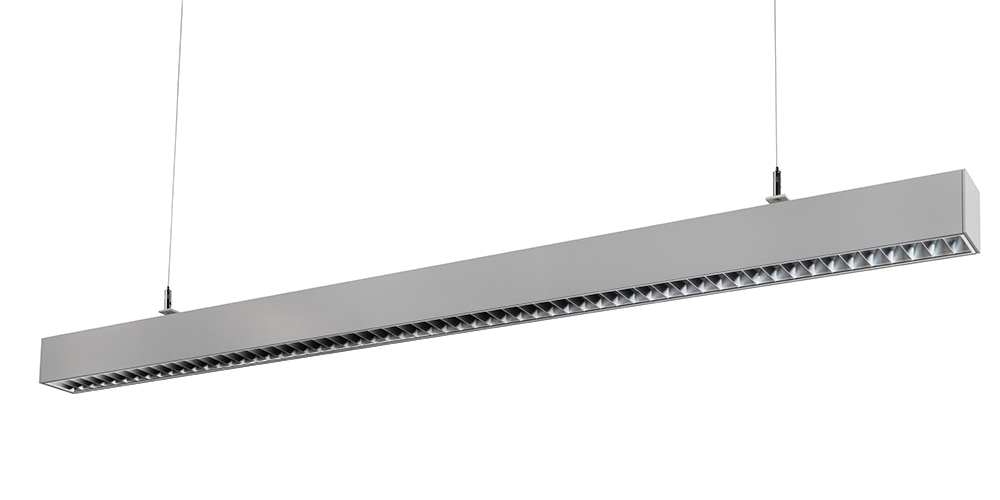

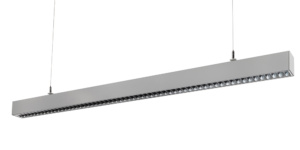

ELLE's standard range of colour finishes powder coated in our state-of-the-art Melbourne Manufacturing facility include black, white and grey.
These three colours are available in a textured powder-coated finish, with architectural metallic finishes also available upon request.
LENGTHS
Lengths are entirely driven by a project's specific requirement and configured using our 835mm, 1250mm and 2500mm module lengths accordingly.
CONTROLS
- DALI
- Organic Response (integrated)
LIFETIME
- Constant Light Output (CLO) as standard.
- L100B50 = 50,000hrs. Learn more about CLO here.
LIGHT QUALITY
- Colour temperature: 3000K and 4000K.
- CRI90+ standard for all versions.
- COI (Cyanosis Observation Index) compliant.
- Initial colour consistency better than 3 SDCM
INSTALLATION & MOUNTING OPTIONS
Continuous connection for fast installation and quality results.
ELLE is supplied with most of the work completed during manufacturing, making it intuitive, fast and straightforward for the electrical installer. ELLE has been developed and refined to incorporate a pre-wired harness with a quick connect male/female electrical coupler connection. Continuous joins incorporate a “light trap” between the louvres eliminating light leakage at the profile and louvre joins.
This supports contractors installing ELLE onto projects to run both under time and budget whilst delivering a high-quality finished result.
ELLE is available as either Single pendants or continuous run installations via wire suspension or surface mounted. Installation via wire suspension requires wire brackets which provide flexible centres.
N.B.
- Codes and Data in the 'PRODUCT CODE' table below are for the white versions only
- Images are a representation of product design; the finished product may vary slightly according to project specification etc.
Key Family Details
-
Optical System:
Beta-Opti Louvre -
Mounting Type:
Suspended/Pendant -
Finish:
White, Black, and Grey -
System Warranty:
5 years -
CRI (Ra):
Ra90+ -
CCT:
4000K -
R9:
≥69 -
COI Compliant:
Yes (≤2.0) -
Melanopic Ratio:
0.7 -
Circadian Stimulus CS [%] (*):
≥12 -
Circadian Light Cla [lux] (*):
≥86 -
N.B.
(*) For 150lux corneal photopic illumination. As a guide only.
-
Technical Information
-
SINGLE 1262mm/ 2522mm
L=1268/ 2528mm* W=65mm H=65mm -
START 1262mm/ 2522mm
L=1265/ 2525mm* W=65mm H=65mm -
CONTINUOUS 1262mm/ 2522mm
L=1262/ 2522mm W=65mm H=65mm -
END 1262mm/ 2522mm
L=1265/ 2525mm* W=65mm H=65mm -
SINGLE 1352mm/ 2612mm ORT
L=1358/ 2618mm* W=65mm H=65mm -
START 1352/ 2612mm ORT
L=1355/ 2615mm* W=65mm H=65mm -
END 1352/ 2612mm ORT
L=1355/ 2615mm* W=65mm H=65mm -
N.B.
*includes end cap

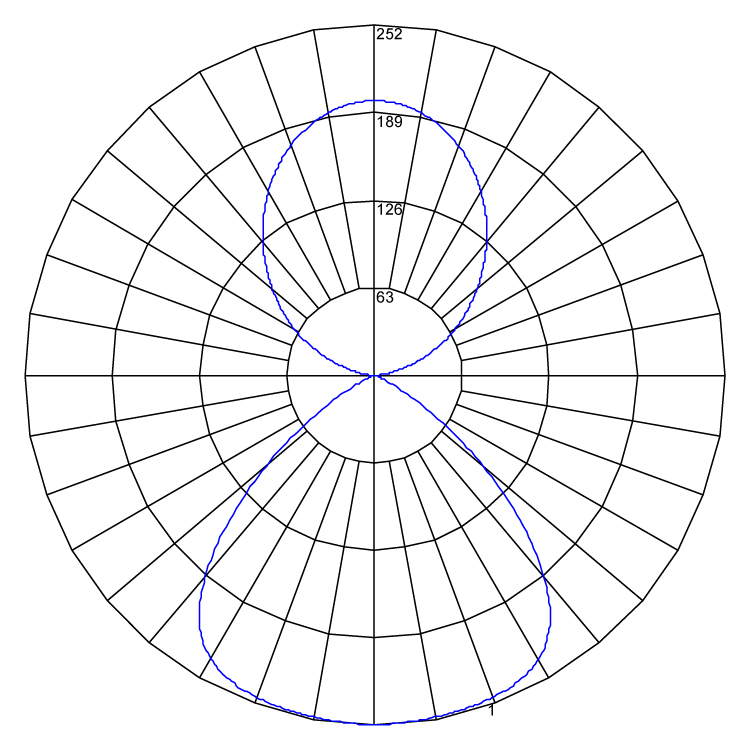

Nominal polar curve - Direct/Indirect
Nominal polar curve - Direct
-
Product Code
Accessories
ELLE SUSPENSION ACCESSORIES |  |
|---|---|
| CODE | DESCRIPTION |
EL-ACC-1224-000 | Elle Suspension Bracket including wire lock; 1 Black pair. |
EL-ACC-1223-000 | Elle Suspension Bracket including wire lock; 1 White pair. |
EL-ACC-1225-000 | Elle Suspension Bracket including wire lock; 1 Grey pair. |
EL-ACC-543-000 | Suspension, large round White ceiling cup with transparent mains wire and stainless wire, 1.5m |
EL-ACC-544-000 | Suspension, small round White ceiling cup with stainless wire, 1.5m |
EL-ACC-541-000 | Suspension, large round Black ceiling cup with transparent mains wire and stainless wire, 1.5m |
EL-ACC-542-000 | Suspension, small round Black ceiling cup with stainless wire, 1.5m |
ELLE EMERGENCY MODULES |  |
| EL-ELLA-1800-800 | ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 White Matt |
| EL-ELLA-1800-801 | ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 White Matt |
| EL-ELLA-1801-800 | ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 Black Matt |
| EL-ELLA-1801-801 | ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 Black Matt |
| EL-ELLA-1802-800 | ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 Grey Matt |
| EL-ELLA-1802-801 | ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 Grey Mat |
ELLE SPACERS |  |
|---|---|
| EL-ELLP-1412-244 | ELLE Spacer Suspended Beta / L:400mm IP20 White Matt |
| EL-ELLP-1413-244 | ELLE Spacer Suspended Beta / L:400mm IP20 Black Matt |
| EL-ELLP-1414-244 | ELLE Spacer Suspended Beta / L:400mm IP20 Grey Matt |
| EL-ELLP-1415-244 | ELLE Spacer Suspended Beta / L:600mm IP20 White Matt |
| EL-ELLP-1416-244 | ELLE Spacer Suspended Beta / L:600mm IP20 Black Matt |
| EL-ELLP-1417-244 | ELLE Spacer Suspended Beta / L:600mm IP20 Grey Matt |
| EL-ELLP-1418-244 | ELLE Spacer Suspended Beta / L:800mm IP20 White Matt |
| EL-ELLP-1419-244 | ELLE Spacer Suspended Beta / L:800mm IP20 Black Matt |
| EL-ELLP-1420-244 | ELLE Spacer Suspended Beta / L:800mm IP20 Grey Matt |
| EL-ELLP-1421-244 | ELLE Spacer Suspended Beta / L:1200mm IP20 White Matt |
| EL-ELLP-1422-244 | ELLE Spacer Suspended Beta / L:1200mm IP20 Black Matt |
| EL-ELLP-1423-244 | ELLE Spacer Suspended Beta / L:1200mm IP20 Grey Matt |
