PROJECT



ARCHITECT/DESIGNER



TYPE NO.

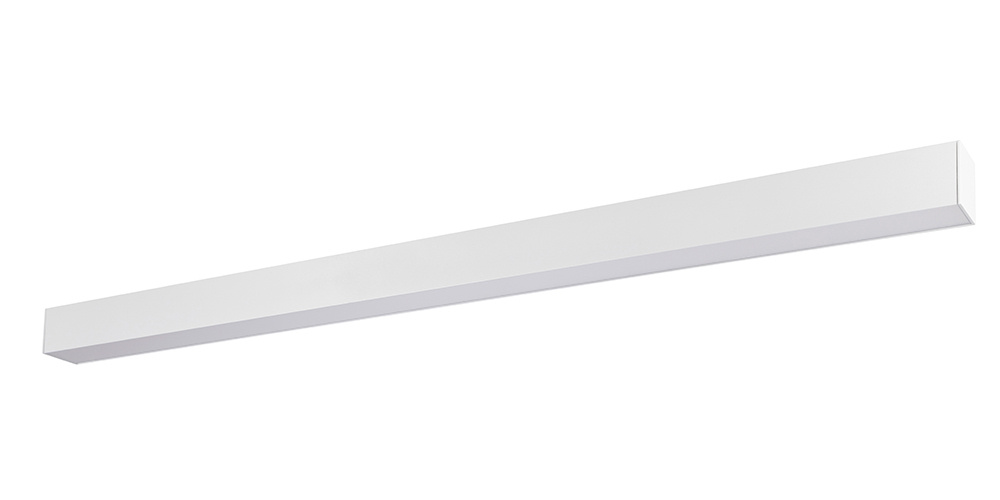

  • ELLE SM DELTA WHITE CAROUSEL

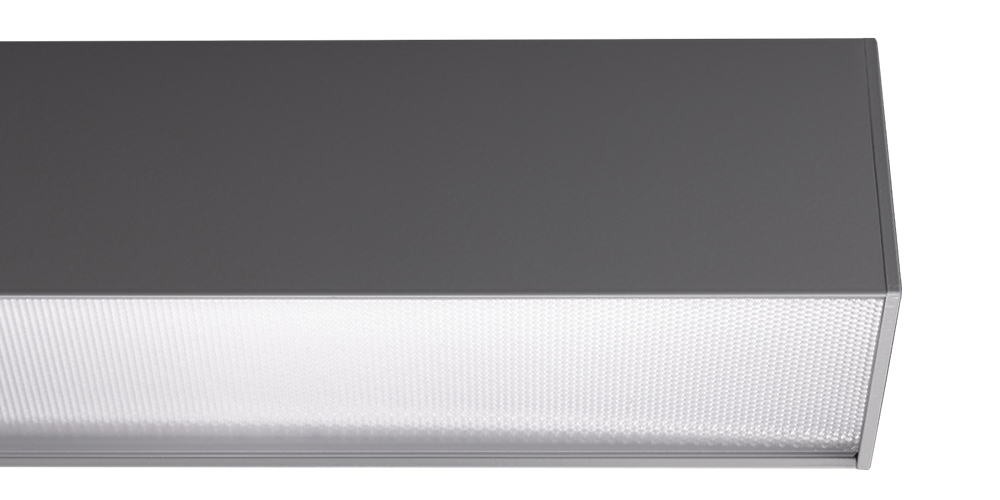

  • DELTA GREY CAROUSEL

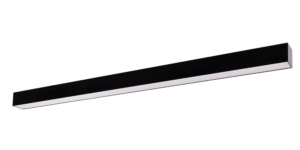

  • ELLE SM DELTA BLACK CAROUSEL

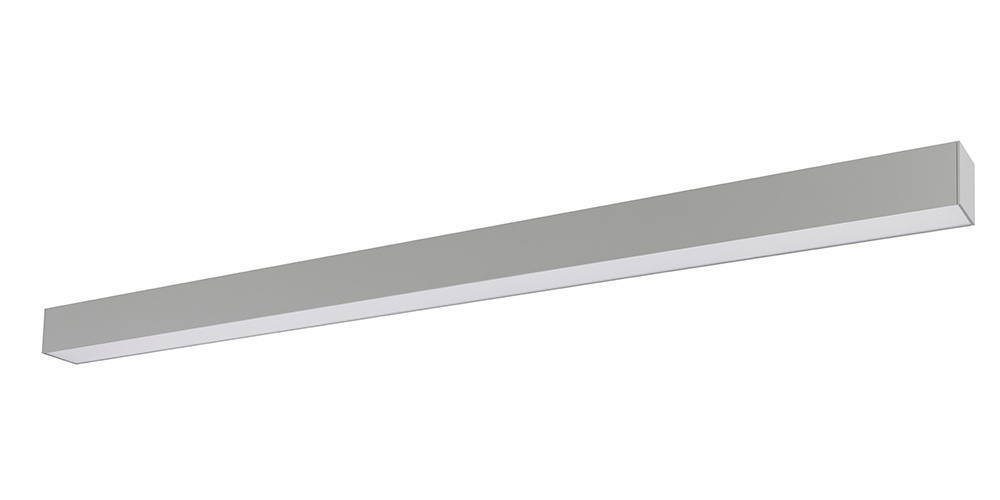

  • ELLE SM DELTA GREY CAROUSEL

ELLE Surface Mounted - Delta

Surface mounted version of our modular linear lighting system - designed, tested and manufactured in Melbourne.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture

ELLE Surface Mounted - Delta

Eagle Lighting

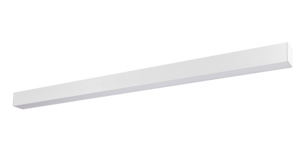

ELLE SM DELTA WHITE CAROUSEL
  • DELTA GREY CAROUSEL
  • ELLE SM DELTA BLACK CAROUSEL
  • ELLE SM DELTA GREY CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP20
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol RCM LOGO
Symbol CLO

  • General Information

    General Information

    Date Updated: 06 December 2024

    APPLICATION

    Thanks to its design and customisation options, the range is ideal for a wide variety of environments, including offices, healthcare and education facilities, leisure/hospitality, retail/shopping centres, airport/rail circulation and commercial precinct.

    Whether you require purely decorative accent lighting or technically perfect office lighting, the ELLE range offers a version to suit any project.

    DESIGN

    ELLE is a flexible and modular product family which can be configured to a project's specific requirement based on application and interior design intent.

    • Single or continuous.

    A sustainable, energy-efficient system, ELLE provides significant advantages for developers and occupiers seeking to achieve WELL building and Greenstar Certification.

    OPTICS

    To learn more about ELLEs optics, download the brochure here.

    COLOUR OPTIONS

    ELLE's standard range of colour finishes powder coated in our state-of-the-art Melbourne Manufacturing facility include black, white and grey.

    These three colours are available in a textured powder-coated finish, with architectural metallic finishes also available upon request.

    LENGTHS

    Lengths are entirely driven by a project's specific requirement and configured using our 835mm, 1250mm and 2500mm module lengths accordingly.

    CONTROLS

    LIFETIME

    LIGHT QUALITY

    • Colour temperature: 3000K and 4000K.
    • CRI90+ standard for all versions.
    • COI (Cyanosis Observation Index) compliant.
    • Initial colour consistency better than 3 SDCM

    INSTALLATION & MOUNTING OPTIONS

    Continuous connection for fast installation and quality results.

    ELLE is supplied with most of the work completed during manufacturing, making it intuitive, fast and straightforward for the electrical installer. ELLE has been developed and refined to incorporate a pre-wired harness with a quick connect male/female electrical coupler connection. Continuous joins incorporate a “light trap” between the louvres eliminating light leakage at the profile and louvre joins.

    This supports contractors installing ELLE onto projects to run both under time and budget whilst delivering a high-quality finished result.

    ELLE is available as either Single pendants or continuous run installations via wire suspension or surface mounted. Installation via wire suspension requires wire brackets which provide flexible centres.

    N.B.

    • Codes and Data in the 'PRODUCT CODE' table below are for the white versions only
    • Images are a representation of product design; the finished product may vary slightly according to project specification etc.

    Key Family Details

    • Optical System:
      Delta diffuser
    • Mounting Type:
      Surface Mounted (Ceiling)
    • Finish:
      White, Black, and Grey
    • System Warranty:
      5 years
    • CRI (Ra):
      Ra90+
    • CCT:
      4000K
    • R9:
      ≥70
    • COI Compliant:
      Yes (<2.1)
    • Melanopic Ratio:
      ≥0.7
    • Circadian Stimulus CS [%] (*):
      ≥12
    • Circadian Light Cla [lux] (*):
      ≥88
    • N.B.
      (*) For 150lux corneal photopic illumination. As a guide only.
  • Technical Information

    ELLE Dimensions all versions
    • SINGLE 1250mm/ 2500mm
      L=1256/ 2506mm* W=65mm H=65mm
    • START 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • CONTINUOUS 835mm/ 1250mm/ 2500mm
      L=835/ 1250/ 2500mm* W=65mm H=65mm
    • END 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • N.B.
      *includes end cap

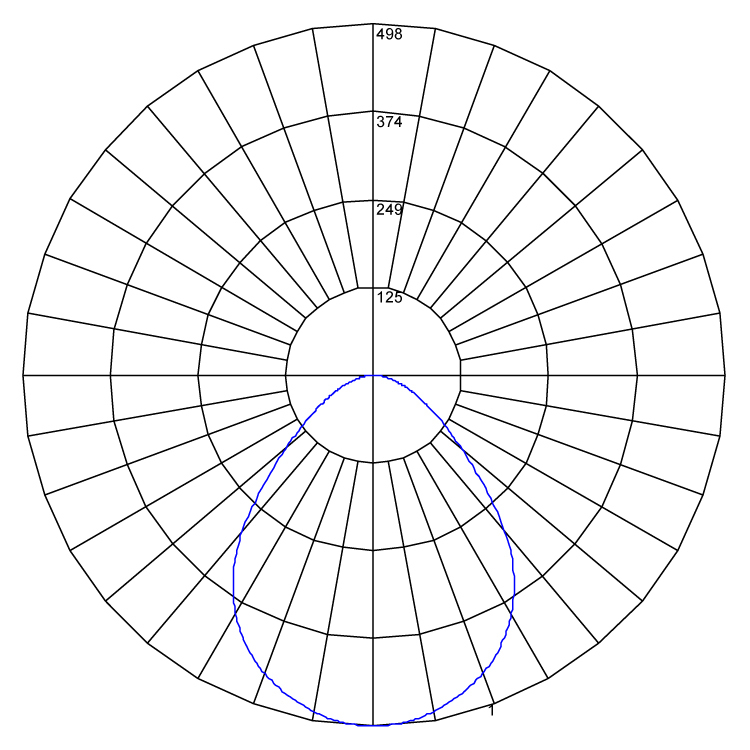

    ELLE SM Delta polarcurve v1
    Nominal polar curve

    • SINGLE 1250mm/ 2500mm
      L=1256/ 2506mm* W=65mm H=65mm
    • START 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • CONTINUOUS 835mm/ 1250mm/ 2500mm
      L=835/ 1250/ 2500mm* W=65mm H=65mm
    • END 835mm/ 1250mm/ 2500mm
      L=838/ 1253/ 2503mm* W=65mm H=65mm
    • N.B.
      *includes end cap
    ELLE Dimensions all versions
    ELLE SM Delta polarcurve v1
    Nominal polar curve

  • Downloads

Product Code

Accessories

ELLE ORGANIC RESPONSE MODULES

ELLE ORT Modules
ELLE ORT Modules

EL-ELLA-1000-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 White Matt Continuous 2 Way. Connects DALI In Both Directions

EL-ELLA-1001-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Black Matt Continuous 2 Way. Connects DALI In Both Directions

EL-ELLA-1002-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Grey Matt Continuous 2 Way. Connects DALI In Both Directions

EL-ELLA-1003-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 White Matt Continuous Right. Connects DALI In Right Direction and Breaks DALI to the Left

EL-ELLA-1004-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Black Matt Continuous Right. Connects DALI In Right Direction and Breaks DALI to the Left

EL-ELLA-1005-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Grey Matt Continuous Right. Connects DALI In Right Direction and Breaks DALI to the Left

EL-ELLA-1006-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 White Matt Continuous Left. Connects DALI In Left Direction and Breaks DALI to the Right

EL-ELLA-1007-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Black Matt Continuous Left. Connects DALI In Left Direction and Breaks DALI to the Right

EL-ELLA-1008-974

ELLE ORT MODULE SM/Pendant Opal/Delta L:200mm IP20 Grey Matt Continuous Left. Connects DALI In Left Direction and Breaks DALI to the Right

EL-ELLA-1018-974

ELLE ORT MODULE SM/Pendant Opal/Delta Extender L:200mm IP20 White Matt

EL-ELLA-1019-974

ELLE ORT MODULE SM/Pendant Opal/Delta Extender L:200mm IP20 Grey Matt

EL-ELLA-1020-974

ELLE ORT MODULE SM/Pendant Opal/Delta Extender L:200mm IP20 Black Mat
Note: Each ORT module is for use with up to 4 ELLE DALI sections in continuous installation.

ELLE EMERGENCY MODULES

ELLE Surface Mounted EMG Module
ELLE Surface Mounted / Pendant EMG Module
EL-ELLA-1800-800ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 White Matt
EL-ELLA-1800-801
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 White Matt
EL-ELLA-1801-800
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 Black Matt
EL-ELLA-1801-801
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 Black Matt
EL-ELLA-1802-800
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta Maintained, Non-Monitored Class I L:600mm IP20 Grey Matt
EL-ELLA-1802-801
ELLE EMG MODULE SM/Pendant Opal/Delta/Beta DALI Maintained, DALI-Monitored Class I L:600mm IP20 Grey Matt

ELLE SPACER MODULES

ELLE Surface Mounted Spacer
ELLE Surface Mounted Spacer
EL-ELLS-1400-244ELLE Spacer Surface Mounted Opal/Delta / L:400mm IP20 White Matt
EL-ELLS-1401-244
ELLE Spacer Surface Mounted Opal/Delta / L:400mm IP20 Black Matt
EL-ELLS-1402-244
ELLE Spacer Surface Mounted Opal/Delta / L:400mm IP20 Grey Matt
EL-ELLS-1403-244
ELLE Spacer Surface Mounted Opal/Delta / L:600mm IP20 White Matt
EL-ELLS-1404-244
ELLE Spacer Surface Mounted Opal/Delta / L:600mm IP20 Black Matt
EL-ELLS-1405-244
ELLE Spacer Surface Mounted Opal/Delta / L:600mm IP20 Grey Matt
EL-ELLS-1406-244
ELLE Spacer Surface Mounted Opal/Delta / L:800mm IP20 White Matt
EL-ELLS-1407-244
ELLE Spacer Surface Mounted Opal/Delta / L:800mm IP20 Black Matt
EL-ELLS-1408-244
ELLE Spacer Surface Mounted Opal/Delta / L:800mm IP20 Grey Matt
EL-ELLS-1409-244
ELLE Spacer Surface Mounted Opal/Delta / L:1200mm IP20 White Matt
EL-ELLS-1410-244
ELLE Spacer Surface Mounted Opal/Delta / L:1200mm IP20 Black Matt
EL-ELLS-1411-244
ELLE Spacer Surface Mounted Opal/Delta / L:1200mm IP20 Grey Mat
