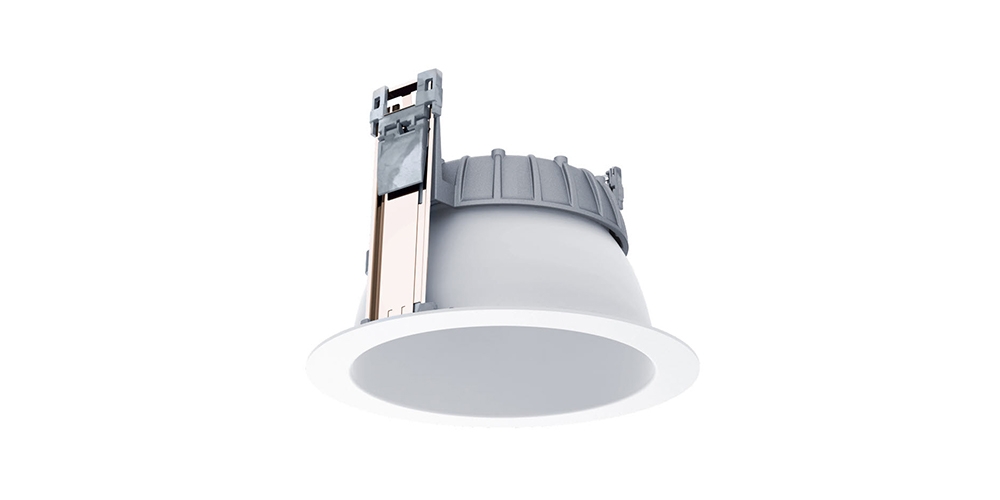

  • Pleiad125 white CAROUSEL

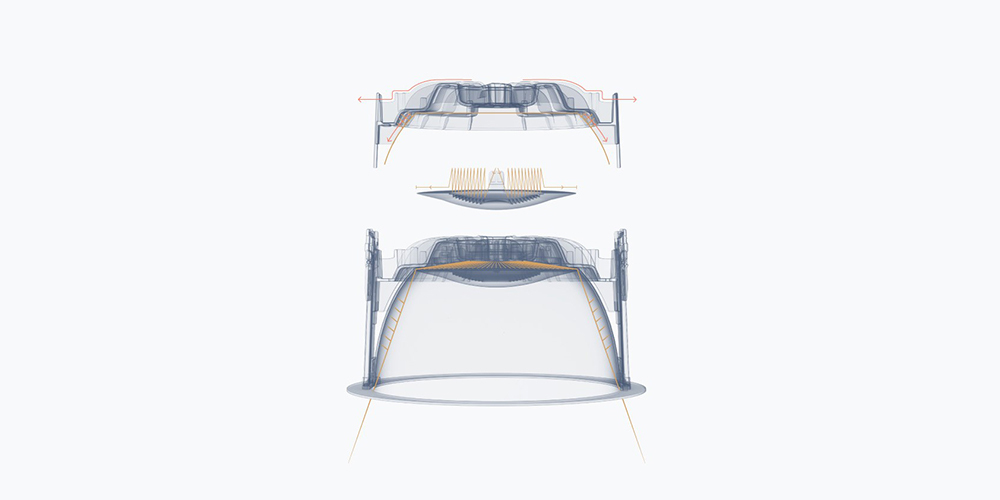

  • Pleiadg4 125 carousel xray

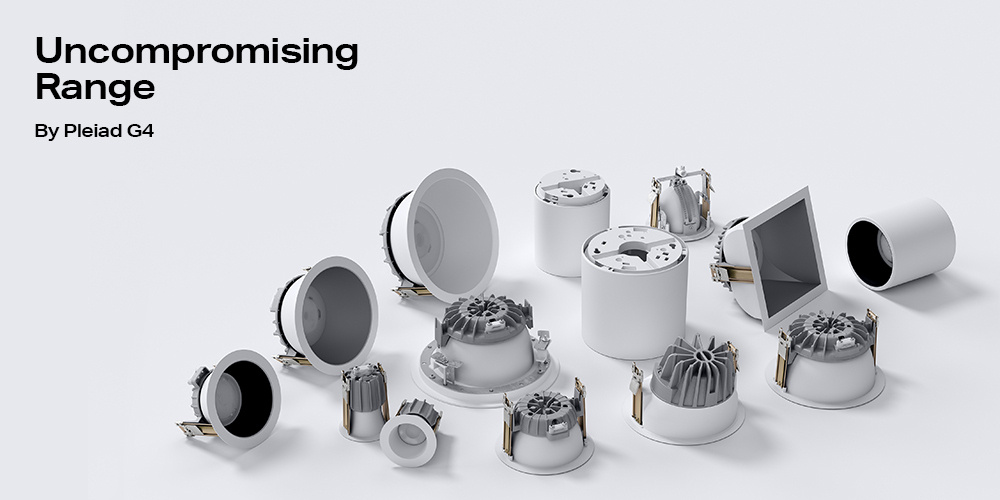

  • Carousel pleiad G4125a
  • Carousel pleiad G4125b

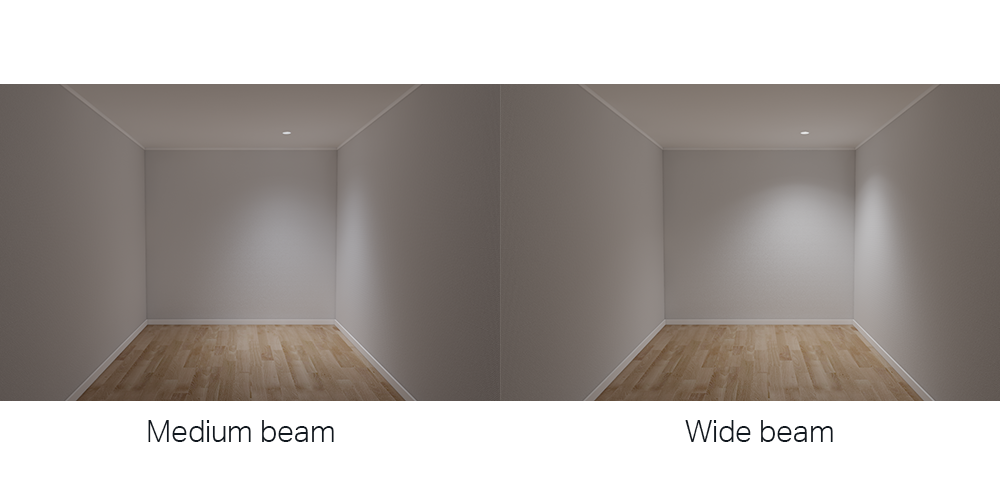

  • Pleiad G4 125 light distribution med wide Carousel

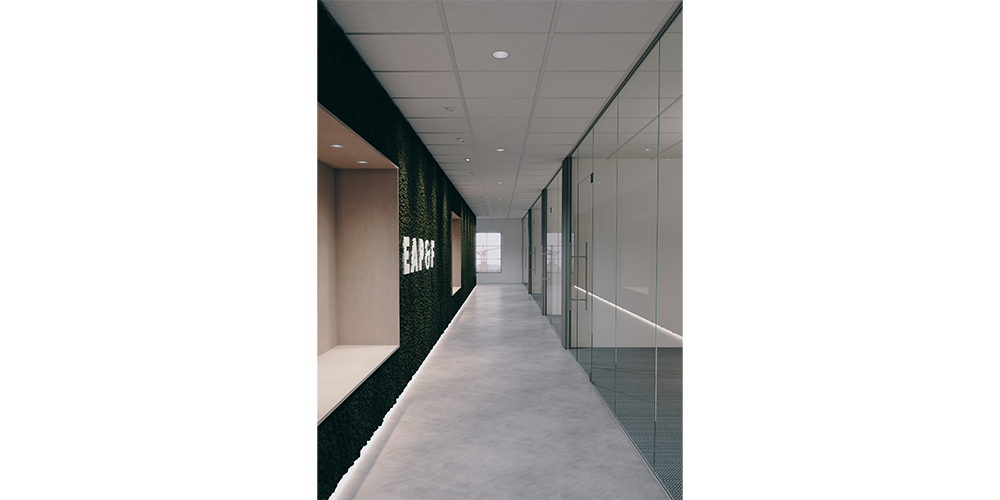

  • Pleiad G4 125 corridor CAROUSEL

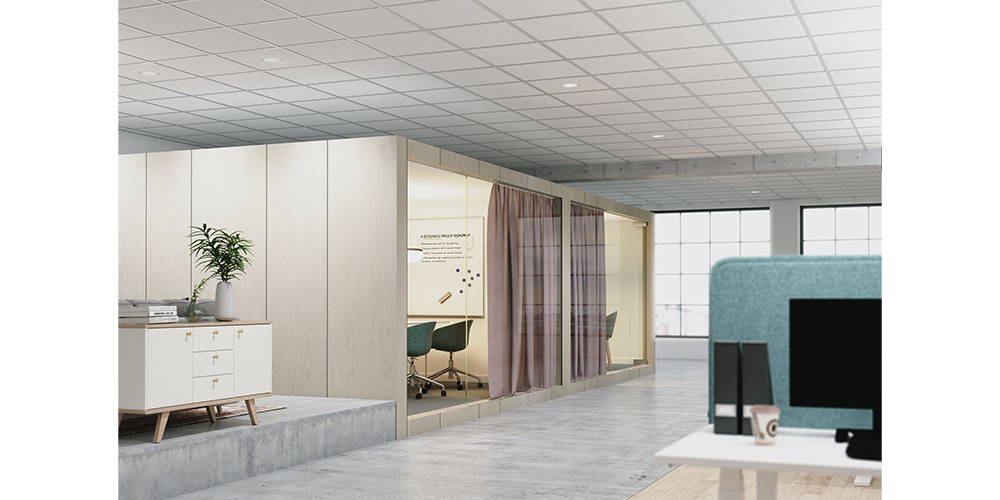

  • Pleiadg4 125 carousel application image

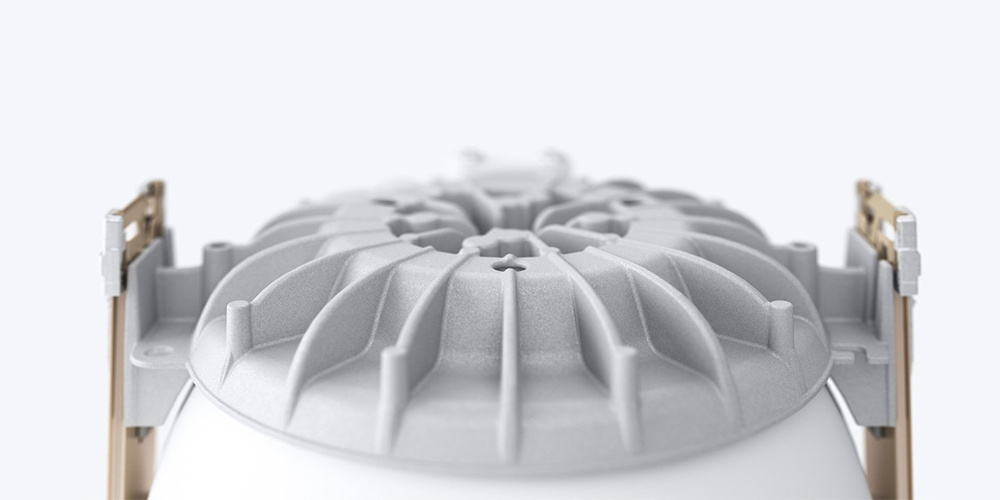

  • Pleiadg4 125 carousel closeup

Pleiad G4 125

Pleiad 125 is a highly efficient, aesthetically pleasing downlight with a 125mm cut out diameter.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

Pleiad G4 125

Eagle Lighting
Pleiad125 white CAROUSEL
  • Pleiadg4 125 carousel xray
  • Carousel pleiad G4125a
  • Carousel pleiad G4125b
  • Pleiad G4 125 light distribution med wide Carousel
  • Pleiad G4 125 corridor CAROUSEL
  • Pleiadg4 125 carousel application image
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS III
Symbol IP20 64
Symbol COI COMPLIANT
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol RCM LOGO
Symbol IES
Symbol REVIT

  • General Information

    General Information

    Pleiad 125 is a highly efficient, aesthetically pleasing downlight with a 125mm cut out diameter.

    Manufactured in Melbourne, Pleiad 125 is the ideal choice for projects that require uncompromised technical performance FAST!

    Beam distributions include Medium and Wide with acrylic reflector options in a matt, black or white colour. Importantly these colour options allow for a range of different architectural looks.

    Lumen output range is 1200 – 2350lm in CRI90 with excellent uniformity and glare management.

    Colour temperatures include 3000K or 4000K and Tuneable White (2700 – 6500K). TW contributes to stimulating and creative environments, with the luminaire equipped with a DALI Device Type 8 driver.

    Pleiad 125 blends perfectly into a ceiling space due to an innovative technical optical solution based on Fresnel lens technology. The lens enables efficient control of the light as it gradually fades to the reflector.

    90 per cent of the light distribution is concentrated through the lens and 10 per cent via the reflector. This provides an extremely soft luminance transition between the reflector and further into space. The result is a glare-free environment with pleasant luminance — a particular advantage over its competition.

    Pleiad 125 is designed for recessed mounting in unventilated or ventilated suspended ceilings with an IP64 rating under a suspended ceiling and IP20 above a suspended ceiling.

    The total depth of the fitting is only 98mm, perfect for situations where obstructions in the ceiling void are present.

    The Class III luminaire body is made of cast aluminium with a white visible edge ring and other colour options available via the wide range of accessories to compliment the offer.

    Ease of Installation


    Thanks to a snap-in connector, the luminaire body and the driver are quick and easy to connect. In addition, the installation of Pleiad G4 125 in a suspended ceiling is done tool-less using an innovative "spring", meaning the task is completed within seconds!

    Know your impact…


    In terms of CO2 emissions, the usage phase of a luminaire represents 73 per cent of the total! Therefore, Pleiad is a highly desirable option for projects with sustainability in mind.

    DALI versions equipped as standard with Constant Light Output (CLO), Pleiad G4 125 provides optimised illumination for the duration of the rated life of the installation.

    CLO ensures the space is not inefficiently overlit from day one and reduces energy consumption over the entire installation life; this is significant in reducing 'total cost of ownership' and your environmental impact. Pleiad 125 has an impressive L100 B50 100,000 hour lifetime rating.

    The design of the luminaire body lowers the operating temperature in the luminaire and contributes to the high 140lm/W efficiency.

    The body volume and weight of Pleiad G4 has been reduced from its G3 predecessor and many other alternatives in the marketplace by 70 percent! This results in a smaller and lighter luminaire with lower material consumption and environmental impact throughout the supply chain, manufacturing, transport, efficiency and cost during use, 100,000 hour lifetime, and finally recycling/product stewardship.

    Suitable office, healthcare, and education application areas for consideration should include, but are not limited to;

    • Circulation spaces/corridors
    • Event space
    • Meeting rooms
    • Waiting rooms
    • Amenities
    • Change Rooms, end of trip facilities
    • Dining areas/Canteens
    • Open office perimeters


    Key Family Details

    • Optical System:
      Lens + Reflector
    • Mounting Type:
      Recessed
    • Finish:
      White
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      3000K, 4000K
    • R9:
      60+
    • COI Compliant:
      COI=2.1 (4000K only)
    • Melanopic Ratio:
      0.70 (4000K)
    • Circadian Stimulus CS [%] (*):
      20% (4000K)
    • Circadian Light Cla [lux] (*):
      120 (4000K)
    • (*)
      For 150lux corneal photopic illumination. As a guide only.
  • Technical Information

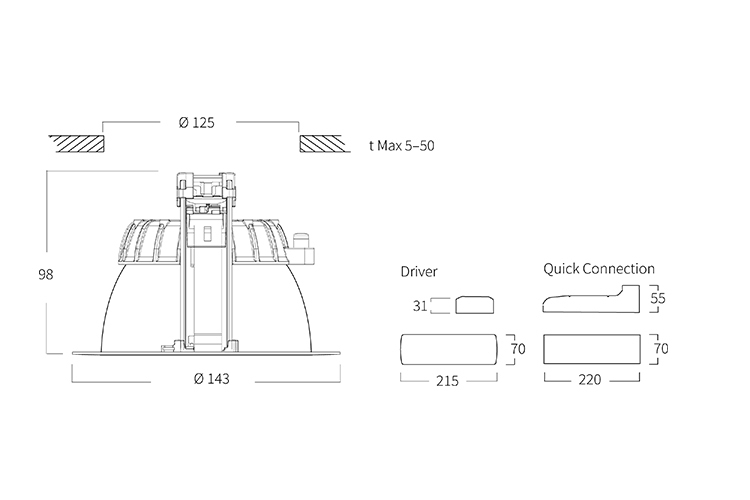

    Pleiad G4 125 Dims

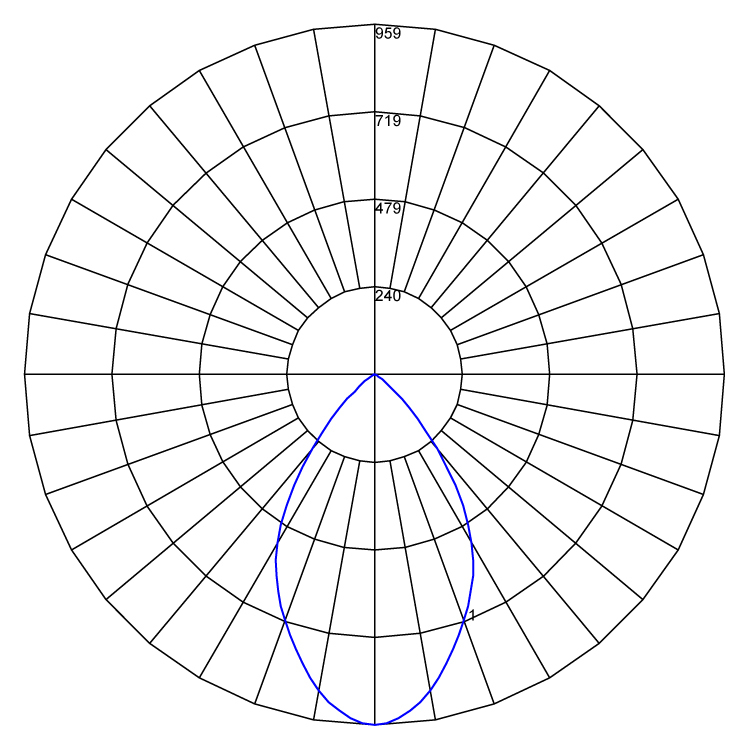

    Pleiad G4125 polarcurve v1 170121
    Nominal polar curve

    Pleiad G4 125 Dims
    Pleiad G4125 polarcurve v1 170121
    Nominal polar curve

  • Downloads

Product Code

Accessories
NameDescriptionArticle number
TrimlessØ125, white41062
Sloping ceiling cylinderSloping ceiling cylinder Ø12541083
Retrofit kitRetrofit kit Ø125-220 mm41137
No imageMounting plateMounting plate HB. Adapted for downlights with recess dimensions Ø 12541065
No imageMounting plateMounting plate Ø12541681
Cover plate clear IP 64Ø125 mm, black (RAL 9005 G10)41159
Cover plate clear IP 64Ø125 mm, grey (RAL 9006)41136
Cover plate clear IP 64Ø125 mm, white (RAL 9016)41135
Cover plate Delta IP 20Ø125 mm, black (RAL 9005 G10)41153
Cover plate Delta IP 20Ø125 mm, grey (RAL 7040)41132
Cover plate Delta IP20 Ø 125 mm, white (RAL 9016)41131
Cover plate IP 21Cover plate IP 21, Ø12541059
Cover plate opal IP 54Ø 125 mm, black (RAL 9005 G10)41156
Cover plate opal IP 54Ø 125 mm, grey (RAL 7040)41134
Cover plate opal IP 54Ø 125 mm, white (RAL 9016)41133
Edge ring IIØ 125 mm, black (RAL 9005 G10), height 11 mm, external diameter 155 mm.41138
Edge ring IIIØ 125 mm, black (RAL 9005 G10), height 9 mm, external diameter 155 mm.41141
No imageMounting plateMounting plate HB. Adapted for downlights with recess dimensions Ø 12541065
No imageMounting plateMounting plate Ø12541681
