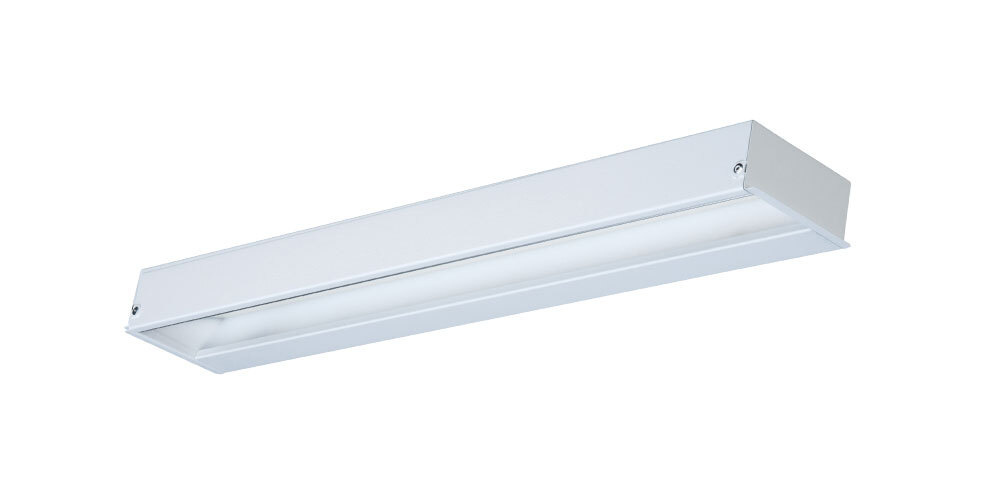

  • Ray carousel

Ray

EL-RAY-1102-200

RAY Recessed/T-bar Single Luminaire Bottom Access Indirect 4150lm 35W LED Asymmetric 3000K Ra90+ 240V Hybrid DALI Class I Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:1200mm W:100mm H:45mm IP40 Mannex white .

Custom Datasheet

Please enter your details for the document header, or continue and create datasheet

Local manufacture
Eagle Lighting
  • Technical Overview

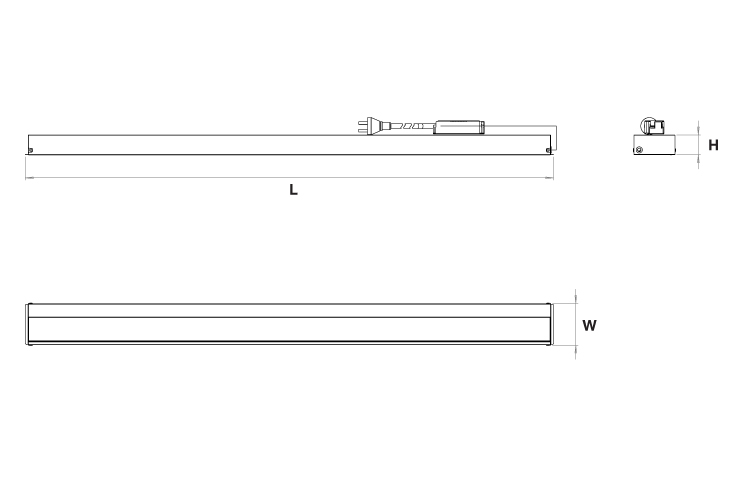

    Ray Dimensions v1 030521
    • Finish
      Mannex white
    • L = Length [mm]
      1200
    • W = Width/Diameter [mm]
      100
    • H = Height [mm]
      45
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.2

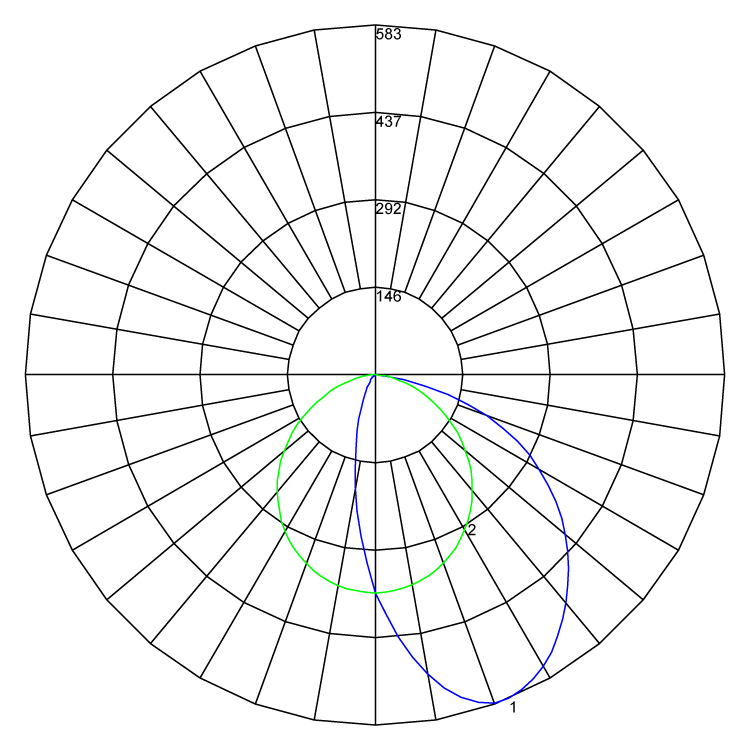

    Ray Polarcurve v1 100521
    Nominal Polar Curve

  • Photometric Values

    • Control Type
      DALI
    • Wattage [W]
      35
    • CLO Enabled
      0
    • Final Wattage CLO [W]
      0
    • System Lumens
      4150
    • Luminaire Lumens [lm]
      2198
    • Efficacy [lm/W]
      62
    • Target Spacing [m]
      -
    • Target H Illuminance [lux]
      0
    • LPD [W/sqm]
      0
    • NPD [W/sqm/100lux]
      0
    • Beamwidth (FWHM)
      -
    • Optics Type
      Hybrid
    • UGR
      0
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      3000K
    • CCT1 [K]
      3000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Non-Compliant
    • R9
      0
    • Melanopic Ratio
      0
    • Circadian Stimulus CS [%]
      0
    • Circadian Light [lux]
      0
    • TM-30 RF
      0
    • TM-30 RG
      0
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      -
    • L90B50 Lifetime (CLO) [hrs]
      -
    • TM21 L70 Reported Lifetime [hrs]
      -
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      -
    • SDCM Initial
      3
  • Downloads

Accessories
DESCRIPTIONCODE
Restraint Accessory Kit to suit Ray, Exposed T-Bar 2-way fixtureEL-ACC-942-000
Surface Mounted versions available via Accessory kit:
1200mm versionEL-ACC-940-000
600mm versionEL-ACC-941-000
Plaster Recessed versions available via Accessory kit:
1200mm version cutout = 110 x 1205mmEL-ACC-938-000
600mm version cutout = 110 x 605mmEL-ACC-939-000
