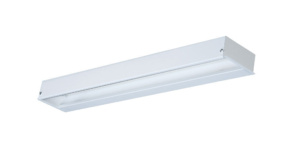

  • Ray carousel

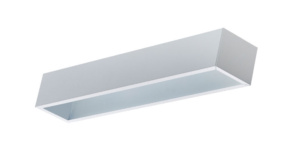

  • Ray carousel2

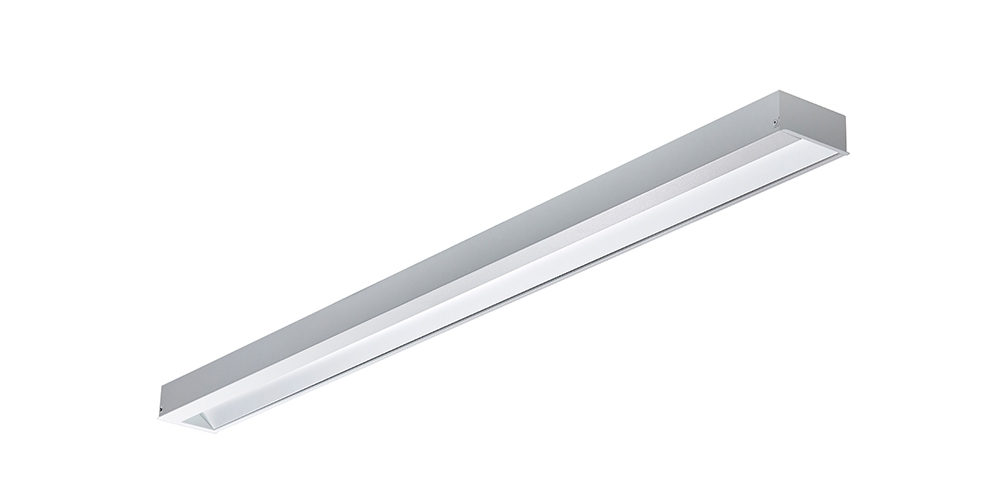

  • RAY 1200 PRODUCT CAROUSEL

Ray

The RAY family of linear wallwashers combines the best available technology in LED light sources with superior optics in a compact body that is only 45mm in height.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

Ray

Eagle Lighting
Ray carousel
  • Ray carousel2
  • RAY 1200 PRODUCT CAROUSEL
Symbol LED
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP40
Symbol ASYMMETRICAL LIGHT DISTRIBUTION
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    The RAY family of linear wallwashers combine the best available technology in LED light sources with superior optics in a compact body that is only 45mm in height.

    IP40 from all angles, the RAY is available in 2 lengths with 2 lumen packages per length, allowing both standalone and end-to-end installations to comply with illuminance and uniformity requirements.

    The Ray is suitable for T-bar (standard) ceilings as well as Plaster Recessed and Surface Mounted installations through accessory kits.

    Restraint option available.

    The standard control options are DALI or STD (non-dim).

    Some of the highlights of the RAY are:

    • All models are available with optional easy-to-clean wipe-down cover suitable for use in transition areas in healthcare environment such as in corridors where patient transfer stretchers are used frequently.
    • The CCT 4000K models with or without clear cover are COI compliant.
    • CRI90+ with CCT options 3000K and 4000K.
    • Reflector purpose-designed in ray-tracing design software and optimised through extensive lab testing.
    • Outstanding optical performance out of a very compact size and narrow apertures:
    • Uniformity 0.90 on the target area.
    • Upper edge of the lit area very high on the wall and close to ceiling. Transition between the lit and nonlit areas smooth but clearly defined, without any artifacts or aberrations.
    • IP40 from all angles
    • Available in 2 lengths with 2 lumen packages per length, allowing both standalone and end-to-end installations to comply with illuminance and uniformity requirements.
    • Suitable for T-bar ceilings (standard) as well as Plaster Recessed and Surface Mounted installations through accessory kits.
    • Restraint option available.
    • Standard control options are DALI or STD (non-dim).
    • Wipedown version available via customisation - suitable for use in transition areas in healthcare environment such as in corridors where patient transfer stretchers are used frequently.
  • Technical Information

    Ray Dimensions v1 030521
    • L:
      1200mm/ 2.2kg; 600mm/ 1.3kg
    • W:
      100mm
    • H:
      45mm
    Ray Polarcurve v1 100521
    Nominal Polar Curve

    • L:
      1200mm/ 2.2kg; 600mm/ 1.3kg
    • W:
      100mm
    • H:
      45mm
    Ray Dimensions v1 030521
    Ray Polarcurve v1 100521
    Nominal Polar Curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Accessory Kit to suit Ray, Exposed T-Bar 2-way fixtureEL-ACC-942-000
Surface Mounted versions available via Accessory kit:
1200mm versionEL-ACC-940-000
600mm versionEL-ACC-941-000
Plaster Recessed versions available via Accessory kit:
1200mm version cutout = 110 x 1205mmEL-ACC-938-000
600mm version cutout = 110 x 605mmEL-ACC-939-000
Logos
