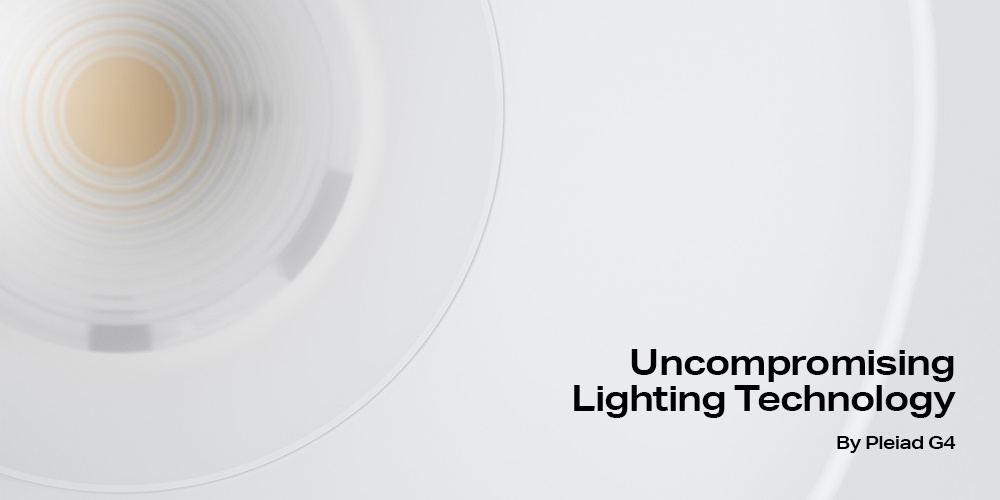

  • Carousel pleiad G4125b

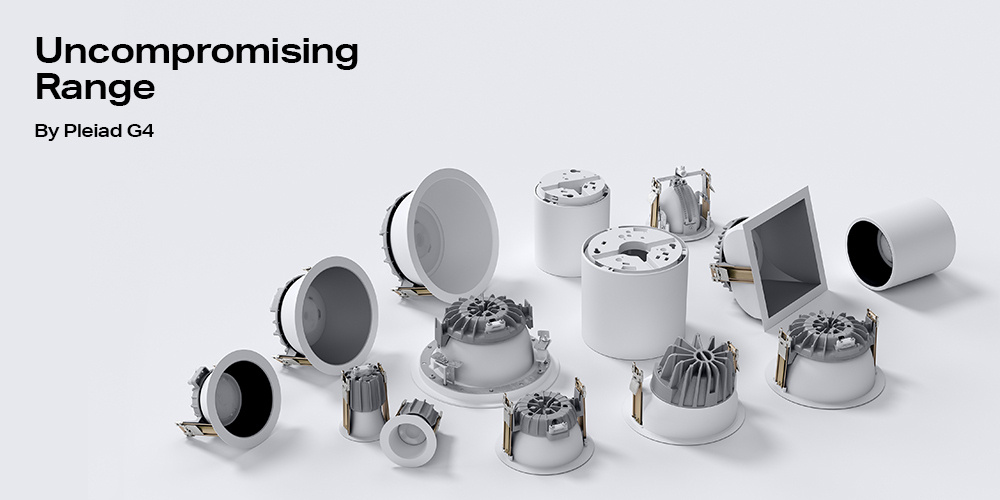

  • Carousel pleiad G4125a

Pleiad G4 165

Efficient downlight with excellent technical lighting properties.

Local manufacture
Eagle Lighting

Pleiad G4 165

Eagle Lighting
Pleiad165 black CAROUSEL
  • Pleiad165 matt CAROUSEL
  • Pleiad165 white CAROUSEL
  • Carousel pleiad G4125b
  • Carousel pleiad G4125a
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS III
Symbol COI COMPLIANT
Symbol LED COLOUR OPTIONS
Symbol CUSTOMISABLE
Symbol IP20 64
Symbol IES
Symbol REVIT
Symbol RCM LOGO
  • General Information

    General Information

    Pleiad 165 is a highly efficient, aesthetically pleasing downlight with a 165mm cut out diameter.

    Manufactured in Melbourne, Pleiad 165 is the ideal choice for projects that require a more substantial diameter downlight with uncompromised technical performance FAST!

    Beam distributions include Medium and Wide with acrylic reflector options in a matt, black or white colour. Importantly these colour options allow for a range of different architectural looks.

    Lumen output range is 1,000 – 3,000lm in CRI90 with excellent uniformity and glare management.

    A diverse range of colour temperatures includes 3000K or 4000K, Tuneable White (2700 – 6500K), Dim to Warm and RGBW.

    Pleiad 165 blends perfectly into a ceiling space due to an innovative technical optical solution based on Fresnel lens technology. The lens enables efficient control of the light as it gradually fades to the reflector.

    90 per cent of the light distribution is concentrated through the lens and 10 per cent via the reflector. This provides an extremely soft luminance transition between the reflector and further into space. The result is a glare-free environment with pleasant luminance — a particular advantage over its competition.

    Pleiad 165 is designed for recessed mounting in unventilated or ventilated suspended ceilings with an IP64 rating under a suspended ceiling and IP20 above a suspended ceiling.

    The total depth of the fitting is only 98mm, perfect for situations where obstructions in the ceiling void are present.

    The Class III luminaire body is made of cast aluminium with a white visible edge ring and other colour options available via the wide range of accessories to compliment the offer.

    The Pleiad downlight has a wide range of accessory options, including cover plates in a variety of diffuser types, edge rings in a variety of colours, retro-fits to conceal larger cutouts for refurbishments and also a trimless plaster recess kit.

    EASE OF INSTALLATION

    Thanks to a snap-in connector, the luminaire body and the driver are quick and easy to connect. In addition, the installation of Pleiad G4 165 in a suspended ceiling is done tool-less using an innovative "spring", meaning the task is completed within seconds!

    KNOW YOUR IMPACT…

    In terms of CO2 emissions, the usage phase of a luminaire represents 73 per cent of the total! Therefore, Pleiad is a highly desirable option for projects with sustainability in mind.

    DALI versions equipped as standard with Constant Light Output (CLO), Pleiad G4 165 provides optimised illumination for the duration of the rated life of the installation.

    CLO ensures the space is not inefficiently overlit from day one and reduces energy consumption over the entire installation life; this is significant in reducing 'total cost of ownership'. and your environmental impact. Pleiad 165 has an impressive L100 B50 100,000 hour lifetime rating.

    The design of the luminaire body lowers the operating temperature in the luminaire and contributes to the high 140lm/W efficiency.

    The body volume and weight of Pleiad G4 has been reduced from its G3 predecessor and many other alternatives in the marketplace by 70 per cent! This results in a smaller and lighter luminaire with lower material consumption and environmental impact throughout the supply chain, manufacturing, transport, efficiency and cost during use, 100,000 hour lifetime, and finally recycling/product stewardship.

    Suitable office, healthcare, and education application areas for consideration should include, but are not limited to;

    • Circulation spaces/corridors

    • Event space

    • Meeting rooms

    • Waiting rooms

    • Amenities

    • Change Rooms, end of trip facilities

    • Office Workspace

    • Student classrooms

    • Open office perimeters

    • Automotive showrooms

  • Downloads

Product Code

Accessories
CODEDESCRIPTION
EL-ACC-291-000ANTI LIGATURE KIT TO SUIT PLEIAD Ø165MM RING WH
EL-ACC-295-000RETROFIT RING TO SUIT PLEIAD Ø165-270MM RING WH
