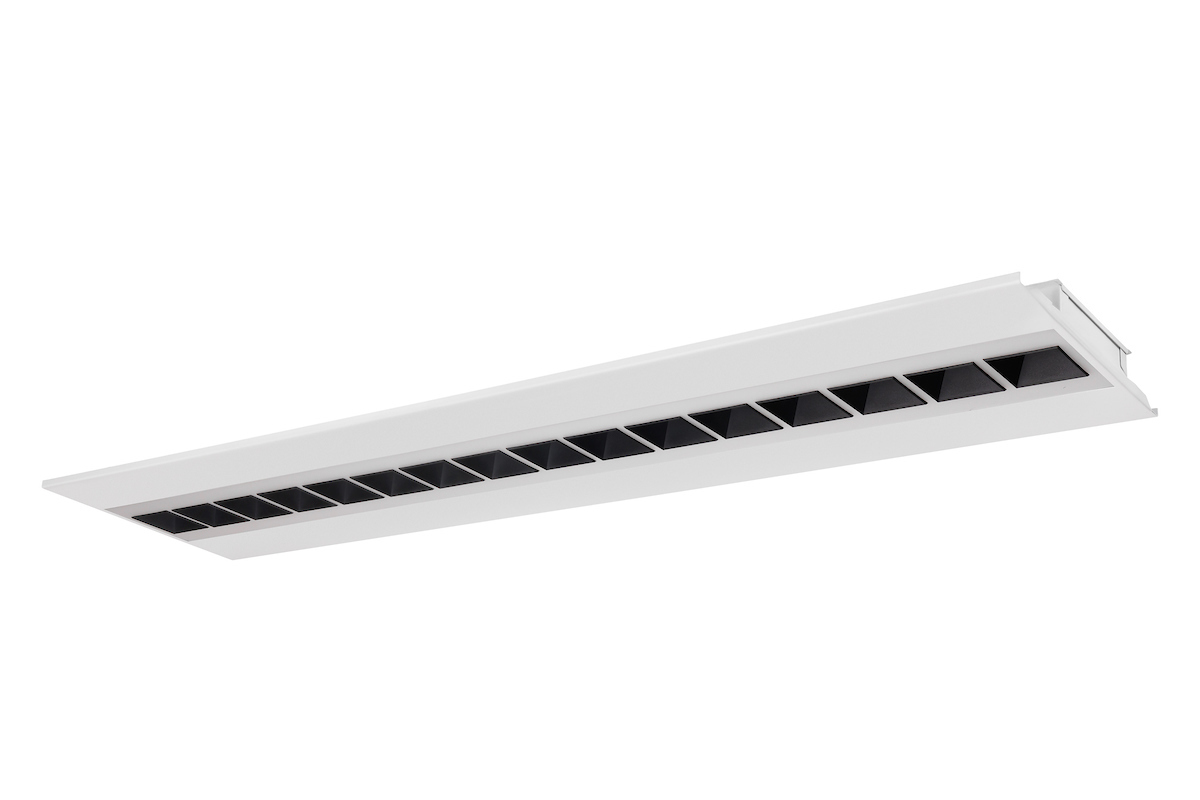

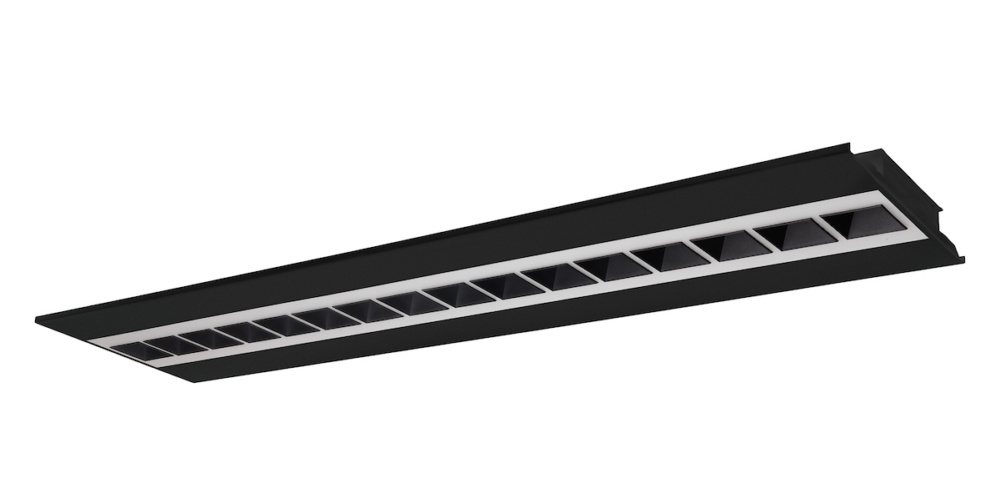

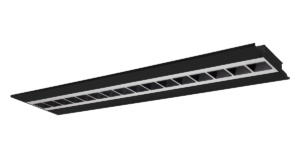

  • Omni POD Linear black pod black body CAROUSEL

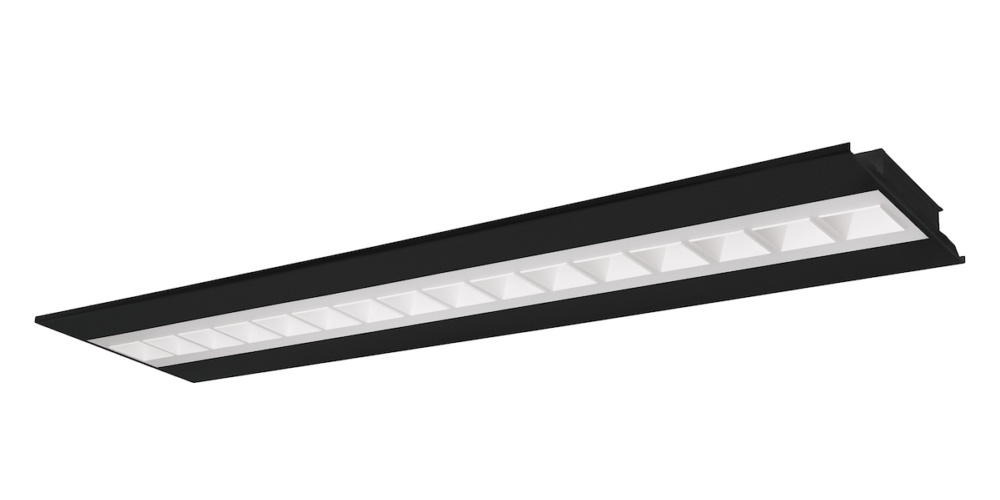

  • Omni POD Linear black pod white body CAROUSEL

OmniPOD Linear

The OmniPOD Linear is a new range of luminaires optimally positioned for a wide range of office applications.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

OmniPOD Linear

Eagle Lighting

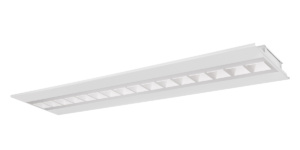

Omni POD Linear white CAROUSEL

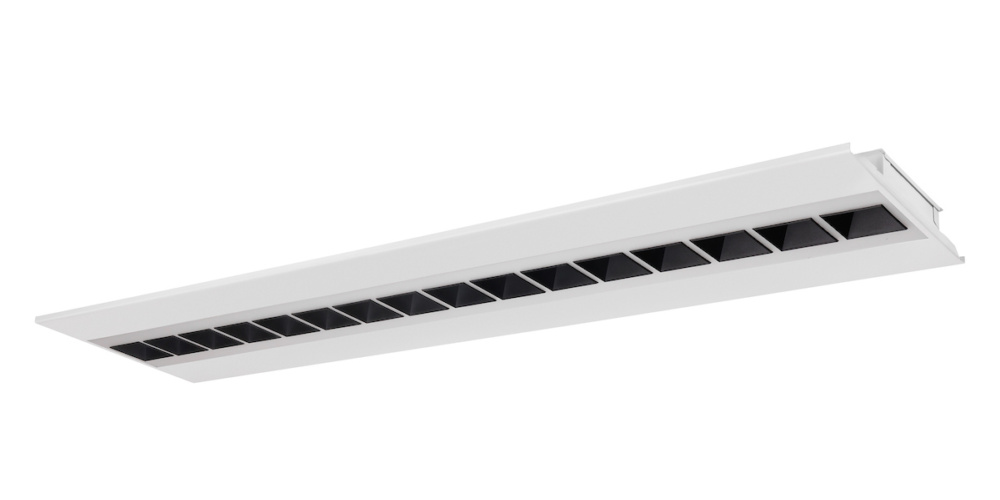

  • Omni POD Linear black CAROUSEL

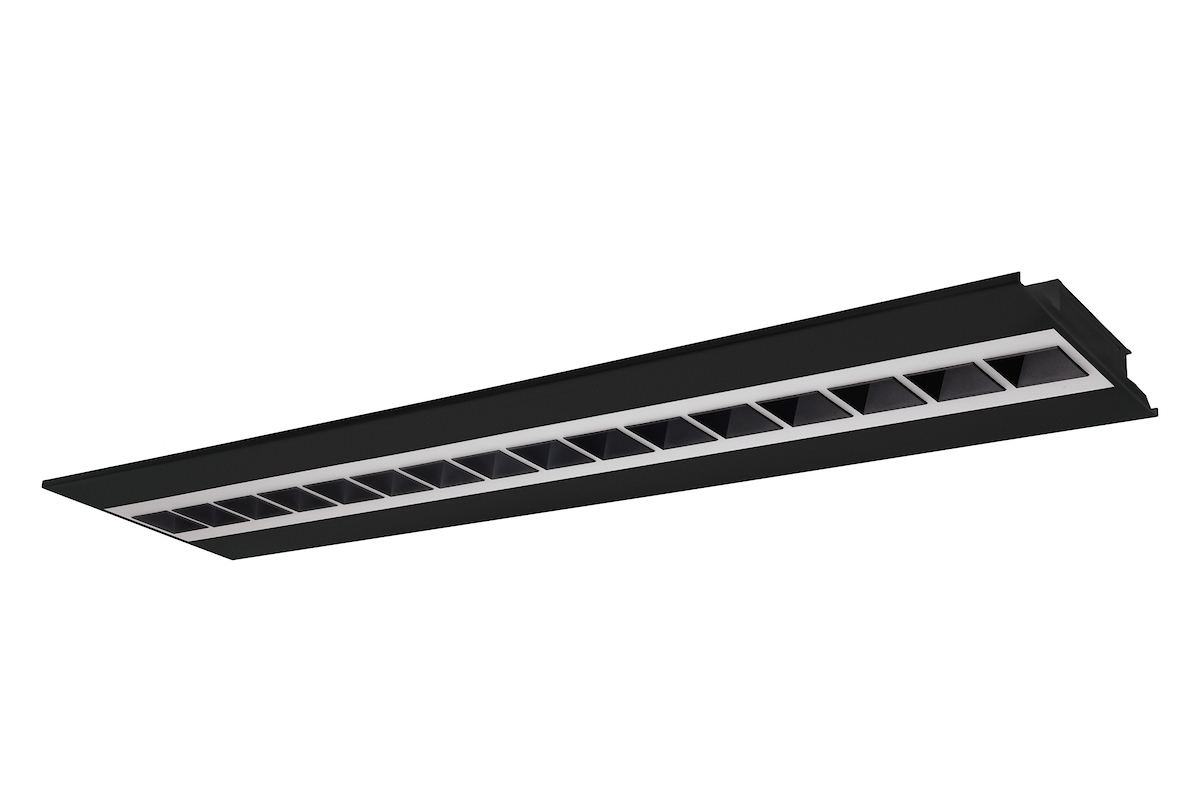

  • Omni POD Linear black pod black body CAROUSEL

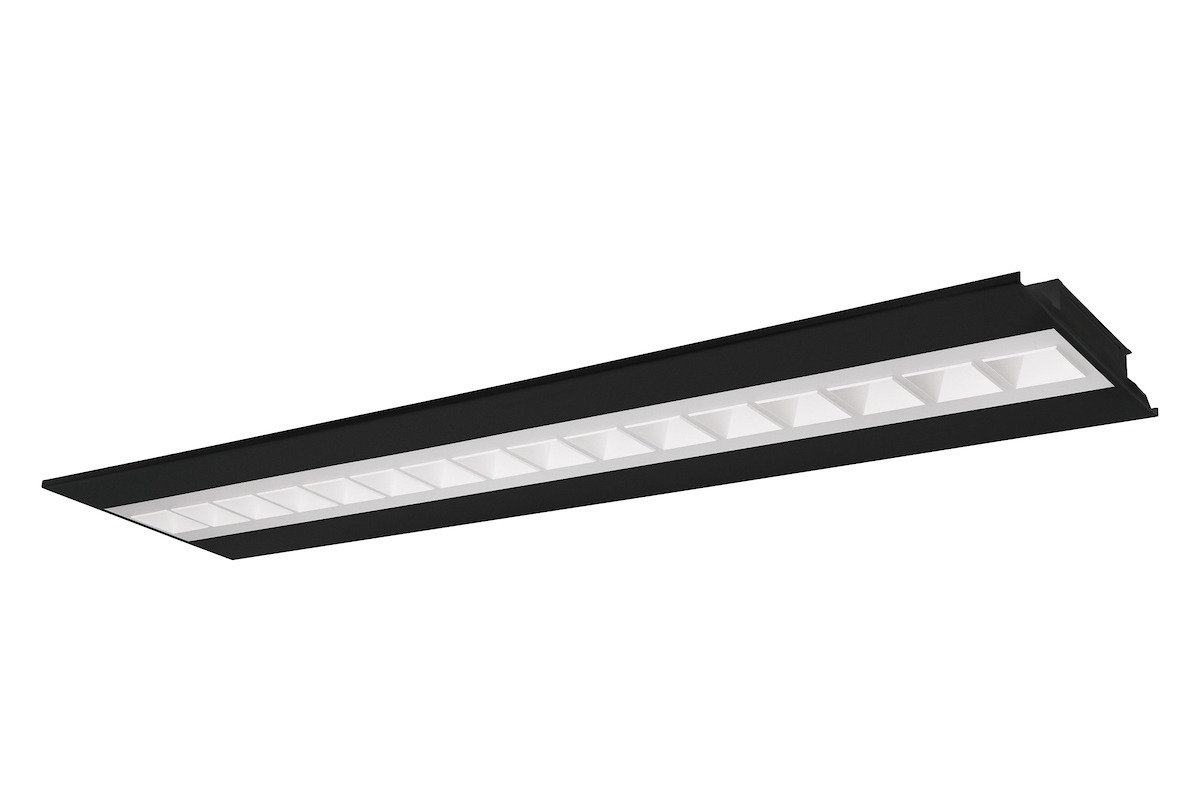

  • Omni POD Linear black pod white body CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS II
Symbol DO NOT INSULATE
Symbol COI COMPLIANT
Symbol IP40
Symbol ORGANIC RESPONSE LOGO
Symbol TUNEABLE
Symbol CASAMBI
Symbol EMERGENCY
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO
Symbol CLO

  • General Information

    General Information

    Date Updated: 06 December 2024

    Product Design Registration: 202012495

    Application

    OmniPOD Linear captures the full capability of digital light source LED technology to deliver revolutionary performance and adaptability for all commercial lighting projects.

    OmniPod Linear is the next generation of recessed commercial lighting products departing from the past decade of “ledification” of the traditional fluorescent model.

    Designed, tested and manufactured in Australia, OmniPod Linear is engineered to advance lighting performance and enhance the biological impact of light.

    Design

    Encompassing a range of new technology and innovative design features, OmniPod Linear is characterised by primary source LED Clusters in each optical POD surrounded by a diffusing layer for infill illumination.

    Recess depth in the ceiling cavity is contained to 38mm without compromising glare limitation capability.

    Designed with the biological impact of light and wellness in mind OmniPod Linear is the solution breakthrough for the creation of enhanced visual environments in commercial spaces, offices and boardrooms.

    Optics

    The key feature of OmniPod Linear is the individual light centre PODs each containing a cluster of LED chips behind a microprism diffusing layer. The combined geometric structure of each POD and diffusing layer delivers functional task light for the space while controlling glare without compromising spacing ratios in the ceiling grid. The infill light provided from the surrounding diffuser panel provides the vital biological balance of infill vertical illumination.

    Control

    Flexibility and choice of configuration are features of OmniPod Linear.

    Available in fixed CCT versions and tuneable white DUO1 and DUO2 function modes, OmniPOD Linear can be controlled by either Organic Response Technology SN3, DALI DT8 or CASAMBI wireless.

    All DALI versions of OmniPod Linear are enabled with Constant Light Output (CLO) capability as standard for lifetime enhanced energy conservation.

    VARIATIONSUFFIX
    Standard-000
    DALI + Constant Light Output (CLO)-244
    Wireless dimmable (Casambi)-249
    Organic Response SN3 + Constant Light Output (CLO)-974

    Tuneable White (DUO1 & DUO2)

    The creative freedom offered by LED technology has been fully embraced in the unique design of OmniPOD Linear DUO1 and DUO2.

    The pods and the peripheral diffuse component of the DUO variants can both be tuneable, each with independent control, providing freedom of design along with the capability of implementing personalised lighting profiles.

    Tuneable white with control options based on DALI DT8, ORT SN3 or CASAMBI wireless are available via mobile devices, DALI controller or e-TouchPanel.

    Please speak to your customer service representative for more details.

    Circadian Lighting

    Quality of light is an inherent element of wellness, productivity, vitality, creativity and satisfaction in any workplace. The increased vertical and enhanced task illumination along with the visual interest created by OmniPod Linear ensures the lighting environment created will support and enhance the experience for people occupying a space.

    The choice of operating mode and control interface flexibility allows for customisation of zones or individualised settings in support of WELL design requirements.

    Installation

    Easy to install and available for all T-Bar ceiling configurations, OmniPod Linear is designed for individual grid array spacings.

    At 38mm recess depth, OmniPod Linear does not conflict with limited ceiling depth concerns.

    • Restraint kit available

    Mounting Options

    • Plaster Recessed via recessing kit.
    • Surface mounting via slim surface mounting kit specially designed for OmniPod Linear range.
    • Corner modules available on request.

    Air Versions

    For Air handling version see OmniPOD Air.

    Notes

    • Emergency version available on request.

    Key Family Details

    • Optical System:
      Hybrid Pods (Black or White) and Diffuser
    • Mounting Type:
      Exposed T-Bar Recessed
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white (black via customisation)
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      4000K
    • R9:
      55+
    • COI Compliant:
      Yes (COI<=2.5)
    • Melanopic Ratio:
      0.67+
    • Circadian Stimulus CS [%] (*):
      11%+
    • Circadian Light Cla [lux] (*):
      79+
    • (*)
      For 150lux corneal photopic illumination. As a guide only.
  • Technical Information

    Omni POD Linear Dimensions v1 030521
    • Nominal 600x300mm
      L: 592mm; W: 294mm; H: 38mm; Weight: 2.6kg
    • Nominal 1200x300mm
      L: 1192mm; W: 294mm; H: 38mm; Weight: 4.7kg
    • Nominal 1500x30mm
      L: 1492mm; W: 294mm; H: 38mm; Weight: 5.8kg
    Omni POD linear white polarcurve v1
    Nominal Polar Curve (white pods)

    Omni POD 300 black polarcurve 080921
    Nominal Polar Curve (black pods)

    • Nominal 600x300mm
      L: 592mm; W: 294mm; H: 38mm; Weight: 2.6kg
    • Nominal 1200x300mm
      L: 1192mm; W: 294mm; H: 38mm; Weight: 4.7kg
    • Nominal 1500x30mm
      L: 1492mm; W: 294mm; H: 38mm; Weight: 5.8kg
    Omni POD Linear Dimensions v1 030521
    Omni POD linear white polarcurve v1
    Nominal Polar Curve (white pods)

    Omni POD 300 black polarcurve 080921
    Nominal Polar Curve (black pods)

  • Downloads

Product Code

Accessories
CODE DESCRIPTION
EL-ACC-210-000Restraint Kit - 4 x gripple, 2 x 2m wire
EL-ACC-873-000Surface mount kit 600X300X50 T/S ET OMNIPOD
EL-ACC-874-000Surface mount kit 1200X300X50 T/S ET OMNIPOD
EL-ACC-875-000Surface mount kit 1500X300X50 T/S ET OMNIPOD
EL-ACC-850-000Plaster recess kit 600x300
EL-ACC-852-000Plaster recess kit 1200x300
EL-ACC-853-000Plaster recess kit 1500x300


CODEDESCRIPTION
EL-ACC-180-000Casambi Wireless User Interface (Battery powered. 4 scenes. Available in White or Black)
EL-ACC-181-000DALI Touch Panel Basic TW (Capacitive DALI touch panel with real glass display)
EL-ACC-182-000DALI x/e-touchPANEL 02 (Touch-screen based DALI lighting and emergency lighting management system)
EL-ACC-183-000
Tridonic DALI XC (DALI input controller)
