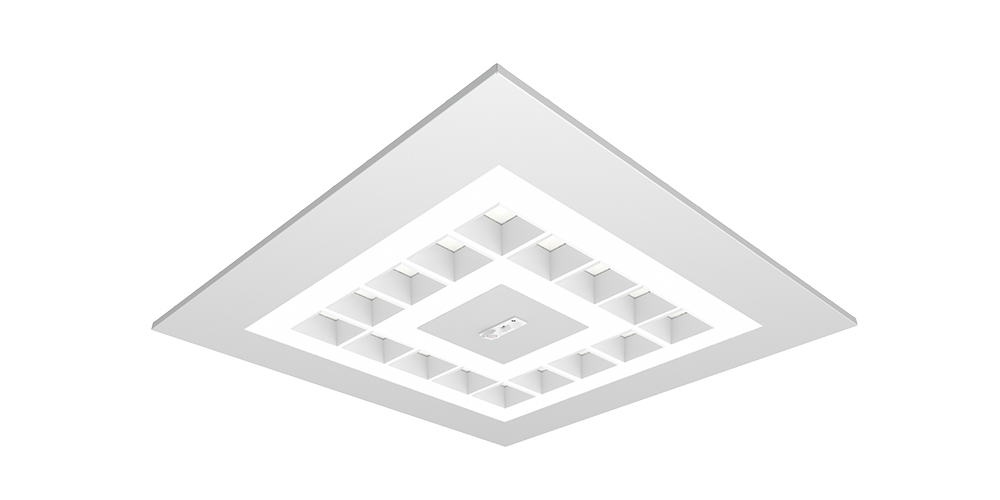

  • Omni POD 600 square CAROUSEL

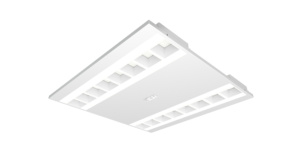

  • Omni POD 600 Linear CAROUSEL
  • Omnipod downlight white whitepods carousel1
  • Omnipod 150 CAROUSEL

OmniPOD Wipe Down

The OmniPOD wipe down range is rated IP44 from below and is a contemporary and easy-to-clean solution for the modern healthcare facility.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture

OmniPOD Wipe Down

Eagle Lighting

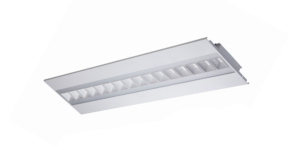

Omni POD Linear white CAROUSEL
  • Omni POD 600 square CAROUSEL
  • Omni POD 600 Linear CAROUSEL
  • Omnipod downlight white whitepods carousel1
  • Omnipod 150 CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS II
Symbol DO NOT INSULATE
Symbol IP44
Symbol COI COMPLIANT
Symbol TUNEABLE
Symbol EMERGENCY
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    Date Updated: 06 December 2024

    APPLICATION

    OmniPOD wipe down, rated IP44 from below, is suitable for modern Healthcare environments where contemporary design, shallow profiles, and easy-to-clean solutions are required. Ideal for front-of-house Healthcare spaces such as office/admin, patient wards, corridors, waiting rooms, nursing stations, and treatment and/or examination rooms where Cyanosis Compliant (COI) luminaires are required.

    Designed, tested, and manufactured in Australia, the OmniPod family is engineered to advance lighting performance and enhance the biological impact of light.

    DESIGN

    Encompassing a range of new technology and innovative design features, the OmniPod family is characterised by primary source LED Clusters in each optical POD surrounded by a diffusing layer for infill illumination.

    Recess depth in the ceiling cavity is contained to 41mm including the clear wipe down acrylic cover allowing space for other building services.

    Designed with the biological impact of light and wellness in mind, the OmniPod range is the solution breakthrough for the creation of enhanced visual environments in commercial spaces, offices, boards rooms, and now in healthcare spaces where IP44 and wipe down luminaires are essential to accommodate enhanced cleaning practices.

    OPTICS

    The key feature of the OmniPod range is the individual light centre PODs each containing a cluster of LED chips behind a microprism diffusing layer. The combined geometric structure of each POD and diffusing layer delivers functional task light for the space while controlling glare without compromising spacing ratios in the ceiling grid. The infill light provided from the surrounding diffuser panel provides the vital biological balance of infill vertical illumination.

    CONTROL

    Flexibility and choice of configuration are features of the OmniPod.

    Available in fixed CCT versions and tuneable white DUO1 and DUO2 function modes, the OmniPOD can be controlled by either Organic Response Technology SN3, DALI DT8 or CASAMBI wireless.

    All DALI versions of OmniPod are enabled with Constant Light Output (CLO) capability as standard for lifetime enhanced energy conservation.

    VARIATION

    SUFFIX

    Standard

    -000

    DALI + Constant Light Output (CLO)

    -244

    Wireless dimmable (Casambi)

    -249

    Organic Response SN3 + Constant Light Output (CLO) (non-IP rated)

    -974

    TUNEABLE WHITE (DUO1 & DUO2)

    The creative freedom offered by LED technology has been fully embraced in the unique design of OmniPOD DUO1 and DUO2.

    The pods and the peripheral diffuse component of the DUO variants can both be tuneable, each with independent control, providing freedom of design along with the capability of implementing personalised lighting profiles.

    Tuneable white with control options based on DALI DT8, ORT SN3 or CASAMBI wireless are available via mobile devices, DALI controller or e-TouchPanel.

    Please speak to your customer service representative for more details.

    CIRCADIAN LIGHTING

    Quality of light is an inherent element of wellness, productivity, vitality, creativity, and satisfaction in any workplace. The increased vertical and enhanced task illumination along with the visual interest created by the OmniPod, ensures the lighting environment created will support and enhance the experience for people occupying a space.

    The choice of operating mode and control interface flexibility allows for customisation of zones or individualised settings in support of WELL design requirements.

    INSTALLATION

    Easy to install and available for all T-Bar ceiling configurations, OmniPod is designed for individual grid array spacings.

    At 41mm for Wipe down, OmniPod wipe down does not conflict with limited ceiling depth concerns.

    • Restraint kit available

    MOUNTING OPTIONS

    • Plaster Recessed via recessing kit
    • Surface mounting via slim surface mounting kit available upon request

    AIR VERSIONS

    For Air handling version see OmniPOD Air

    NOTES

    • Emergency version available on request

    Key Family Details

    • Optical System:
      Hybrid Pods (Black or White) and Diffuser
    • Mounting Type:
      Exposed T-Bar Recessed
    • Finish Options:
      Standard white (black via customisation)
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      4000K (TW via customisation for 6x6 versions)
    • R9:
      50+
    • COI Compliant:
      Yes (COI<=2.5)
    • Melanopic Ratio:
      68+
    • Circadian Stimulus CS [%] (*):
      11%+
    • Circadian Light Cla [lux] (*):
      79+
    • (*)
      For 150lux corneal photopic illumination. As a guide only.
  • Technical Information

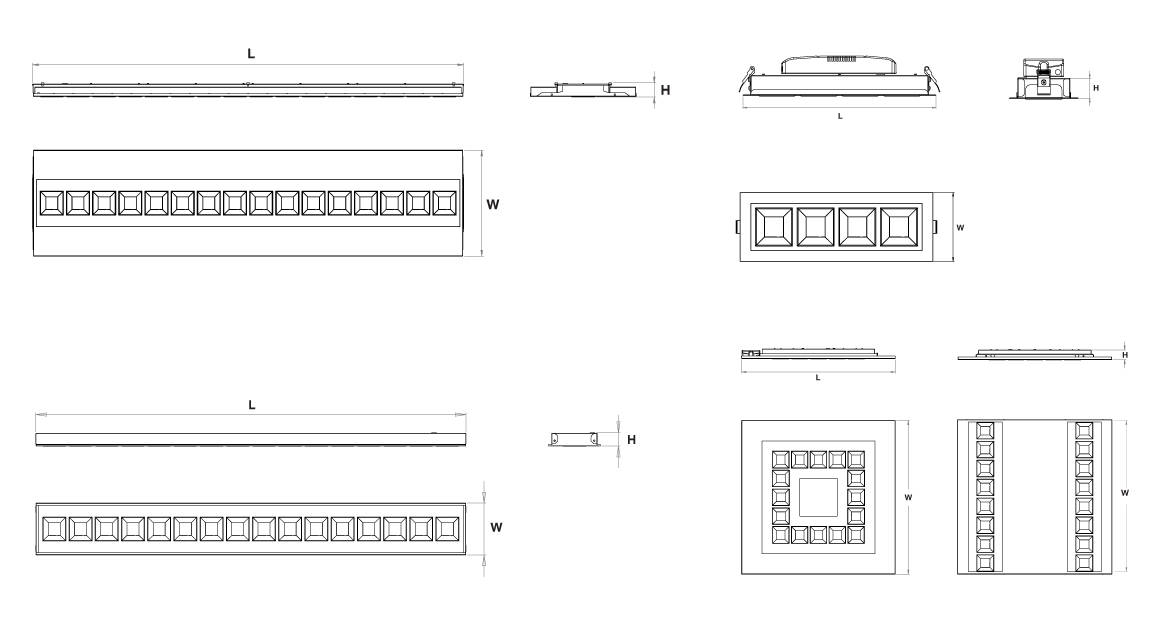

    Omni POD Wipedown Dimensions v1 181022
    • OmniPOD Linear WD
      Length: 1193mm x Width: 294mm x Height: 41; Weight: 4.7kg
    • OmniPOD Linear 150 WD
      Length: 1193mm x Width: 144mm x Height: 41; Weight: 2.3kg
    • OmniPOD 6x6 2-Row WD
      Length: 593mm x Width: 593mm x Height: 41; Weight: 4.7kg
    • OmniPOD 6x6 Square WD
      Length: 593mm x Width: 593mm x Height: 41; Weight: 4.4kg
    • OmniPOD Downlight WD
      Length: 336mm x Width: 120mm x Height: 50; Weight: 1kg

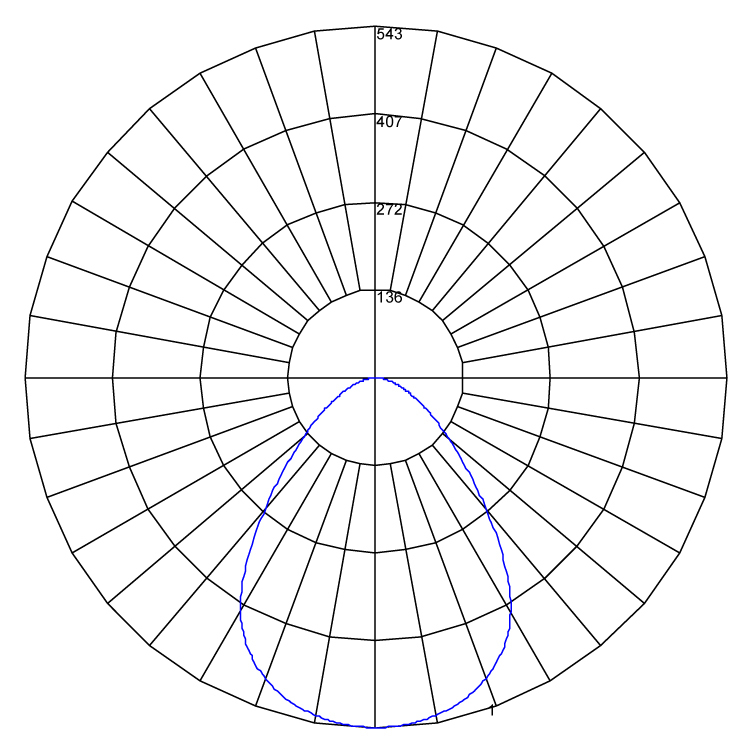

    1000lm Omni POD WP 600x600 2 R
    Nominal Polar Curve - 2-Row

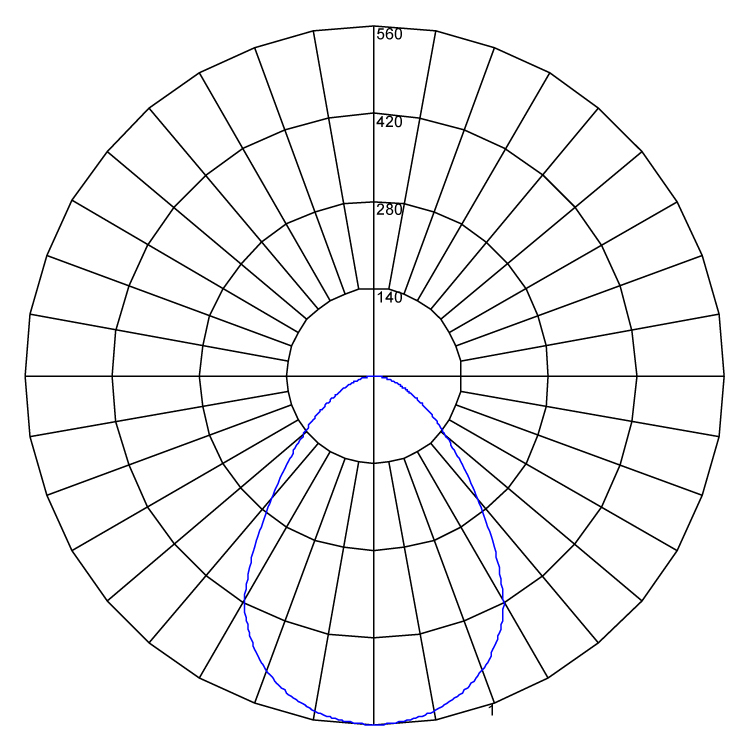

    1000lm Omni POD WP 600x600 SQ
    Nominal Polar Curve - Square

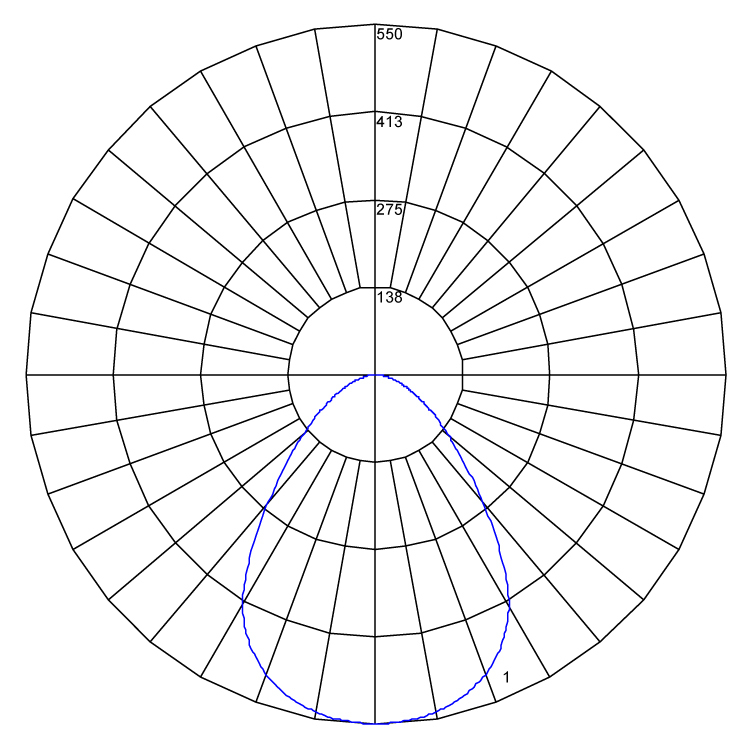

    1000lm Omni POD WP 1200x150
    Nominal Polar Curve - Linear 150 (1200x150)

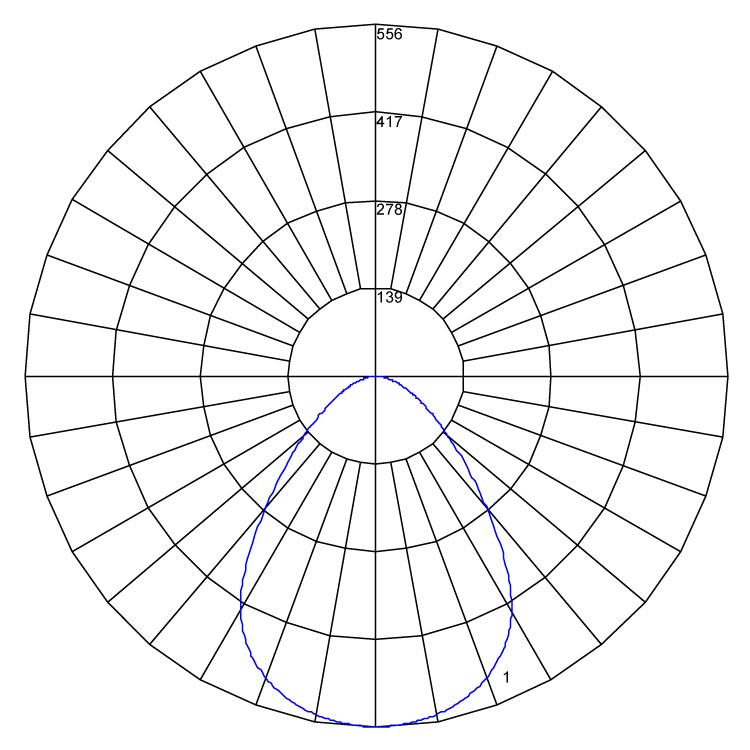

    1000lm Omni POD WP 1200x300
    Nominal Polar Curve - Linear 300 (1200x300)

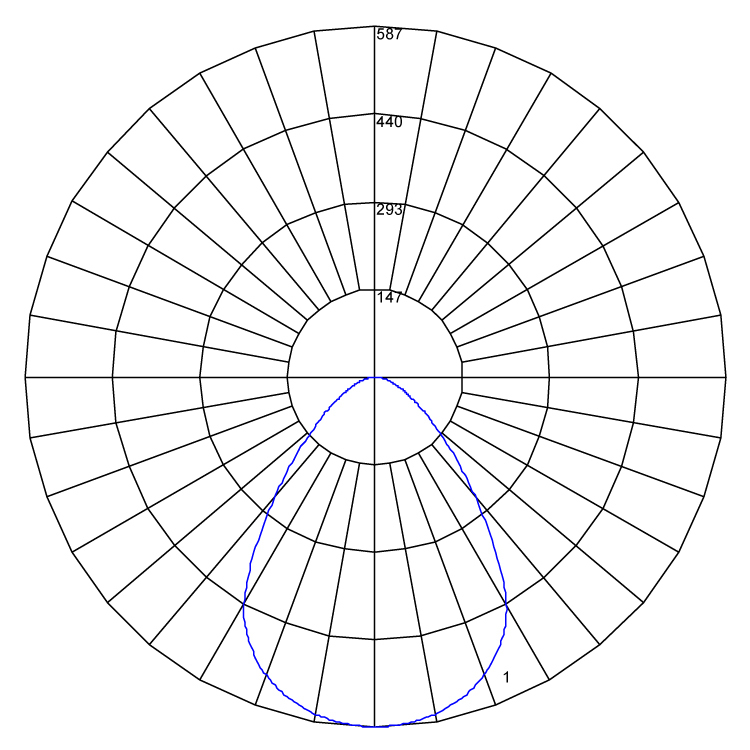

    1000lm Omni POD WP DL
    Nominal Polar Curve - Downlight

    • OmniPOD Linear WD
      Length: 1193mm x Width: 294mm x Height: 41; Weight: 4.7kg
    • OmniPOD Linear 150 WD
      Length: 1193mm x Width: 144mm x Height: 41; Weight: 2.3kg
    • OmniPOD 6x6 2-Row WD
      Length: 593mm x Width: 593mm x Height: 41; Weight: 4.7kg
    • OmniPOD 6x6 Square WD
      Length: 593mm x Width: 593mm x Height: 41; Weight: 4.4kg
    • OmniPOD Downlight WD
      Length: 336mm x Width: 120mm x Height: 50; Weight: 1kg
    Omni POD Wipedown Dimensions v1 181022
    1000lm Omni POD WP 600x600 2 R
    Nominal Polar Curve - 2-Row

    1000lm Omni POD WP 600x600 SQ
    Nominal Polar Curve - Square

    1000lm Omni POD WP 1200x150
    Nominal Polar Curve - Linear 150 (1200x150)

    1000lm Omni POD WP 1200x300
    Nominal Polar Curve - Linear 300 (1200x300)

    1000lm Omni POD WP DL
    Nominal Polar Curve - Downlight
