PROJECT



ARCHITECT/DESIGNER



TYPE NO.



  • Omnipod downlight white whitepods carousel1

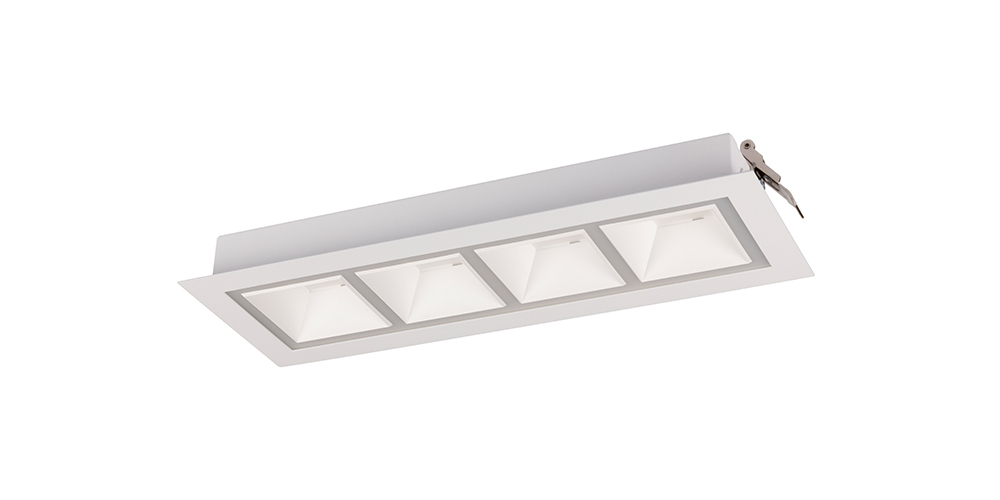

OmniPOD Downlight

EL-OMND-2100-244

OMNIPOD DL Recessed Single Luminaire Bottom Access Direct 800lm 6W LED Wide beam 4000K Ra90+ 240V Hybrid DALI Class II Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:336mm W:120mm H:50mm IP40 White body/ White Pods .

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

OmniPOD Downlight

EL-OMND-2100-244

OMNIPOD DL Recessed Single Luminaire Bottom Access Direct 800lm 6W LED Wide beam 4000K Ra90+ 240V Hybrid DALI Class II Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:336mm W:120mm H:50mm IP40 White body/ White Pods .

Eagle Lighting
Omni POD DL WHT pods WHT body PRODUCT CAROUSEL

  • Technical Overview

    Omni POD DL Dimensions v1 030521
    • Finish
      White body/ White Pods
    • L = Length [mm]
      336
    • W = Width/Diameter [mm]
      120
    • H = Height [mm]
      50
    • CL = Recessing Length [mm]
      320
    • CW = Recessing Width/Diameter [mm]
      100
    • Weight [kg]
      1
    Omni POD downlight fixed CCT white polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (white pods)

    Omni POD downlight fixed CCT black polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (black pods)

    • Finish
      White body/ White Pods
    • L = Length [mm]
      336
    • W = Width/Diameter [mm]
      120
    • H = Height [mm]
      50
    • CL = Recessing Length [mm]
      320
    • CW = Recessing Width/Diameter [mm]
      100
    • Weight [kg]
      1
    Omni POD DL Dimensions v1 030521
    Omni POD downlight fixed CCT white polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (white pods)

    Omni POD downlight fixed CCT black polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (black pods)

  • Photometric Values

  • Emergency Parameters

  • Colour Quality

  • Lifetime and Miscellaneous Parameters

  • Downloads

Logos
