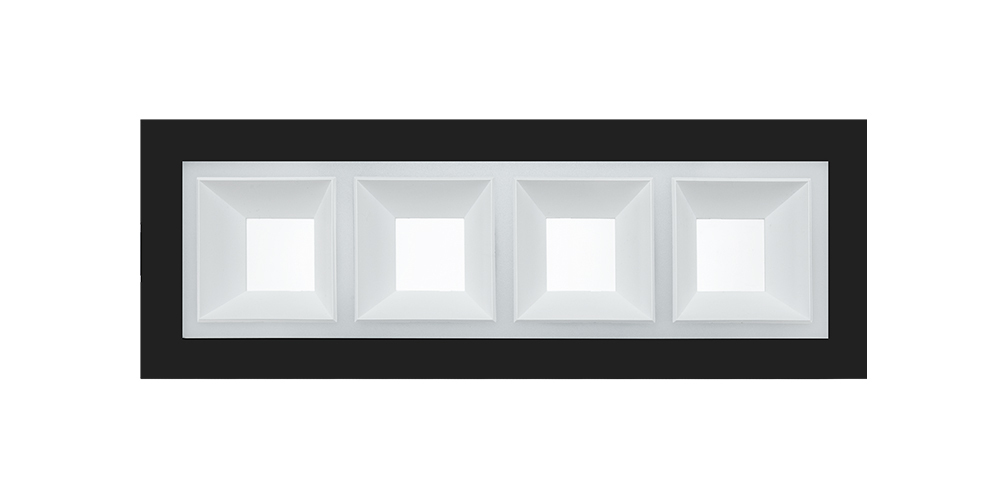

  • 3omnipod downlight black whitepods carousel3

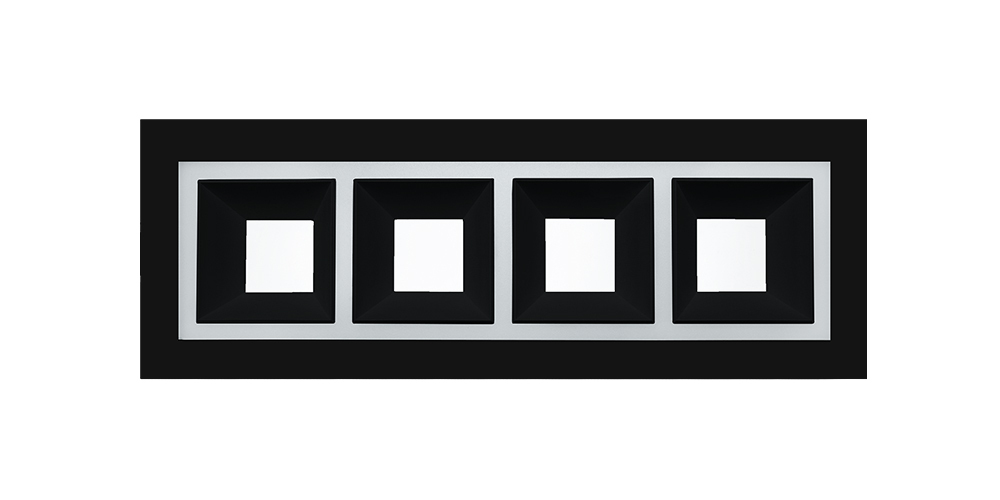

  • Omnipod downlight black blackpods carousel4

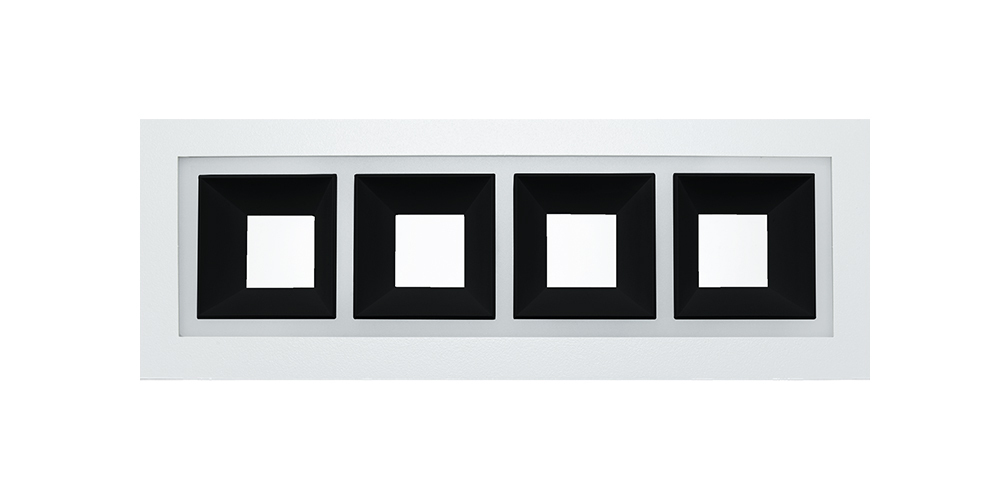

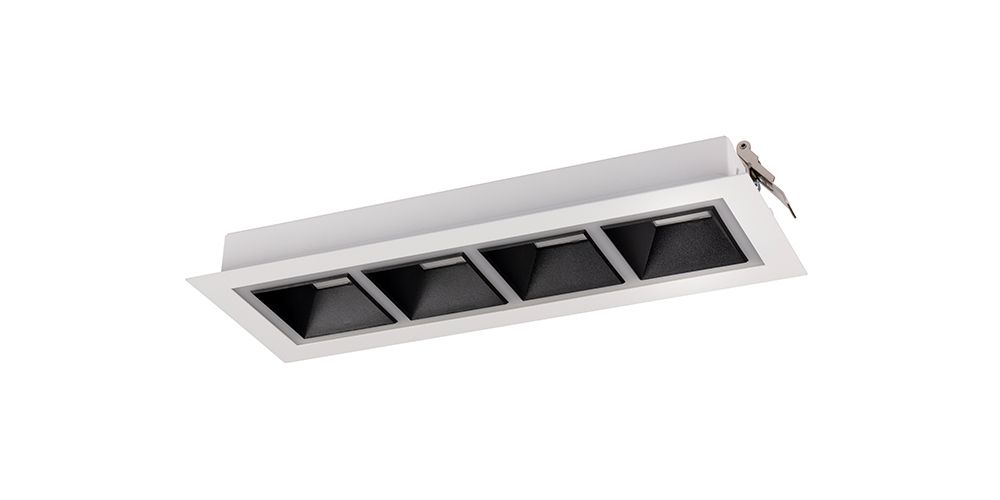

  • Omnipod downlight white blackpods carousel2

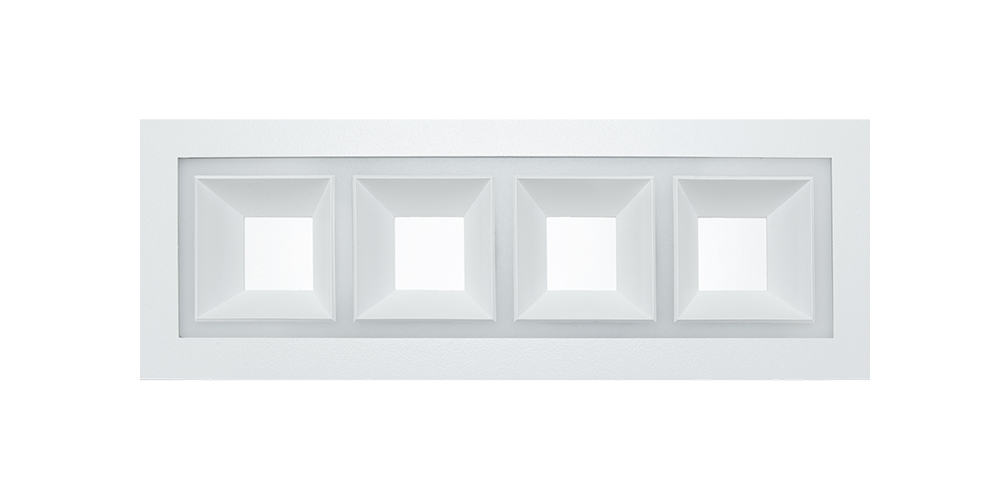

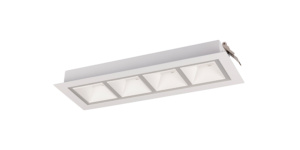

  • Omnipod downlight white whitepods carousel1

OmniPOD Downlight

This linear downlight sub-range shares the same visual and functional design details with the OmniPOD Linear, expanding the family to create a complete indoor lighting solution.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

OmniPOD Downlight

Eagle Lighting

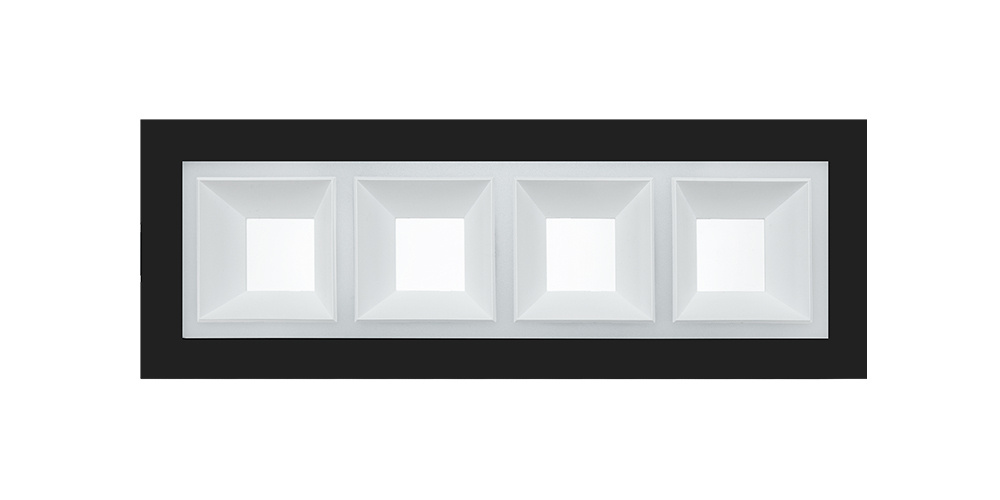

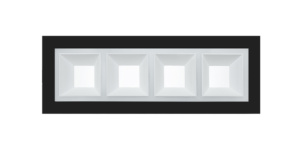

3omnipod downlight black whitepods carousel3

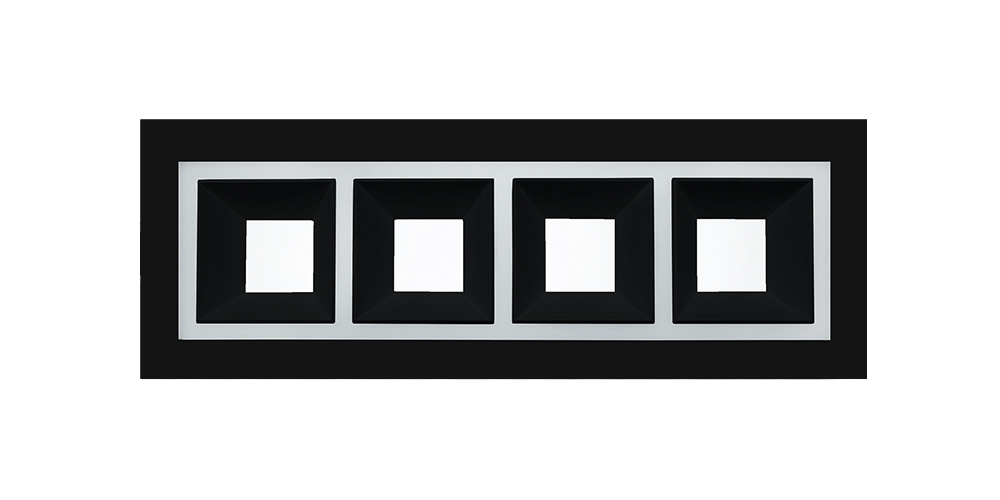

  • Omnipod downlight black blackpods carousel4
  • Omnipod downlight white blackpods carousel2
  • Omnipod downlight white whitepods carousel1
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS II
Symbol DO NOT INSULATE
Symbol IP40
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    APPLICATION

    OmniPOD Downlight captures the full capability of digital light source LED technology to deliver revolutionary performance and adaptability for all commercial lighting projects.

    OmniPOD Downlight is ideal for downlight applications or as a supporting luminaire to complement the OmniPOD Linear range where the design intent is to retain the same aesthetic and matching functionality.

    DESIGN

    Encompassing a range of new technology and innovative design features, OmniPod Downlight is characterised by primary source LED Clusters in each optical POD surrounded by a diffusing layer for infill illumination.

    Recess depth in the ceiling cavity is contained to 50mm without compromising glare limitation capability.

    Designed with the biological impact of light and wellness in mind OmniPod Downlight is the solution breakthrough for the creation of enhanced visual environments in commercial spaces expanding the family to create a complete indoor lighting solution.

    OPTICS

    The key feature of OmniPod Downlight is the individual light centre PODs each containing a cluster of LED Chips behind a microprism diffusing layer. The combined geometric structure of each POD and diffusing layer delivers functional task light for the space while controlling glare without compromising spacing ratios in the ceiling grid. The infill light provided from the surrounding diffuser panel provides the vital biological balance of infill vertical illumination.

    CONTROL

    Flexibility and choice of configuration are features of OmniPod Downlight.

    Available in fixed CCT versions and tuneable white DUO1 function modes, OmniPOD Downlight can be controlled by either remote Organic Response Technology SN3, DALI DT8 or CASAMBI wireless.

    All DALI versions of OmniPod Downlight are enabled with Constant Light Output (CLO) capability as standard for lifetime enhanced energy conservation.

    VARIATIONSUFFIX
    Standard-000
    DALI + Constant Light Output (CLO)-244
    Wireless dimmable (Casambi)-249
    Organic Response SN3 + Constant Light Output (CLO)
    -954

    TUNEABLE WHITE (DUO1)

    The creative freedom offered by LED technology has been fully embraced in the unique design of OmniPOD Downlight DUO1.

    The PODs and the peripheral diffuse component can both be tuneable, providing freedom of design along with the capability of implementing personalised lighting profiles.

    Tuneable white with control options based on DALI DT8, ORT SN3 or CASAMBI wireless are available via mobile devices, DALI controller or e-TouchPanel.

    Please speak to your customer service representative for more details.

    CIRCADIAN LIGHTING

    Quality of light is an inherent element of wellness, productivity, vitality, creativity and satisfaction in any workplace. The increased vertical and enhanced task illumination along with the visual interest created by OmniPod Downlight ensures the lighting environment created will support and enhance the experience for people occupying a space.

    The choice of operating mode and control interface flexibility allows for customisation of zones or individualised settings in support of WELL design requirements.

    INSTALLATION

    Easy to install and available for recessing in T-Bar ceiling panels or plaster configurations, OmniPod Downlight is designed for individual grid array spacings.

    At 50mm recess depth, OmniPod Downlight does not conflict with limited ceiling depth concerns.

    • Plaster recessed via spring clips (no tools required)
    • Restraint kit available

    MOUNTING OPTIONS

    • Designed for Plaster Recessed or Ceiling Tiles

    AIR VERSIONS

    Not suitable for air handling

    NOTES

    • Emergency version available on request

    Key Family Details

    • Optical System:
      Hybrid diffuser pods (Black or White)
    • Mounting Type:
      Recessed
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Black or White
    • System Warranty:
      5 years
    • CCT:
      4000K
    • CRI (Ra):
      90+
    • R9:
      50+
    • COI Compliant:
      Yes (White PODs version only)
    • Melanopic Ratio:
      0.74+
    • Circadian Stimulus CS [%] (*):
      13
    • Circadian Light Cla [lux] (*):
      93
    • (*):
      CS and Cla values are calculated for 150lux photopic corneal illumination and provided as a guide only.
  • Technical Information

    Omni POD DL Dimensions v1 030521
    • EL-OMND-1100 …-1105-000/200
      L: 336mm; W: 120mm; H: 50mm; Weight: 1.0kg
    • EL-OMND-1100 …-1105-950
      L: 375mm; W: 120mm; H: 50mm; Weight: 1.2kg
    • CL: Recessing length
      320mm; 360mm
    • CW: Recessing width/diameter
      100mm
    Omni POD downlight fixed CCT white polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (white pods)

    Omni POD downlight fixed CCT black polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (black pods)

    • EL-OMND-1100 …-1105-000/200
      L: 336mm; W: 120mm; H: 50mm; Weight: 1.0kg
    • EL-OMND-1100 …-1105-950
      L: 375mm; W: 120mm; H: 50mm; Weight: 1.2kg
    • CL: Recessing length
      320mm; 360mm
    • CW: Recessing width/diameter
      100mm
    Omni POD DL Dimensions v1 030521
    Omni POD downlight fixed CCT white polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (white pods)

    Omni POD downlight fixed CCT black polarcurve v1
    Nominal polar Curve 340x120 940 - Fixed CCT (black pods)
