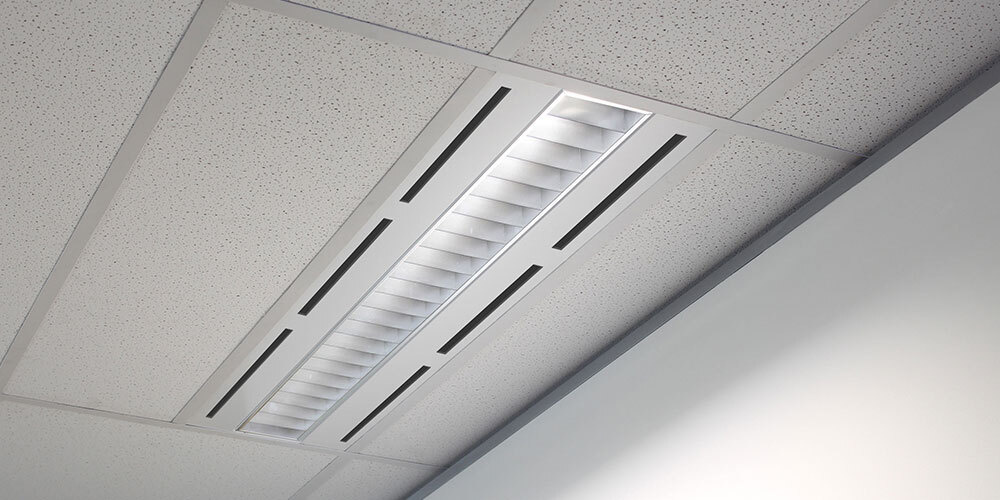

  • Multifive Air CAROUSEL

Multifive LED Air

EL-MLDA-2109-000

MULTIFIVE LED AIR Recessed/T-bar Single Luminaire Bottom Access Direct Return air only 3329lm 23.1W LED Wide beam 4000K Ra90+ 240V Beta Non-dim Class I Std AUS flex & plug 2.0m L:1192mm W:292mm H:65mm IP40 White .

Custom Datasheet

Optional: Enter your details for the document header

Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP40
Symbol LED
Symbol CLASS I
Symbol AIR ENABLED
Symbol RCM LOGO
Symbol COI COMPLIANT
Symbol DO NOT INSULATE
Symbol IP40 20
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
UGR19v1
Local manufacture
Eagle Lighting

Multifive LED Air

EL-MLDA-2109-000

MULTIFIVE LED AIR Recessed/T-bar Single Luminaire Bottom Access Direct Return air only 3329lm 23.1W LED Wide beam 4000K Ra90+ 240V Beta Non-dim Class I Std AUS flex & plug 2.0m L:1192mm W:292mm H:65mm IP40 White .

Eagle Lighting
Multifive Air CAROUSEL
Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP40
Symbol LED
Symbol CLASS I
Symbol AIR ENABLED
Symbol RCM LOGO
Symbol COI COMPLIANT
Symbol DO NOT INSULATE
Symbol IP40 20
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
UGR19v1
Local manufacture

  • Technical Overview

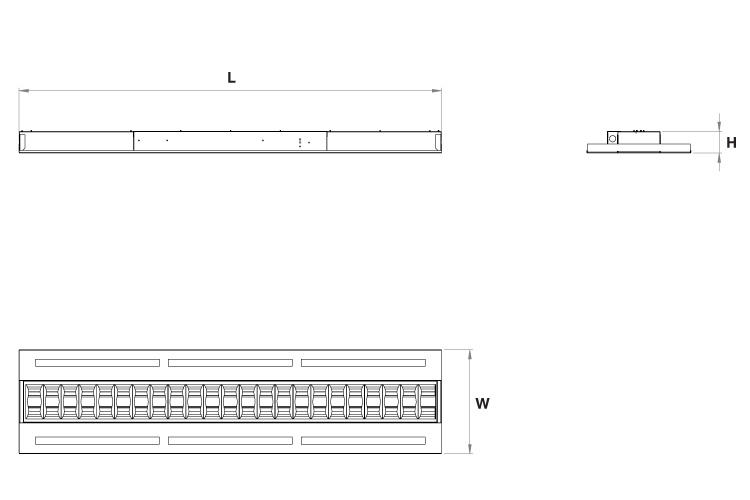

    Multifive Air Dimensions v1 030521
    • Finish
      White
    • L = Length [mm]
      1192
    • W = Width/Diameter [mm]
      292
    • H = Height [mm]
      65
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.5

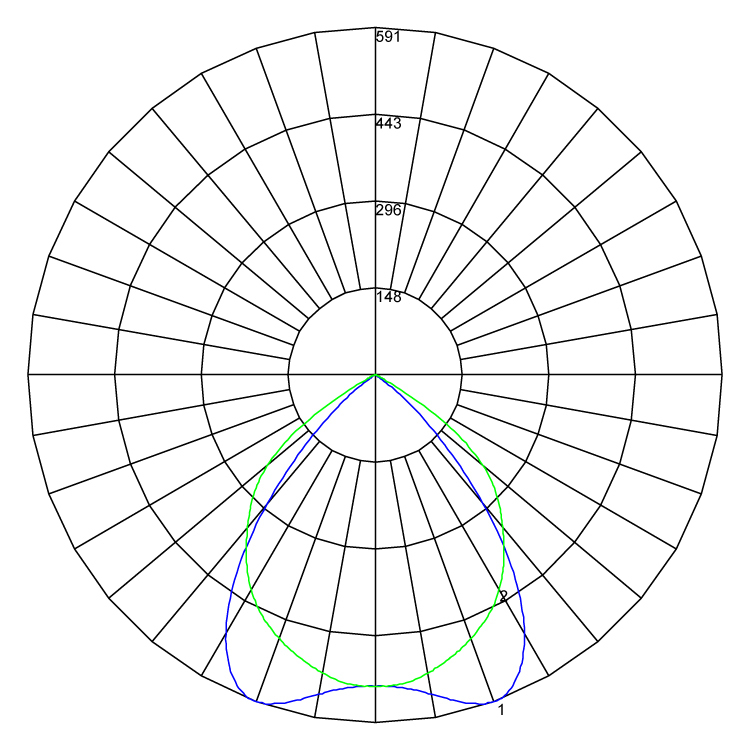

    Multifive Air Polarcurve v1 100521
    Normalised Polar Curve

    • Finish
      White
    • L = Length [mm]
      1192
    • W = Width/Diameter [mm]
      292
    • H = Height [mm]
      65
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.5
    Multifive Air Dimensions v1 030521
    Multifive Air Polarcurve v1 100521
    Normalised Polar Curve

  • Photometric Values

    • Control Type
      Non-dim
    • Ceiling Type/Mounting
      Recessed/T-bar
    • Wattage [W]
      23.1
    • CLO Enabled
      No
    • Final Wattage CLO [W]
      -
    • System Lumens [lm]
      3329
    • Luminaire Lumens [lm]
      2482
    • Efficacy [lm/W]
      108
    • Lighting Type
      Direct
    • Target Spacing [m]
      2.4 x 2.7
    • Target H Illuminance [lux]
      330
    • LPD [W/m2]
      3.57
    • NPD [W/sqm/100lux]
      1.09
    • Beamwidth (FWHM)
      -
    • Optics Type
      Beta
    • UGR
      22

  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -

  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • CLA 2.0
      -
    • M-DER
      -
    • R9
      65
    • Melanopic Ratio
      0.73
    • Circadian Stimulus CS [%]
      -
    • Circadian Light [lux]
      -
    • TM-30 RF
      90
    • TM-30 RG
      98
    • M-EDI
      -

  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime [hrs]
      64000
    • TM21 L70 Reported Lifetime [hrs]
      >72000
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      52000
    • SDCM Initial
      3

  • Downloads

    Download icon

    IES File

    Download

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Plaster recess kit to suit 600x300EL-ACC-850-000
Plaster recess kit to suit 1200x300EL-ACC-852-000
Plaster recess kit to suit 1500x300EL-ACC-853-000

Product Advisement Statement


● All photometric (including flicker metrics), spectrometric, electrical, and thermal data have a tolerance of ±5%.

● The value indicated by the UGR icon refers to the lowest UGR value achievable by at least one standard variant of a given product family. It may not necessarily apply to all standard variants.

● The Unified Glare Rating (UGR) is a function of the entire design space, including but not limited to the optical properties of the ceiling and walls, as well as the properties and spacing of all other luminaires in the calculation space. It is not an intrinsic property of a light fitting and should not be quoted as such.

● All UGR values stated by Eagle Lighting are calculated in compliance with AS/NZS 1680.1-2006 (aligned with CIE 117-1995) and are achievable with standard room sizes and luminaire spacing based on the specific luminaire model.

● The following design parameters apply unless otherwise specified:

 - Light Loss Factor (LLF): 0.80 (Nominal)
 - Room Reflectance Values (Ceiling/Walls/Floor): 0.70/0.50/0.20
 - Ceiling Height: 2.7m
 - Horizontal Illuminance (Eh) calculated at 0.72m above finished floor level (AFFL)

● Non-standard (custom) products may have UGR values higher than those of standard models, depending on the nature of the customization. Please consult your sales representative for details.

● UGR values obtained under conditions or parameters other than those specified above may differ from the stated values.

● All product heights are shown excluding the driver unless otherwise specified.

● For questions about our products or assistance with ordering accessories (where applicable), please contact your customer service representative.
