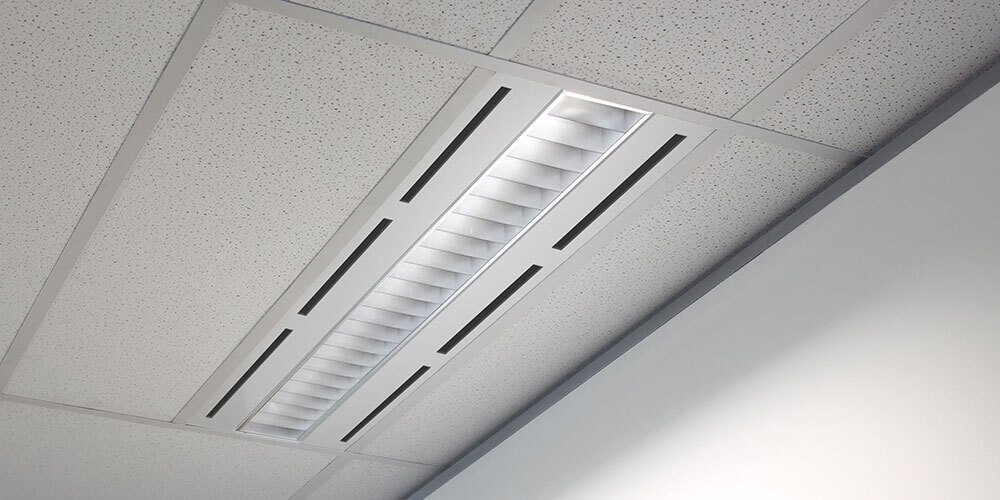

  • Multifive Air CAROUSEL

Multifive LED Air

The latest generation of the successful Multifive Air LED is pushing the boundaries of lighting design.

Local manufacture
Eagle Lighting
  • General Information

    APPLICATION
    The Multifive Air LED is a low glare, high efficacy, CRI90+ recessed fitting with COI compliance. The latest generation of this successful luminaire is the perfect choice for ensuring everyone working within the office environment enjoys the benefits of a comfortable and visually pleasing workspace.

    DESIGN
    The double parabolic Beta louvre provides unrivalled glare and luminance control to ensure optimal luminance. The louvre consists of double parabolic side and cross reflectors with excellent reflection characteristics. The reflectors distribute the light with precision in a classical batwing form and with exceptionally low glare.

    OPTICS
    Combination of a high-performance diffuser and double parabolic Beta Louvre.

    CONTROL
    Non-dim and DALI as standard. Various control options readily available via customisation, including Organic Response and Tuneable White.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-200
    Tunable White (DALI Type 8)-220
    Maintained Emergency-800
    DALI Monitored Emergency-801
    Organic Response SN3-950


    INSTALLATION
    T-Bar as standard. Plaster Recessed kit available Seismic Restraint Kit available.

    EMERGENCY
    Maintained DALI and maintained non-monitored emergency options as standard. Other options may be available via customisation.

    MOUNTING OPTIONS

    • Plaster Recessed
    • Restraint Kit

    NOTES
    Asymmetric Wallwasher option is available.

    Key Family Details

    • Optical System:
      Diffuser + Beta Louvre combination
    • Mounting Type:
      Exposed T-bar
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white. Other finish options via customisation
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      4000K
    • R9:
      60+
    • COI Compliant:
      Yes
    • Melanopic Ratio:
      0.72+
  • Technical Information

    Multifive Air Dimensions v1 030521
    • EL-MLDA-2106/ -2017
      L: 592mm; W: 292mm; H: 65mm; Weight: 1.5kg
    • EL-MLDA-2108/ -2109
      L: 1192mm; W: 292mm; H: 65mm; Weight: 2.5kg
    • EL-MLDA-2110/-2111
      L: 1492mm; W: 292mm; H: 65mm; Weight: 3.0kg
    Multifive Air Polarcurve v1 100521
    Nominal Polar Curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Plaster recess kit to suit 600x300EL-ACC-850-000
Plaster recess kit to suit 1200x300EL-ACC-852-000
Plaster recess kit to suit 1500x300EL-ACC-853-000
