PROJECT



ARCHITECT/DESIGNER



TYPE NO.

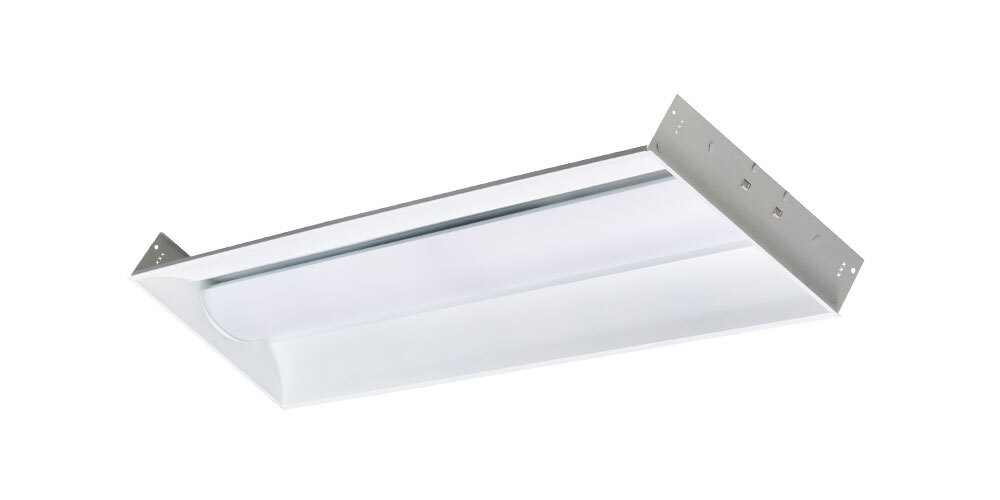

  • Enviro Evoline Concealed 1200 CAROUSEL
  • Enviro Evoline Concealed 1500 CAROUSEL
  • Enviro Evoline Concealed 600 CAROUSEL
  • Enviro Evoline Concealed detail CAROUSEL

Enviro Evoline Concealed Air

The Concealed Air variant is the recent addition to the Enviro Evoline family.

Local manufacture
Eagle Lighting

Enviro Evoline Concealed Air

Eagle Lighting
Enviro Evoline Concealed 1200 CAROUSEL
  • Enviro Evoline Concealed 1500 CAROUSEL
  • Enviro Evoline Concealed 600 CAROUSEL
  • Enviro Evoline Concealed detail CAROUSEL
Symbol LED
Symbol AIR ENABLED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP40 20
Symbol COI COMPLIANT
Symbol TUNEABLE
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    APPLICATION
    The Enviro Evoline family has been designed to meet the demanding requirements for office lighting in Australia and New Zealand.

    The Concealed Air variant is a recent addition to the Enviro Evoline family.

    DESIGN
    The air slots in the Concealed Air variant, completely invisible due to the unique design, deliver an exceptional performance in terms of both airflow and noise figures, as demonstrated by accredited laboratory test results.

    As with the rest of the Enviro Evoline family, the Concealed Air variant has one of the best vertical illuminance performances within the ELA range of recessed luminaires.

    OPTICS
    The extruded central diffuser offers good glare control whilst the curved back reflector spreads light to achieve a wide beam without causing glare and to help reduce contrast on the ceiling.

    CONTROL
    Non-dim and DALI as standard. Various control options available via customisation including Organic Response and Tuneable White.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-200
    Tunable White (DALI Type 8)-220
    Organic Response SN3-950

    EMERGENCY
    Maintained DALI and maintained non-monitored emergency options as standard. Other options may be available via customisation.

    INSTALLATION

    • T-Bar as standard.
    • Plaster Recessed and Surface Mounted kits available as standard options.
    • Restraint Kit available.

    MOUNTING OPTIONS
    Plaster Recessed via Recessing kit

    Key Family Details

    • Optical System:
      Opal diffuser + Secondary reflector
    • Mounting Type:
      Exposed T-Bar
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white
    • System Warranty:
      5 years
    • CCT:
      4000K
    • CRI (Ra):
      90+
    • R9:
      50+
    • COI Compliant:
      Yes
    • Melanopic Ratio:
      0.70+
  • Technical Information

    Enviro Evoline Concealed Air Dimensions v1 300421
    • EL-EVC-1110/ -1113
      L: 593mm; W: 292mm; H:77mm; Weight: 2kg
    • EL-EVC-1111/ -1114
      L: 1192mm; W: 292mm; H:77mm; Weight: 2.7kg
    • EL-EVC-1112/ -1115
      L: 1492mm; W: 292mm; H:77mm; Weight: 3.5kg
    Evoline concealed air polarcurve v1
    Nominal polar curve

    • EL-EVC-1110/ -1113
      L: 593mm; W: 292mm; H:77mm; Weight: 2kg
    • EL-EVC-1111/ -1114
      L: 1192mm; W: 292mm; H:77mm; Weight: 2.7kg
    • EL-EVC-1112/ -1115
      L: 1492mm; W: 292mm; H:77mm; Weight: 3.5kg
    Enviro Evoline Concealed Air Dimensions v1 300421
    Evoline concealed air polarcurve v1
    Nominal polar curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit to suit 600x300EL-ACC-610-000
Surface mount kit to suit 1200x300
EL-ACC-612-000
Plaster recess kit 600x300
EL-ACC-850-000
Plaster recess kit 1200x300
EL-ACC-852-000
Plaster recess kit 1500x300
EL-ACC-853-000
