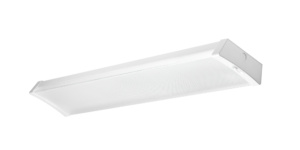

  • Educo carousel 2
  • Educo carousel 3

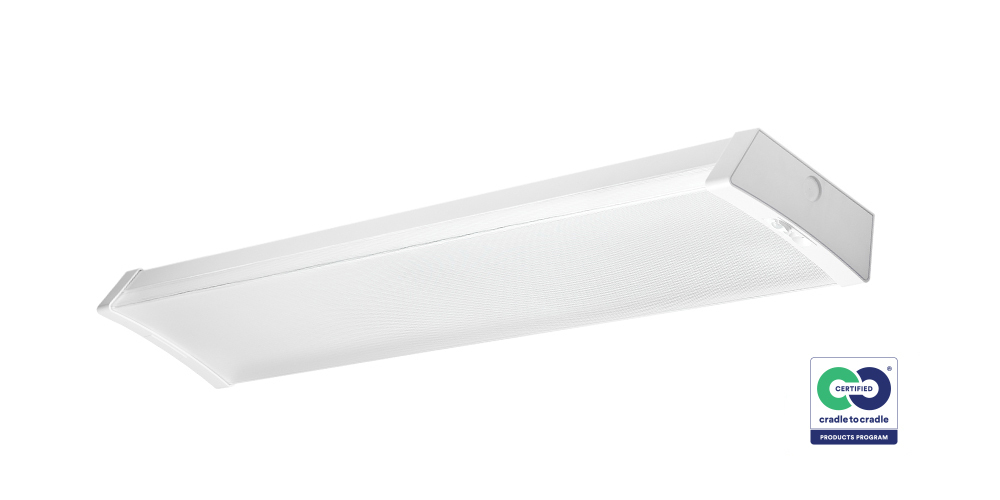

  • Educo carousel 1

Educo Vitality

Designed for educational facilities, Educo Vitality is conceived and manufactured according to circular economy principles.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting Logo colour

Educo Vitality

Eagle Lighting
Educo carousel 2
  • Educo carousel 3
  • Educo carousel 1
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP44
Symbol COI COMPLIANT
Symbol EMERGENCY
Symbol CLO
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol RCM LOGO
Symbol IES
Symbol REVIT

  • General Information

    General Information

    APPLICATION

    Creating a comfortable environment for teaching and learning, Educo Vitality is a new high performance, exceptionally low-UGR luminaire engineered with ease of installation in mind.

    DESIGN

    Educo Vitality is designed and manufactured using materials that are safe, circular and responsibly made.

    By being able to easily upgrade Educo Vitality and reuse/recycle its consumable parts, the luminaire is given more than one life cycle. This, therefore, reinserts the resources back into the economy with the least amount of energy expended, whilst minimising carbon emissions and waste to landfill.

    Designed, tested and manufactured in Australia, the Educo Vitality is designed to achieve WELL and Greenstar certifications, along with obtaining a high NABERS rating.

    OPTICS
    The Educo Vitality optics consists of a bi-divergent optical system where an inner convex lens combines with the outer concave microprismatic lens to provide best-in-class light dispersion control and minimise UGR (*).

    CONTROLS

    Standard non-dim, DALI and OR (Organic Response SN3) options are readily available. Constant Light Output (CLO) is standard on DALI variants and OR models. Other options may be possible via customisation.

    The below controls options are available as standard; further customisation may be possible.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-244
    Emergency Maintained-800
    Organic Response (CLO)-974

    MECHANICAL
    Future-ready design with easily upgradeable cassette, in line with circular economy principles, including regeneration of the asset, upgradeability to improved future technology, better management of operating and future capital expenditures. Rated IP44 (**).

    EMERGENCY
    The ability to integrate Emergency functionality including 3rd party emergency devices.

    * A calculation of UGR is the result of how a luminaire interacts with the interior environment and the users of the space¸ not just a figure assigned to a luminaire based on a standard set of parameters. Depending on room geometry and surface reflectances Educo Vitality is capable of achieving UGR ≤16.

    ** IP44 (NON-ORT)/IP20 (ORT)

    Key Family Details

    • Optical System:
      Textured acrylic diffuser with secondary internal masking film
    • Mounting Type:
      Surface mounted
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white. Other finish options via customisation
    • System Warranty:
      5 years
    • CCT:
      90+
    • R9:
      50+
    • COI Compliant:
      Yes (=<2.8)
    • Melanopic Ratio:
      >=0.71
  • Technical Information

    Educo Dimensions v1 300421
    • EL-EDU-1000/ -1001
      L: 652mm; W: 215mm; H: 77mm; Weight: 2.9kg [Mounting set: X: 450mm; Y: 115mm]
    • EL-EDU-1002/ -1003/ -1004/ -1005
      L: 1212mm; W: 215mm; H: 77mm; Weight: 4.9kg [Mounting set: X: 1000mm; Y: 115mm]
    • EL-EDU-1006/ -1007/ -1008
      L: 1492mm; W: 215mm; H: 77mm; Weight: 5.9kg [Mounting set: X: 1250mm; Y: 115mm]
    Educo Vitality polarcurve v1 250222
    Normalised Polar Curve

    • EL-EDU-1000/ -1001
      L: 652mm; W: 215mm; H: 77mm; Weight: 2.9kg [Mounting set: X: 450mm; Y: 115mm]
    • EL-EDU-1002/ -1003/ -1004/ -1005
      L: 1212mm; W: 215mm; H: 77mm; Weight: 4.9kg [Mounting set: X: 1000mm; Y: 115mm]
    • EL-EDU-1006/ -1007/ -1008
      L: 1492mm; W: 215mm; H: 77mm; Weight: 5.9kg [Mounting set: X: 1250mm; Y: 115mm]
    Educo Dimensions v1 300421
    Educo Vitality polarcurve v1 250222
    Normalised Polar Curve
