PROJECT



ARCHITECT/DESIGNER



TYPE NO.



  • Concava CAROUSEL

Concava

EL-CON-1501-244

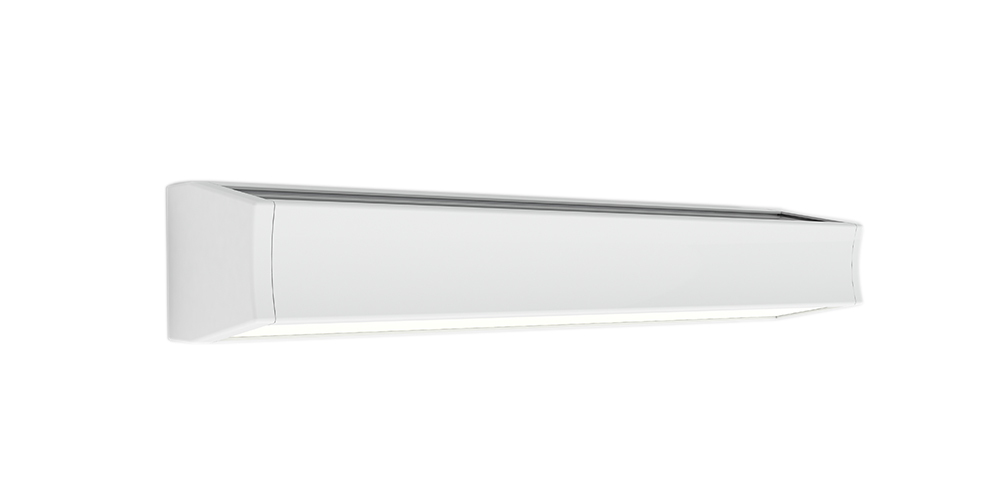

CONCAVA Wall mounted Single Luminaire Direct/Indirect 6500lm 47.8W LED Special 3500K Ra90+ 240V Hybrid DALI Class I L:908mm W:154mm H:115mm IP40 White Dir 3500K / Ind 3500K .

Custom Datasheet

Optional: Enter your details for the document header

Symbol DIRECT INDIRECT LIGHT DISTRIBUTION
Symbol IP40
Symbol LED
Symbol CLASS I
Symbol ANTIMICROBIAL COATING
Symbol RCM LOGO
Symbol COI COMPLIANT
Symbol LED COLOUR OPTIONS
Symbol TUNEABLE
Symbol CASAMBI
Symbol CLO
Symbol CUSTOMISABLE
Symbol REVIT
Symbol IES
Local manufacture
Eagle Lighting

Concava

EL-CON-1501-244

CONCAVA Wall mounted Single Luminaire Direct/Indirect 6500lm 47.8W LED Special 3500K Ra90+ 240V Hybrid DALI Class I L:908mm W:154mm H:115mm IP40 White Dir 3500K / Ind 3500K .

Eagle Lighting
Concava CAROUSEL
Symbol DIRECT INDIRECT LIGHT DISTRIBUTION
Symbol IP40
Symbol LED
Symbol CLASS I
Symbol ANTIMICROBIAL COATING
Symbol RCM LOGO
Symbol COI COMPLIANT
Symbol LED COLOUR OPTIONS
Symbol TUNEABLE
Symbol CASAMBI
Symbol CLO
Symbol CUSTOMISABLE
Symbol REVIT
Symbol IES
Local manufacture

  • Technical Overview

    Concava Dimensions v1 300421
    • Finish
      White
    • L = Length [mm]
      908
    • W = Width/Diameter [mm]
      154
    • H = Height [mm]
      115
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      7
    Concava polarcurve v1
    Nominal polar curve

    • Finish
      White
    • L = Length [mm]
      908
    • W = Width/Diameter [mm]
      154
    • H = Height [mm]
      115
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      7
    Concava Dimensions v1 300421
    Concava polarcurve v1
    Nominal polar curve

  • Photometric Values

    • Control Type
      DALI
    • Ceiling Type/Mounting
      Wall mounted
    • Wattage [W]
      47.8
    • CLO Enabled
      Yes
    • Final Wattage CLO [W]
      58
    • System Lumens [lm]
      6500
    • Luminaire Lumens [lm]
      3953
    • Efficacy [lm/W]
      83
    • Lighting Type
      Direct/Indirect
    • Target Spacing [m]
      -
    • Target H Illuminance [lux]
      -
    • LPD [W/m2]
      -
    • NPD [W/sqm/100lux]
      -
    • Beamwidth (FWHM)
      -
    • Optics Type
      Hybrid
    • UGR
      -

  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -

  • Colour Quality

    • CCT [K]
      3500K
    • CCT1 [K]
      3500K
    • CCT2 [K]
      3500K
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Compliant
    • CLA 2.0
      -
    • M-DER
      -
    • R9
      62
    • Melanopic Ratio
      0.66
    • Circadian Stimulus CS [%]
      10
    • Circadian Light [lux]
      73
    • TM-30 RF
      90
    • TM-30 RG
      98
    • M-EDI
      -

  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime [hrs]
      -
    • TM21 L70 Reported Lifetime [hrs]
      -
    • L100B50 Lifetime (CLO) [hrs]
      72000
    • TM21 L90 Reported Lifetime [hrs]
      -
    • SDCM Initial
      3

  • Downloads

    Download icon

    IES File

    Download

Product Advisement Statement


● All photometric (including flicker metrics), spectrometric, electrical, and thermal data have a tolerance of ±5%.

● The value indicated by the UGR icon refers to the lowest UGR value achievable by at least one standard variant of a given product family. It may not necessarily apply to all standard variants.

● The Unified Glare Rating (UGR) is a function of the entire design space, including but not limited to the optical properties of the ceiling and walls, as well as the properties and spacing of all other luminaires in the calculation space. It is not an intrinsic property of a light fitting and should not be quoted as such.

● All UGR values stated by Eagle Lighting are calculated in compliance with AS/NZS 1680.1-2006 (aligned with CIE 117-1995) and are achievable with standard room sizes and luminaire spacing based on the specific luminaire model.

● The following design parameters apply unless otherwise specified:

 - Light Loss Factor (LLF): 0.80 (Nominal)
 - Room Reflectance Values (Ceiling/Walls/Floor): 0.70/0.50/0.20
 - Ceiling Height: 2.7m
 - Horizontal Illuminance (Eh) calculated at 0.72m above finished floor level (AFFL)

● Non-standard (custom) products may have UGR values higher than those of standard models, depending on the nature of the customization. Please consult your sales representative for details.

● UGR values obtained under conditions or parameters other than those specified above may differ from the stated values.

● All product heights are shown excluding the driver unless otherwise specified.

● For questions about our products or assistance with ordering accessories (where applicable), please contact your customer service representative.
