PROJECT



ARCHITECT/DESIGNER



TYPE NO.



  • Cleanroom CR65 CAROUSEL
  • Cleanroom CR65 CAROUSEL 2

Cleanroom IP65 CRI95+

Offering the best-in-class Cyanosis Observation Index, an exceptional R9 value, and superior colour consistency, enhancing visual performance for medical staff and delivering beneficial outcomes for patient care.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting

Cleanroom IP65 CRI95+

Eagle Lighting
Cleanroom CR65 CAROUSEL
  • Cleanroom CR65 CAROUSEL 2
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP65
Symbol IK08
Symbol COI COMPLIANT
Symbol TUNEABLE
Symbol LED COLOUR OPTIONS
Symbol EMERGENCY
Symbol ANTIMICROBIAL COATING
Symbol CUSTOMISABLE
Symbol RCM LOGO
Symbol IES
Symbol REVIT

  • General Information

    General Information

    Now with antimicrobial powder coating as standard.

    The Cleanroom range of luminaires has been developed to meet the requirements of specialist installations where the luminaire requires protection against contamination. Now available in CRI95+, the Cleanroom IP65 offers the best-in-class Cyanosis Observation Index (COI) <1.0, an exceptional R9 value of 80+, and superior colour consistency (2 SDCM), enhancing visual performance for medical staff and delivering beneficial outcomes for patient care.

    APPLICATION

    Primarily developed for healthcare applications such as hospitals, medical facilities, and PC2 laboratories, the Cleanroom range of luminaires has been designed to meet the needs of specialist installations where the luminaire requires protection against contamination.

    DESIGN

    The screwless frame is fixed to the body by floating magnets. Using a magnet to attach the frame ensures that it is easy to install and clean. This range is rated IP65 from all angles and COI compliant.


    OPTICS

    The wipe-down delta diffuser is made up of a micro-prism louvre in acrylic (PMMA) with a thin opal diffuser on the inside. This provides excellent glare control whilst delivering optimal lumens out of the luminaire.


    COLOUR
    For areas that require enhanced visual performance and improved colour consistency, CRI95+ is now available for specification. See further information about the benefits of CRI95+ LED technology.

    Additional light sources including Green, Blue, Royal Blue, Red and Deep Red are also available to suit varied operating theatre requirements. Further information available in our Advanced Applications of Light brochure.


    CONTROL

    Various control options include DALI, sensor control, and Detached Organic Response Sensor (non-IP Rated) upon request.

    The below controls options are available as standard; further customisation may be possible.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-200
    Maintained Emergency-800
    DALI Monitored Emergency-801


    INSTALLATION

    Plaster Recessed ceiling type as standard. Restraint enabled. Other mounting options available via customisation:

    • Surface-mounted
    • T-bar
    • Sandwich Panel
    • Top access


    EMERGENCY
    Non-monitored and DALI-monitored Emergency options are available.


    NOTES

    • Sizes are customisable upon request.
    • Antimicrobial powder coating as standard.


    Key Family Details

    • Optical System:
      Delta
    • Mounting Type:
      Plaster/Sandwich panel
    • Finish Options:
      Standard white.
    • System Warranty:
      5 years
    • CRI (Ra):
      95+
    • CCT:
      4000K
    • R9:
      >80
    • COI Compliant:
      Yes (<1.0)
    • Melanopic Ratio:
      0.80
    • Circadian Stimulus CS [%]*
      >15
    • Circadian Light Cla [lux]*
      >110
    • *
      For 150lux corneal photopic illumination. As a guide only.
  • Technical Information

    Cleanroom IP65 Dimensions v1 300421
    • EL-CR65L-1261/1262/1263-[all models]
      L: 1220mm; W: 347mm; H:108mm; Weight: 12.0kg

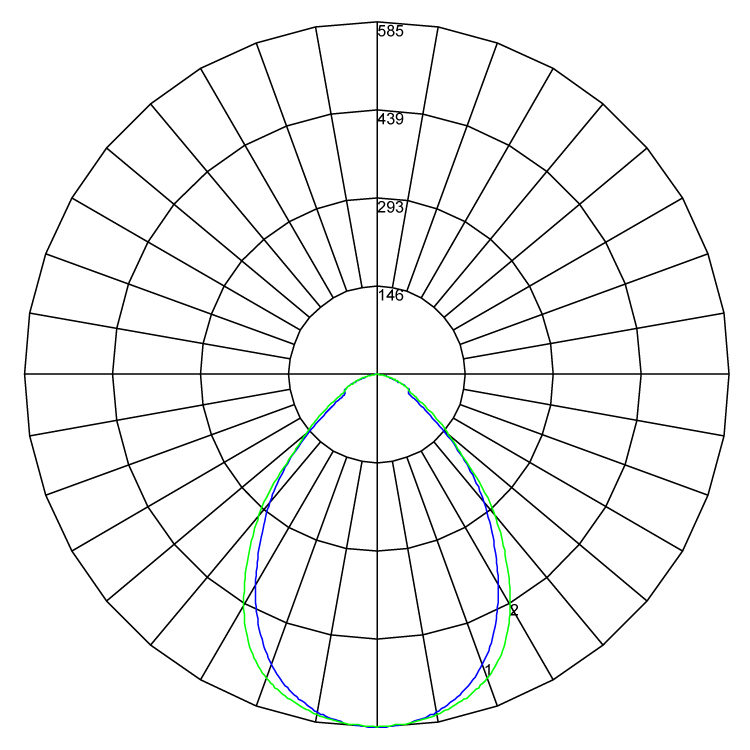

    CR65 CRI95 polarcurve v1
    Nominal polar curve

    • EL-CR65L-1261/1262/1263-[all models]
      L: 1220mm; W: 347mm; H:108mm; Weight: 12.0kg
    Cleanroom IP65 Dimensions v1 300421
    CR65 CRI95 polarcurve v1
    Nominal polar curve
