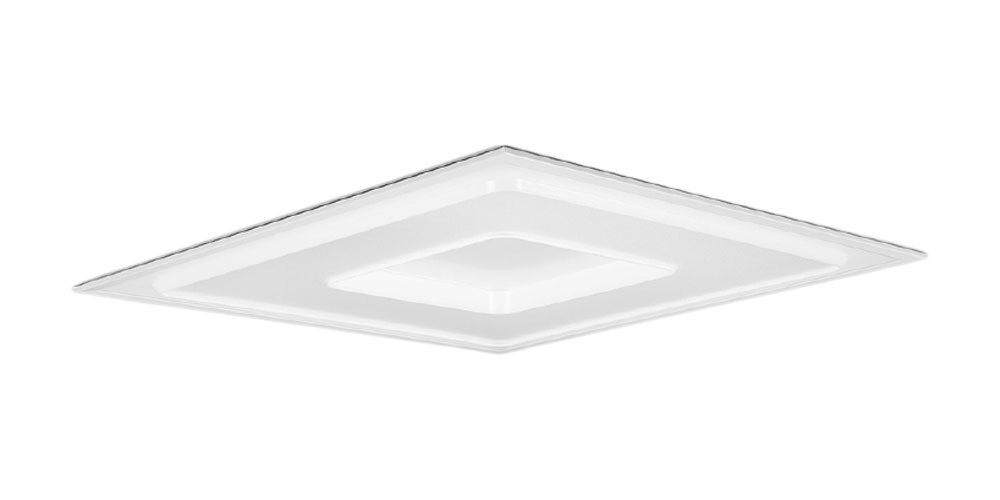

  • Clarico up CAROUSEL

Clarico Up

The thin, soft and expressive shape gives a new twist on conventional recessed lighting.

Print Icon Full product details
Local manufacture
Eagle Lighting Logo colour

Clarico Up

Eagle Lighting
Clarico up CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol DO NOT INSULATE
Symbol CLASS I
Symbol IP44
Symbol EMERGENCY
Symbol TUNEABLE
Symbol COI COMPLIANT
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol RCM LOGO
Symbol IES
Symbol REVIT

  • General Information

    General Information

    APPLICATION

    Clarico Up is anything but conventional recessed office lighting. Complimenting the Aureled, Aureled Dropped, Clarico Down, and Clarico Up offers choice and diversification in lighting application and aesthetic style. The central recessed lens element compliments the style of Clarico Down.

    DESIGN

    Where Clarico Dropped achieves what most would consider impossible, a combination of Clarico Up and Clarico Down work in harmony adding style and visual impression on any lighting project. Clarico Up adds visual interest across the ceiling, in relief to its partner Clarico Down. Used in either format combination Clarico Up maintains the highest level of performance standards.

    OPTICS

    The unique diffusing lens of Clarico Up combines an advanced LED array optimised with a combination of opal and microprismatic surfaces resulting in subtle visual contrasts between the visible horizontal and vertical relief elements of the diffusing surface.

    CONTROLS

    In today’s carbon-constrained world, product control options, operational control, sustainability and optimised material manufacturing techniques are critical considerations in product specification. The extensive features of Clarico Up meet the highest possible manufacturing standards.

    CIRCADIAN LIGHTING

    Quality of light is an inherent element of wellness, productivity, vitality, creativity and satisfaction in any workplace. The recessed relief element of Clarico Up adds a contrasting visual element to the appearance across the ceiling while maintain high levels of ambient light. Clarico Up ensures the lighting environment created will support and enhance the experience for people occupying a space.

    INSTALLATION

    The shallow profile of Clarico Up is the perfect solution in ceiling spaces where recess depth is confined. Coupled with a detachable gearbox incorporating a plug-and-play connector Clarico Dropped can fit the tightest of spaces.

    CONTROL OPTIONS

    The below controls options are standard options available for this product. Further customisation may be possible by NSPR.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI-200
    Maintained Emergency-800
    DALI Monitored Emergency-801
    Organic Response SN3-970

    NOTES

    • ORT Enabled
    • Surface Mount
    • Plaster Recess Kit
    • Restraint kit
    • Tuneable White

    Key Family Details

    • Optical System:
      Hybrid microstructured/opal diffuser
    • Mounting Type:
      Exposed T-Bar Recessed
    • Finish Options:
      Standard white
    • System Warranty:
      5 years
    • CCT:
      4000K
    • CRI (Ra):
      90+
    • R9:
      70+
    • COI Compliant:
      Yes (COI<=1.5)
  • Technical Information

    Clarico Up Dimensions v1 300421
    • L:
      593mm
    • W:
      593mm
    • H:
      56mm
    • Weight:
      4.5kg
    Clarico Up Polarcurve v1 100521
    Nominal Polar Curve

    • L:
      593mm
    • W:
      593mm
    • H:
      56mm
    • Weight:
      4.5kg
    Clarico Up Dimensions v1 300421
    Clarico Up Polarcurve v1 100521
    Nominal Polar Curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint KitEL-ACC-210-000
Surface mount kit to suit 600x600EL-ACC-611-000
Plaster recess kit to suit 600x600EL-ACC-851-000
