PROJECT



ARCHITECT/DESIGNER



TYPE NO.

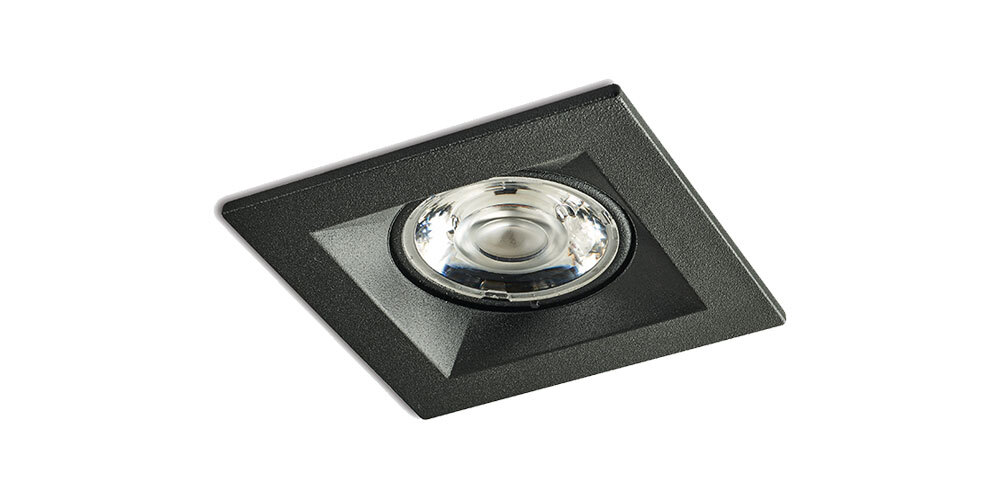

  • Cirkel Square Fixed CAROUSEL

Image displayed may not be the exact size or body/pod colour (where applicable) of the luminaire and so is indicative only.

Cirkel Square Fixed

EL-CKL-3003-200

CIRKEL SQUARE FIXED Recessed Single Luminaire Direct 1450lm 15.2W LED Narrow beam 24deg 3000K Ra90+ 240V Lens DALI Class II Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:85mm W:85mm H:68mm IP65 White .

Custom Datasheet

Optional: Enter your details for the document header

Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP65
Symbol LED
Symbol CLASS II
Symbol RCM LOGO
Symbol DO NOT INSULATE
Symbol CUSTOMISABLE
Eagle Lighting Logo colour

Cirkel Square Fixed

EL-CKL-3003-200

CIRKEL SQUARE FIXED Recessed Single Luminaire Direct 1450lm 15.2W LED Narrow beam 24deg 3000K Ra90+ 240V Lens DALI Class II Std AUS flex & plug 2.0m & 2 core dimming flex 2.0m L:85mm W:85mm H:68mm IP65 White .

Eagle Lighting
Cirkel Square Fixed CAROUSEL
Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP65
Symbol LED
Symbol CLASS II
Symbol RCM LOGO
Symbol DO NOT INSULATE
Symbol CUSTOMISABLE

  • Technical Overview

    • Finish
      White
    • L = Length [mm]
      85
    • W = Width/Diameter [mm]
      85
    • H = Height [mm]
      68
    • CL = Recessing Length [mm]
      75
    • CW = Recessing Width/Diameter [mm]
      75
    • Weight [kg]
      0.25
    • Finish
      White
    • L = Length [mm]
      85
    • W = Width/Diameter [mm]
      85
    • H = Height [mm]
      68
    • CL = Recessing Length [mm]
      75
    • CW = Recessing Width/Diameter [mm]
      75
    • Weight [kg]
      0.25

  • Photometric Values

    • Control Type
      DALI
    • Ceiling Type/Mounting
      Recessed
    • Wattage [W]
      15.2
    • CLO Enabled
      No
    • Final Wattage CLO [W]
      15
    • System Lumens [lm]
      1450
    • Luminaire Lumens [lm]
      1198
    • Efficacy [lm/W]
      79
    • Lighting Type
      Direct
    • Target Spacing [m]
      -
    • Target H Illuminance [lux]
      -
    • LPD [W/m2]
      -
    • NPD [W/sqm/100lux]
      -
    • Beamwidth (FWHM)
      24deg
    • Optics Type
      Lens
    • UGR
      -

  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -

  • Colour Quality

    • CCT [K]
      3000K
    • CCT1 [K]
      3000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Non-Compliant
    • R9
      49
    • Melanopic Ratio
      0.51
    • Circadian Stimulus CS [%]
      18
    • Circadian Light [lux]
      140
    • TM-30 RF
      90
    • TM-30 RG
      95

  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      9000
    • L90B50 Lifetime [hrs]
      -
    • TM21 L70 Reported Lifetime [hrs]
      >50000
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      21000
    • SDCM Initial
      3
