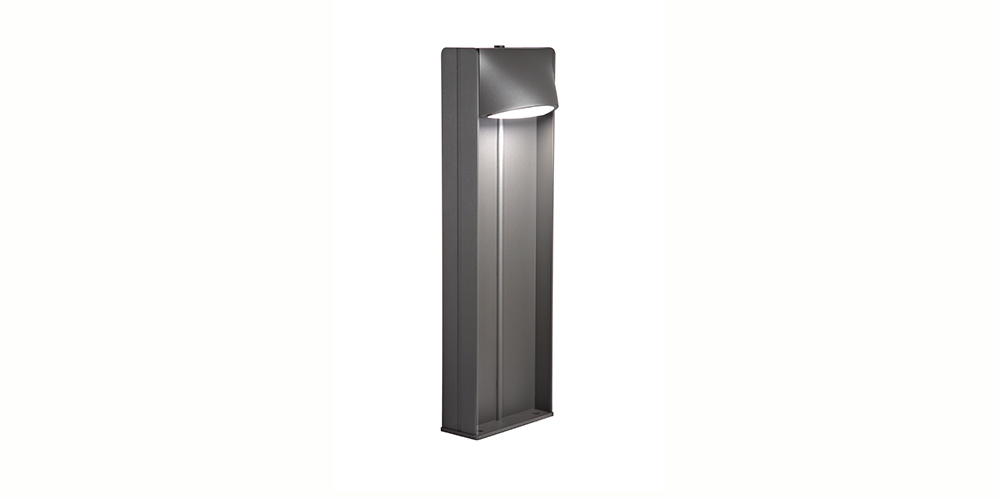

  • Zelos Beam CAROUSEL IMAGE

Zelos Beam

Weather and vandal resistant LED bollard with an impressive light output of 100 lm/W.

Design Plan Logo
  • General Information

    Weather and vandal resistant LED bollard with an impressive light output of 100 lm/W.

    For full product details visit: https://www.designplan.co.uk/p...

    • Specifically designed optics to provide up to 8-metre spacings on typical pathway applications (15 lux average and 0.25 uniformity).
    • Tested to withstand crowd loading up to 1.5kN/m.
    • Minimal upward light.
    • Die-cast aluminium body and bollard finished in titanium polyester powder coat.
    • Opal or clear polycarbonate diffuser held against gasket by tamper-proof screws.
    • Electronic control gear on a removable tray with fused plug and socket connector block.
    • Root mounting brackets are available as a chargeable extra. We recommend that a root mount is installed to ensure strength and to optimise installation.
    • Optional photocell.


    Please note Emergency options shown on the Designplan website may not be approved to AS/NZS 2293.1:2018 – please contact your Account Manager for confirmation

  • Downloads

Product Code
