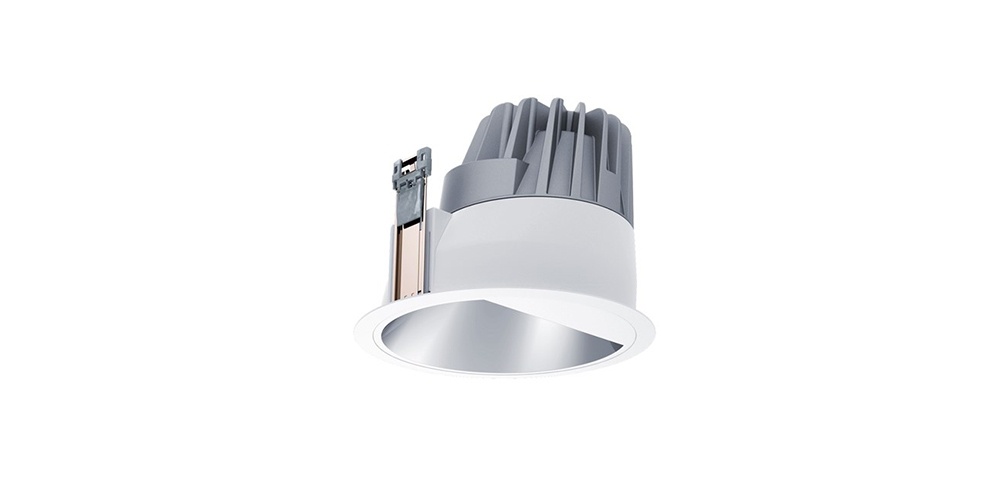

Efficient asymmetrical recessed downlight for uniform vertical illumination. Reaches right up to the ceiling junction for clean, continuous wallwashing.

Design

• Luminaire body in cast aluminium with white PBT details; visible reflector ring in white PBT (RAL9003)
• IP20
• Class III luminaire body (driver determines the final class of the complete luminaire)
• Supplied with dust protection over the light opening

Optics

• Metallised PBT reflector in bright(specular) or matt aluminium with scratch‑resistant clear lacquer
• Asymmetric wallwash distribution for smooth verticals and good cut‑off
• CCT options include 3000K/4000K; Tuneable White 2700K-6500K; RGB/W variant available

Controls

• Fixed‑output or DALI; CLO available in the range
• Tuneable White via DALI DT8 (1 address)
• RGB/W via DALI DT6 (4 addresses) or DMX on request

Installation

• Recessed mounting in ventilated/unventilated suspended ceilings
• Separate driver box and tool‑free installation clips supplied
• An assembly plate is required for soft tile ceilings (accessory)

Connection

• In separate driver box via snap‑in terminal block 3x1.5mm² (x2), onward connection possible
• 5x1.5mm² (x2) when dimming
• Luminaire and driver are interconnected with a snap‑in connector

Additional Information

• Accessories available: mounting plates, retrofit kits, connection cables and control panels
• BIM/3D files available on request
