PROJECT



ARCHITECT/DESIGNER



TYPE NO.



  • PG4 165 ROBUST ALU CAROUSEL

Image displayed may not be the exact size or body/pod colour (where applicable) of the luminaire and so is indicative only.

Pleiad G4 165 Robust

FG-73048-0-RW

PLEIAD G4 165 ROBUST Recessed Downlight 1258lm 10W LED Wide beam 3000K/Ra90+ 240V Matt reflector Non-dim Class II Std AUS f&p 2.0m Dia:230mm H:125mm IP64/20 IK10/20J White. Supplied as: EL-73048.0-0-RW + EL-99473-0

Custom Datasheet

Optional: Enter your details for the document header

Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP20 64
Symbol LED
Symbol IK10
Symbol CLASS II
Symbol LOW TEMPERATURE
Symbol RCM LOGO
Symbol DO NOT INSULATE
IP64 20
Symbol IES
Symbol CLO
Local manufacture
Fagerhult Logo 60px

Pleiad G4 165 Robust

FG-73048-0-RW

PLEIAD G4 165 ROBUST Recessed Downlight 1258lm 10W LED Wide beam 3000K/Ra90+ 240V Matt reflector Non-dim Class II Std AUS f&p 2.0m Dia:230mm H:125mm IP64/20 IK10/20J White. Supplied as: EL-73048.0-0-RW + EL-99473-0

Eagle Lighting
PG4 165 ROBUST ALU CAROUSEL
Symbol DIRECT LIGHT DISTRIBUTION
Symbol IP20 64
Symbol LED
Symbol IK10
Symbol CLASS II
Symbol LOW TEMPERATURE
Symbol RCM LOGO
Symbol DO NOT INSULATE
IP64 20
Symbol IES
Symbol CLO
Local manufacture

  • Technical Overview

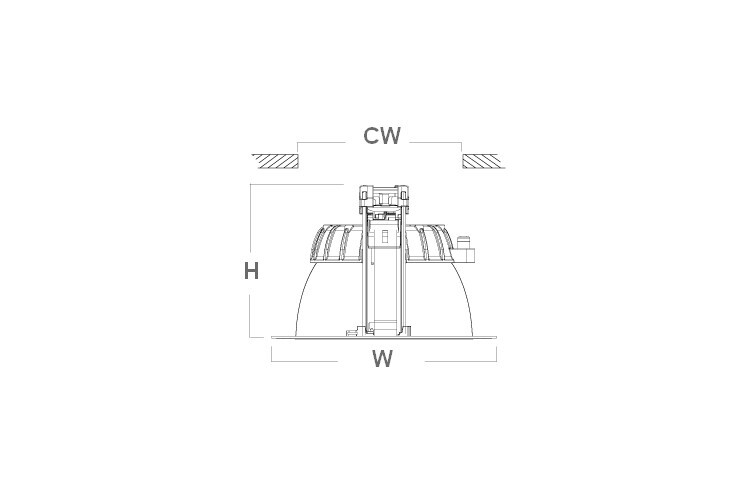

    PG4 Robust Dimensional Drawing
    • Finish
      White
    • L = Length [mm]
      -
    • W = Width/Diameter [mm]
      230
    • H = Height [mm]
      125
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      205
    • Weight [kg]
      1.3
    PG4 165 R 930 WIDE MATT 1000lm
    Normalised Polar Curve [cd/klm]

    • Finish
      White
    • L = Length [mm]
      -
    • W = Width/Diameter [mm]
      230
    • H = Height [mm]
      125
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      205
    • Weight [kg]
      1.3
    PG4 Robust Dimensional Drawing
    PG4 165 R 930 WIDE MATT 1000lm
    Normalised Polar Curve [cd/klm]

  • Photometric Values

    • Control Type
      Non-dim
    • Ceiling Type/Mounting
      Recessed
    • Wattage [W]
      9.9
    • CLO Enabled
      No
    • Final Wattage CLO [W]
      10
    • System Lumens [lm]
      1258
    • Luminaire Lumens [lm]
      1036
    • Efficacy [lm/W]
      105
    • Lighting Type
      Direct
    • Target Spacing [m]
      -
    • Target H Illuminance [lux]
      -
    • LPD [W/m2]
      -
    • NPD [W/sqm/100lux]
      -
    • Beamwidth (FWHM)
      -
    • Optics Type
      Matt reflector
    • UGR
      -

  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -

  • Colour Quality

    • CCT [K]
      3000K
    • CCT1 [K]
      3000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra90+
    • COI Compliance
      Non-Compliant
    • CLA 2.0
      -
    • M-DER
      -
    • R9
      61
    • Melanopic Ratio
      0.54
    • Circadian Stimulus CS [%]
      -
    • Circadian Light [lux]
      -
    • TM-30 RF
      90
    • TM-30 RG
      96
    • M-EDI
      -

  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      11,088
    • L90B50 Lifetime [hrs]
      >61000
    • TM21 L70 Reported Lifetime [hrs]
      >61000
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      >61000
    • SDCM Initial
      3

  • Downloads

    Download icon

    IES File

    Download

Product Advisement Statement

All photometric, spectrometric and electrical data have a tolerance of ±10%.
