Pleiad G4 165 Robust
FG-73287-0-RW

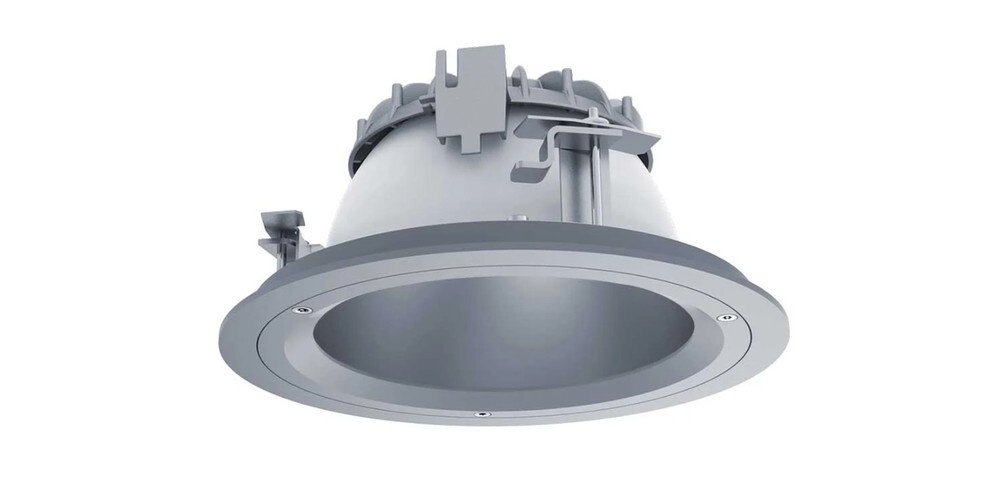

PLEIAD G4 165 ROBUST Recessed Single Luminaire Direct 14W LED Wide beam 3000K Ra90+ 240V Lens Non-dim Class III W:230mm H:114mm IP64 IK10/20J White . Supplied as: EL-73048.0-0-RW,EL-99398-0
-
Technical Overview
-
Finish
White -
L = Length [mm]
- -
W = Width/Diameter [mm]
230 -
H = Height [mm]
114 -
CL = Recessing Length [mm]
- -
CW = Recessing Width/Diameter [mm]
205 -
Weight [kg]
1.3

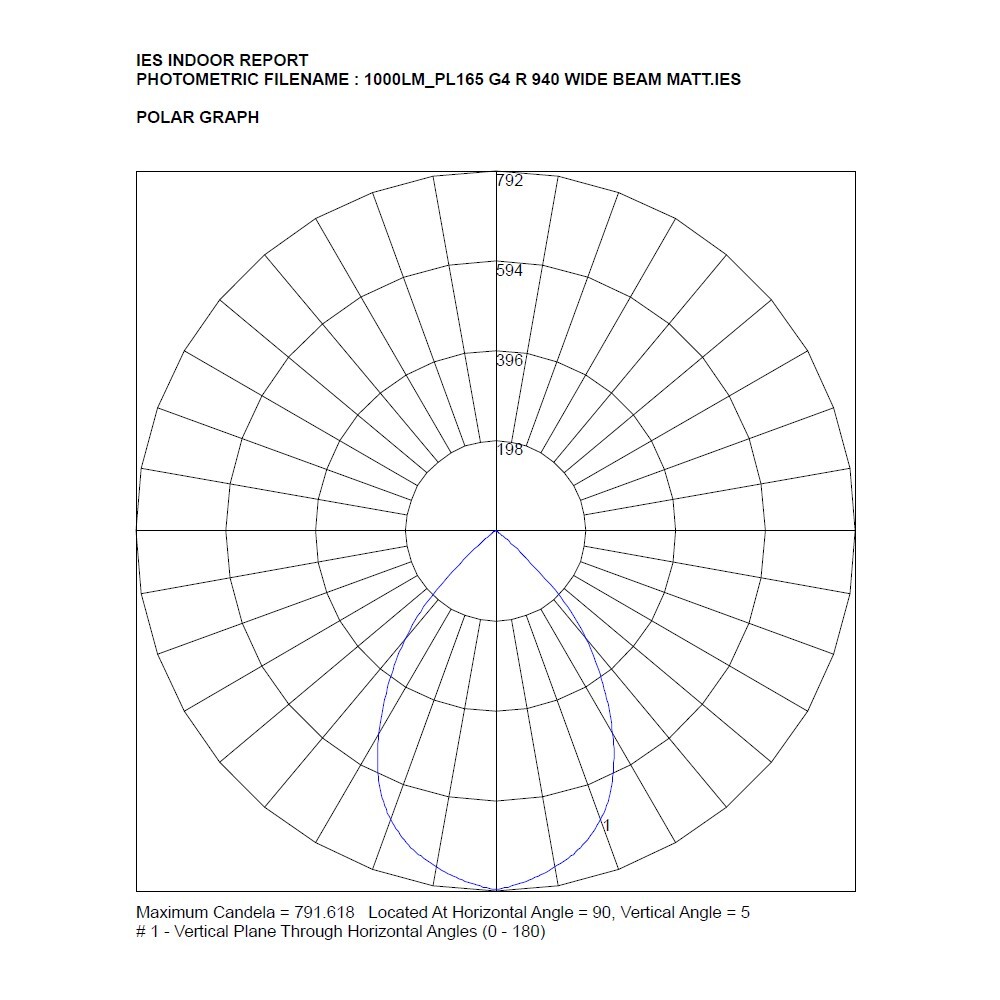

Normalised Polar Curve [cd/klm]
(4000K, Wide, Matt Reflector)

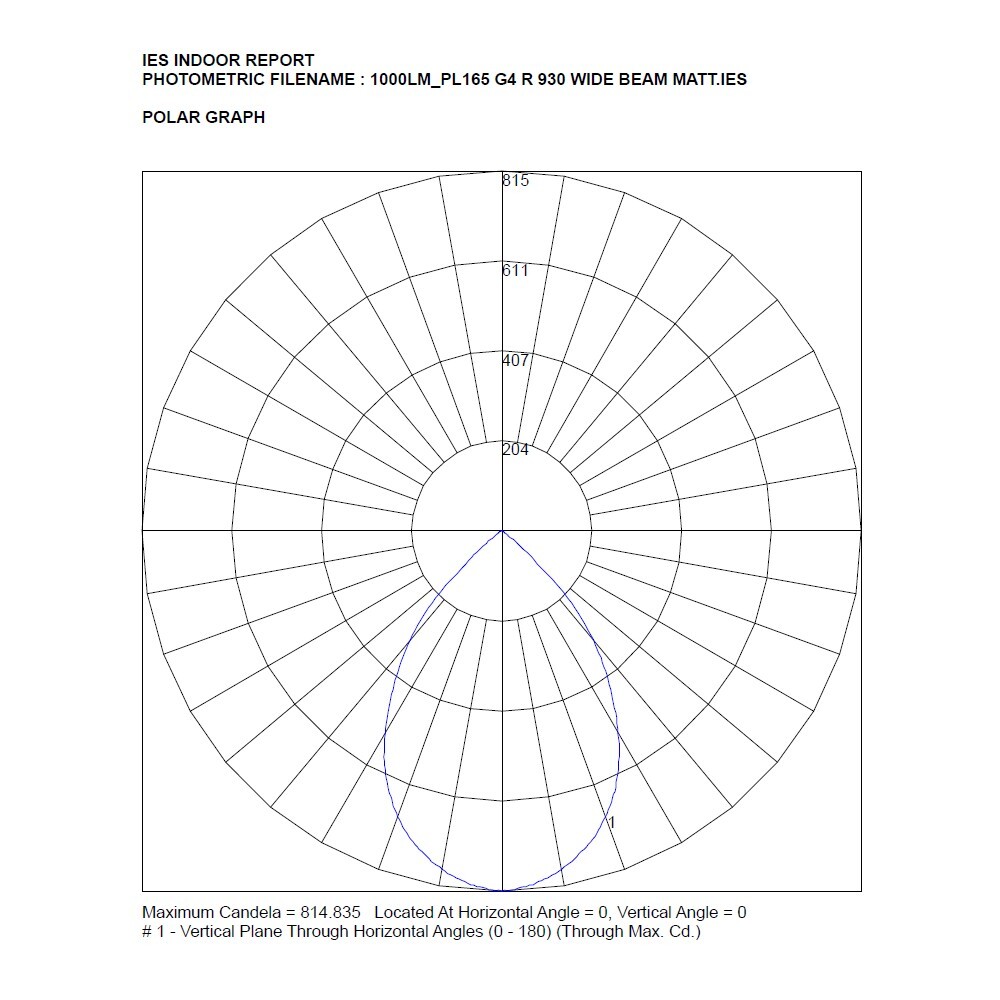

Normalised Polar Curve [cd/klm]
(3000K, Wide, Matt Reflector)

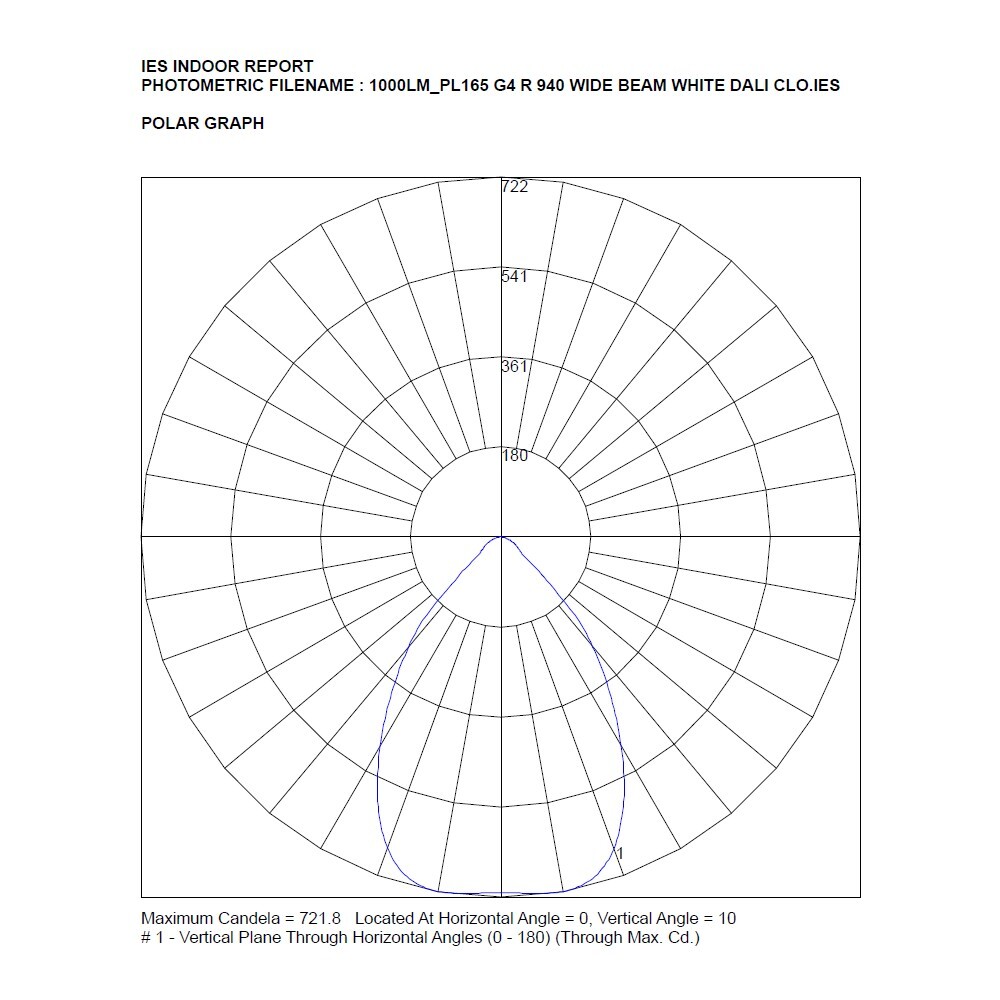

Normalised Polar Curve [cd/klm]
(4000K, Wide, White Reflector)
-
-
Photometric Values
-
Control Type
Non-dim -
Ceiling Type/Mounting
Recessed -
Wattage [W]
14 -
CLO Enabled
No -
Final Wattage CLO [W]
- -
System Lumens [lm]
- -
Luminaire Lumens [lm]
1460 -
Efficacy [lm/W]
104
-
Lighting Type
Direct -
Target Spacing [m]
- -
Target H Illuminance [lux]
- -
LPD [W/m2]
- -
NPD [W/sqm/100lux]
- -
Beamwidth (FWHM)
- -
Optics Type
Lens -
UGR
-
-
-
Colour Quality
-
CCT [K]
3000K -
CCT1 [K]
3000K -
CCT2 [K]
- -
Other Light Colour
- -
CRI
Ra90+ -
COI Compliance
Non-Compliant
-
R9
- -
Melanopic Ratio
- -
Circadian Stimulus CS [%]
- -
Circadian Light [lux]
- -
TM-30 RF
- -
TM-30 RG
-
-
-
Lifetime and Miscellaneous Parameters
-
LM80 Test Duration [hrs]
- -
L90B50 Lifetime [hrs]
100000 -
TM21 L70 Reported Lifetime [hrs]
-
-
L100B50 Lifetime (CLO) [hrs]
- -
TM21 L90 Reported Lifetime [hrs]
- -
SDCM Initial
3
-
