PROJECT



ARCHITECT/DESIGNER



TYPE NO.

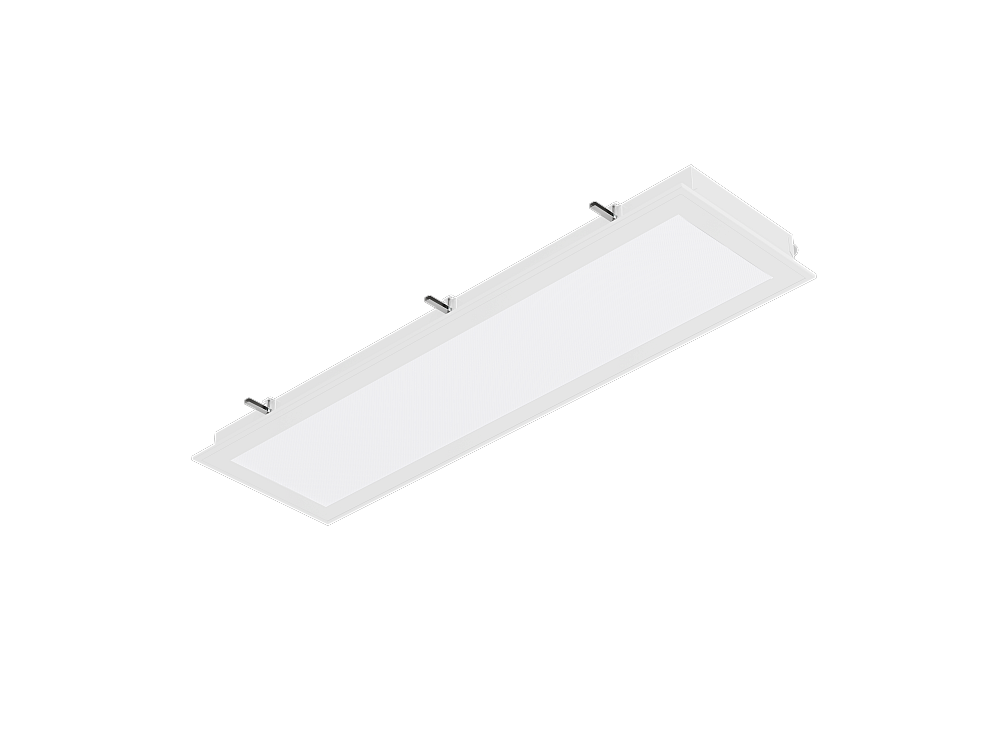

  • OPSL 1200x300mm 1000x750

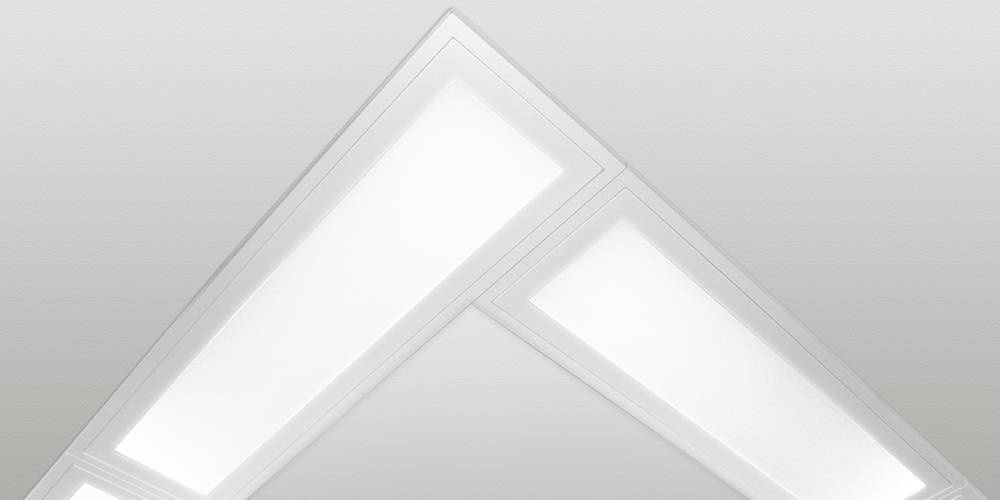

  • Operating Theatre Light Insitu CAROUSEL 2

Operating Theatre Light

Completely re-designed, this range has been engineered specifically for hospitals, emergency and veterinarian operating theatres.

Download brochure Download brochure
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP65
Symbol IK08
Symbol COI COMPLIANT
Symbol EMERGENCY
Symbol ANTIMICROBIAL COATING
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO
UGR19v1
Symbol 45 DEGREE MAX
Local manufacture
Eagle Lighting

Operating Theatre Light

Eagle Lighting

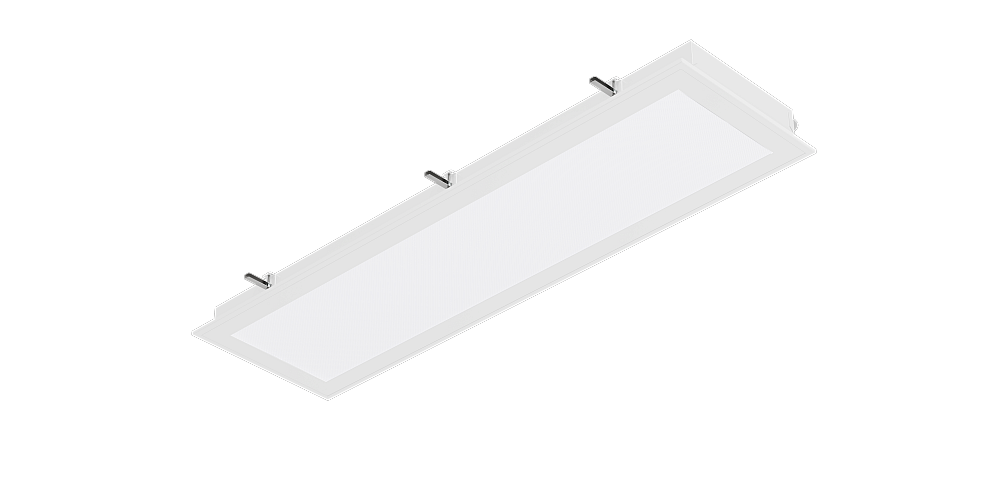

OPSL 1200x300mm 1000x750
  • Operating Theatre Light Insitu CAROUSEL 2
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP65
Symbol IK08
Symbol COI COMPLIANT
Symbol EMERGENCY
Symbol ANTIMICROBIAL COATING
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO
UGR19v1
Symbol 45 DEGREE MAX
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP65
Symbol IK08
Symbol COI COMPLIANT
Symbol EMERGENCY
Symbol ANTIMICROBIAL COATING
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO
UGR19v1
Symbol 45 DEGREE MAX
Local manufacture

  • General Information

    General Information

    Now with antimicrobial powder coating as standard.

    Also available in CRI98.

    APPLICATION

    The completely redesigned Operating Theatre (OPSL) range is optimised for hospitals, emergency and veterinarian operating theatres.

    DESIGN

    The OPSL now weighs 8.3kg and has a recessed depth of 54mm only. Developed as a unique solution, it meets the requirements of specialist operating theatre installations where a fully sealed luminaire is needed to prevent contamination.

    OPTICS

    Glare Reducing Delta Diffuser coupled with Microstructured Control Film and an acrylic wipe-down layer on the outside.

    Certain cleaning agents with a high concentration of corrosive chemicals may damage the wipe-down layer. Please contact your customer service representative to make sure the cleaning agent(s) you plan to use are safe for the luminaire.


    CONTROL

    DALI-2 with constant light output (CLO) as standard.

    The luminaire can be installed with separate switching/dimming depending on requirements.

    Please speak to your customer service representative for more details.

    INSTALLATION

    Plaster Recessed ceiling installation. Installation needs to be done based on the selected layout (typically 3x3) and using the special Start, Intermediate, Corner and End models as required by the layout. The singular model must only be used for standalone installations.

    EMERGENCY

    Non-monitored and DALI-monitored Emergency options are available.

    NOTES

    • Lengths are customisable on request.
    • Antimicrobial powder coating as standard
    • Additional light sources including Green, Blue, Red and Deep Red are also available to suit varied operating theatre requirements.

    Key Family Details

    • Optical System:
      Delta Diffuser + Microstructured Control Film + Acrylic Clear Wipedown
    • Mounting Type:
      Plaster Recessed
    • Colour Consistency Initial:
      ≤2 SDCM
    • Finish Options:
      Antimicrobial White as standard. Other finishes via customisation
    • System Warranty:
      7 years
    • CRI (Ra):
      93+
    • CCT:
      4000K
    • R9:
      60+
    • COI Compliant:
      Yes (<=2.4)
    • Melanopic Ratio / M-DER:
      0.73 / 0.66

  • Technical Information

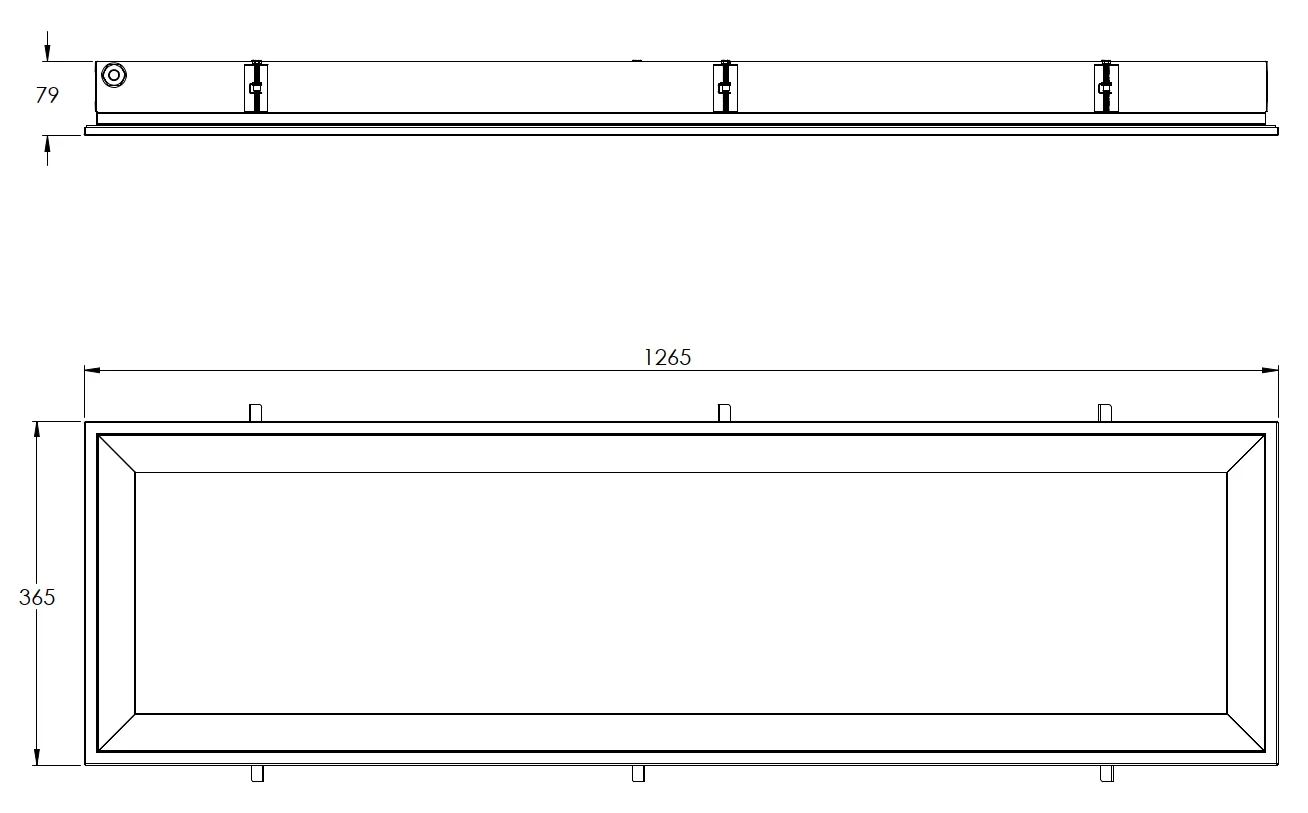

    OPSL G2 Dimensions
    • EL-OPSL-2xxx-xxx
      L: 1265; W: 365; H: 79; Cutout: 1243x343mm; Weight: 6.9kg (800lx variants) / 8.0kg (1000lx variants)

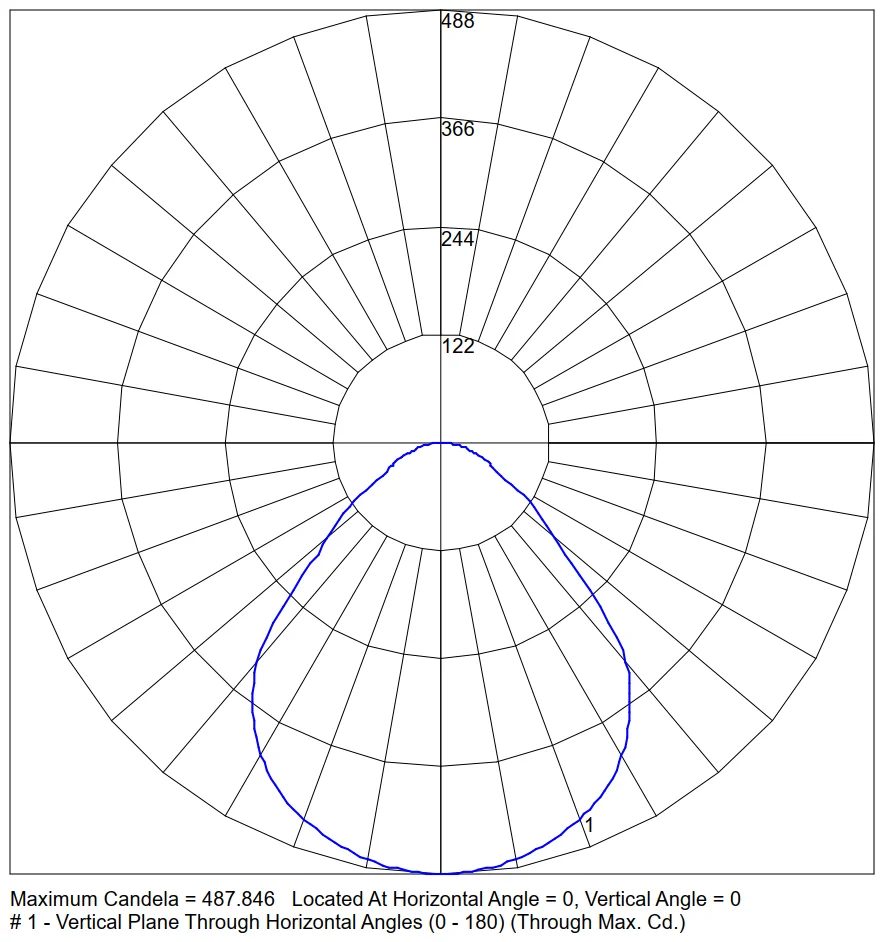

    1000lm EL OPSLG2 1265x365 polar curve
    Normalised Polar Curve

    • EL-OPSL-2xxx-xxx
      L: 1265; W: 365; H: 79; Cutout: 1243x343mm; Weight: 6.9kg (800lx variants) / 8.0kg (1000lx variants)
    OPSL G2 Dimensions
    1000lm EL OPSLG2 1265x365 polar curve
    Normalised Polar Curve

  • Downloads

    Download icon

    755.6 KB

    TM30-20 Report

    Download icon

    27.9 KB

    IES files (Zipped)

    Download icon

    834.1 KB

    TLM (Flicker) Report

    219.3 KB

    Circuit Breaker Information

    1.0 MB

    TM21-21 Lifetime report (low current versions)

    944.6 KB

    TM21-21 Lifetime report (high current versions)

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000

Product Advisement Statement


● All photometric (including flicker metrics), spectrometric, electrical, and thermal data have a tolerance of ±5%.

● The value indicated by the UGR icon refers to the lowest UGR value achievable by at least one standard variant of a given product family. It may not necessarily apply to all standard variants.

● The Unified Glare Rating (UGR) is a function of the entire design space, including but not limited to the optical properties of the ceiling and walls, as well as the properties and spacing of all other luminaires in the calculation space. It is not an intrinsic property of a light fitting and should not be quoted as such.

● All UGR values stated by Eagle Lighting are calculated in compliance with AS/NZS 1680.1-2006 (aligned with CIE 117-1995) and are achievable with standard room sizes and luminaire spacing based on the specific luminaire model.

● The following design parameters apply unless otherwise specified:

 - Light Loss Factor (LLF): 0.80 (Nominal)
 - Room Reflectance Values (Ceiling/Walls/Floor): 0.70/0.50/0.20
 - Ceiling Height: 2.7m
 - Horizontal Illuminance (Eh) calculated at 0.72m above finished floor level (AFFL)
 - 3 x 3 simple square layout in an 8.0 x 7.0m room.

● Non-standard (custom) products may have UGR values higher than those of standard models, depending on the nature of the customization. Please consult your sales representative for details.

● UGR values obtained under conditions or parameters other than those specified above may differ from the stated values.

● All product heights are shown excluding the driver unless otherwise specified.

● For questions about our products or assistance with ordering accessories (where applicable), please contact your customer service representative.
