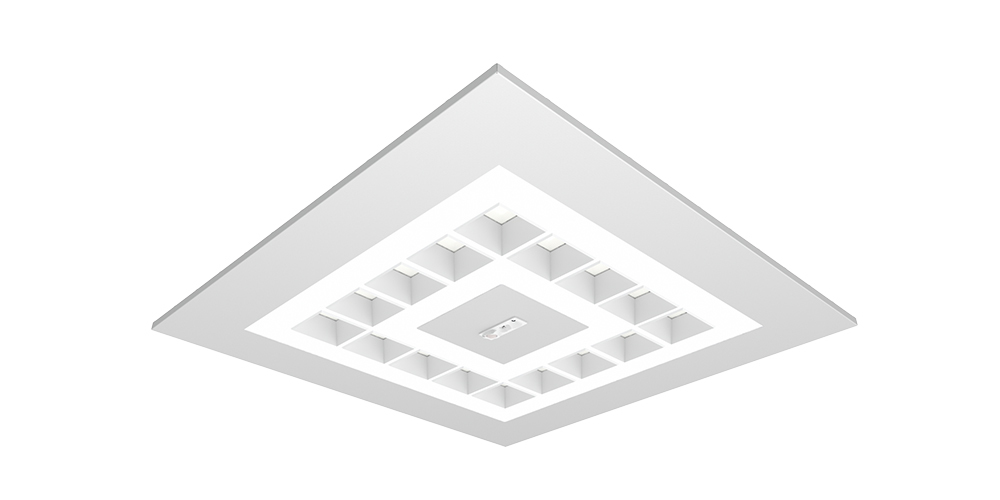

  • Omni POD 600 square CAROUSEL

OmniPOD 6x6 Square

Designed, tested & manufactured in Australia, OmniPod 6x6 Square is engineered to advance lighting performance & the biological impact of light.

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture
Eagle Lighting Logo colour

OmniPOD 6x6 Square

Eagle Lighting
Omni POD 600 square CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS II
Symbol DO NOT INSULATE
Symbol COI COMPLIANT
Symbol IP40
Symbol ORGANIC RESPONSE LOGO
Symbol TUNEABLE
Symbol CUSTOMISABLE
Symbol EMERGENCY
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    APPLICATION

    Omnipod 600 x 600 captures the full capability of digital light source LED technology to deliver revolutionary performance and adaptability for all commercial lighting projects.

    OmniPod 600 x 600 is the next generation of recessed commercial lighting products departing from the past decade of “ledification” of the traditional fluorescent model.

    Designed, tested and manufactured in Australia, OmniPod 600 x 600 is engineered to advance lighting performance and enhance the biological impact of light.

    DESIGN

    Encompassing a range of new technology and innovative design features, OmniPod 600 x 600 is characterised by primary source LED Clusters in each optical POD surrounded by a diffusing layer for infill illumination.

    Recess depth in the ceiling cavity is contained to 38mm without compromising glare limitation capability.

    Designed with the biological impact of light and wellness in mind OmniPod 600 x 600 is the solution breakthrough for the creation of enhanced visual environments in commercial spaces, offices and boardrooms.

    OPTICS

    The key feature of OmniPod 600 x 600 is the individual light centre PODs each containing a cluster of LED Chips behind a microprism diffusing layer. The combined geometric structure of each POD and diffusing layer delivers functional task light for the space while controlling glare without compromising spacing ratios in the ceiling grid. The infill light provided from the surrounding diffuser panel provides the vital biological balance of infill vertical illumination.

    CONTROL

    Flexibility and choice of configuration are features of OmniPod 600 x 600.

    Available in fixed CCT versions and tuneable white DUO1 and DUO2 function modes, OmniPod 600 x 600 can be controlled by either Organic Response Technology SN3, DALI DT8 or CASAMBI wireless.

    All DALI versions of OmniPod 600 x 600 are enabled with Constant Light Output (CLO) capability as standard for lifetime enhanced energy conservation.

    TUNEABLE WHITE (DUO1 & DUO2)

    The creative freedom offered by LED technology has been fully embraced in the unique design of OmniPod 600 x 600 DUO1 and DUO2.

    The Pods and the peripheral diffuse component of the DUO variants can both be tuneable, each with independent control, providing freedom of design along with the capability of implementing personalised lighting profiles.

    Tuneable white with control options based on DALI DT8, ORT SN3 or CASAMBI wireless are available via mobile devices, DALI controller or e-TouchPanel.

    Please speak to your customer service representative for more details.

    CIRCADIAN LIGHTING

    Quality of light is an inherent element of wellness, productivity, vitality, creativity and satisfaction in any workplace. The increased vertical and enhanced task illumination along with the visual interest created by OmniPod 600 x 600 ensures the lighting environment created will support and enhance the experience for people occupying a space.

    The choice of operating mode and control interface flexibility allows for customisation of zones or individualised settings in support of WELL design requirements.

    INSTALLATION

    Easy to install and available for all T-Bar ceiling configurations, OmniPod 600 x 600 is designed for individual grid array spacings.

    At 38mm recess depth, OmniPod 600 x 600 does not conflict with limited ceiling depth concerns.

    • Restraint kit available

    MOUNTING OPTIONS

    • Plaster Recessed via recessing kit
    • Surface mounting via slim surface mounting kit specially designed for OmniPod 600 x 600 range.

    AIR VERSIONS

    Air handling is an available option for OmniPod 600 x 600.

    Please speak to your customer service representative for more details.

    NOTES

    • Emergency version available on request

    Key Family Details

    • Optical System:
      Hybrid Pods (Black or White) and Diffuser
    • Mounting Type:
      Recessed
    • Finish Options:
      Standard white (black via customisation)
    • Colour Consistency Initial:
      3 SDCM
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      4000K (TW via customisation)
    • R9:
      55+
    • COI Compliant:
      Yes (COI<=2.5)
    • Melanopic Ratio:
      0.67+
    • Circadian Stimulus CS [%] (*):
      11%+
    • Circadian Light Cla [lux] (*):
      79+
    • (*)
      For 150lux corneal photopic illumination. As a guide only.
  • Technical Information

    Omni POD 600 Square Dimensions
    • EL-OMN6-2500...3-000/-244
      L: 593mm; W: 593mm; H: 38mm; Weight: 4.4kg
    • EL-OMN6-2500...3-954
      L: 593mm; W: 593mm; H: 38mm; Weight: 4.6kg
    Omni POD 600 square white Polarcurve
    Nominal polar curve (white pods)

    Omni POD 600 square black Polarcurve
    Nominal polar curve (black pods)

    • EL-OMN6-2500...3-000/-244
      L: 593mm; W: 593mm; H: 38mm; Weight: 4.4kg
    • EL-OMN6-2500...3-954
      L: 593mm; W: 593mm; H: 38mm; Weight: 4.6kg
    Omni POD 600 Square Dimensions
    Omni POD 600 square white Polarcurve
    Nominal polar curve (white pods)

    Omni POD 600 square black Polarcurve
    Nominal polar curve (black pods)

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
PLASTER FRAME KIT T/S 600X600 ET MNX WHITEEL-ACC-851-001
SURFACE MOUNT KIT 600X600X50 T/S ET OMNIPOD 600EL-ACC-1007-000
SURFACE MOUNT KIT 600X600X50 T/S ET OMNIPODEL-ACC-466-000
