PROJECT



ARCHITECT/DESIGNER



TYPE NO.

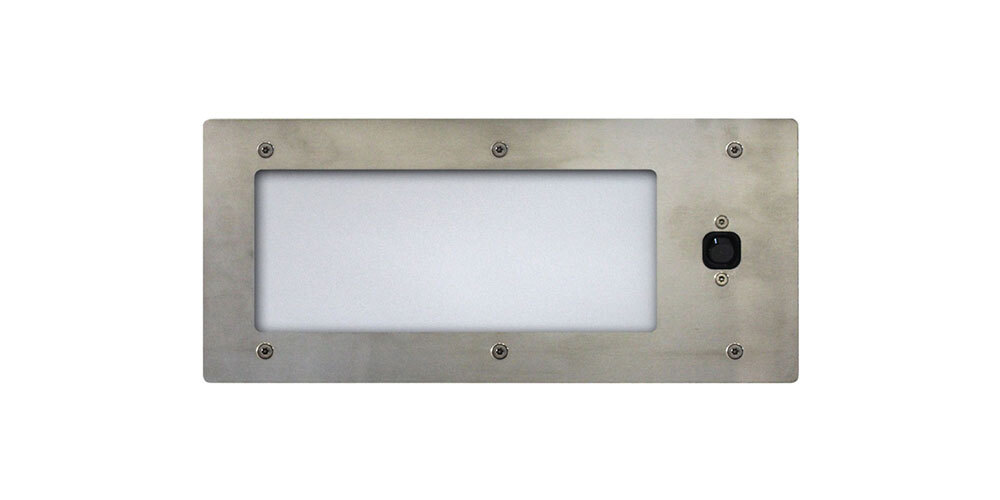

  • Nitecell CAROUSEL

Image displayed may not be the exact size or body/pod colour (where applicable) of the luminaire and so is indicative only.

Nite Cell lamp

EL-NCLL-1100-000

NITE CELL LED Wall Recessed Single Luminaire Direct 794lm 5.6W LED Wide beam 4000K Ra80+ 240V Opal diffuser Non-dim Class I Std AUS flex & plug 2.0m L:365mm W:165mm H:98mm IP40 IK12/50J White .

Custom Datasheet

Optional: Enter your details for the document header

Local manufacture

Nite Cell lamp

EL-NCLL-1100-000

NITE CELL LED Wall Recessed Single Luminaire Direct 794lm 5.6W LED Wide beam 4000K Ra80+ 240V Opal diffuser Non-dim Class I Std AUS flex & plug 2.0m L:365mm W:165mm H:98mm IP40 IK12/50J White .

Eagle Lighting
Nitecell CAROUSEL

  • Technical Overview

    Nitecell Dimensions v1 030521
    • Finish
      White
    • L = Length [mm]
      365
    • W = Width/Diameter [mm]
      165
    • H = Height [mm]
      98
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.7

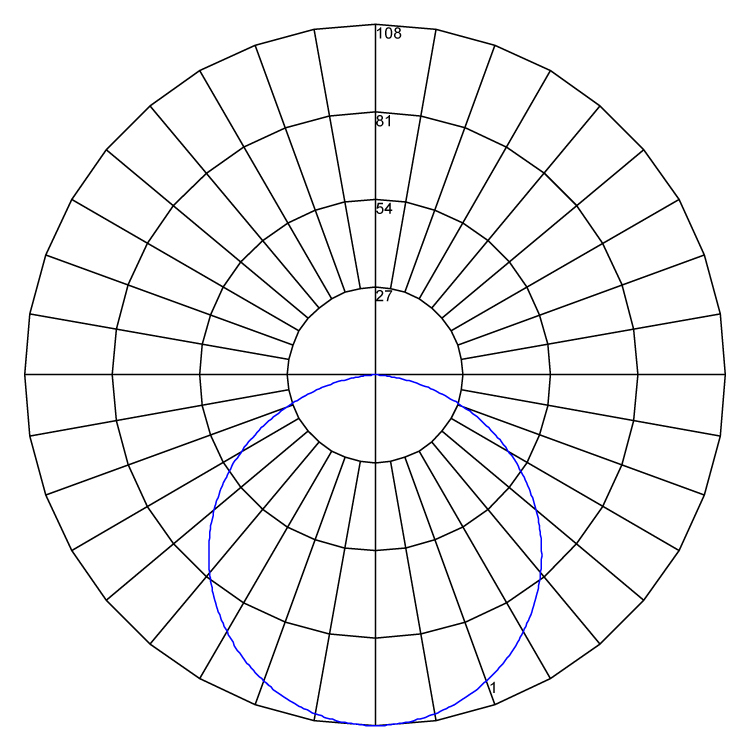

    Nitecell polarcurve v1
    Nominal polar curve

    • Finish
      White
    • L = Length [mm]
      365
    • W = Width/Diameter [mm]
      165
    • H = Height [mm]
      98
    • CL = Recessing Length [mm]
      -
    • CW = Recessing Width/Diameter [mm]
      -
    • Weight [kg]
      2.7
    Nitecell Dimensions v1 030521
    Nitecell polarcurve v1
    Nominal polar curve

  • Photometric Values

    • Control Type
      Non-dim
    • Ceiling Type/Mounting
      Wall Recessed
    • Wattage [W]
      5.6
    • CLO Enabled
      No
    • Final Wattage CLO [W]
      -
    • System Lumens [lm]
      794
    • Luminaire Lumens [lm]
      305
    • Efficacy [lm/W]
      55
    • Lighting Type
      Direct
    • Target Spacing [m]
      -
    • Target H Illuminance [lux]
      -
    • LPD [W/m2]
      -
    • NPD [W/sqm/100lux]
      -
    • Beamwidth (FWHM)
      -
    • Optics Type
      Opal diffuser
    • UGR
      -
  • Emergency Parameters

    • Emergency Type
      -
    • Emergency Class
      -
  • Colour Quality

    • CCT [K]
      4000K
    • CCT1 [K]
      4000K
    • CCT2 [K]
      -
    • Other Light Colour
      -
    • CRI
      Ra80+
    • COI Compliance
      Non-Compliant
    • CLA 2.0
      -
    • M-DER
      -
    • R9
      27
    • Melanopic Ratio
      0.72
    • Circadian Stimulus CS [%]
      -
    • Circadian Light [lux]
      -
    • TM-30 RF
      86
    • TM-30 RG
      96
    • M-EDI
      -
  • Lifetime and Miscellaneous Parameters

    • LM80 Test Duration [hrs]
      12000
    • L90B50 Lifetime [hrs]
      84000
    • TM21 L70 Reported Lifetime [hrs]
      >72001
    • L100B50 Lifetime (CLO) [hrs]
      -
    • TM21 L90 Reported Lifetime [hrs]
      50000
    • SDCM Initial
      3
  • Downloads

Accessories
MOUNTING OPTIONCODE
Concrete Skin to suit Nite Cell (365x165x95)EL-ACC-NLS-000
