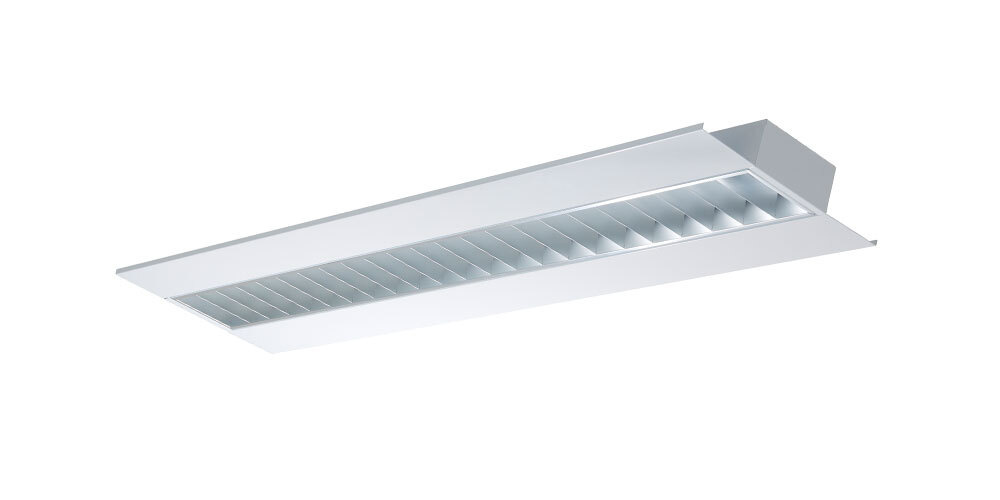

  • Multifive LED CAROUSEL

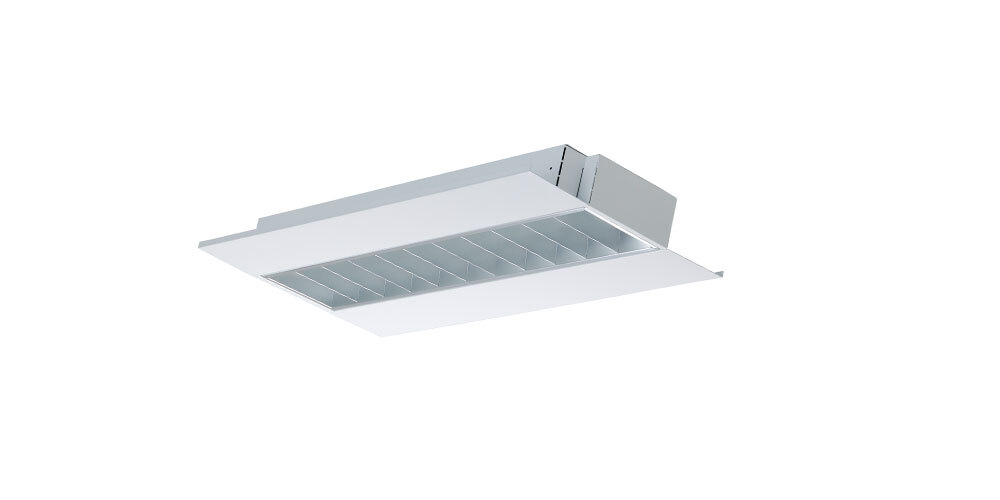

  • Multifive LED 600 CAROUSEL

Multifive LED

The latest generation of the successful Multifive LED is pushing the boundaries of lighting design.

Print Icon Full product details
Local manufacture
Eagle Lighting

Multifive LED

Eagle Lighting
Multifive LED CAROUSEL
  • Multifive LED 600 CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP40 20
Symbol COI COMPLIANT
Symbol ORGANIC RESPONSE LOGO
Symbol CUSTOMISABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO

  • General Information

    General Information

    APPLICATION
    The Multifive LED is a low glare, high efficacy, CRI90+ recessed fitting with COI compliance. The latest generation of this successful luminaire is the perfect choice for ensuring everyone working within the office environment enjoys the benefits of a comfortable and visually pleasing workspace.

    DESIGN
    The double parabolic Beta louvre provides unrivalled glare and luminance control to ensure optimal luminance. The louvre consists of double parabolic side and cross reflectors with excellent reflection characteristics. The reflectors distribute the light with precision in a classical batwing form and with exceptionally low glare.

    OPTICS
    Combination of a high-performance diffuser and double parabolic Beta Louvre.

    CONTROL
    Non-dim and DALI as standard. Various control options readily available via customisation, including Organic Response and Tuneable White.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard-000
    DALI/STD terminal block-200
    Tunable White (DALI Type 8)
    -220
    Maintained Emergency
    -800
    DALI Monitored Emergency
    -801
    Organic Response SN3
    -970

    INSTALLATION

    T-Bar as standard. Plaster Recessed and Surface Mounted kits available as standard options.
    Seismic Restraint Kit available.

    EMERGENCY
    Maintained DALI and maintained non-monitored emergency options as standard. Other options may be available via customisation.

    MOUNTING OPTIONS

    • Plaster recessed
    • Surface mount
    • Restraint kit

    Key Family Details

    • Optical System:
      Diffuser + Beta Louvre combination
    • Mounting Type:
      Exposed T-bar
    • Colour Consistency Initial:
      3 SDCM
    • Finish Options:
      Standard white. Other finish options via customisation
    • System Warranty:
      5 years
    • CRI (Ra):
      90+
    • CCT:
      4000K
    • R9:
      60+
    • COI Compliant:
      Yes
    • Melanopic Ratio:
      0.72+
  • Technical Information

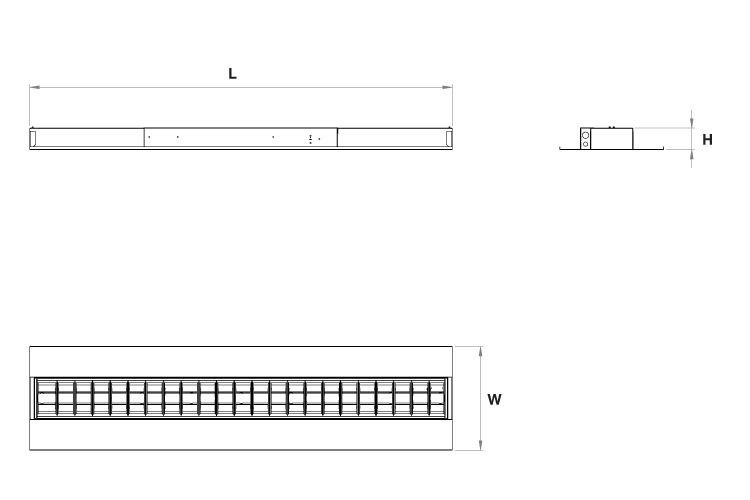

    Multifive Dimensions v1 030521
    • EL-MLD-2106/ -2017
      L: 592mm; W: 292mm; H: 65mm; Weight: 1.5kg
    • EL-MLD-2108/ -2109
      L: 1192mm; W: 292mm; H: 65mm; Weight: 2.5kg
    • EL-MLD-2110/-2111
      L: 1492mm; W: 292mm; H: 65mm; Weight: 3.0kg

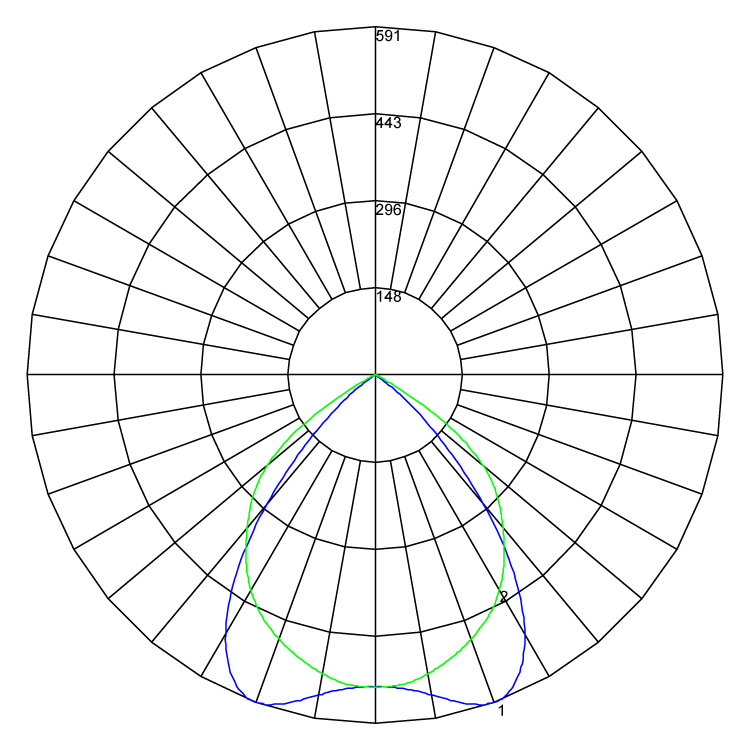

    Multifive polarcurve v1
    Nominal Polar Curve

    • EL-MLD-2106/ -2017
      L: 592mm; W: 292mm; H: 65mm; Weight: 1.5kg
    • EL-MLD-2108/ -2109
      L: 1192mm; W: 292mm; H: 65mm; Weight: 2.5kg
    • EL-MLD-2110/-2111
      L: 1492mm; W: 292mm; H: 65mm; Weight: 3.0kg
    Multifive Dimensions v1 030521
    Multifive polarcurve v1
    Nominal Polar Curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit 600x300EL-ACC-610-000
Surface mount kit 1200x300EL-ACC-612-000
Plaster recess kit to suit 600x300EL-ACC-850-000
Plaster recess kit to suit 1200x300EL-ACC-852-000
Plaster recess kit to suit 1500x300EL-ACC-853-000
