PROJECT



ARCHITECT/DESIGNER



TYPE NO.



  • HERO SPA ASSYMETRIC 12 16 CAROUSEL
  • HERO SPA WIDE 12 CAROUSEL
  • HERO SPA WIDE 16 20 CAROUSEL

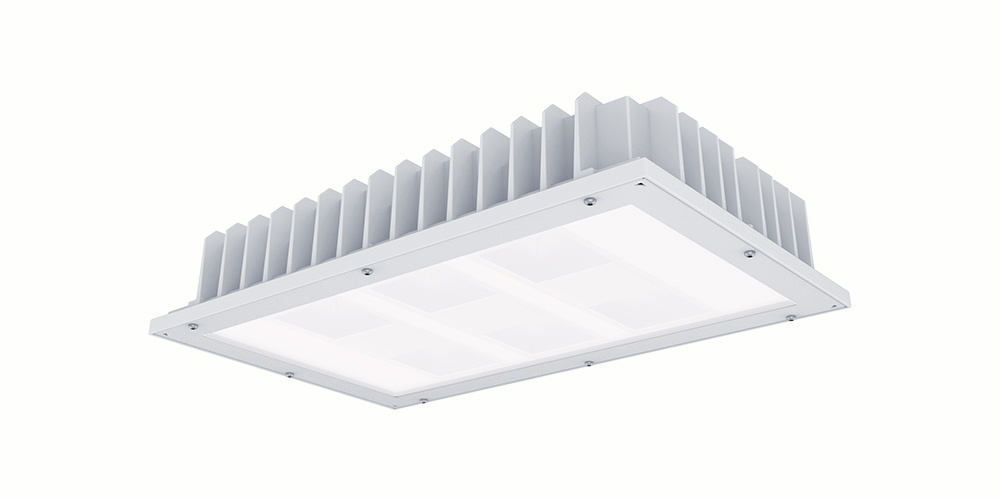

  • HERO SPA WIDE 16 20 Frosted CAROUSEL

Hero SPA

Asymmetrical version for placement at the side of the pool for simpler installation and service.

Print Icon Full product details
Fagerhult Logo 60px

Hero SPA

Eagle Lighting
HERO SPA ASSYMETRIC 12 16 CAROUSEL
  • HERO SPA WIDE 12 CAROUSEL
  • HERO SPA WIDE 16 20 CAROUSEL
  • HERO SPA WIDE 16 20 Frosted CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol IP65
Symbol IK08
Symbol IK07
Symbol CLO
Symbol RCM LOGO

  • General Information

    General Information

    For full product details please visit Fagerhul here.

    For details on the complete Hero range visit Fagerhult here.

    Specially designed for swimming pools.

    Asymmetrical version for placement at the side of the pool for simpler installation and service.

    Glare-free with various lumen packages and a good, glare-free light even from higher heights.

    INSTALLATION
    Flush-mounted, surface-mounted tandem bracket, tube bracket, wire bracket, adjustable ceiling/wall bracket and recess frame. Installation accessories are ordered separately, see accessories.

    DESIGN

    Luminaire body made of cast (RAL 9016) aluminium. Louvre frame made of coated alu-zinc.

    LOUVRE

    Tempered protective glass.

    REFLECTOR

    Reflectors made of semi-gloss metallised aluminium.

    DIMMING

    DALI control with CLO (Constant Light Output).

    MISC

    Corrosion protection class C4. Ambient temperature -25°C/35°C. Versions with higher Ta° on request.

    CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life.

  • Downloads

Product Code

Logos
