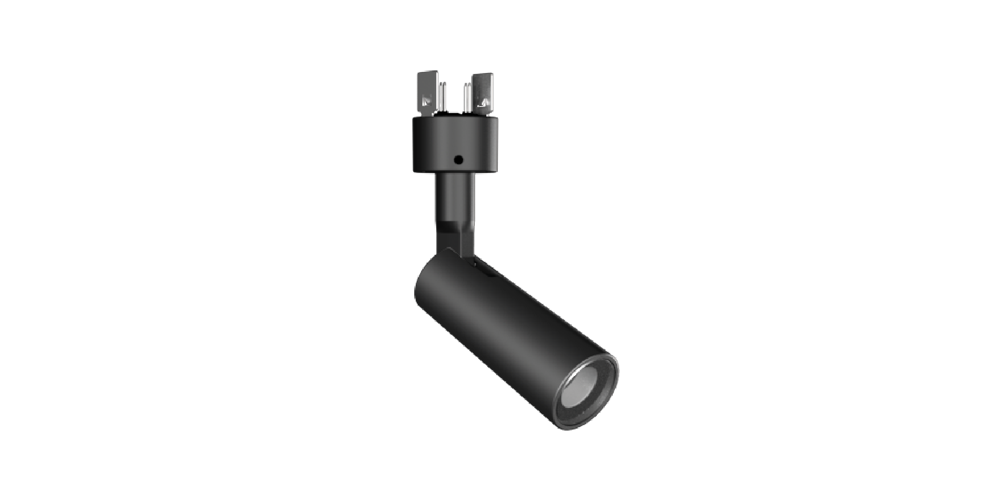

Plug‑in projector for the IP System® HIGHLIGHTER rod, designed for precise accent lighting with robust outdoor protection and quick, tool‑less connection.

Design

• Aluminium die‑cast body EN AB‑44100 (low copper) with stone‑wash pre‑treatment and 3‑stage paint
• Front trim 2mm AISI316L stainless steel; A4 stainless fixings; pre‑treated silicone gaskets
• 4mm tempered glass, flush with support ring for easy cleaning
• Protection: IP65; IK07; marine‑test 1200h; operating temperature range -20°C to +50°C

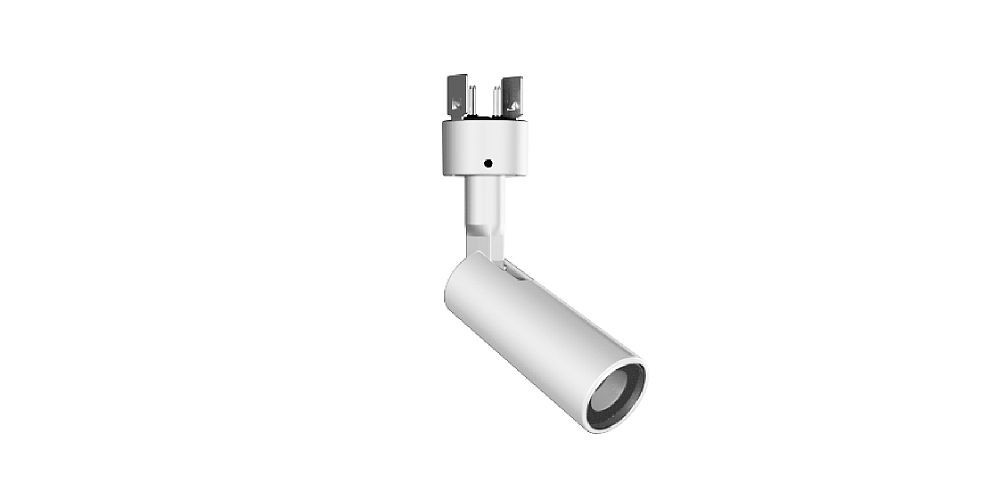

• Finishes: White, Black

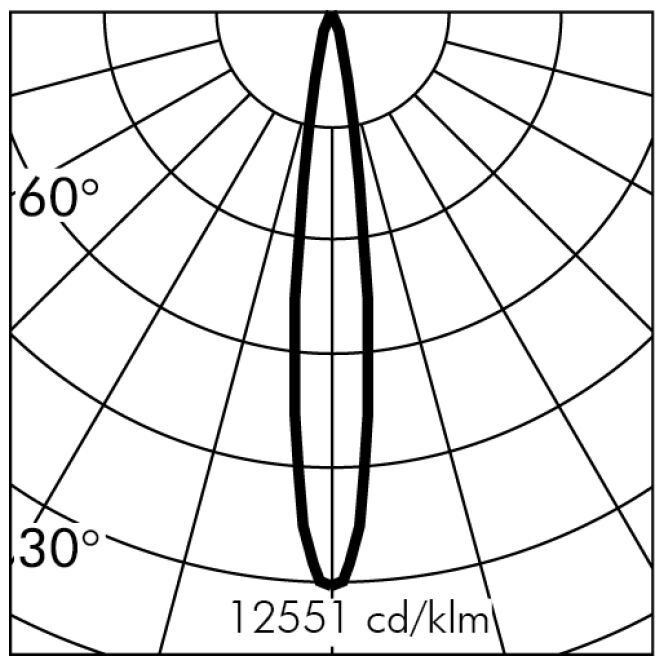

Optics

• Clear toughened glass; ULR 0%; BUG B1‑U0‑G0
• 4000K

Controls

• 24Vdc constant‑voltage supply; PWM dimming(<600Hz)
• Class III; reverse‑polarity protected

Installation

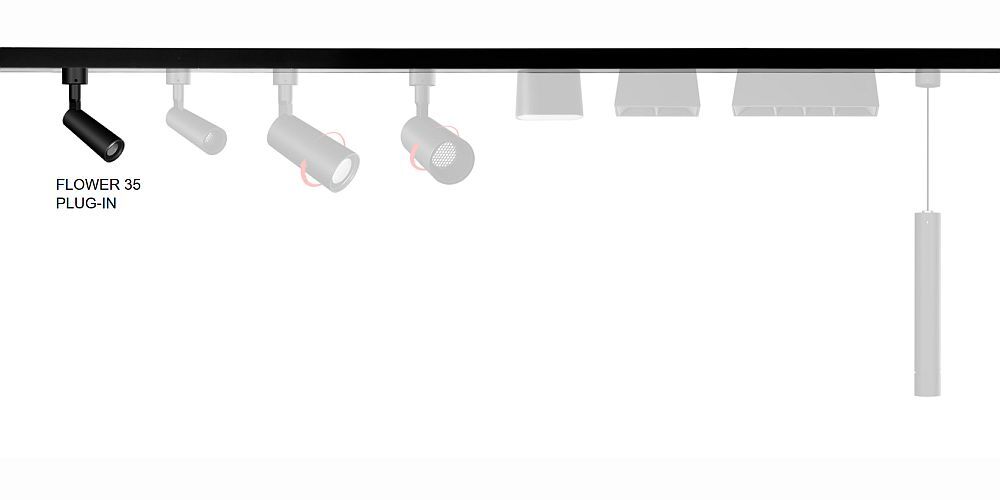

• Exclusive plug‑in to HIGHLIGHTER rod via dual system:
  • Metal clips latch to the anodised extrusion for permanent mechanical hold
  • Four pins pierce the silicone strip to contact the dedicated 24V line
• Painted aluminium veils conceal clips; end caps add safety and closure
• Remote power supply (DALI-2/SwitchDim options available) sized to total load

Additional Information

• Patented, Registered design
