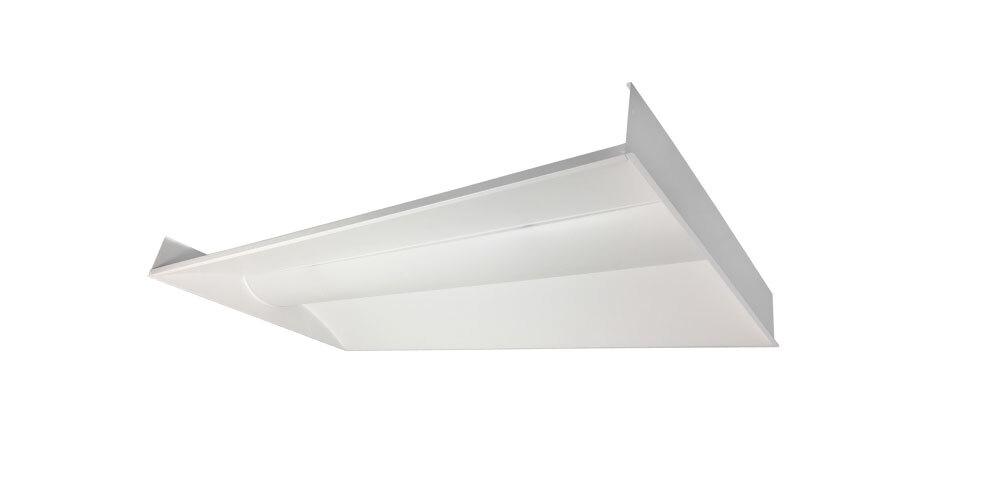

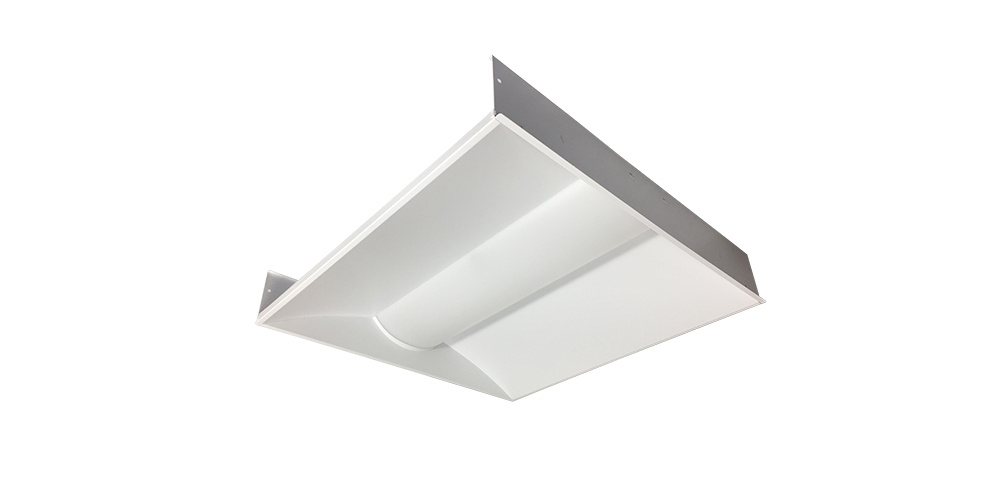

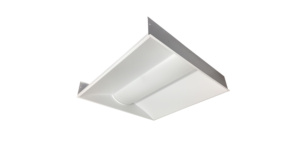

Enviro Evoline 600
-
General Information
Date Updated: 11 July 2022
Application
The 600mm-wide versions of the Enviro Evoline have been designed to meet the demanding requirements for office lighting in Australia and New Zealand.
Design
The Enviro Evoline family has one of the best vertical illuminance performances across the ELA range of recessed luminaires. The moulded end caps, which seamlessly join the diffuser to the body complete this locally designed, tested and manufactured luminaire.
Optics
The extruded central diffuser offers good glare control whilst the curved back reflector spreads light to achieve a wide beam without causing glare and to help reduce contrast on the ceiling.CONTROL
Non-dim and DALI as standard. Various control options available via customisation including Organic Response and Tuneable White.Please speak to your customer service representative for more details.
VARIATION SUFFIX Standard -000 DALI/STD terminal block -200 Tunable White (DALI Type 8) -220 Organic Response SN3 -950
INSTALLATION- T-Bar as standard.
- Plaster Recessed and Surface Mounted kits available as standard options.
- Restraint Kit available.
MOUNTING TYPES
- Plaster Recessed via Recessing kit
- Surface Mount via Surface Mounting kit
Key Family Details
-
Optical System:
Opal diffuser + Secondary reflector -
Mounting Type:
Exposed T-bar -
Colour Consistency Initial:
3 SDCM -
Finish Options:
Standard White -
System Warranty:
5 years -
CRI (Ra):
90+ -
CCT:
4000K -
R9:
50+ -
COI Compliant:
Yes -
Melanopic Ratio:
0.70+
-

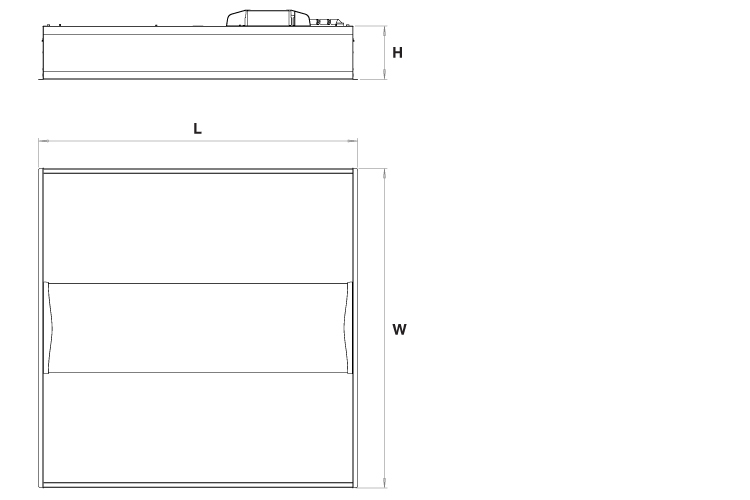

Technical Information
-
EL-EVO-1530/-1531
L: 593; W: 593; H: 100; Weight: 3.4kg -
EL-EVO-1532/-1533
L: 1193; W: 593; H: 100; Weight: 5.8kg

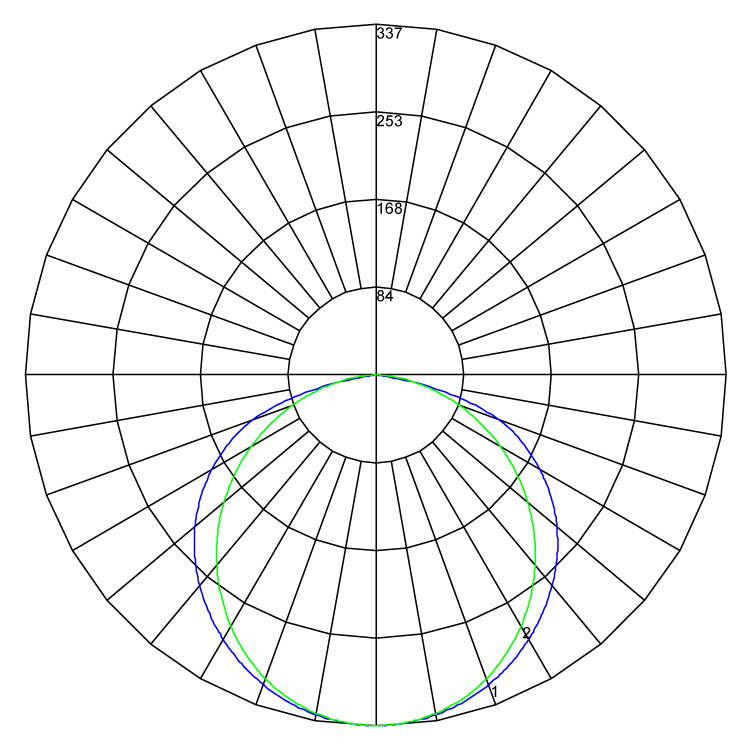

Nominal polar curve
-
Product Code
Accessories
| DESCRIPTION | CODE |
| Restraint Kit - 4 x gripple, 2 x 2m wire | EL-ACC-210-000 |
| Surface mount 600x600 T/S 100mm ET fitting | EL-ACC-611-000 |
| Surface mount 1200x600 T/S 100mm ET fitting | EL-ACC-737-000 |
| Plaster frame kit T/S 600x600 ET | EL-ACC-851-000 |
| Plaster frame kit T/S 1200x600 ET | EL-ACC-859-000 |
