PROJECT



ARCHITECT/DESIGNER



TYPE NO.

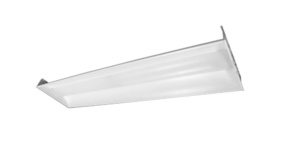

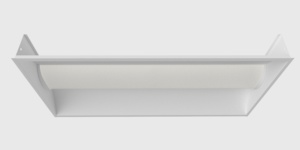

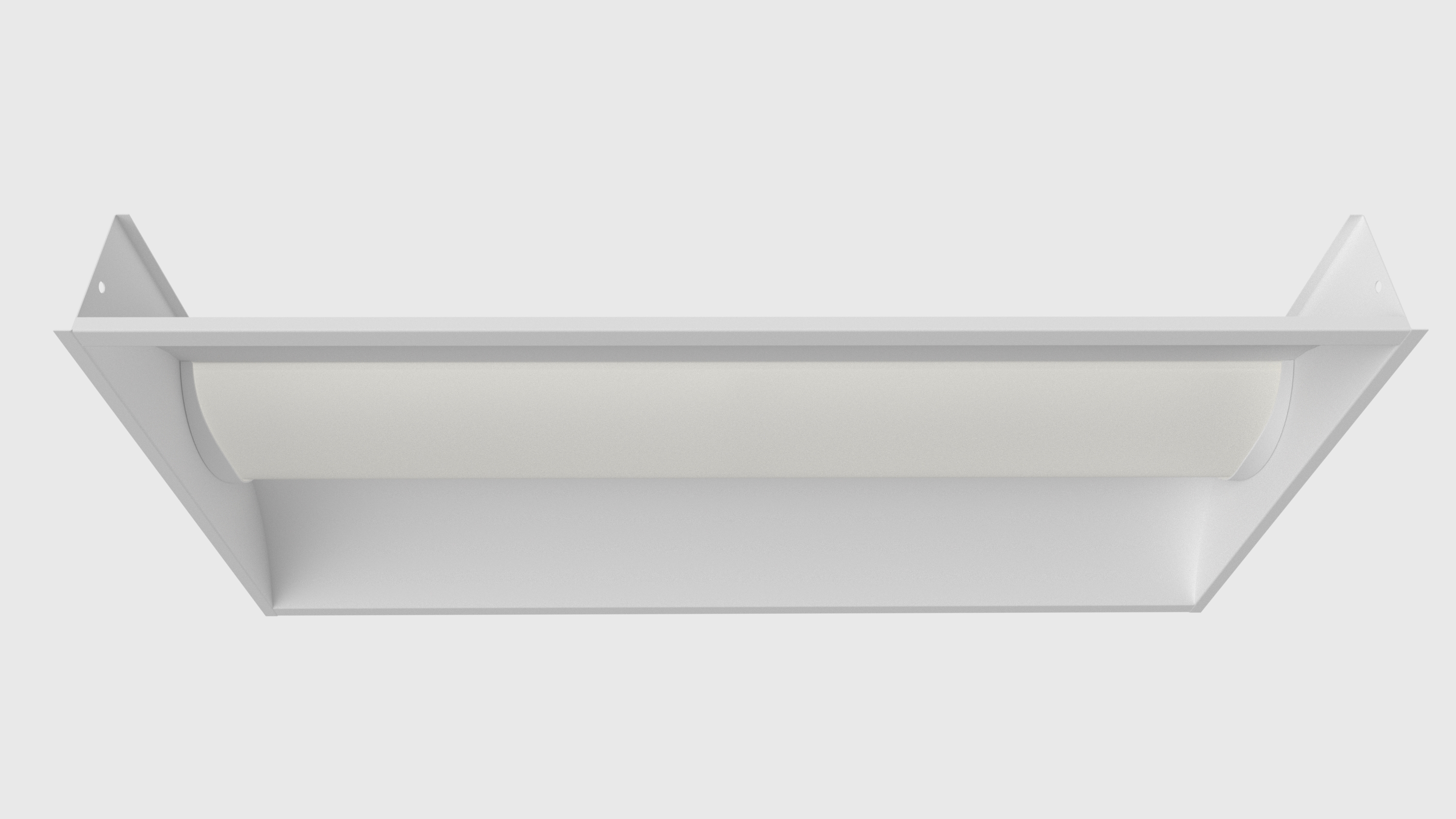

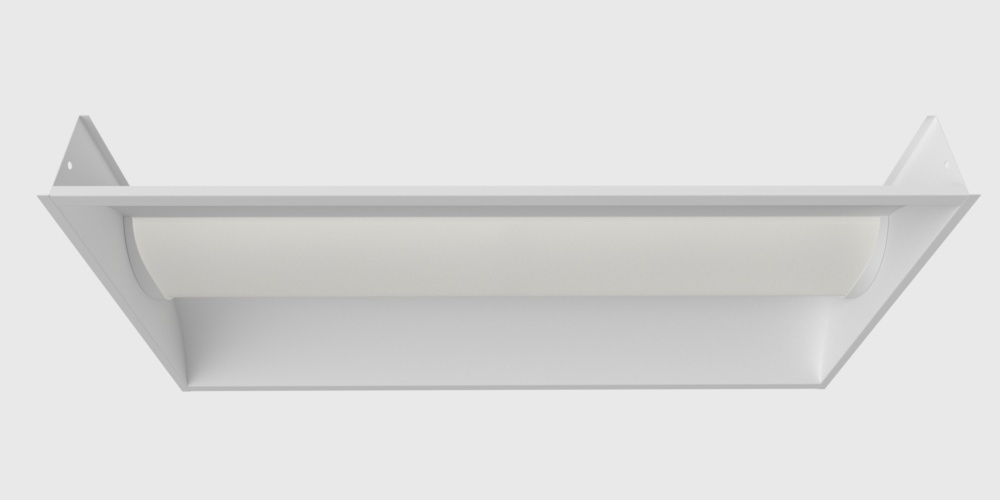

  • Enviro Evoline 1200x300 CAROUSEL
  • Enviro Evoline 600x600 CAROUSEL
  • Enviro Evoline 1200x600 CAROUSEL
  • Enviro Evoline 1200x300 CAROUSEL

Enviro Evoline

The Enviro Evoline has been designed to meet the demanding requirements for office lighting in Australia and New Zealand.

Local manufacture
Eagle Lighting

Enviro Evoline

Eagle Lighting
Enviro Evoline 1200x300 CAROUSEL
  • Enviro Evoline 600x600 CAROUSEL
  • Enviro Evoline 1200x600 CAROUSEL
  • Enviro Evoline 1200x300 CAROUSEL
Symbol LED
Symbol DIRECT LIGHT DISTRIBUTION
Symbol CLASS I
Symbol DO NOT INSULATE
Symbol IP40 20
Symbol COI COMPLIANT
Symbol CUSTOMISABLE
Symbol ORGANIC RESPONSE LOGO
Symbol TUNEABLE
Symbol IES
Symbol REVIT
Symbol RCM LOGO
UGR19v1
Symbol CRI95
Symbol CLO

  • General Information

    General Information

    APPLICATION
    The Enviro Evoline has been designed to meet the demanding requirements for office lighting in Australia and New Zealand.

    DESIGN
    With its sleek, minimal and modern look it has one of the best vertical illuminance performances within the ELA family of recessed luminaires. The molded end caps, which seamlessly join the diffuser to the body complete this locally designed, tested and manufactured luminaire.

    LED UPGRADE

    Following a recent LED upgrade, the Enviro Evoline now delivers improved energy efficiency and reduced power consumption, making it more efficient than ever before.

    OPTICS

    The extruded central diffuser offers good glare control whilst the curved back reflector spreads light to achieve a wide beam without causing glare and to help reduce contrast on the ceiling.

    CONTROL
    Non-dim and DALI as standard. Various control options available via customisation including Organic Response and Tuneable White.

    Please speak to your customer service representative for more details.

    VARIATIONSUFFIX
    Standard DALI (CLO)-244
    Organic Response SN3 (CLO)-974


    INSTALLATION

    • T-Bar as standard.
    • Plaster Recessed and Surface Mounted kits available as standard options.
    • Restraint Kit available.

    MOUNTING TYPES

    • Plaster Recessed via Recessing kit
    • Surface Mount via Surface Mounting kit

    Key Family Details

    • Optical System:
      Opal diffuser + Secondary reflector
    • Mounting Type:
      Exposed T-Bar
    • Colour Consistency Initial:
      SDCM 2
    • Finish Options:
      White
    • CCT:
      4000K
    • CRI (Ra):
      95+
    • R9:
      90+
    • COI Compliant:
      Yes
    • M-DER (MR):
      >0.67 (0.74)
  • Technical Information

    Enviro Evoline 300 Dimensions v1 300421
    • EL-EVO-2103 ... -2105
      L: 592mm; W: 292mm; H: 67mm; Weight 2.0kg
    • EL-EVO-2106/ -2107
      L: 592mm; W: 592mm; H: 67mm; Weight 3.0kg
    • EL-EVO-2100 ... -2102
      L: 1192mm; W: 292mm; H: 67mm; Weight 3.0kg
    • EL-EVO-2018/ -2109
      L: 1192mm; W: 592mm; H: 67mm; Weight 5.5kg
    1000lm EL EVO 600x300 polar curve
    Normalised polar curve

    1000lm EL EVO 600x600 polar curve
    Normalised polar curve

    1000lm EL EVO 1200x300 polar curve
    Normalised polar curve

    1000lm EL EVO 1200x600 polar curve
    Normalised polar curve

    • EL-EVO-2103 ... -2105
      L: 592mm; W: 292mm; H: 67mm; Weight 2.0kg
    • EL-EVO-2106/ -2107
      L: 592mm; W: 592mm; H: 67mm; Weight 3.0kg
    • EL-EVO-2100 ... -2102
      L: 1192mm; W: 292mm; H: 67mm; Weight 3.0kg
    • EL-EVO-2018/ -2109
      L: 1192mm; W: 592mm; H: 67mm; Weight 5.5kg
    Enviro Evoline 300 Dimensions v1 300421
    1000lm EL EVO 600x300 polar curve
    Normalised polar curve

    1000lm EL EVO 600x600 polar curve
    Normalised polar curve

    1000lm EL EVO 1200x300 polar curve
    Normalised polar curve

    1000lm EL EVO 1200x600 polar curve
    Normalised polar curve

  • Downloads

Product Code

Accessories
DESCRIPTIONCODE
Restraint Kit - 4 x gripple, 2 x 2m wireEL-ACC-210-000
Surface mount kit to suit 600x300EL-ACC-610-000
Surface mount kit to suit 1200x300
EL-ACC-612-000
Plaster recess kit 600x300
EL-ACC-850-000
Plaster recess kit 1200x300
EL-ACC-852-000
Plaster recess kit 1500x300
EL-ACC-853-000
